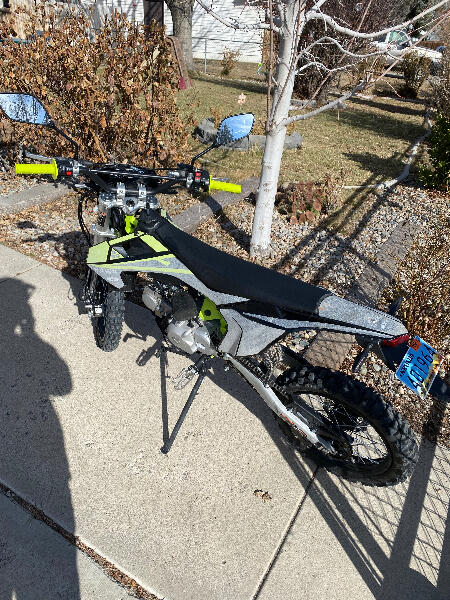

Free Shipping! X-PRO Hawk 125cc Dirt Bike with All Lights and 4-speed Manual Transmission! Electric/Kick Start, Big 19"/16" Tires! Zongshen Brand Engine!
How-To Guides
Specifications
| Model Number | DB-K015 |
| Engine/Drive Train | |
|---|---|
| Engine | Zongshen Brand 125cc 4-stroke |
| Cylinder Arrangement | Single |
| Cooling System | Air cooled |
| Compression Ratio | 9.0:1 |
| Bore x Stroke | ￠54×54(mm) |
| Max Power[Kw/r/m] | 6.3(1±10%)/7500(1±5%） |
| Max Torque[N.m/r/m] | 8.8(1±10%)/5500(1±5%） |
| Transmission | 4-UP Manual Clutch |
| Final Drive | #428 chain, 13T/41T |
| Start System | Electric/Kick |
| Ignition | CDI |
| Carburetor | PZ26 |
| Max Speed (MPH) | 55 Mph (Depending on Riders Weight and Road Conditions) |
| Battery | 12V/4AH |
| Frame /Body/ Suspension / Brakes | |
| Frame | Perimeter Cradle Type Steel Frame |
| Front Suspension | Φ45*Φ48-750mm Inverted Hydraulic Forks |
| Rear Suspension | 12*315mm None-Adjustable Shock |
| Front Brakes | Hydraulic Dual Piston Caliper, 220mm Disc |
| Rear Brakes | Hydraulic Single Piston Caliper, 190mm Disc |
| Front Tires | 70/100-19" |
| Rear Tires | 90/100-16" |
| Capacities / Dimensions | |
| Weight Capacity(lbs) | 209 |
| Net Weight (lbs) | 172 |
| Gross Weight (lbs) | 203 |
| Overall Length | 67.3" |
| Overall Width | 28.5" |
| Overall Height | 45.3" |
| Package Size | 66x16x31" |
| Wheelbase | 52" |
| Seat Height | 34" |
| Min Ground Clearance | 11.8" |
| Fuel Capacity | 1.2 Gal |
| Safety / Control | |
| Engine Kill Switch | Yes |
| Foot Brake | Yes |
| Headlights | Yes |
| Tail light | Yes |
| Turn Signal Indicators | Yes |
| Horn | Yes |
| Others | |
| EPA Approved | Yes |
|
|
|
| CARB Information | This bike is not legal for sale in California. |
