X-PRO Rover 50 (GK-Z001) Parts - Frame
We guarantee that all parts are fit for the X-PRO 50cc Rover Go Kart
If you can not find certain parts or parts for a certain vehicle, please contact us, and we will endeavor to assist you.
| No. | Parts No. | Discription |
| 1 | steering wheel screws | |
| 2 | steering wheel nut | |
| 3 | 111-910004-1 | steering wheel trim |
| 4 | 111-910004 | steering wheel |
| 5 | Steering column fixing part 1 | |
| 6 | 230-910009 | steering column |
| 7 | Steering column fixing part two | |
| 8 | Steering column steering iron | |
| 9 | 254-910006 | Steering Rod - Short |
| 10 | 254-910005 | Steering Rod - Long |
| 11 | Steering Rod nut | |
| 12 | Steering Rod spacer | |
| 13 | Steering rod bolt | |
| 14 | Steering iron shim | |
| 15 | Steering rod spacer | |
| 16 | 300-910022-L | left turning arm |
| 17 | 300-910022-R | right turning arm |
| 18 | turning arm spacer | |
| 19 | turning arm bearings | |
| 20 | turning arm limit bolt | |
| 21 | turning arm limit nut | |
| 22 | front wheel nut+front wheel spacer | |
| 23 | Parking shaft | |
| 24 | parking circlip | |
| 25 | brake spring | |
| 26 | turning arm set bolt | |
| 27 | turning arm fixing washer | |
| 28 | turning arm set nut | |
| 29 | Pedal leather fixing nut | |
| 30 | Tread skin fixing bolt | |
| 31 | pedal spring | |
| 32 | Accelerator pedal adjustment nut | |
| 33 | Accelerator pedal adjustment bolt | |
| 34 | 111-910005 | brake pedal |
| 35 | 111-910006 | Accelerator pedal leather |
| 36 | Brake pedal | |
| 37 | Accelerator | |
| 38 | Pedal retaining nut | |
| 39 | pedal fixing bolt | |
| 40 | Protective frame fixing nut | |
| 41 | Protective frame fixing bolts | |

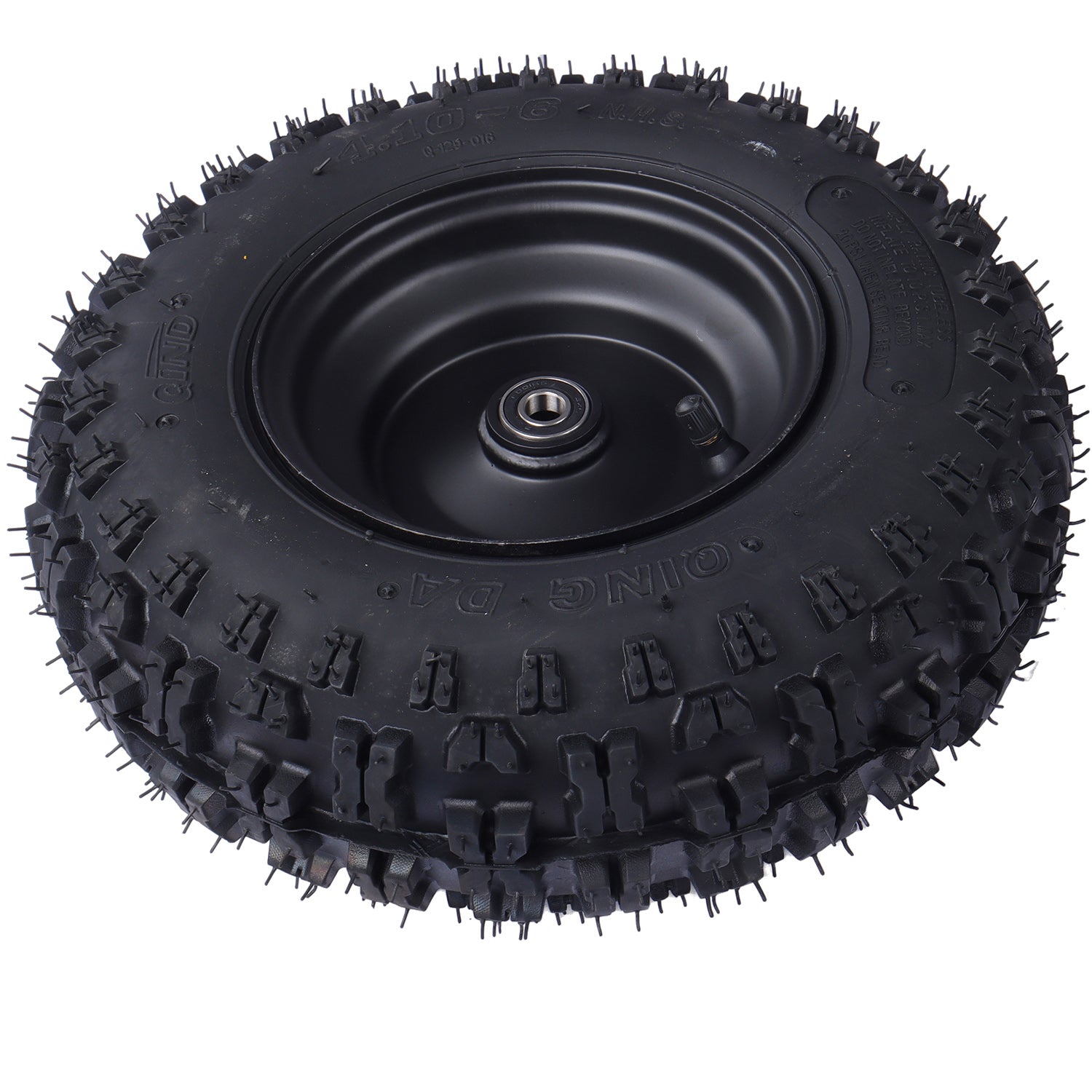

| 42 | 396-910013 | Front wheel assembly |

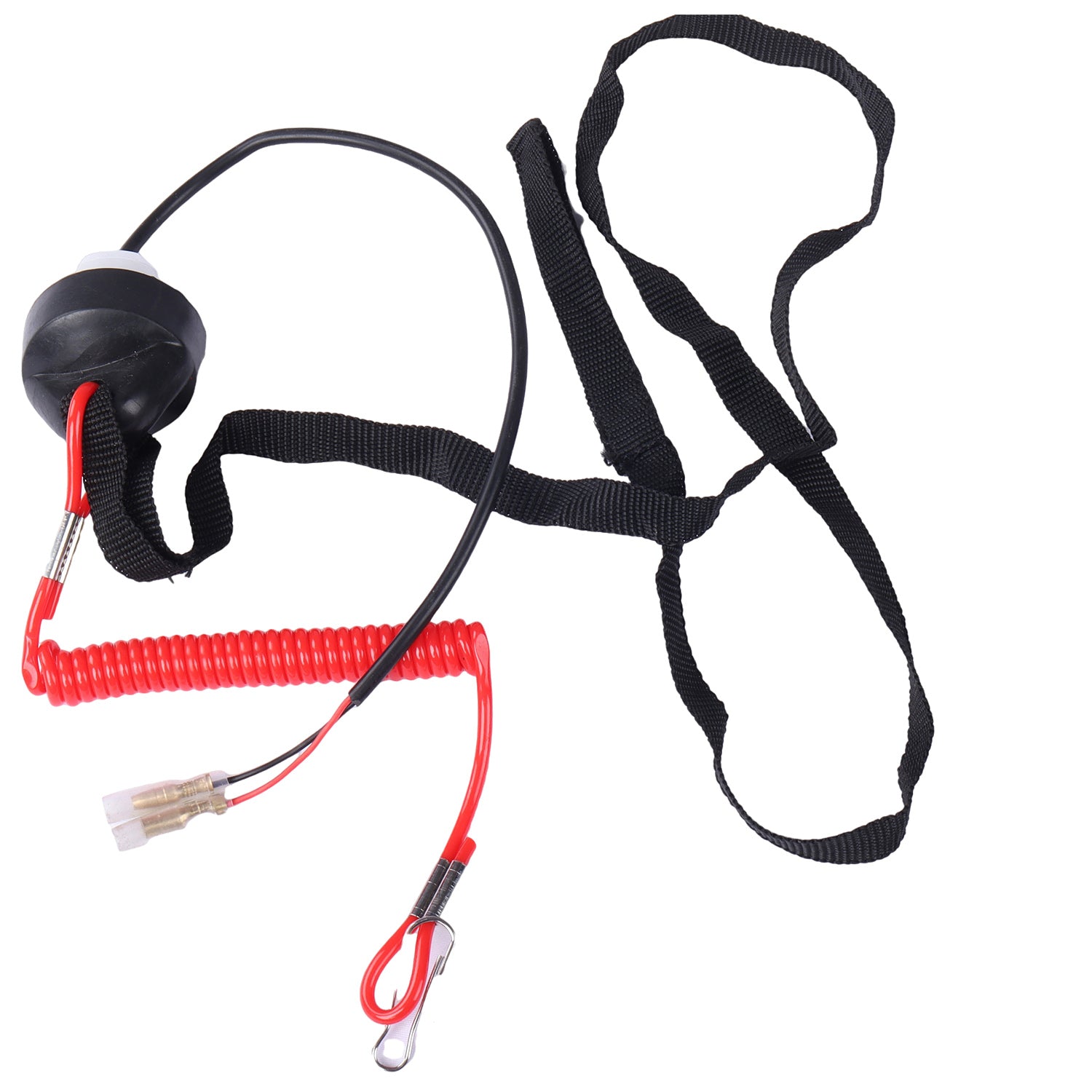

| 43 | 273-910005 | emergency shutdown switch |
| 44 | electric door lock | |
| 45 | flameout switch | |
| 46 | frame | |
| 47 | protective frame | |
| 48 | 203-910011 | fuel tank |
| 49 | anti-leak hose | |
| 50 | 203-910011-1 | fuel tank cap |
| 51 | 254-910004 | Steering Rod - Short |
| 52 | Steering Rod nut | |
| 53 | Steering rod spacer | |
| 54 | Steering rod bolt | |
| 55 | turning arm fixing washer | |
| 56 | brake spring | |
| 57 | brake lever | |
| 58 | Brake connection pedal bolt | |
| 59 | Brake connection pedal nut | |
| 60 | Brake connection pedal spacer | |
| 61 | Brake connection pedal spacer - short | |
| 62 | Brake connection pedal spacer - long |
