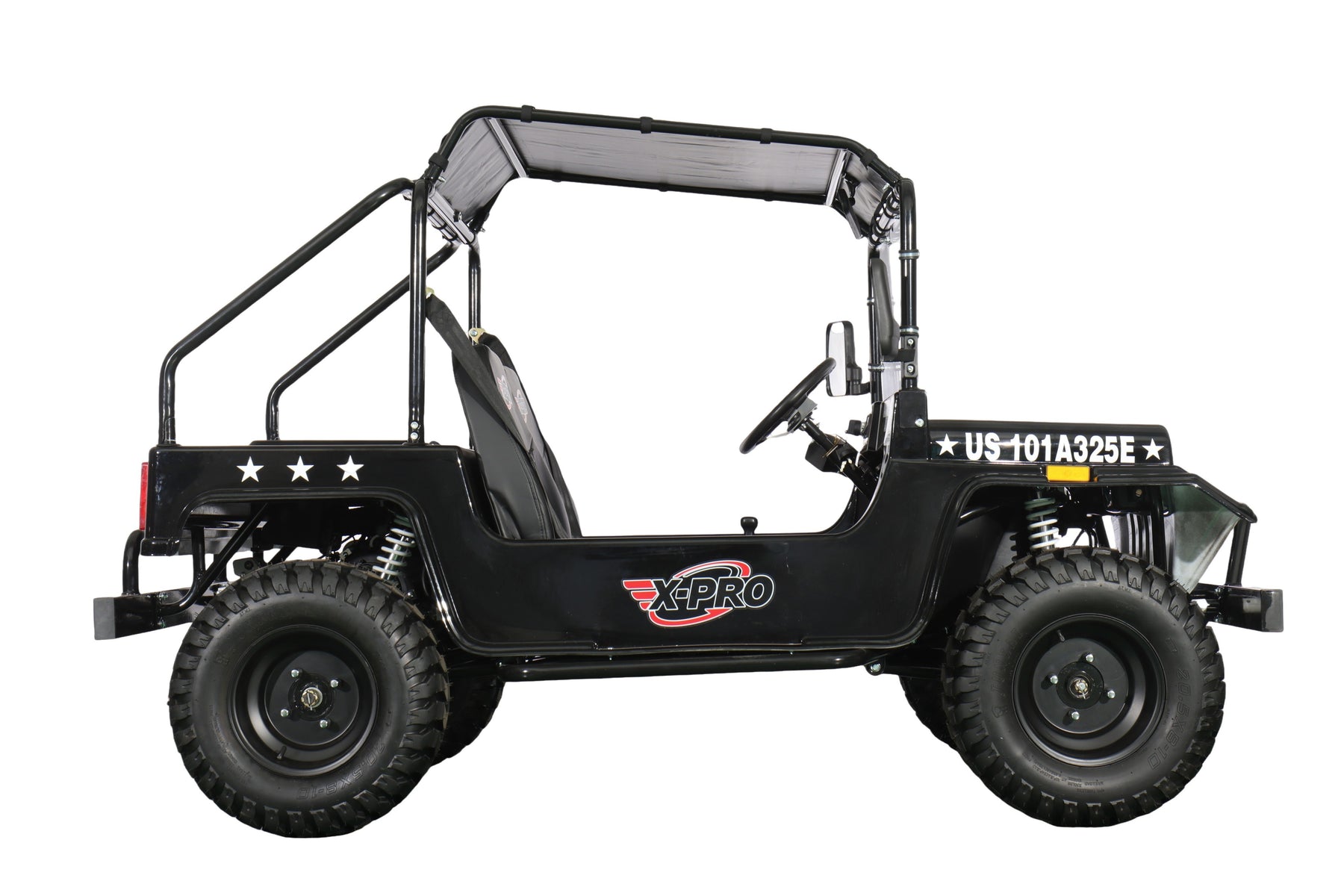

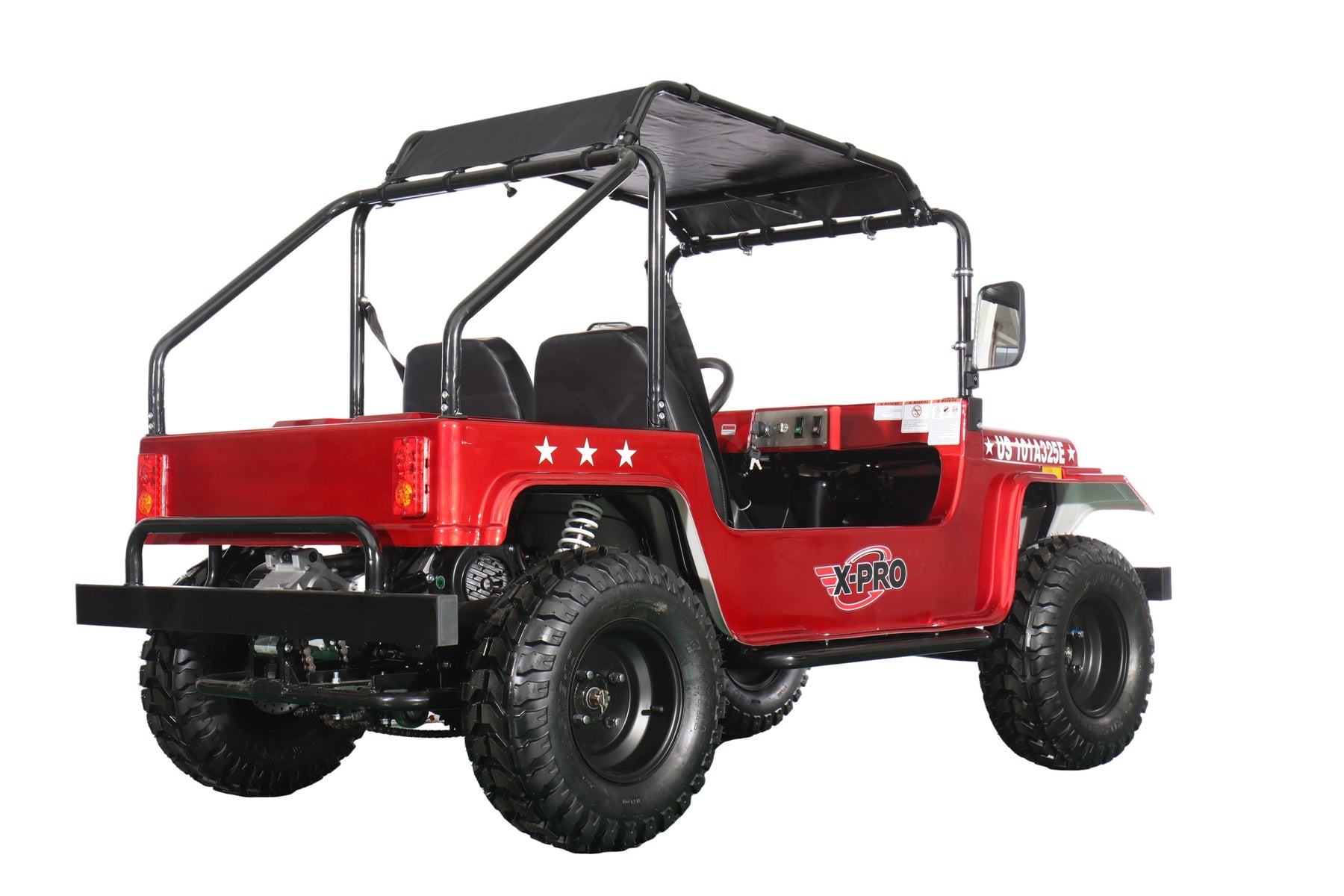

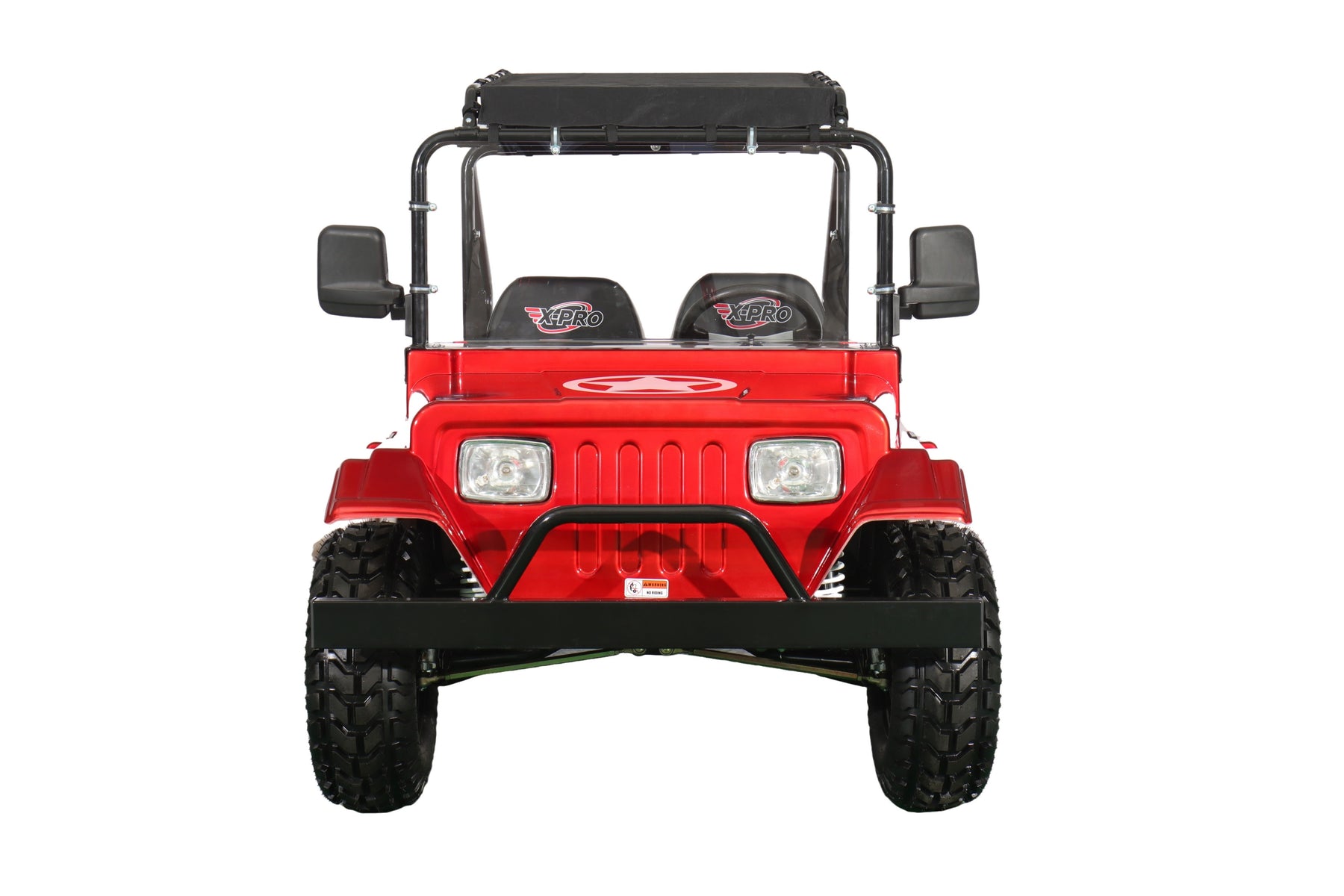

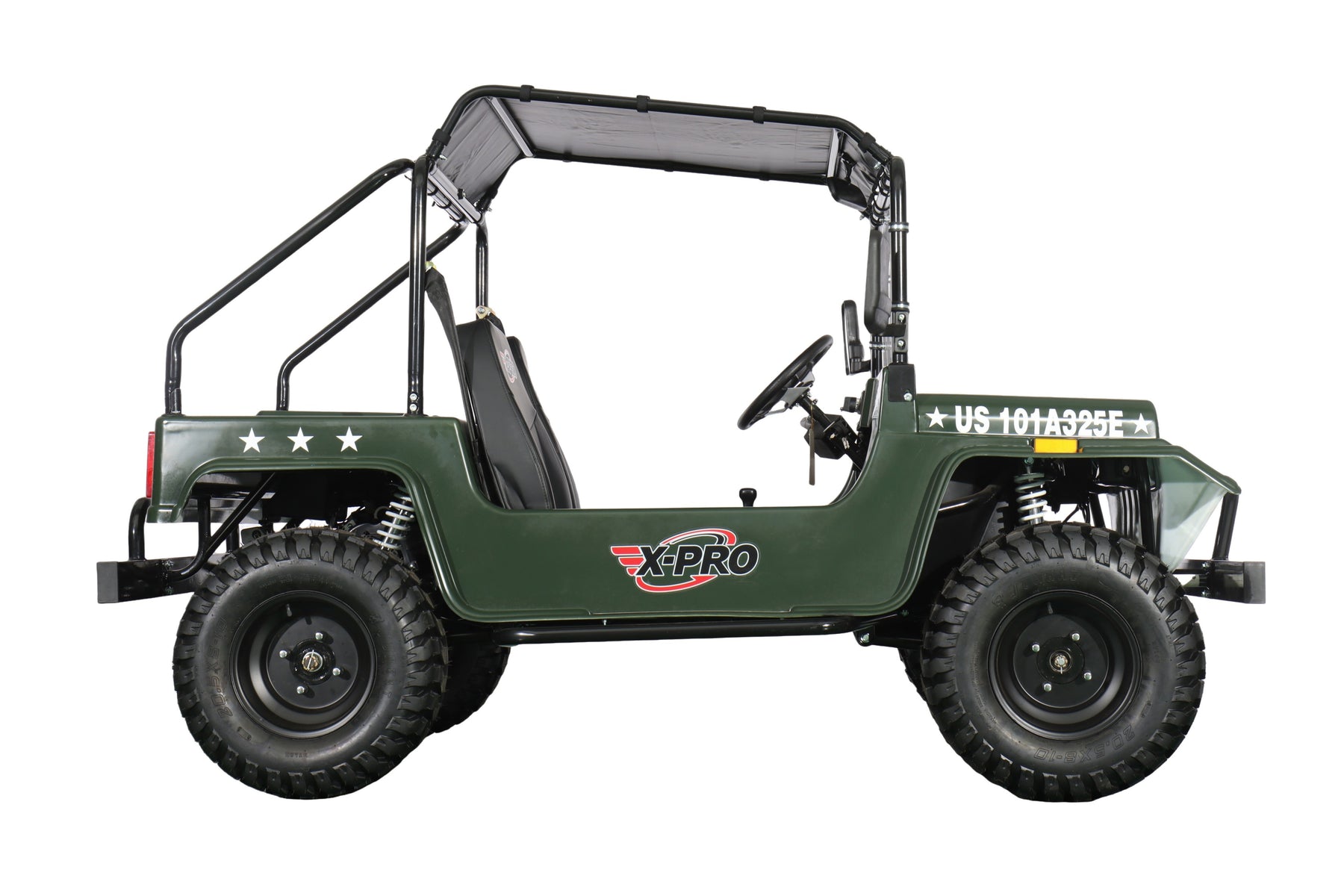

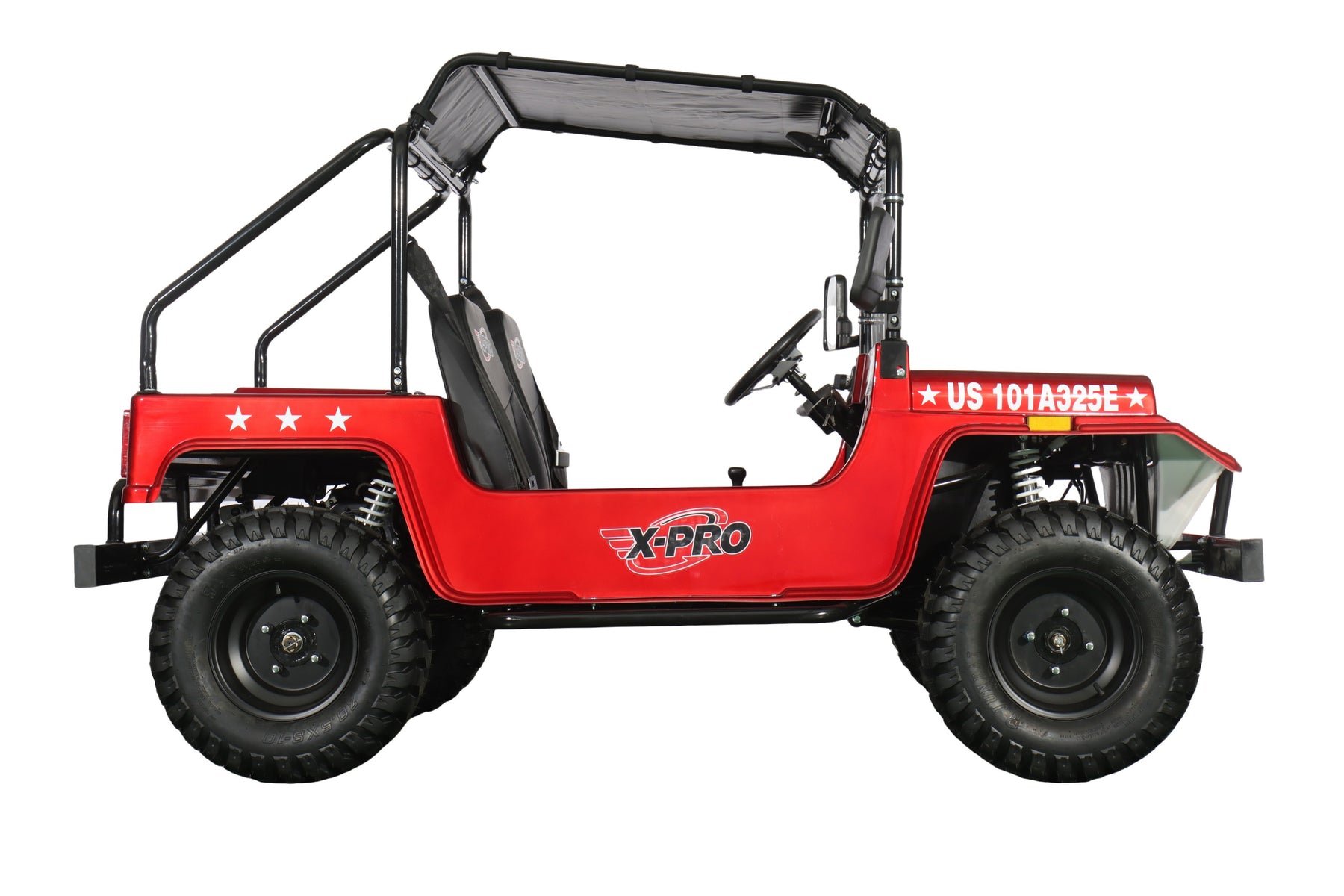

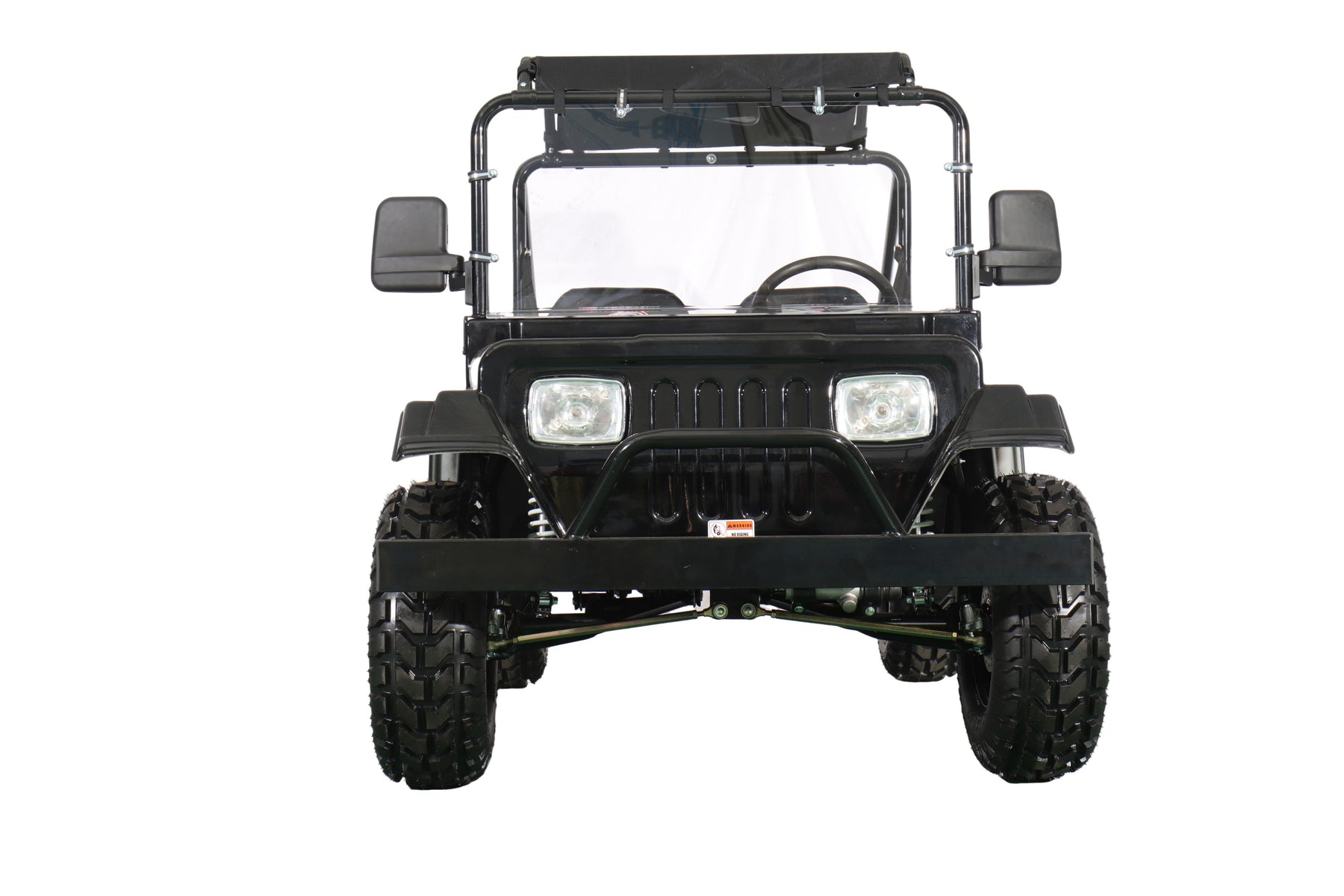

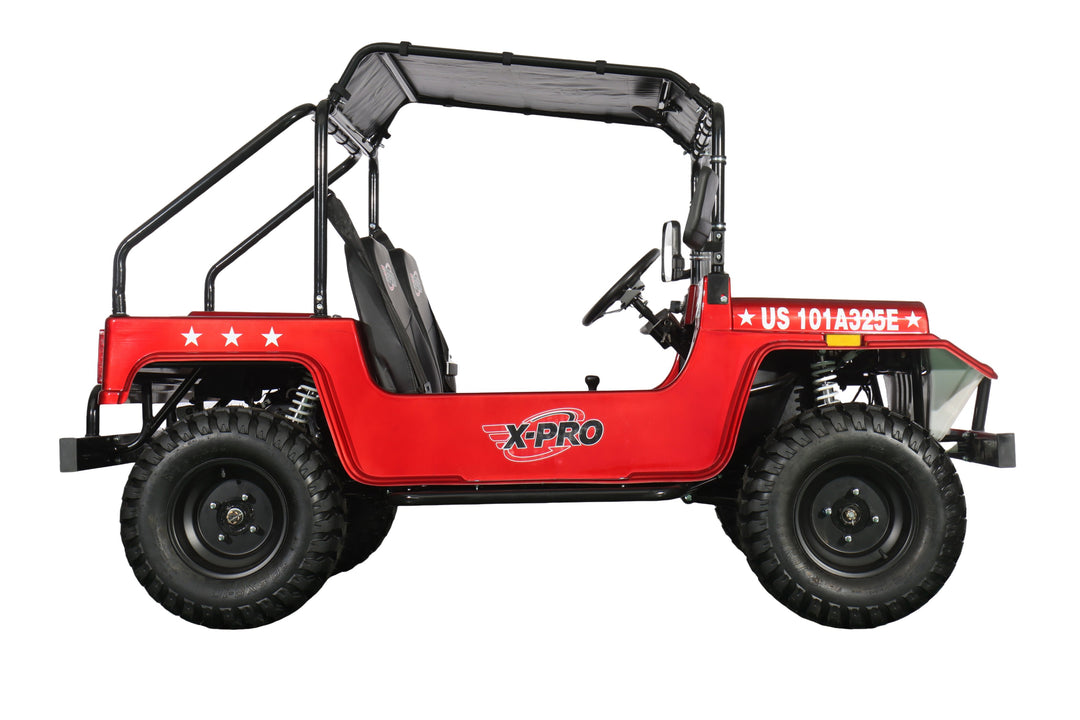

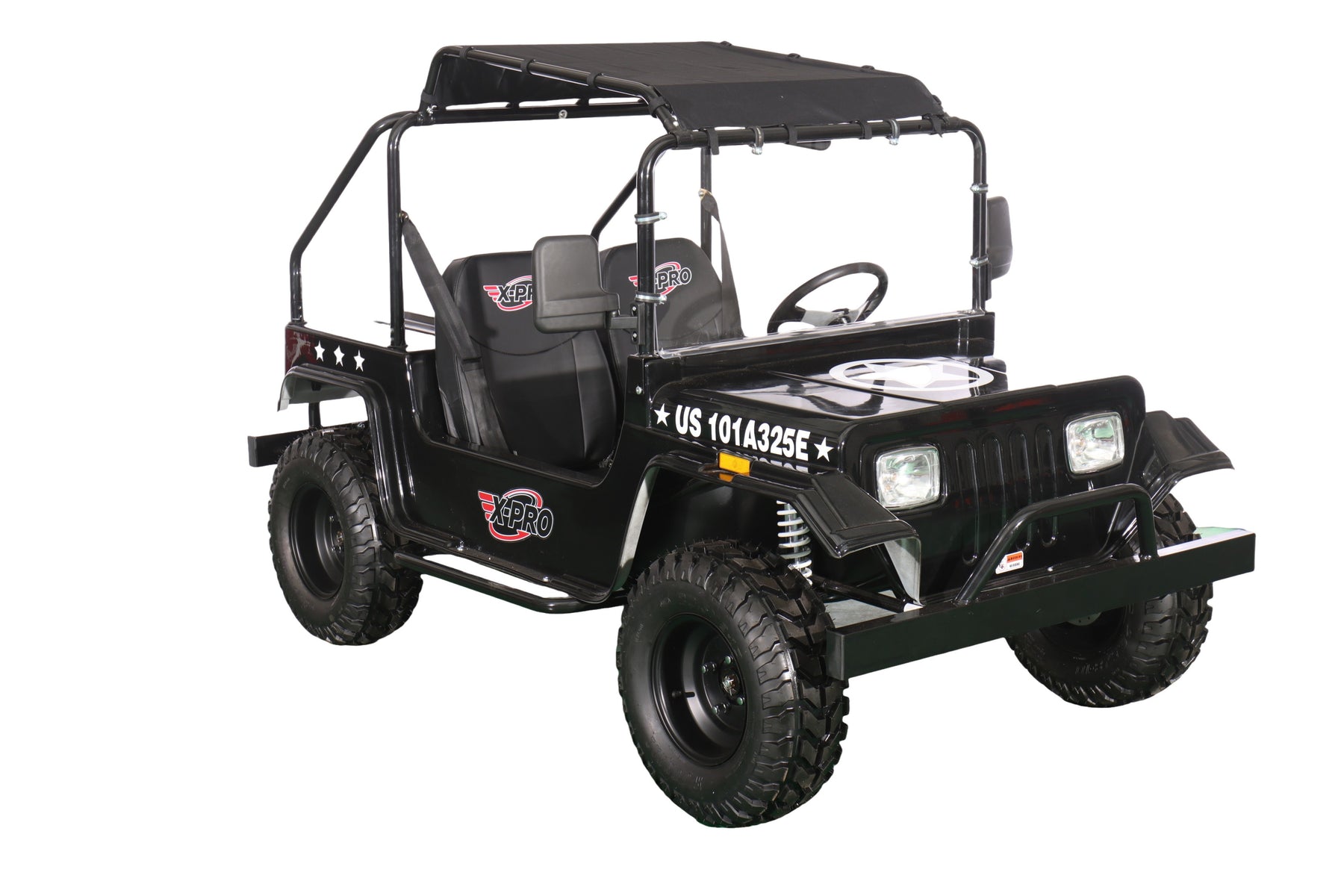

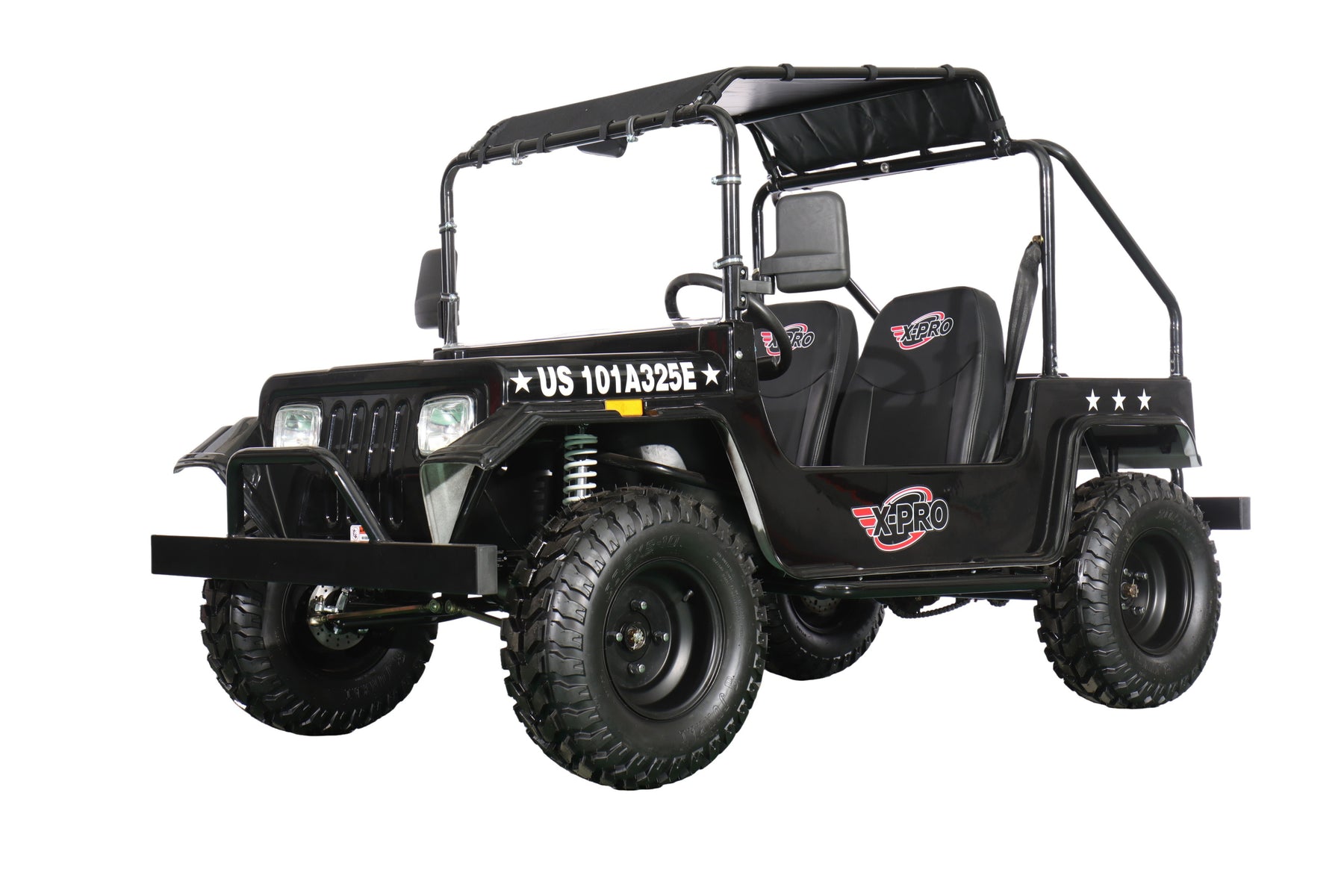

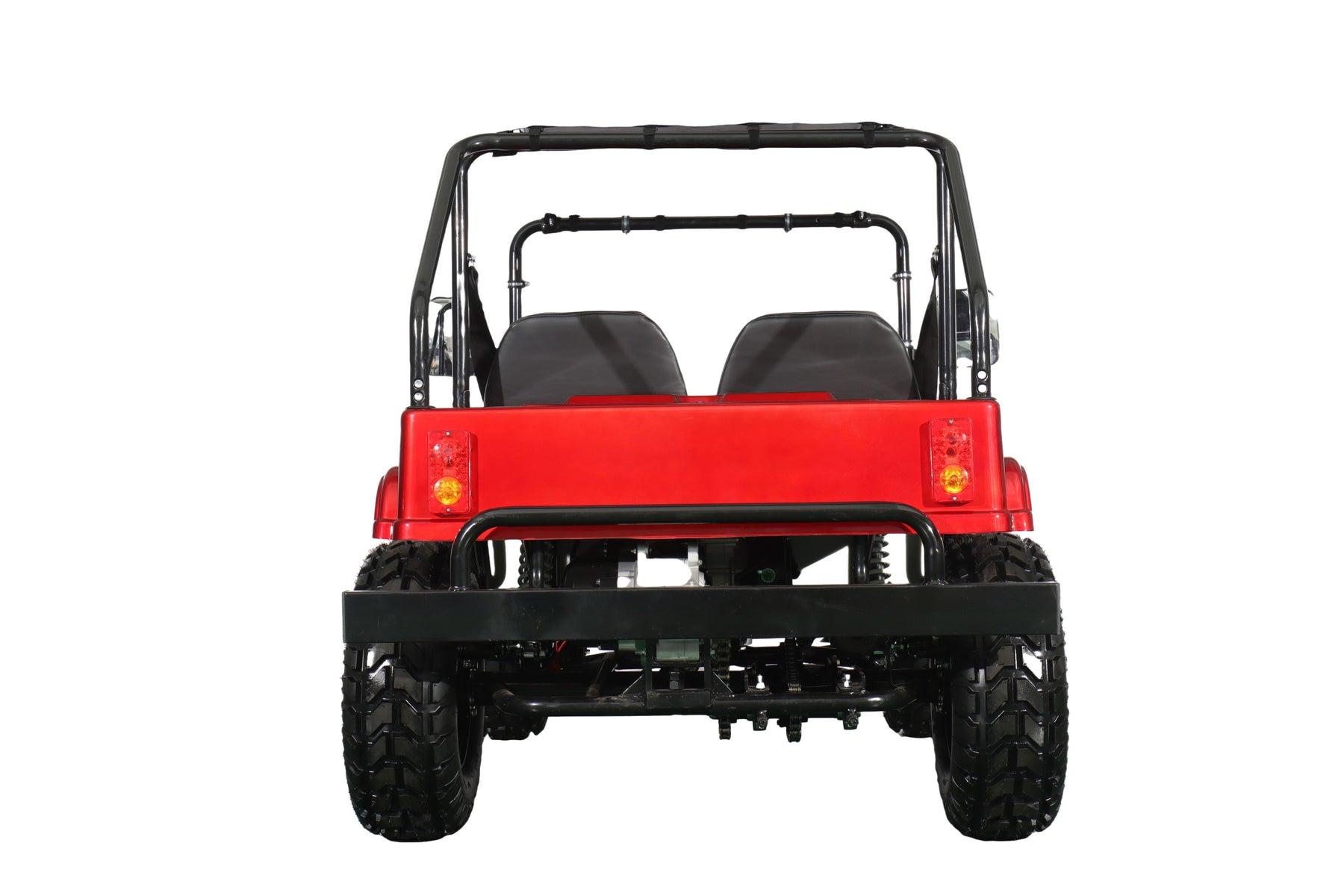

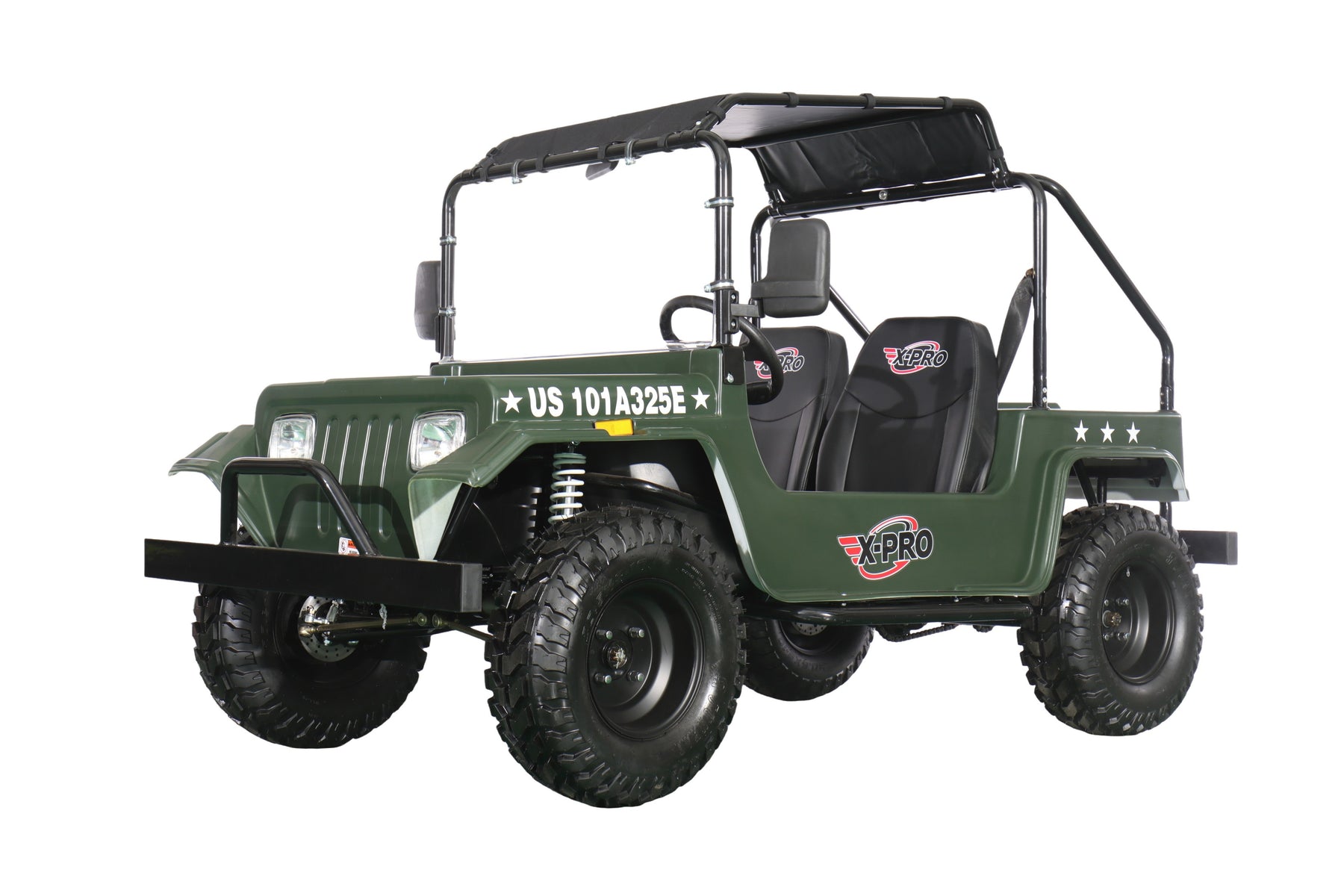

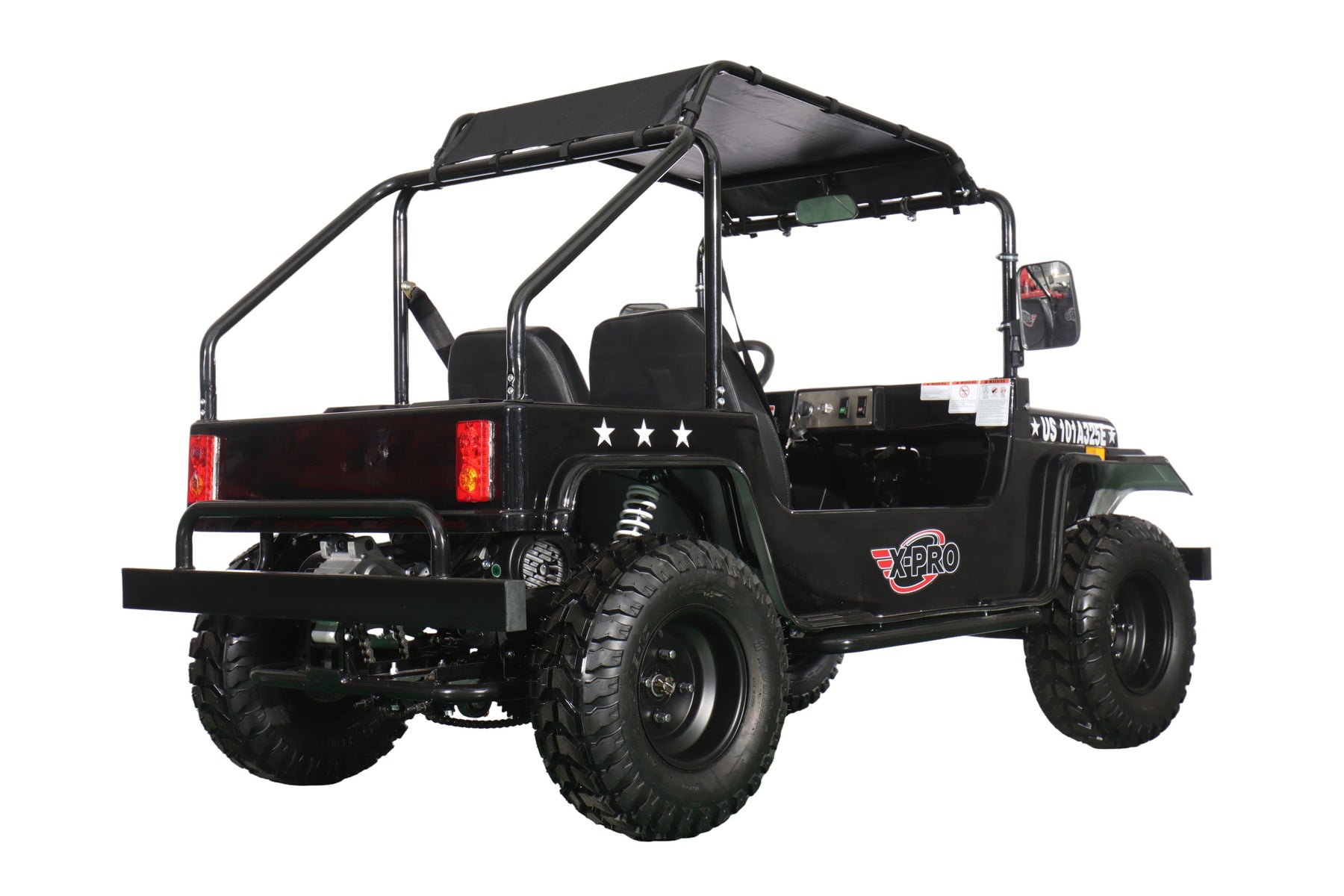

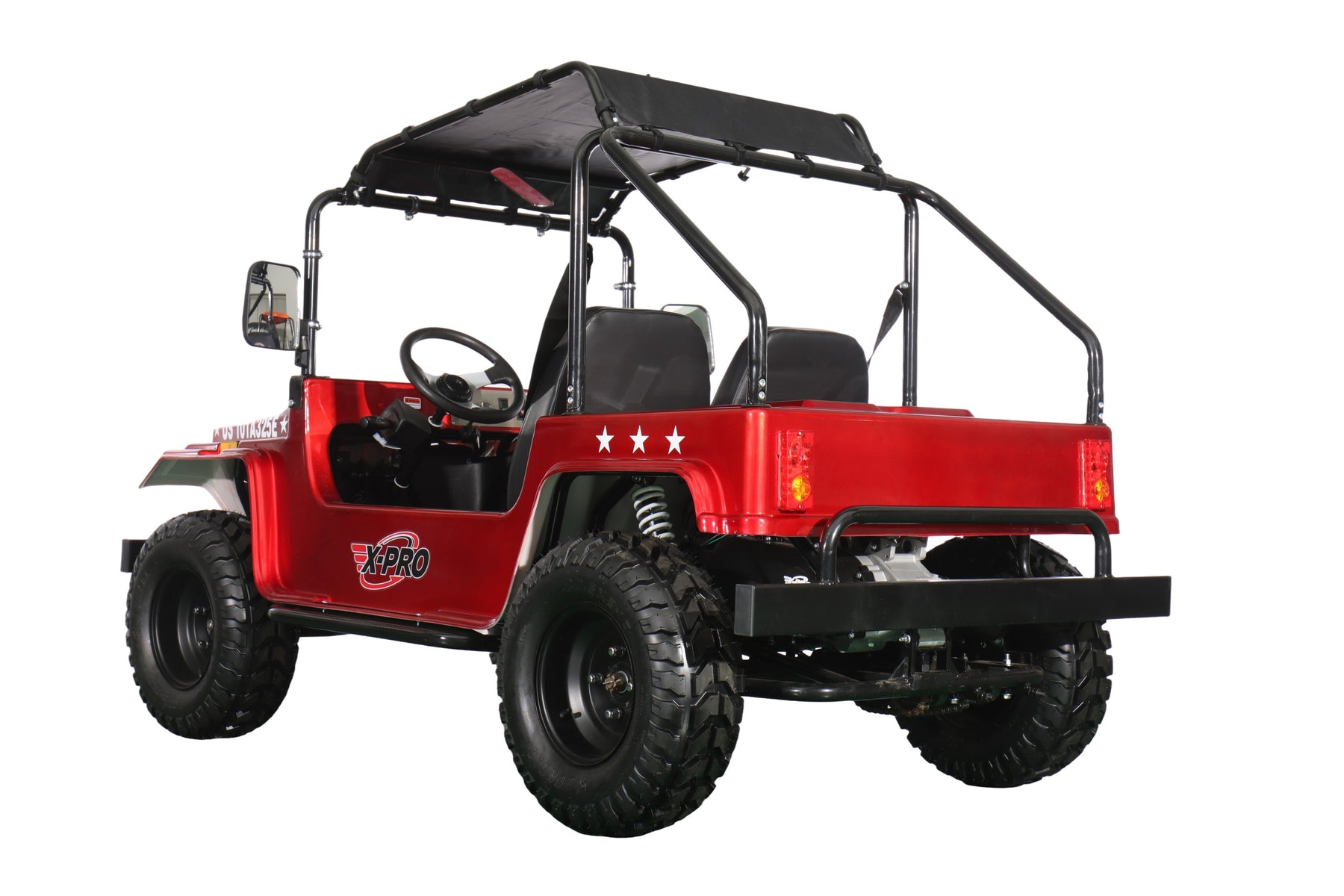

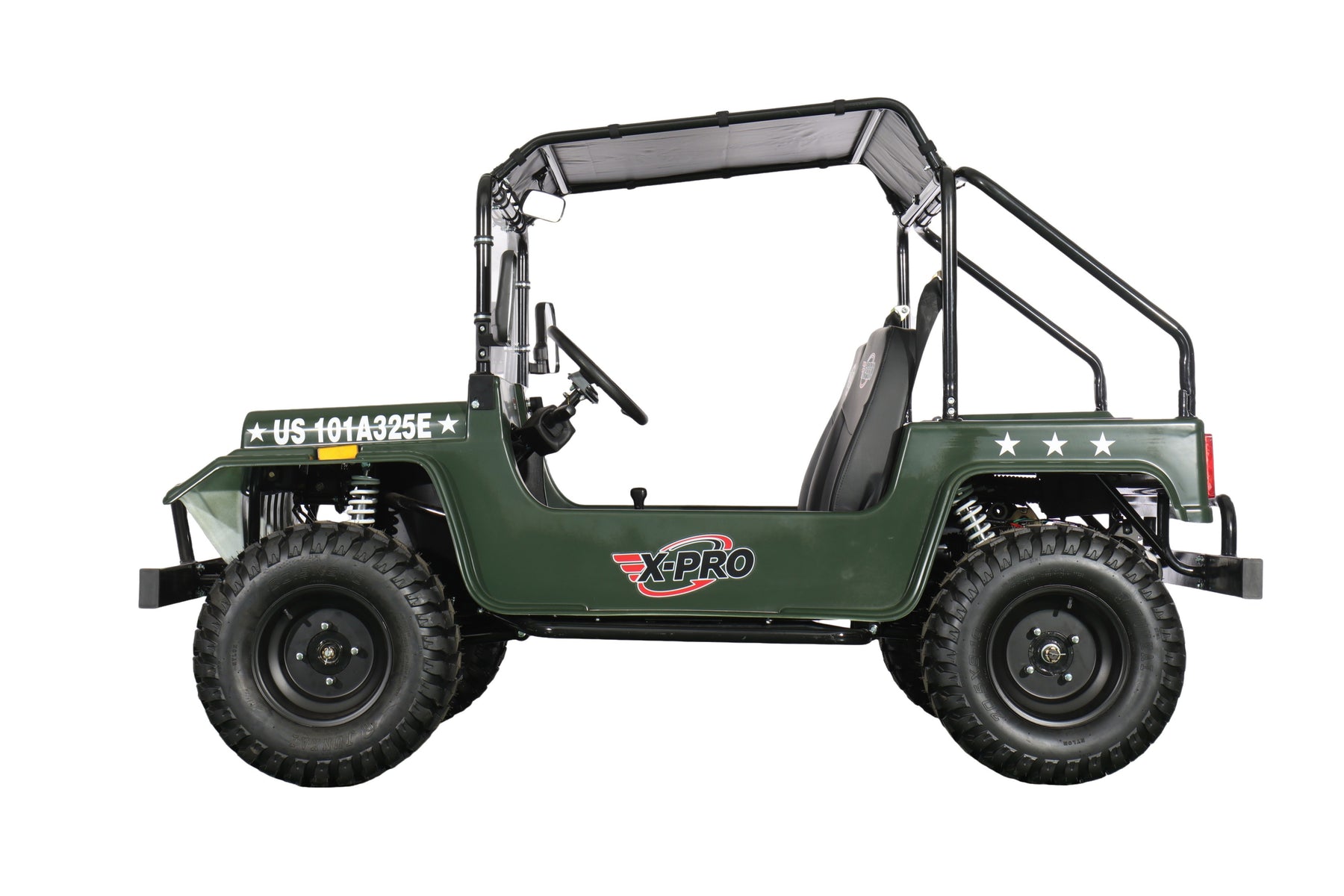

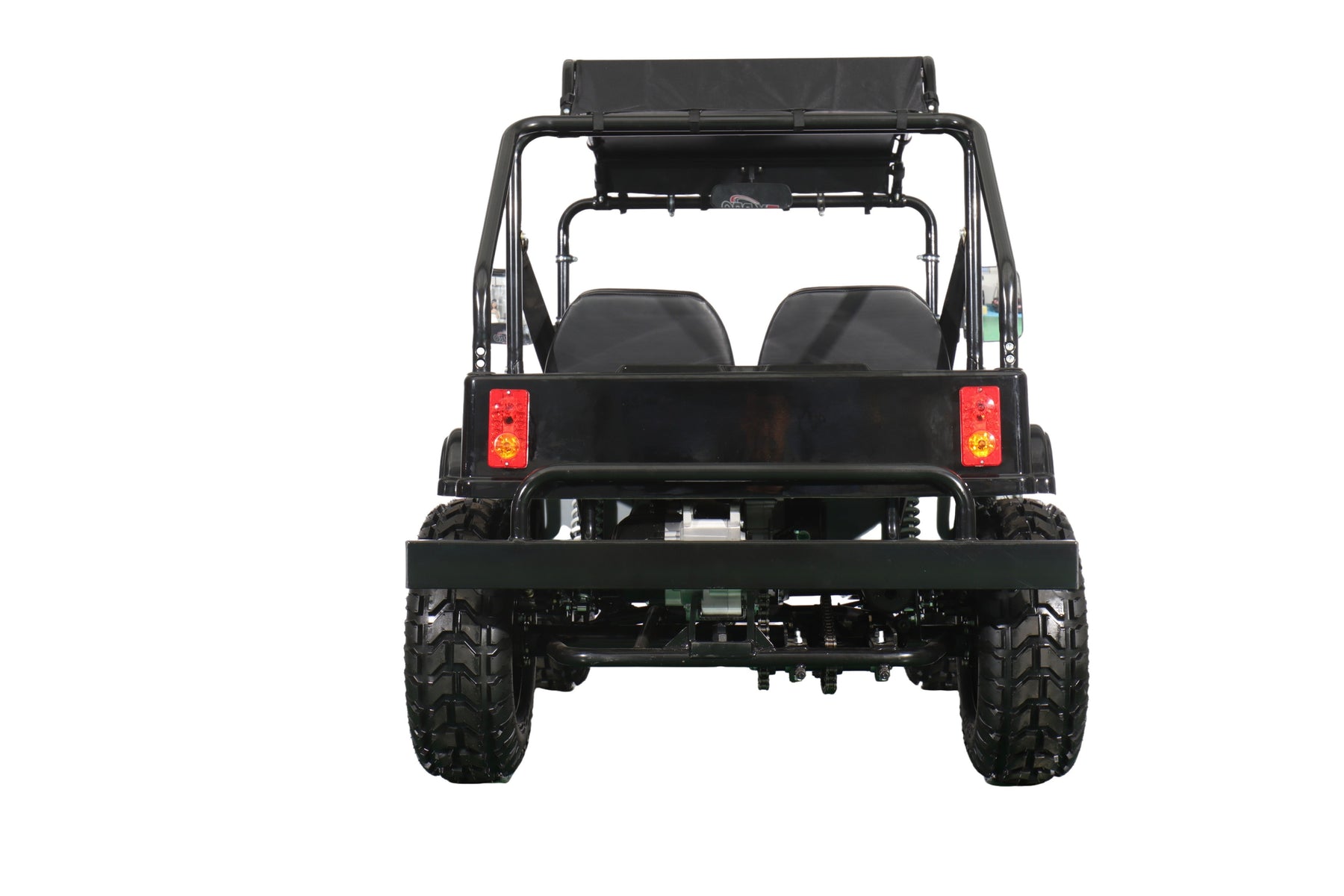

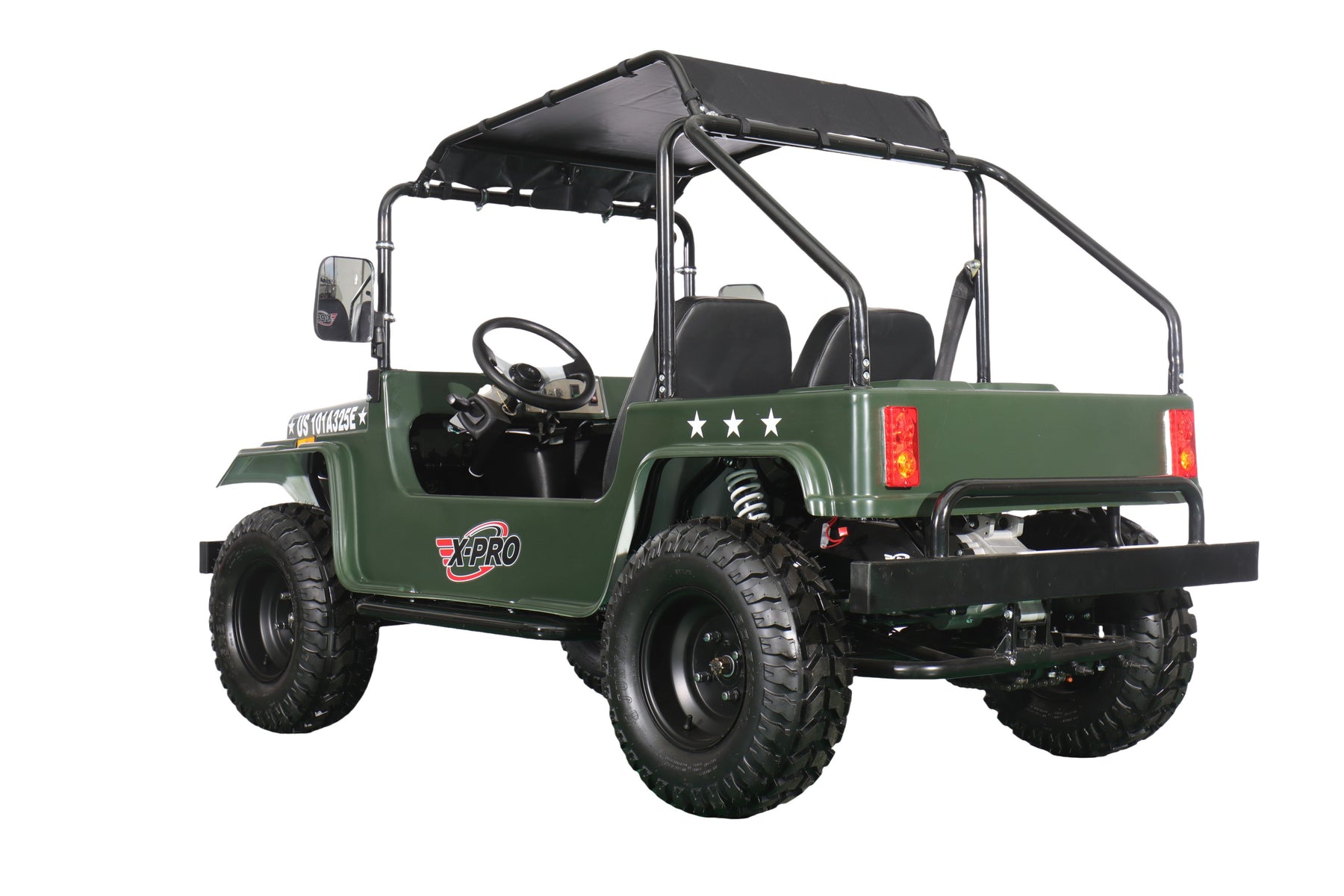

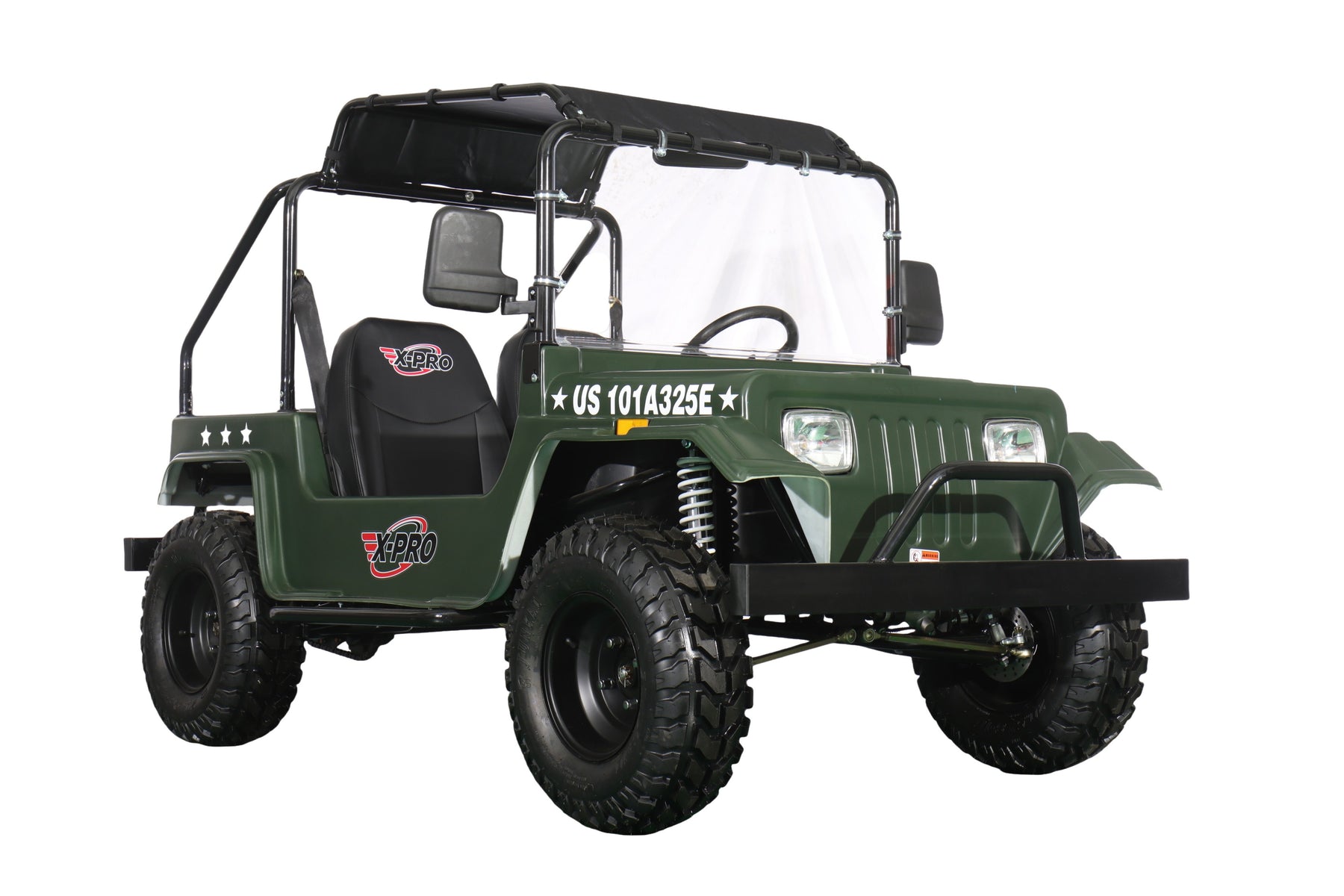

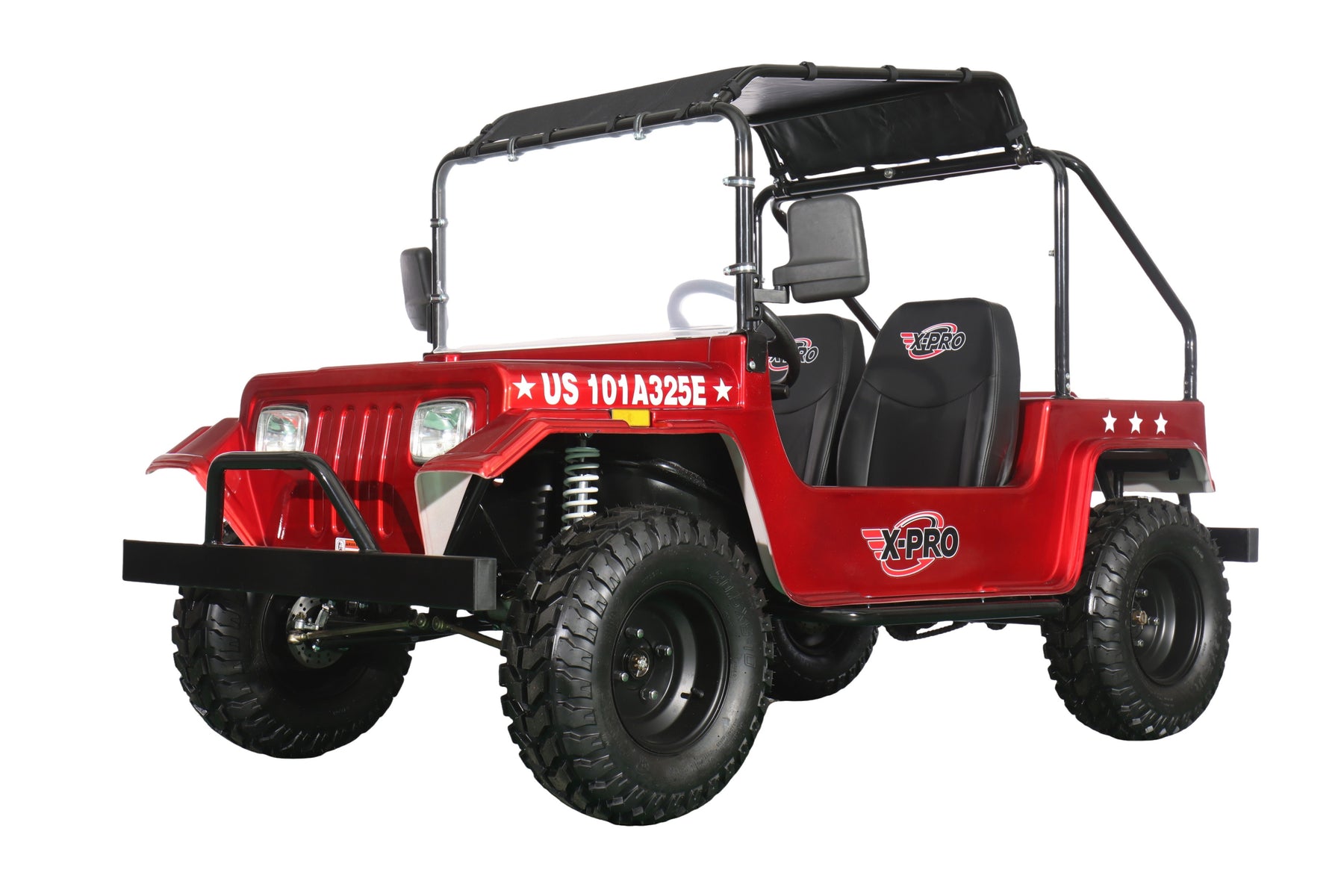

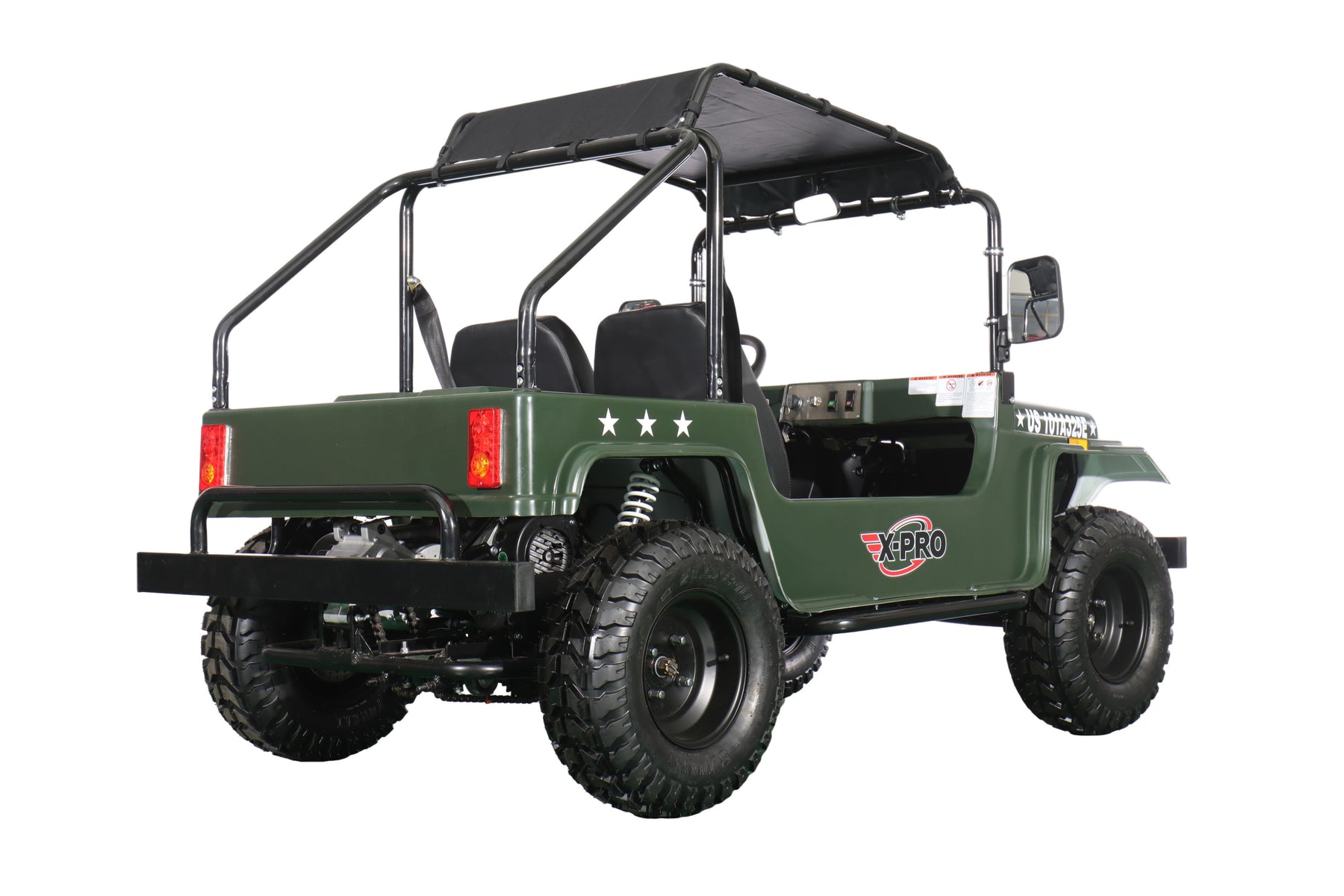

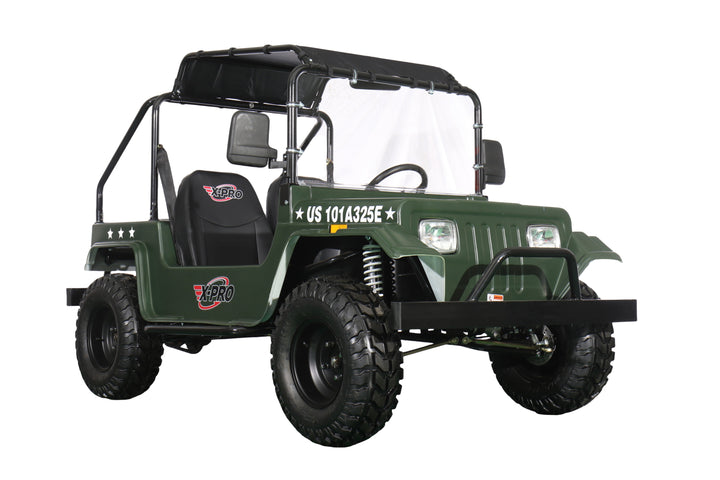

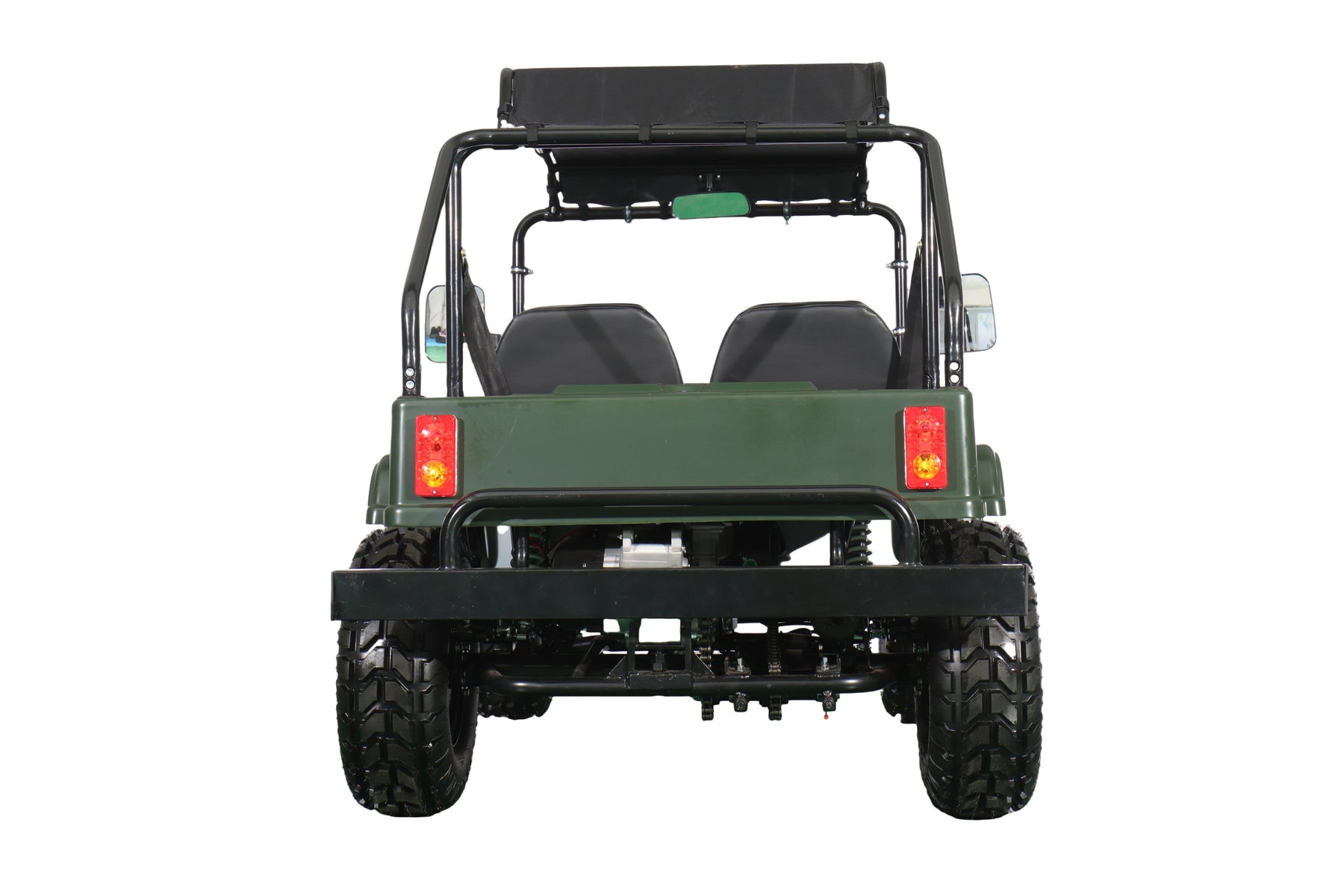

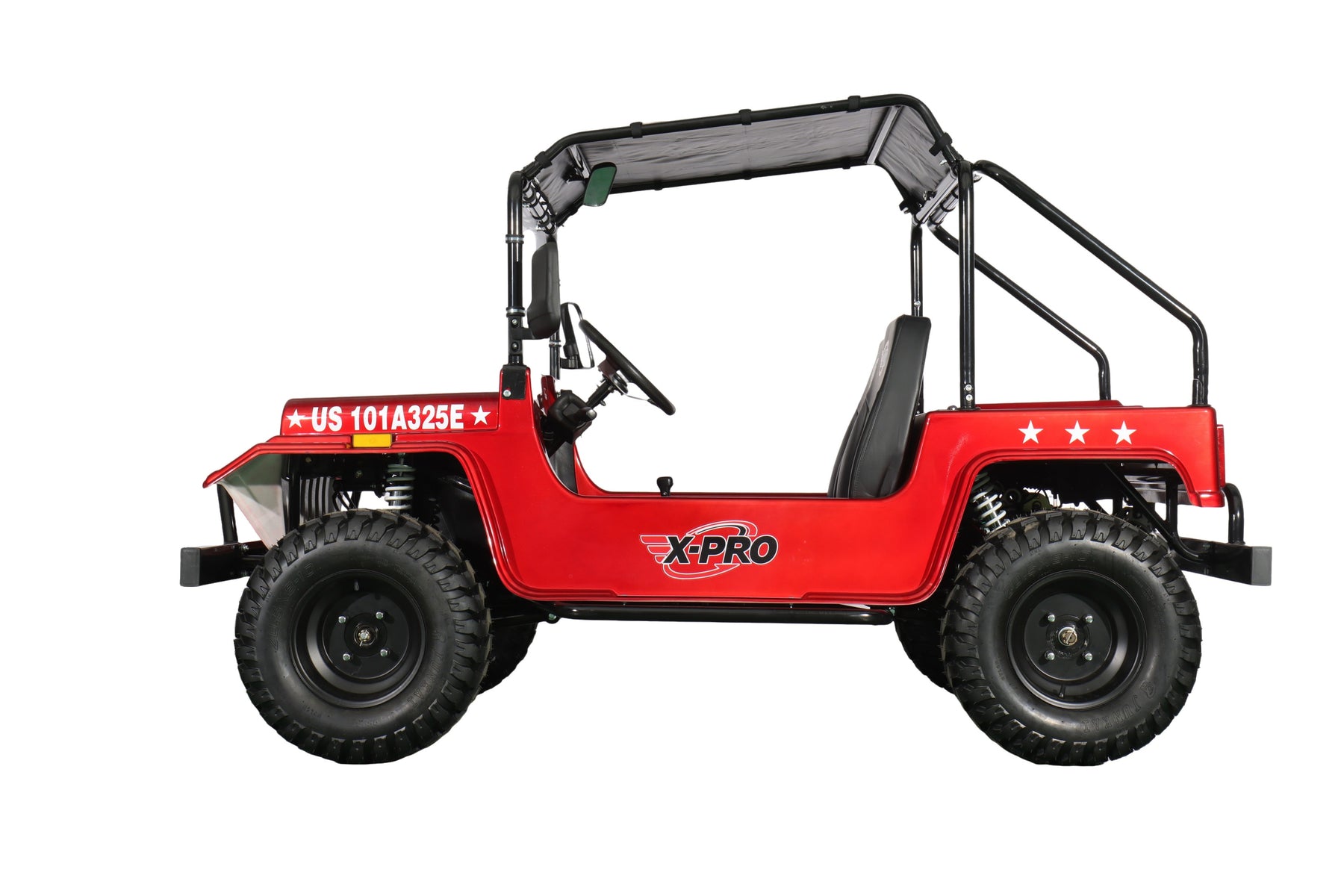

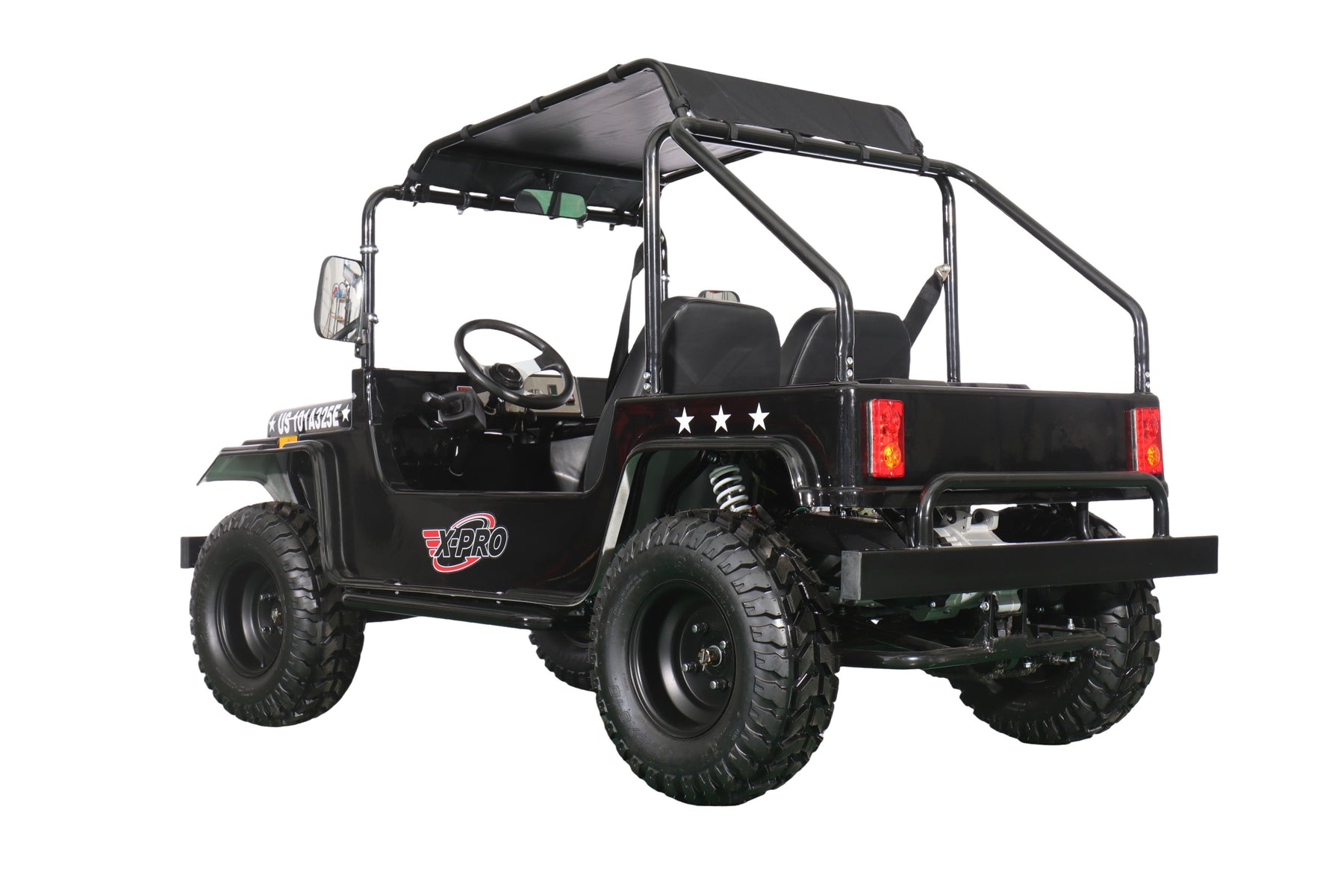

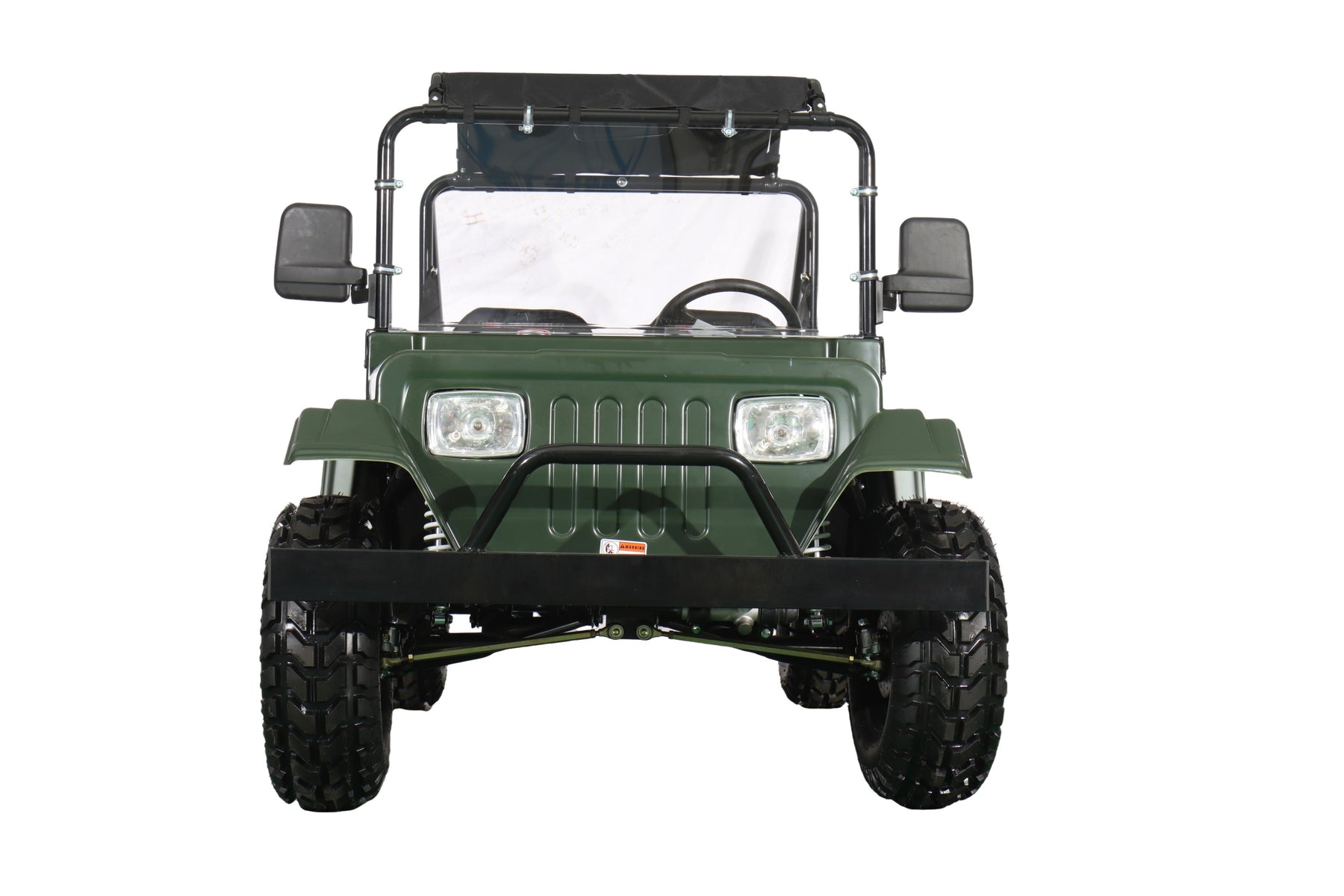

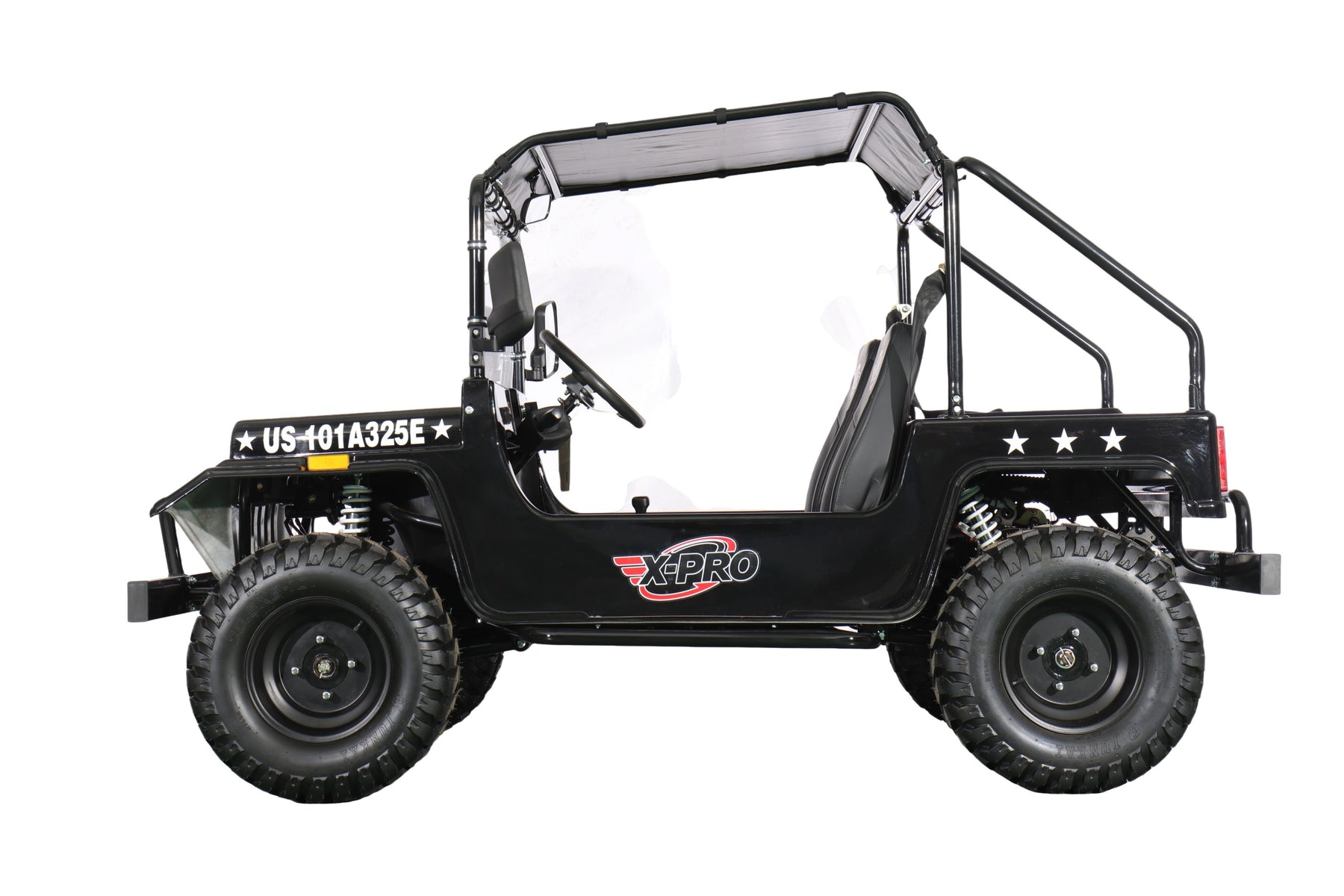

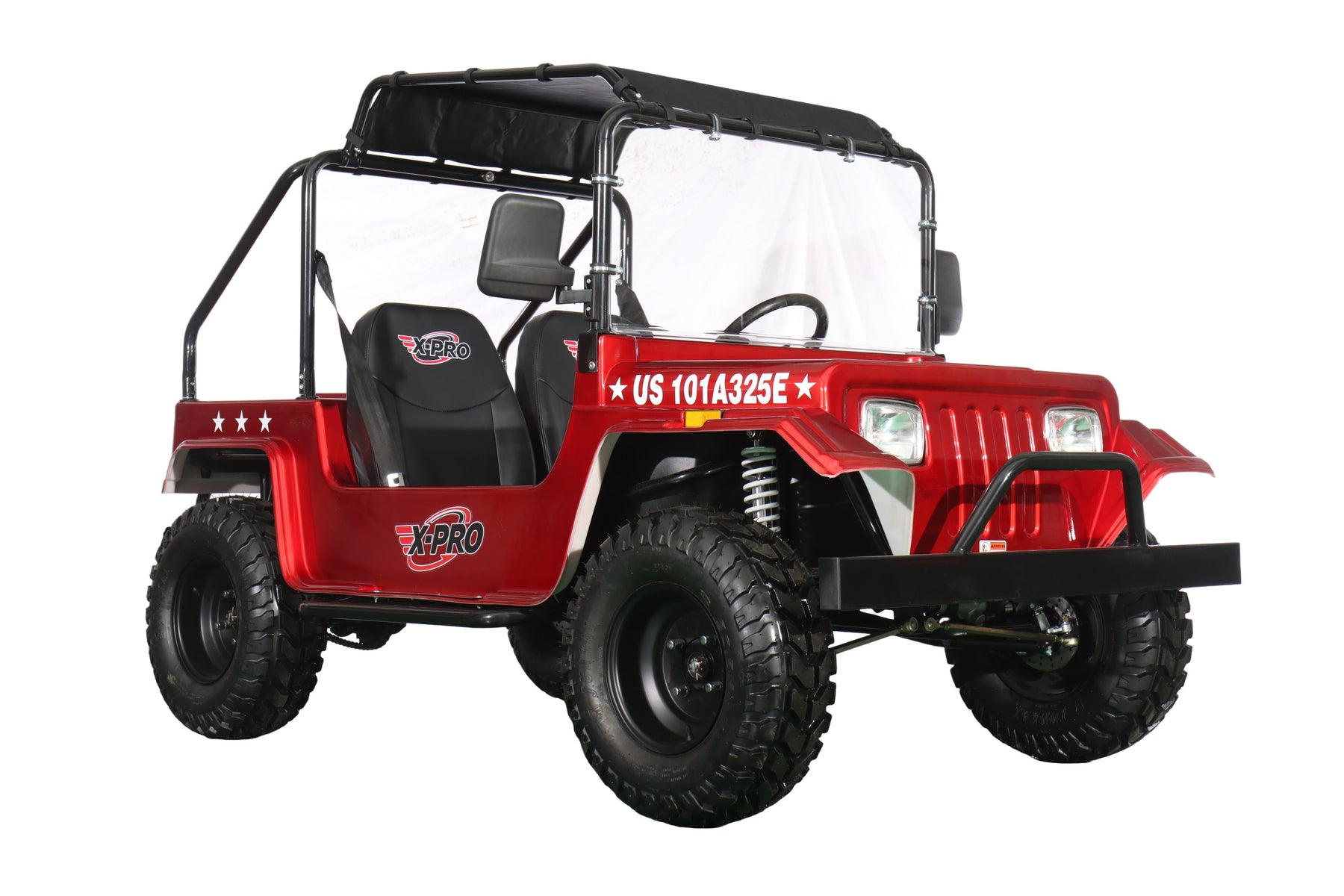

X-PRO Ridge 200 Jeep.
- Main Features:
- Powerful 174.5cc CVT Engine - Smooth, No-Shift Driving: Equipped with a 174.5cc CVT automatic engine, X-PRO Jeep delivers a smooth ride with no shifting required. Output: 7.35kW @ 7000rpm and 10.0N·m @ 6000rpm, reaching speeds up to 37 mph - perfect for leisure riding, neighborhood cruising, or light off-road use.
- Windshield + Top Shelf + Soft Top for All-Weather Comfort: Comes standard with a front windshield, top storage shelf, and soft top, providing protection from sun, wind, and light rain. Features include an adjustable driver seat, leather seating, and safety belts for enhanced comfort and security.
- Durable All-Terrain Performance: Built with 10-inch front and rear wheels, coil spring shock absorbers, and four-wheel disc brakes, ensuring reliable traction, smooth suspension, and strong stopping power. Front and rear bumpers plus side mirrors add extra durability and safety.
- Complete Lighting & Safety System: Includes headlights, tail lights, turn signals, horn, interior rearview mirror, and an integrated lighting control handle. Safety features such as the Engine Kill Switch and Foot Brake provide confident and intuitive operation.
- Compact Yet Spacious Design: Overall dimensions: 90.55"x52.36"x55.9". Compact enough for easy maneuvering and storage, yet spacious and comfortable for riders. Ideal for yards, farms, campsites, and community roads.
- 174.5cc CVT Engine: Smooth, no-shift driving; up to 37 mph.
- Windshield + Top Shelf + Soft Top: Better sun, wind, and light-rain protection.
- Comfort Design: Leather seats, adjustable driver seat, safety belts.
- Electric Starting: provides much easier control and handling, and gives the rider the great convenience in the event of a stall.
- All-Terrain Build:10" wheels, coil spring suspension, four-wheel disc brakes.
- Full Safety & Lighting System: Headlights, tail lights, turn signals, horn, interior mirror, Engine Kill Switch, Foot Brake.
- Some assembly required
Specifications
| Model Number | GK-S02 |
| Engine/Drive Train | |
|---|---|
| Engine | 174.5cc, four stroke |
| Cylinder Arrangement | Single |
| Cooling System | Air Cooled |
| Compression Ratio | 9.6:1 |
| BorexStroke | 62x57.8 |
| Max Power[Kw/r/m] | 7.35/7000 |
| Max Torque[N.m/r/m] | 10.0/6000 |
| Transmission | CVT |
| Start System | Electric |
| Final Drive | Chain Drive |
| Ignition | CDI |
| Carburetor | PD24J |
| Max Speed (MPH) | 37+ (Depending on Riders Weight and Road Conditions) |
| Battery | 12V/9Ah |
| Frame /Body/ Suspension / Brakes | |
| Front Suspension | Coil spring damping shock absorber |
| Rear Suspension | Coil spring damping shock absorber |
| Front Brakes | Disc |
| Rear Brakes | Disc |
| Front Tires | 20.5*8-10 |
| Rear Tires | 20.5*8-10 |
| Capacities / Dimensions | |
| Net Weight (lbs) | 562 |
| Gross Weight (lbs) | 639 |
| Overall Length | 90.55" |
| Overall Width | 52.36" |
| Overall Height | 55.9" |
| Carton Size | 89x45x25" |
| Wheelbase | 57.48" |
| Ground Clearance | 6.69" |
| Fuel Capacity | 1.18gal |
| Safety / Control | |
| Engine Kill Switch | Yes |
| Foot Brake | Yes |
| Windshield | Yes |
| Top shelf + soft top | Yes |
| Headlights | Yes |
| Taillights | Yes |
| Turn Signal Indicator | Yes |
| Horn | Yes |
| Others | |
| Tool Kit | Yes |
| EPA Approved | Yes |
