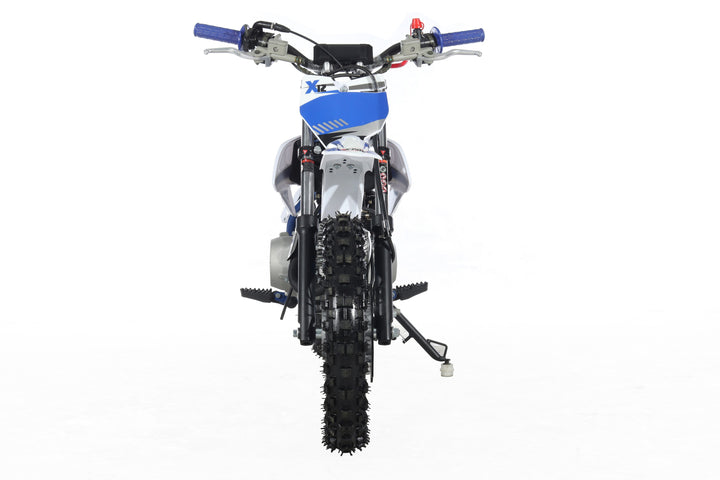

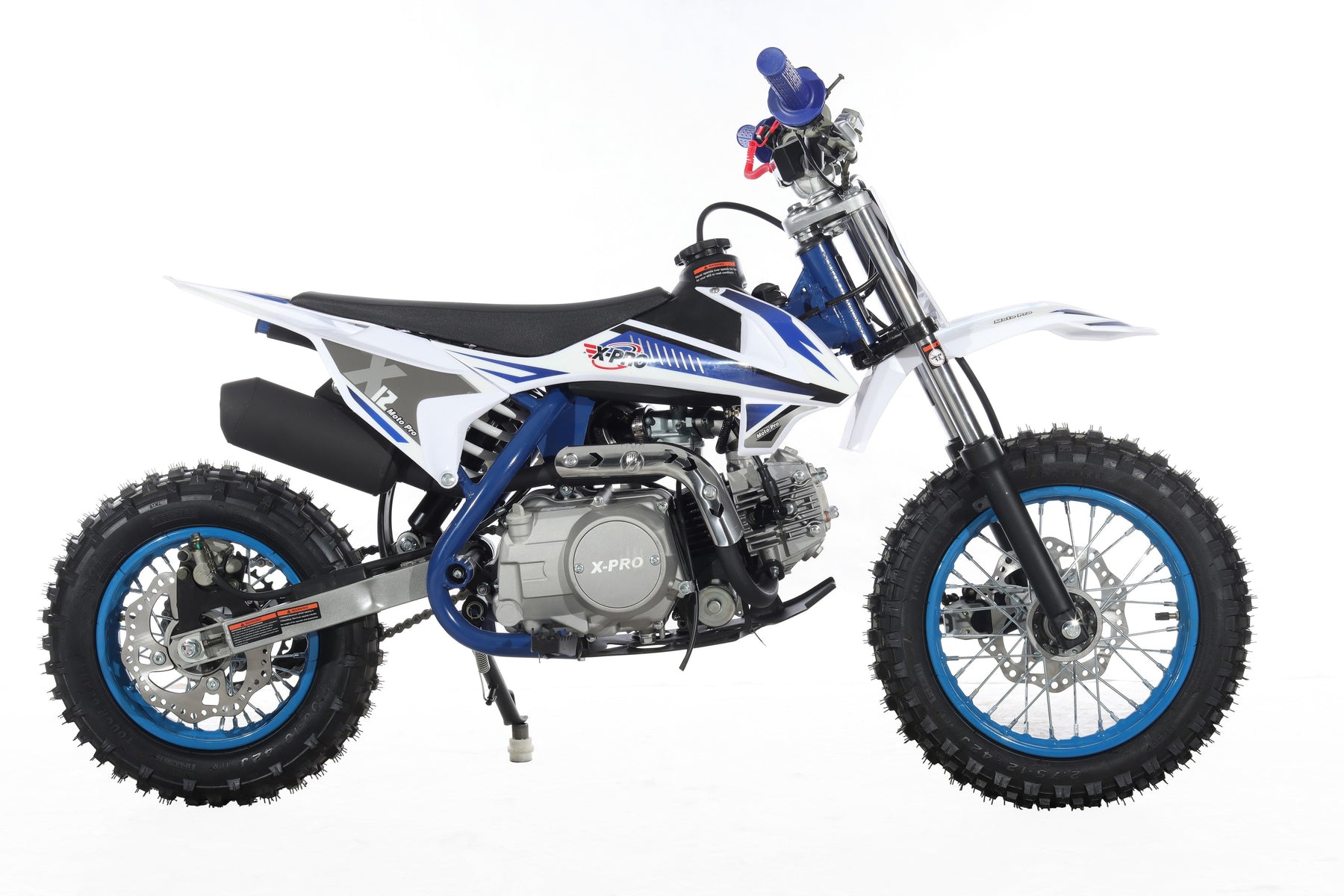

Free Shipping! X-PRO X12 110cc Dirt Bike with Automatic Transmission, Electric Start, 12"/10" Wheels!
Description
CARB Information
This bike is not legal for sale in California.
Assembly
Assembly for MOST dirt bikes includes: Handle bar brackets (c-clamps), front wheel, front brake, number plate and front fender. (May differ per model)
Key Features
New Upgraded X-PRO X12 110cc Dirt Bike. Main Features:
- Free Upgraded Cradle Type Steel Tube Frame ($150 value): with greater strength and rigidity, and better stability during frequent acceleration and braking.
- Free Upgraded Steel Pipe with Catalyst Converter(EPA )($80 value): It reduces air pollution; equipped with catalytic converter, which reduces emissions of harmful compounds.
- Free Upgraded Stylish with Beautiful Color Design($30 value): Color matching design on wheel rims, handle bars and frame bar with plastic decals make this dirt bike unique and eye-catching in the neighborhoods.
Specifications
| Model Number | DB-K004 |
| Engine/Drive Train | |
|---|---|
| Engine | 1P52FMH, 107cc, 4-Stroke |
| Cylinder Arrangement | Single |
| Cooling System | Air Cooled |
| Compression Ratio | 9.0:1 |
| BorexStroke | Ф52.4×49.5mm |
| Max Power[Kw/r/m] | 5.0/8000±500 kw/r/min |
| Max Torque[N.m/r/m] | 7.5/5500±500 N.m/r/min |
| Transmission | Automatic clutch, One gear |
| Start System | Electric start |
| Final Drive | #420 Chain, FT: 14T/RR: 39T Sprocket |
| Carburetor | PZ22 Jingke Carburetor |
| Ignition Type | C.D.I |
| Max Speed (MPH) | 35+ (Depending on Riders Weight and Road Conditions) |
| Battery | 12V4AH |
| Frame /Body/ Suspension / Brakes | |
| Frame | Cradle Type Steel Tube Frame |
| Front Fork | Telescopic ￠27×590mm |
| Rear Fork | 12*270mm None-Adjustable Shock |
| Front Disc | Hydraulic Single Piston Caliper, 190mm Disc |
| Rear Disc | Hydraulic Single Piston Caliper, 190mm Disc |
| Front Tire | 2.75-12" |
| Rear Tire | 2.50-10" |
| Exhaust/Pipe | Steel Pipe with catalyst converter(EPA) |
| Capacities / Dimensions | |
| Weight Capacity(lbs) | 165 |
| Gross Weight (lbs) | 125.7 |
| Net Weight (lbs) | 116.4 |
| Overall Length | 61" |
| Overall Width | 28" |
| Overall Height | 40.6" |
| Carton Dimension | 45 x 14 x 21" |
| Seat Height | 24" |
| Wheelbase | 39.8" |
| Ground Clearance | 6.7" |
| Fuel Capacity | 3.5 L/0.92 Gal |
| Safety / Control | |
| Engine Kill Switch | Yes |
| Others | |
| EPA Approved | Yes |
| D.O.T Approved | Yes |
|
|
|

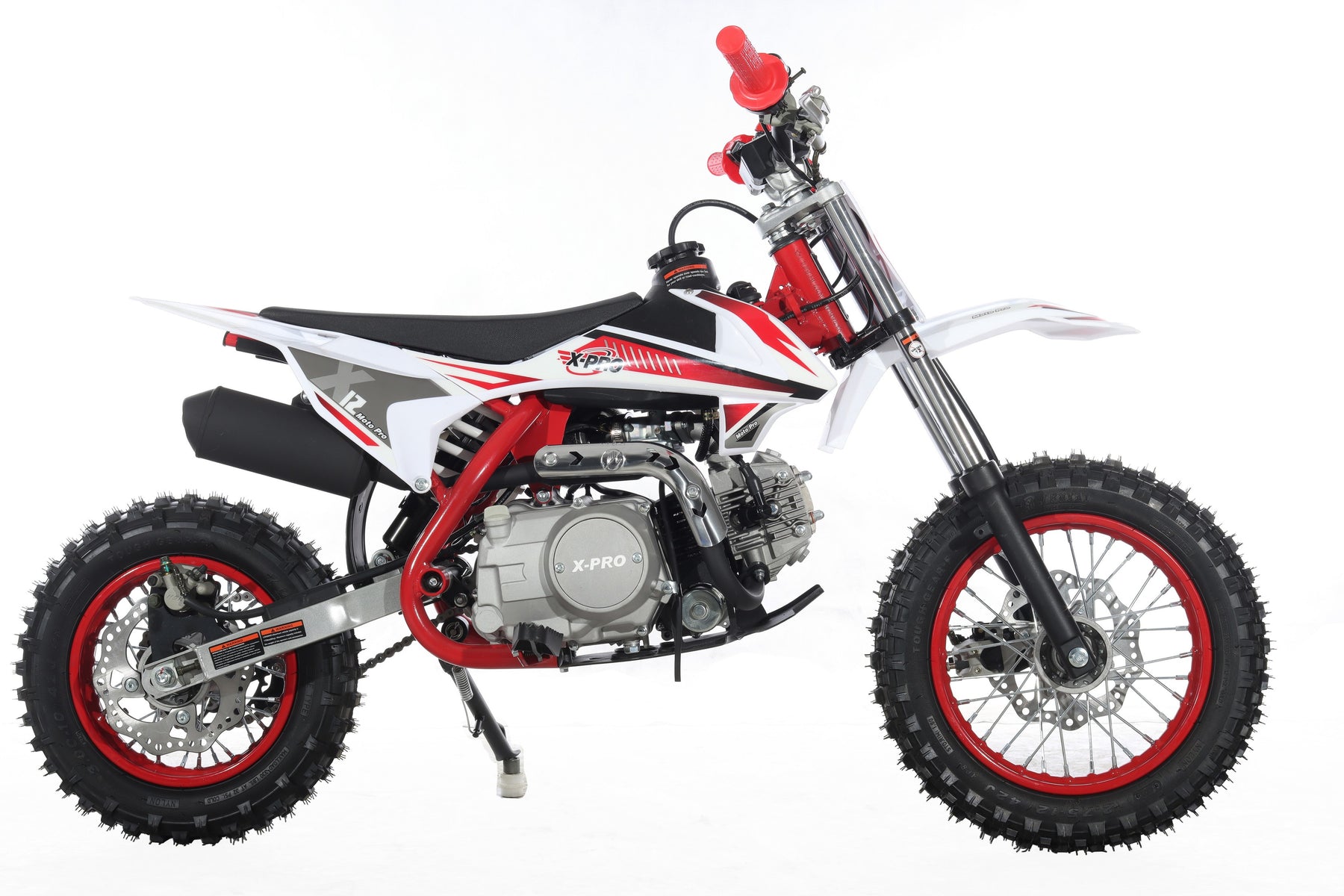

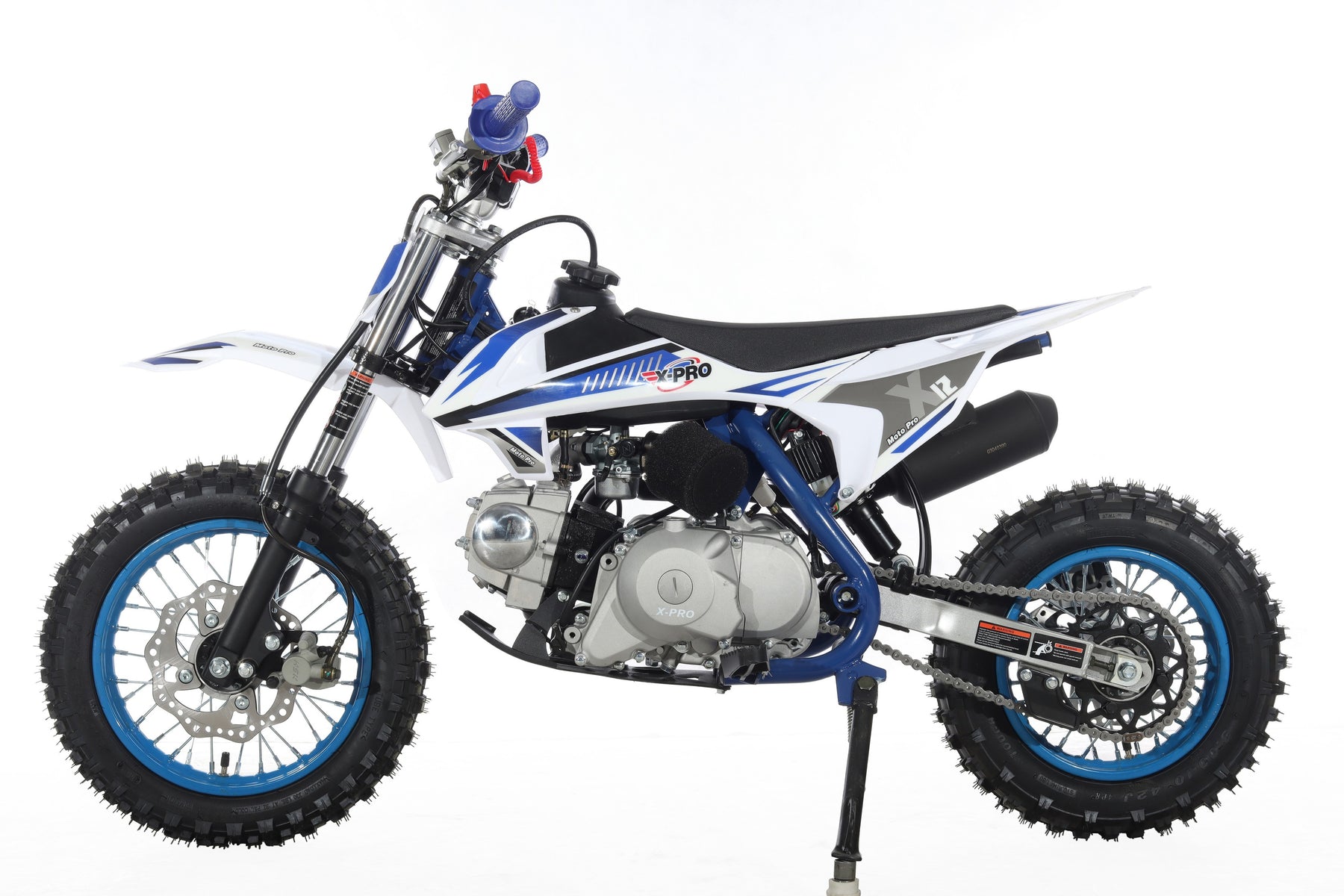

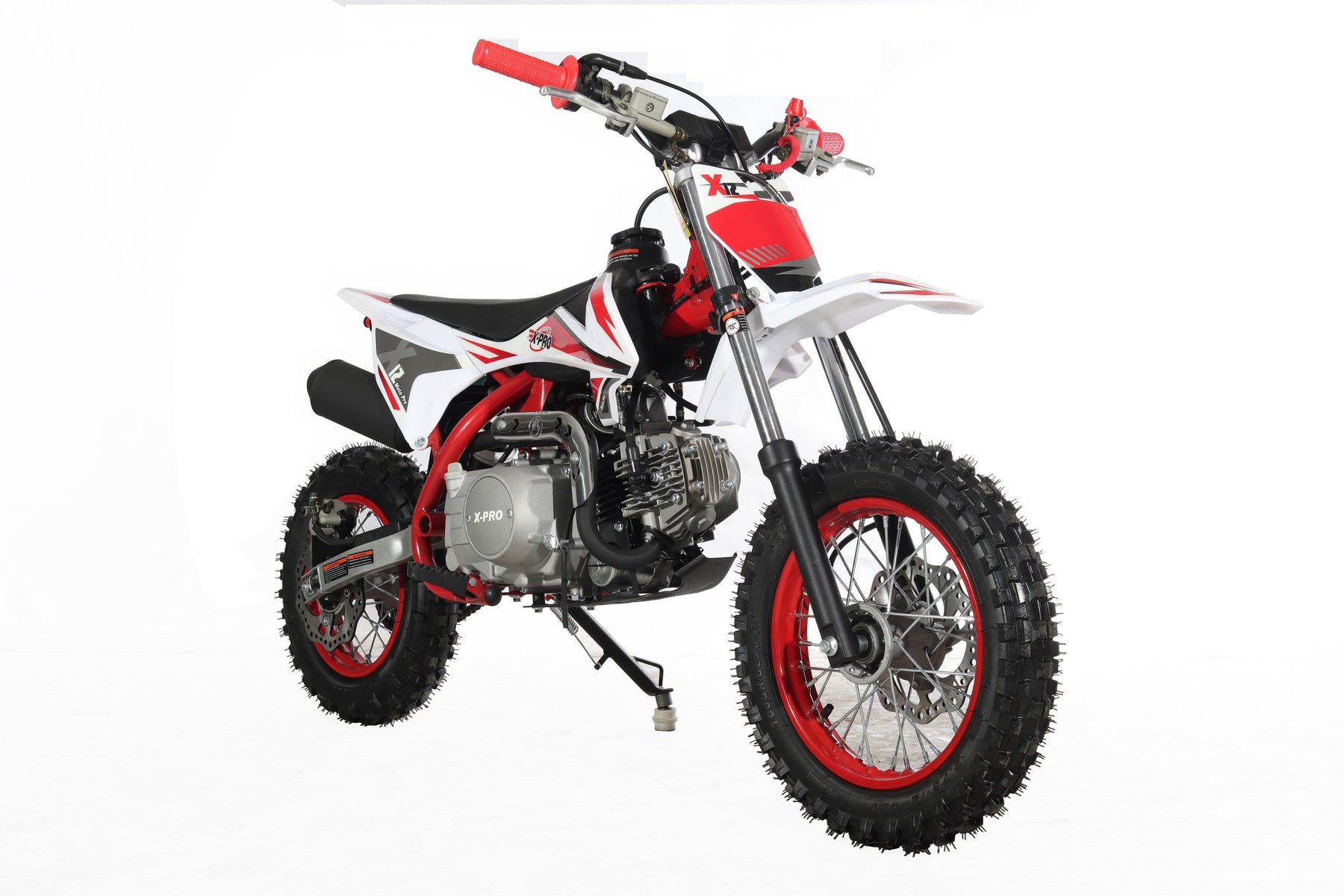

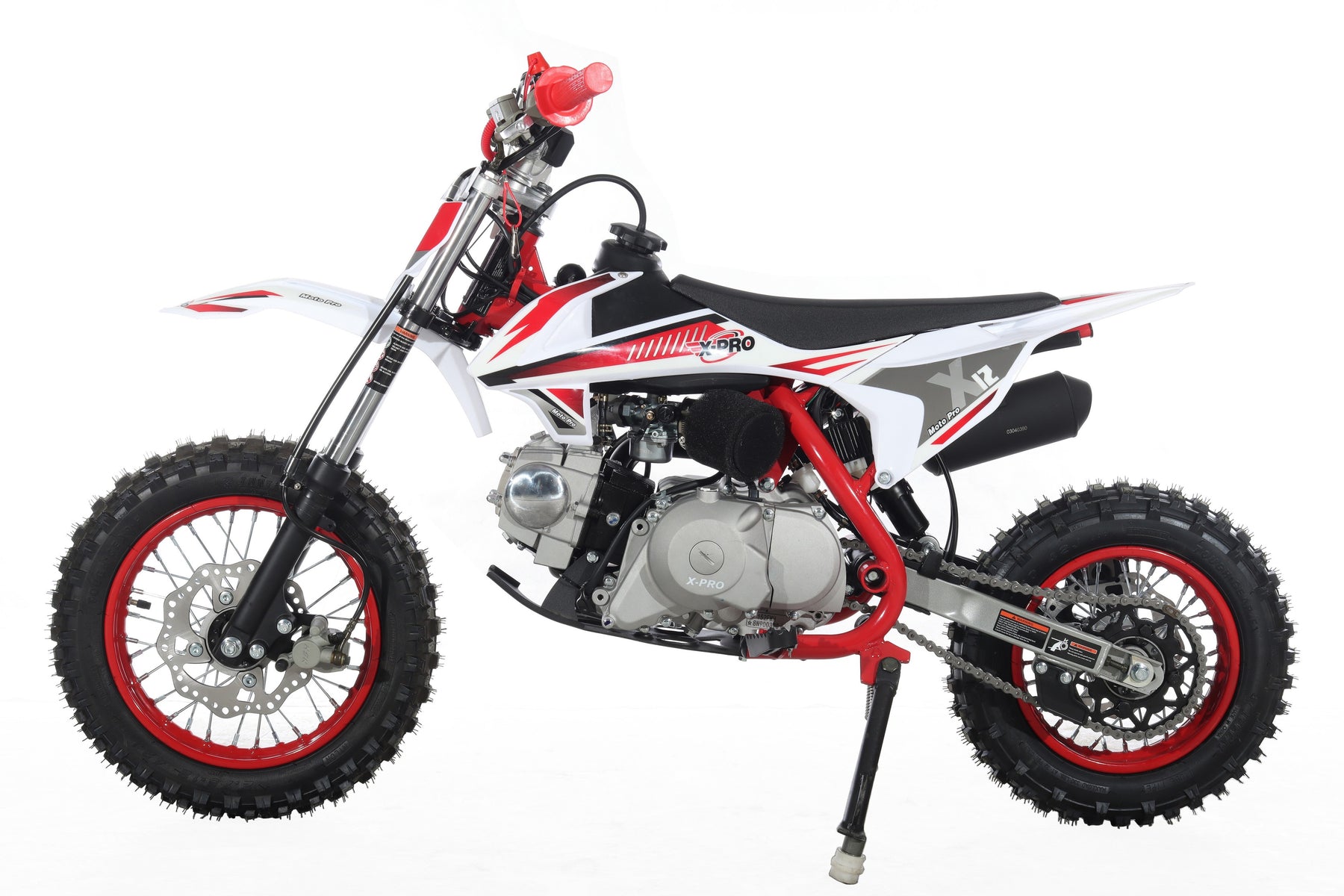

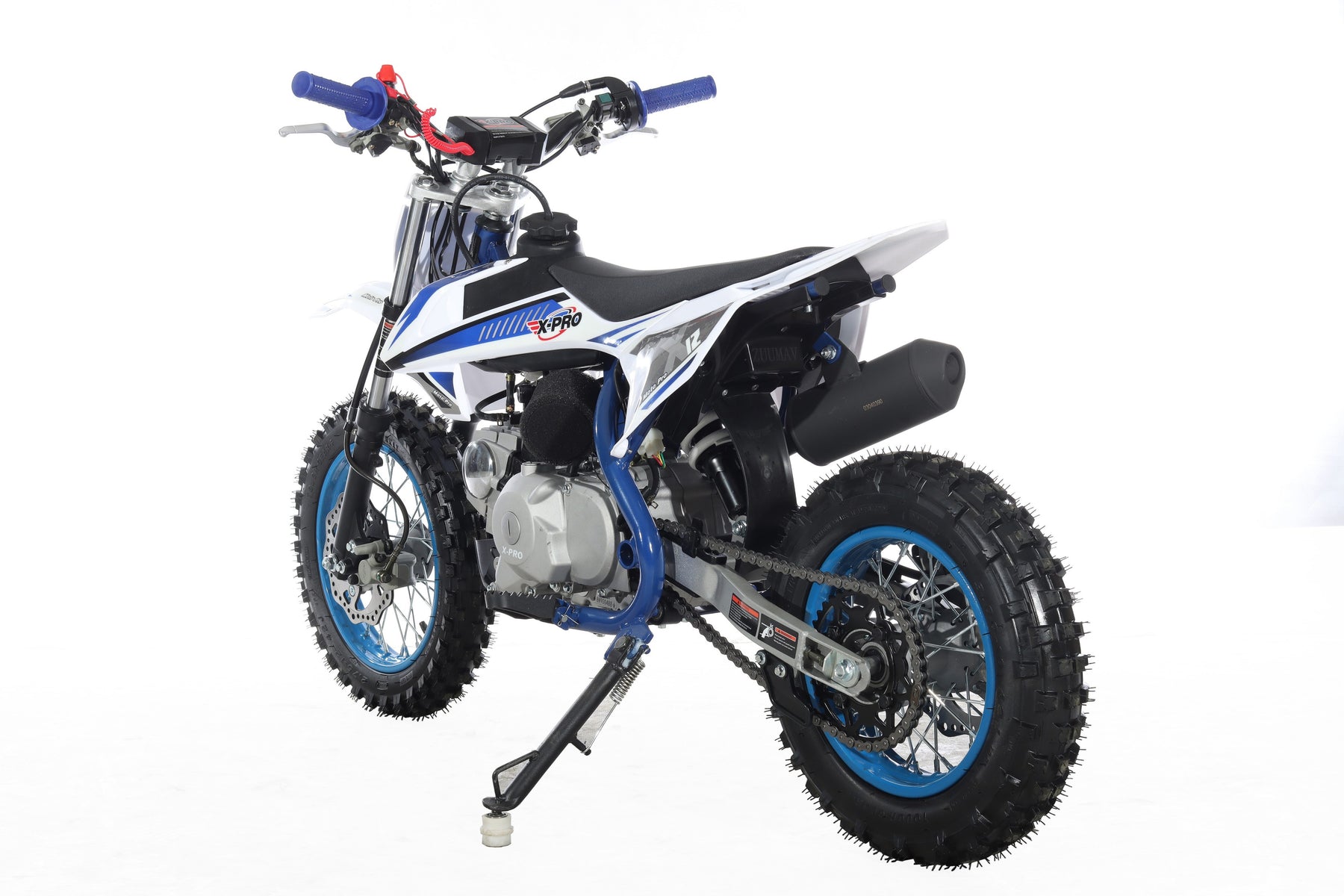

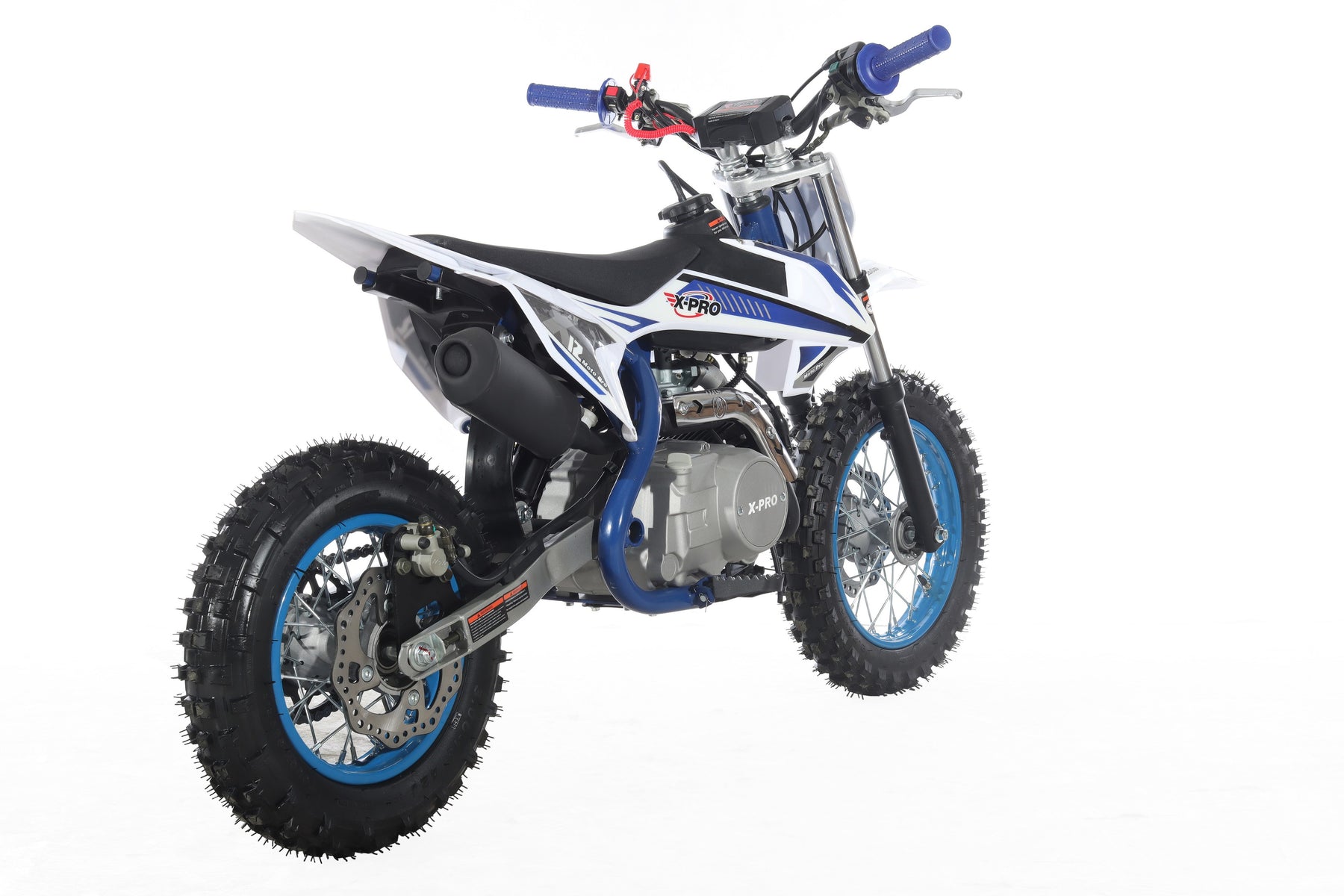

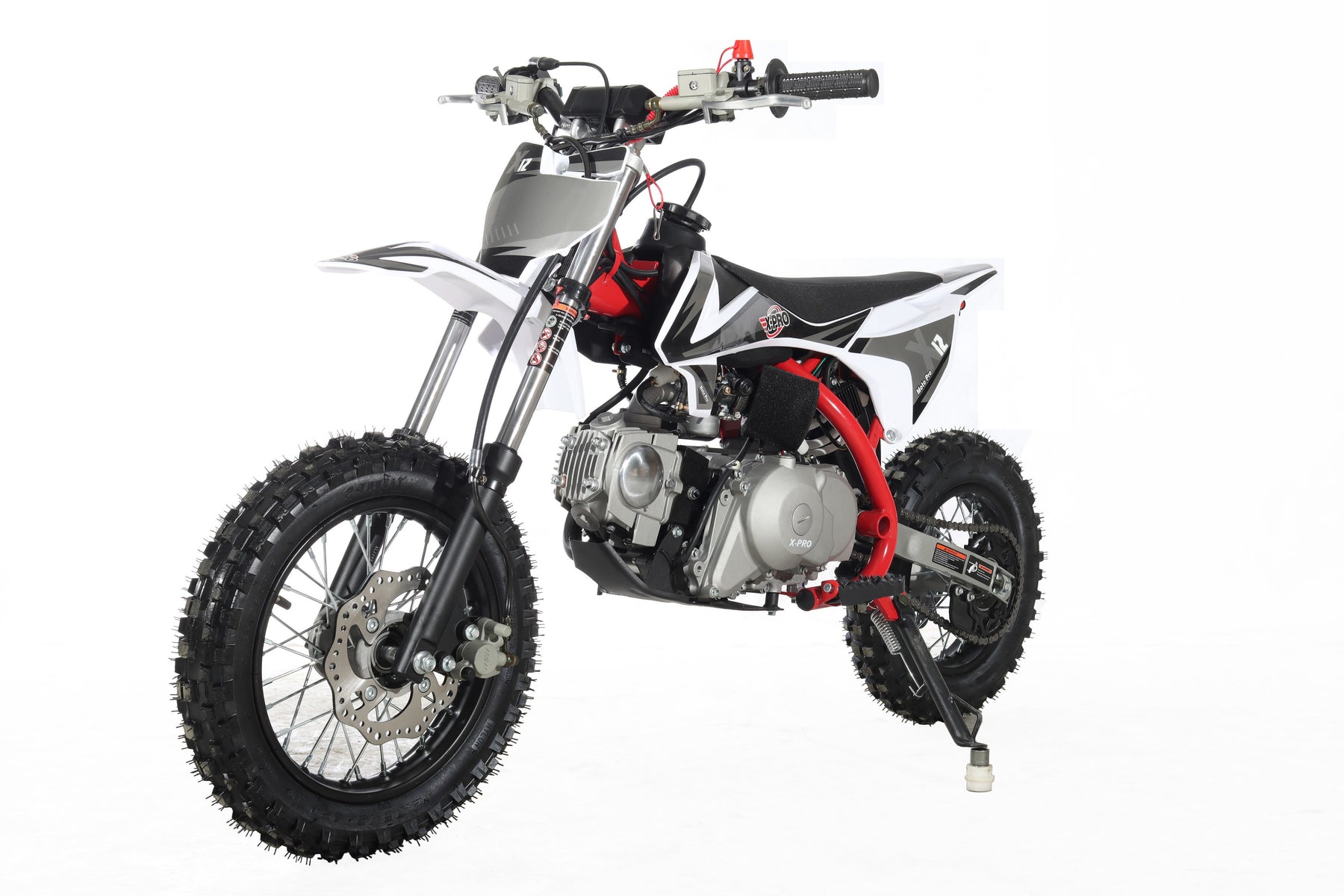

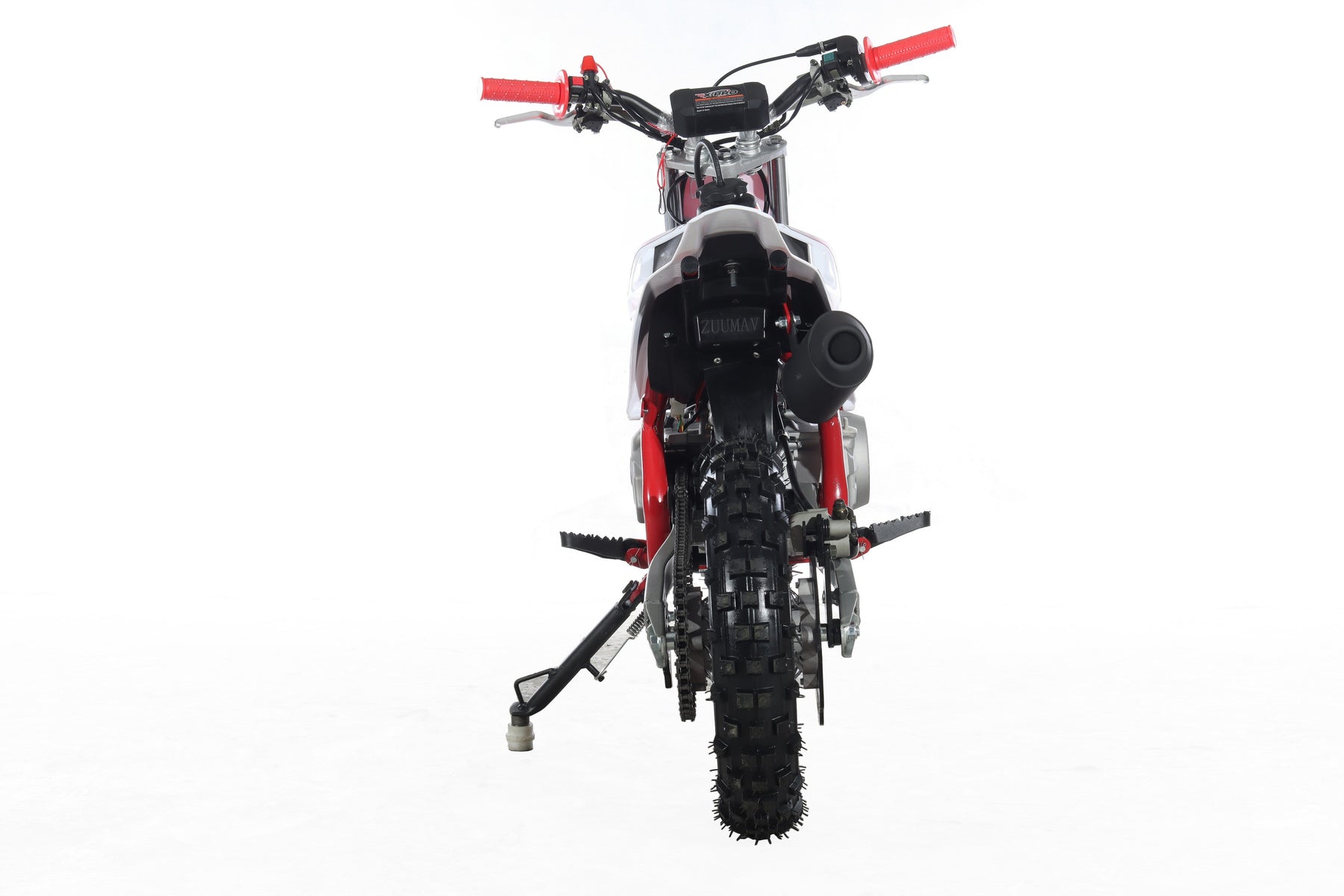

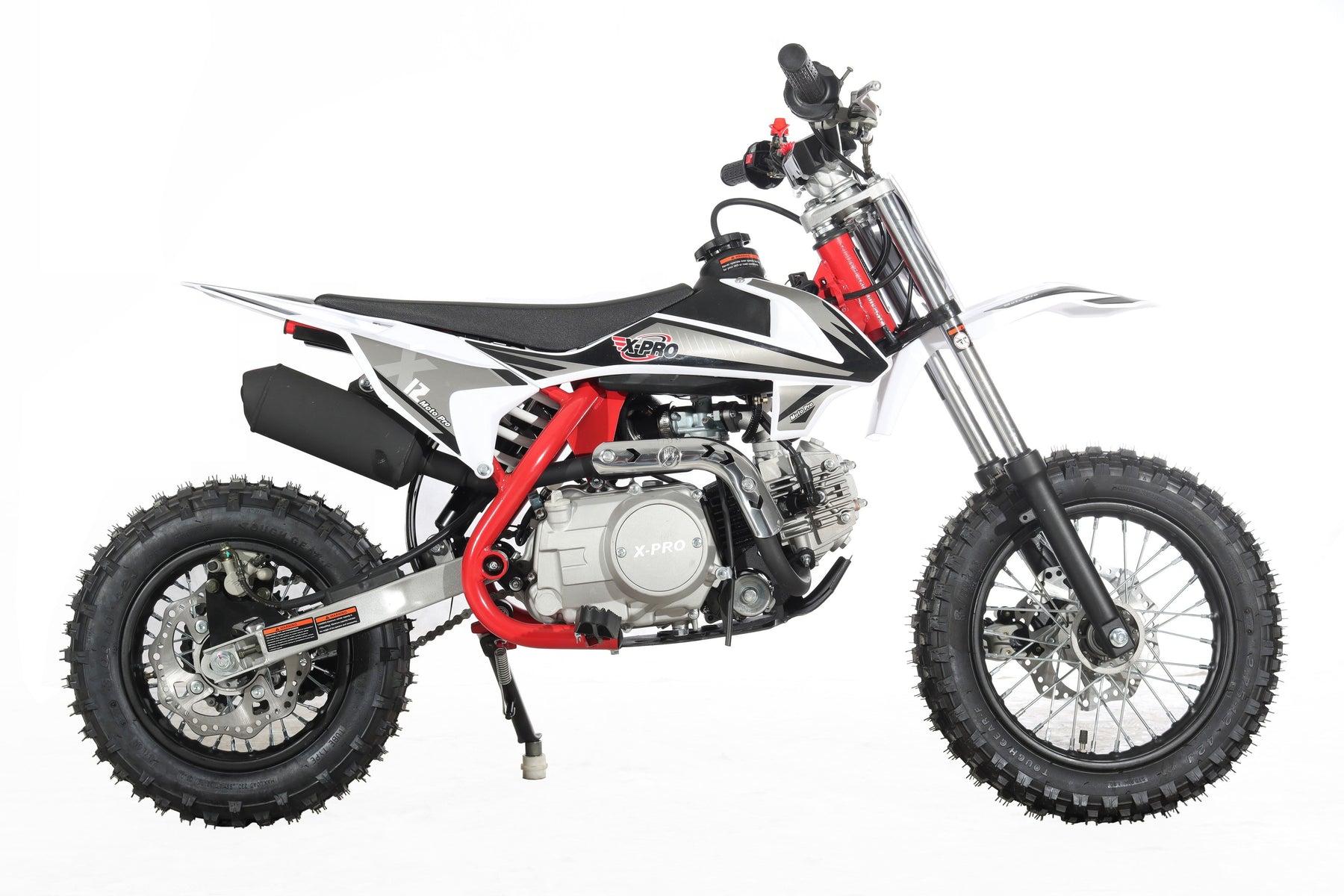

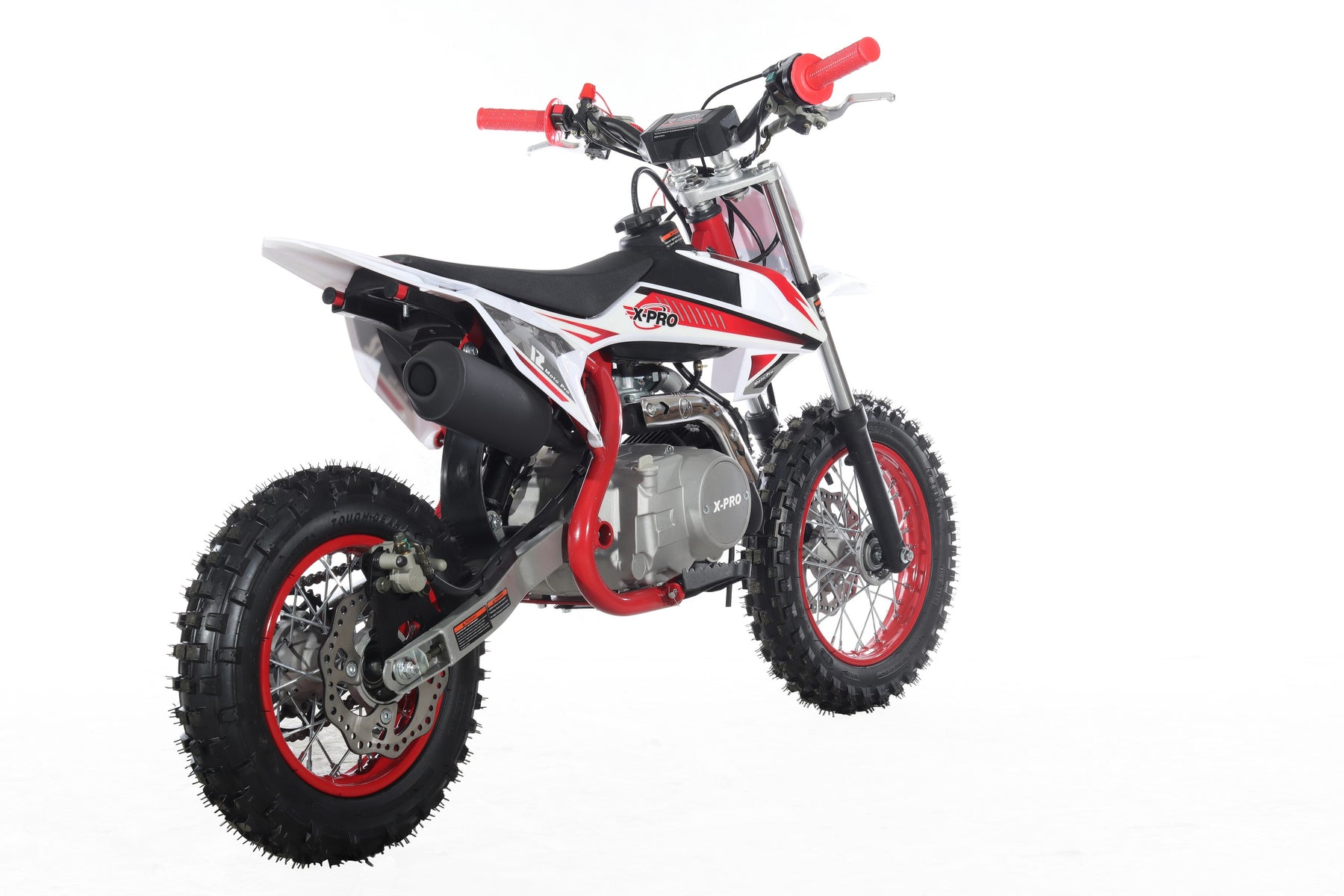

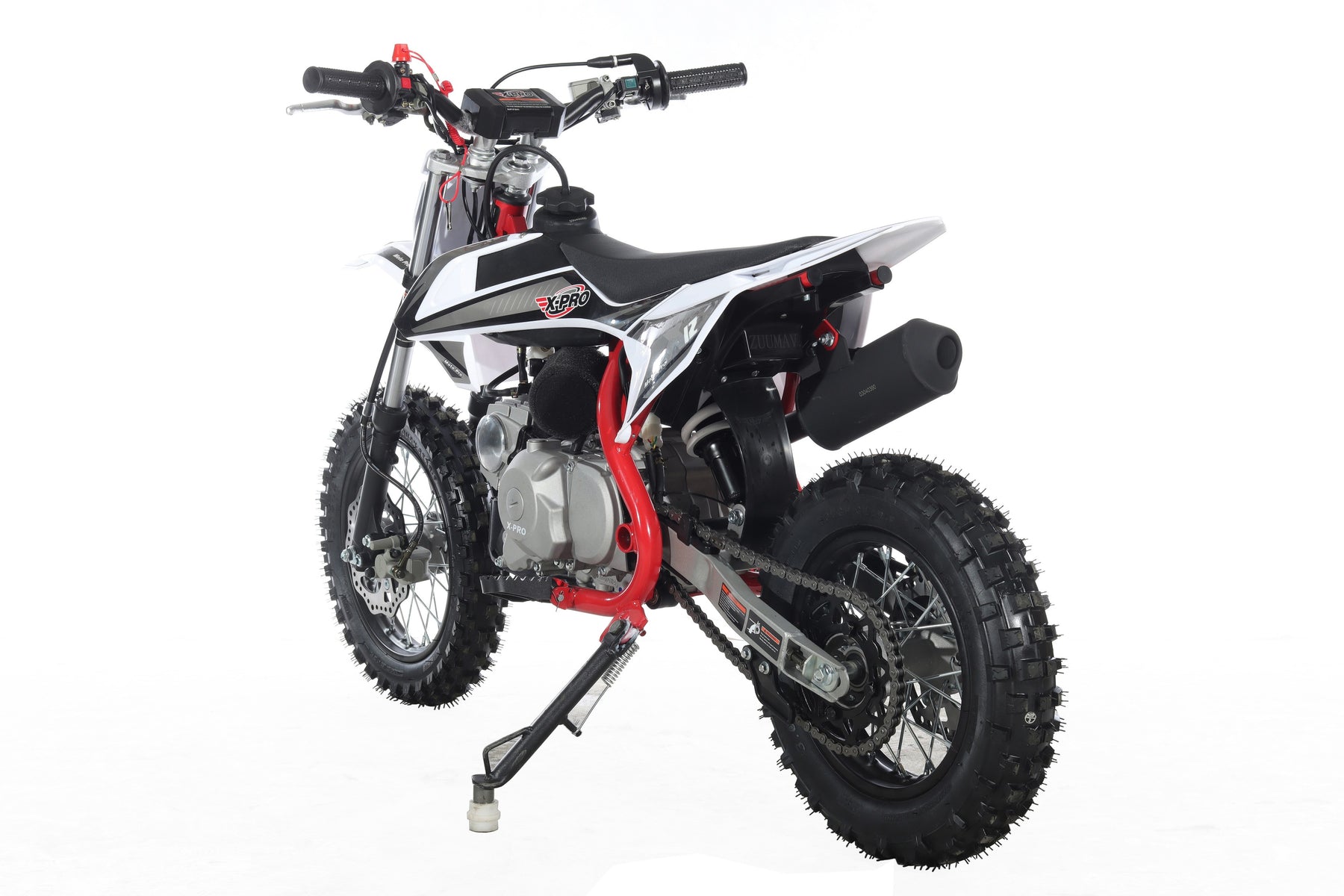

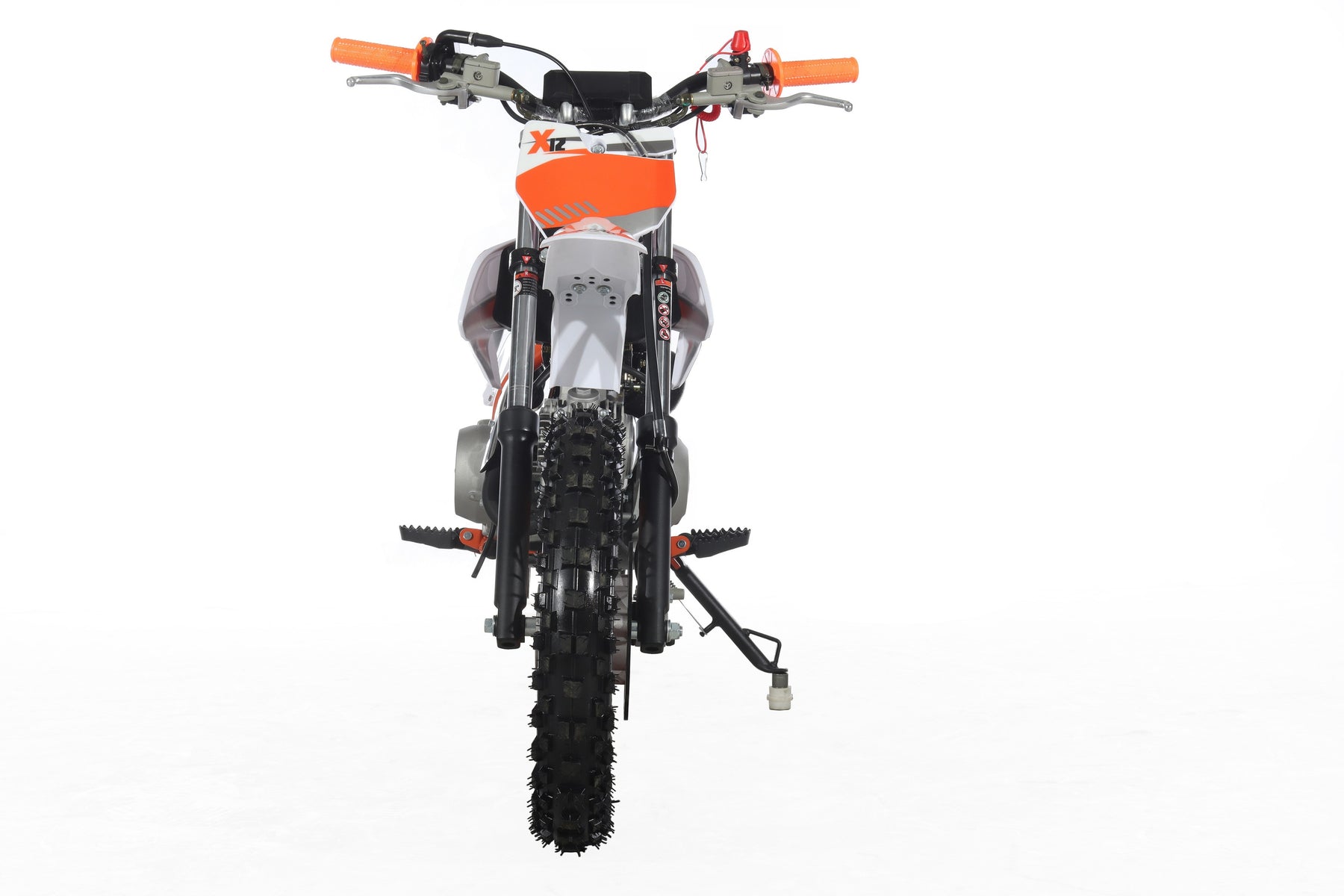

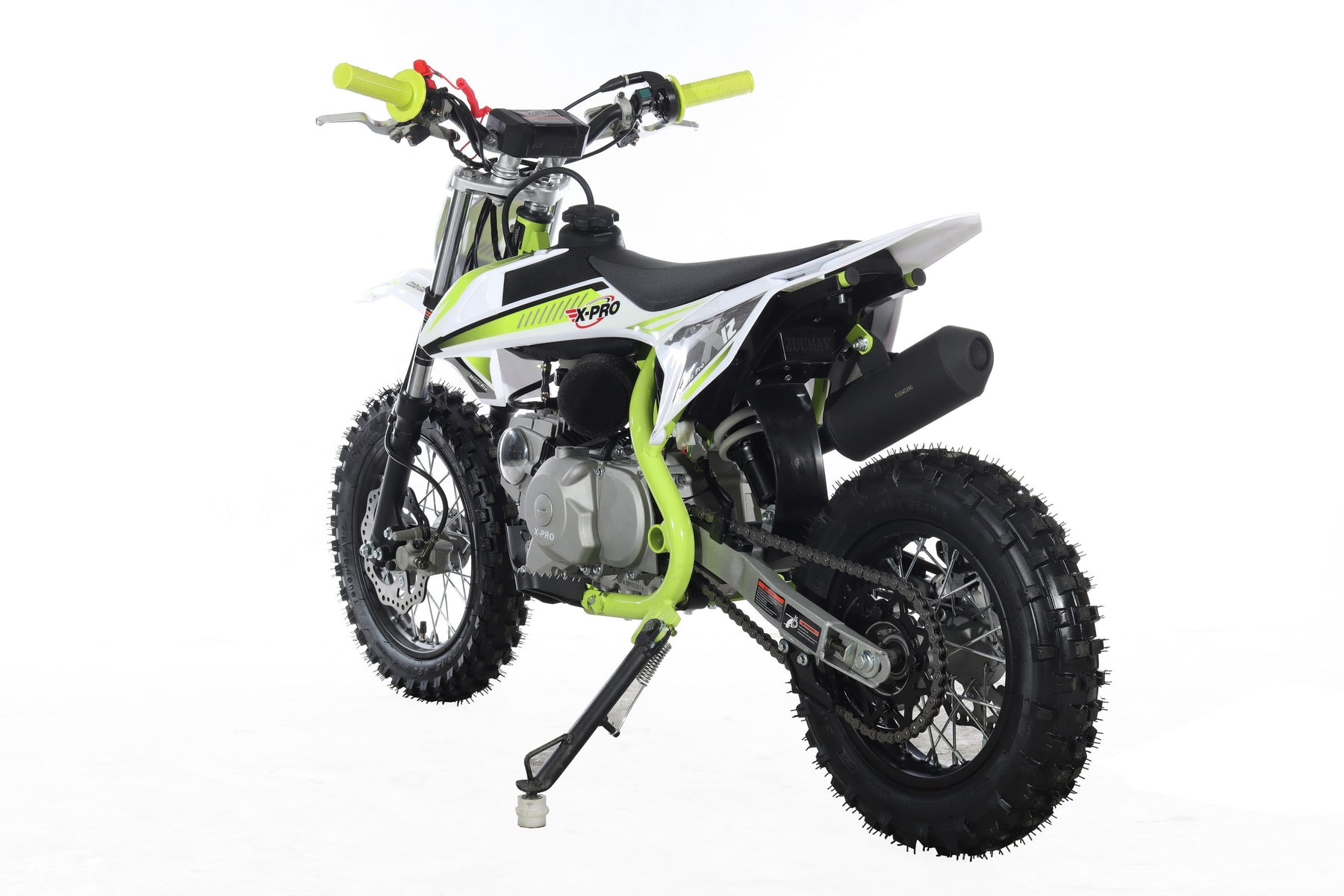

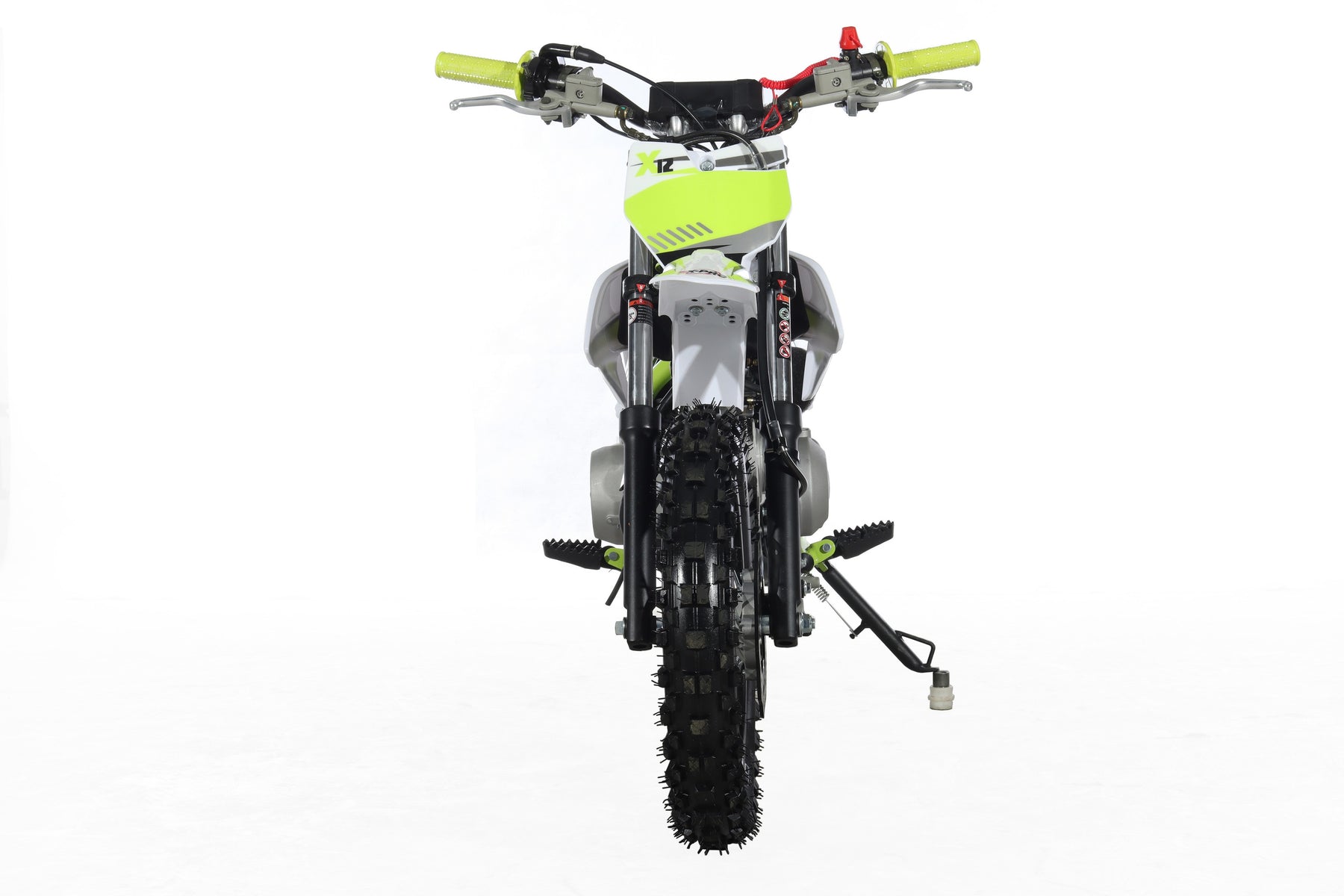

Gallery

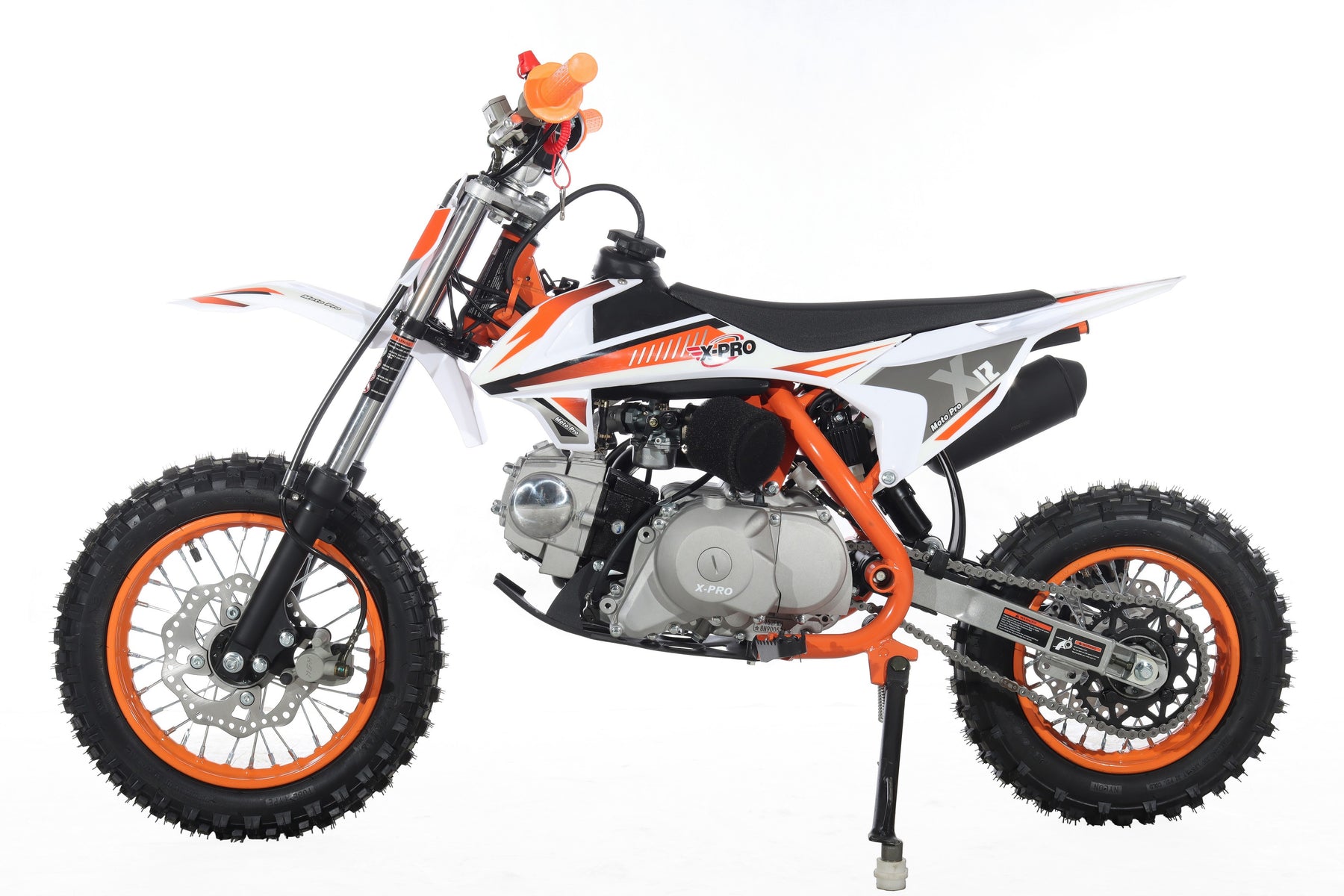

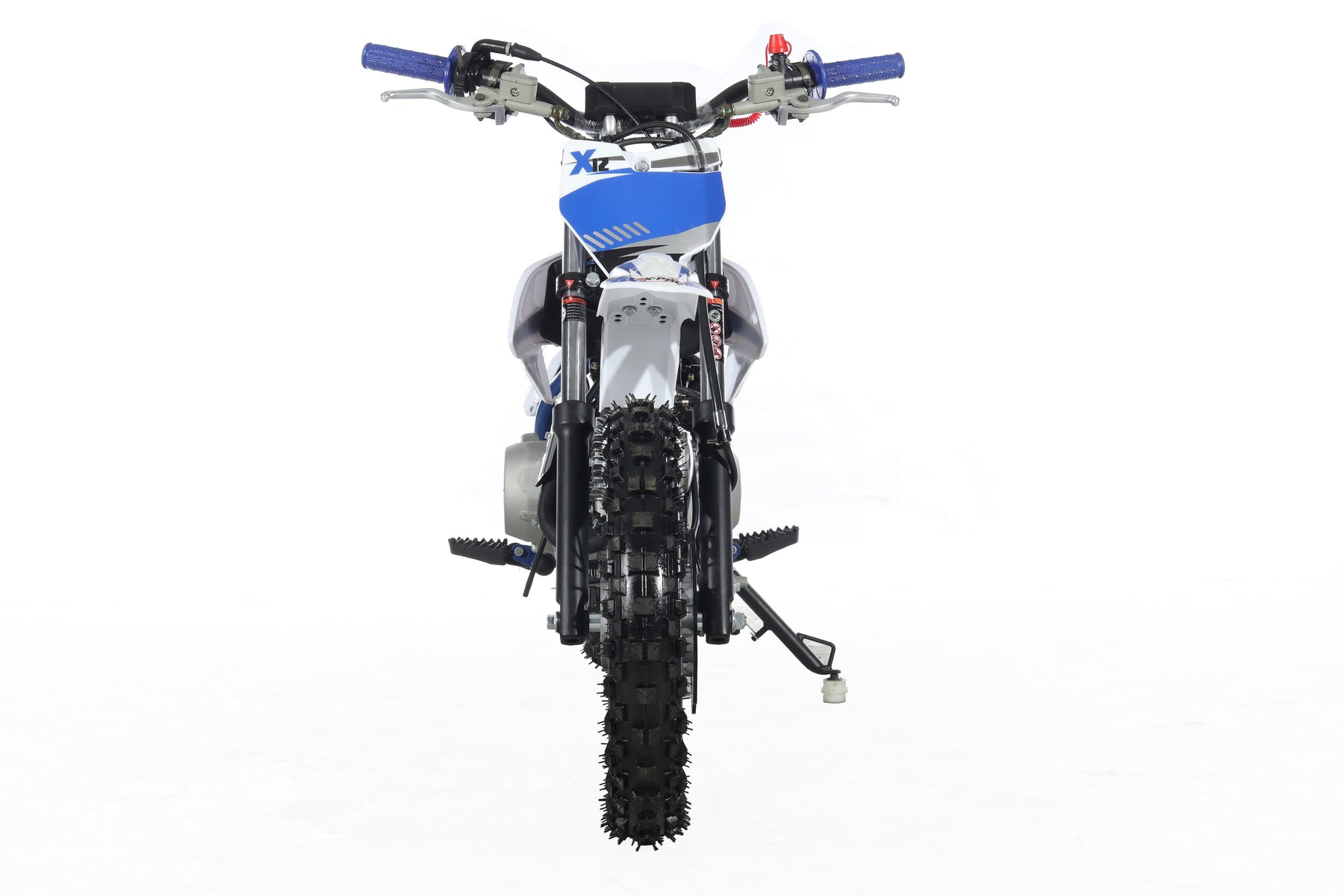

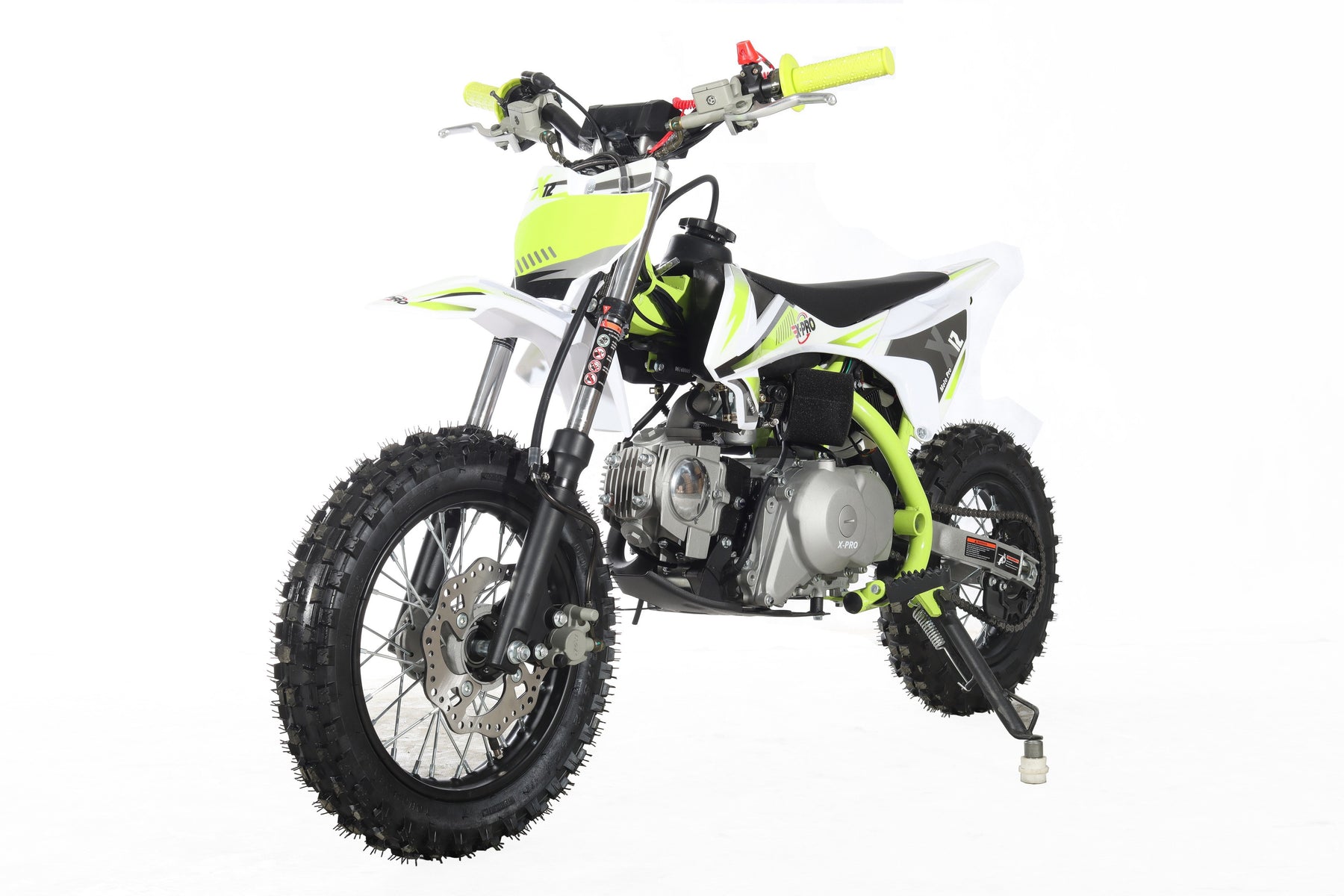

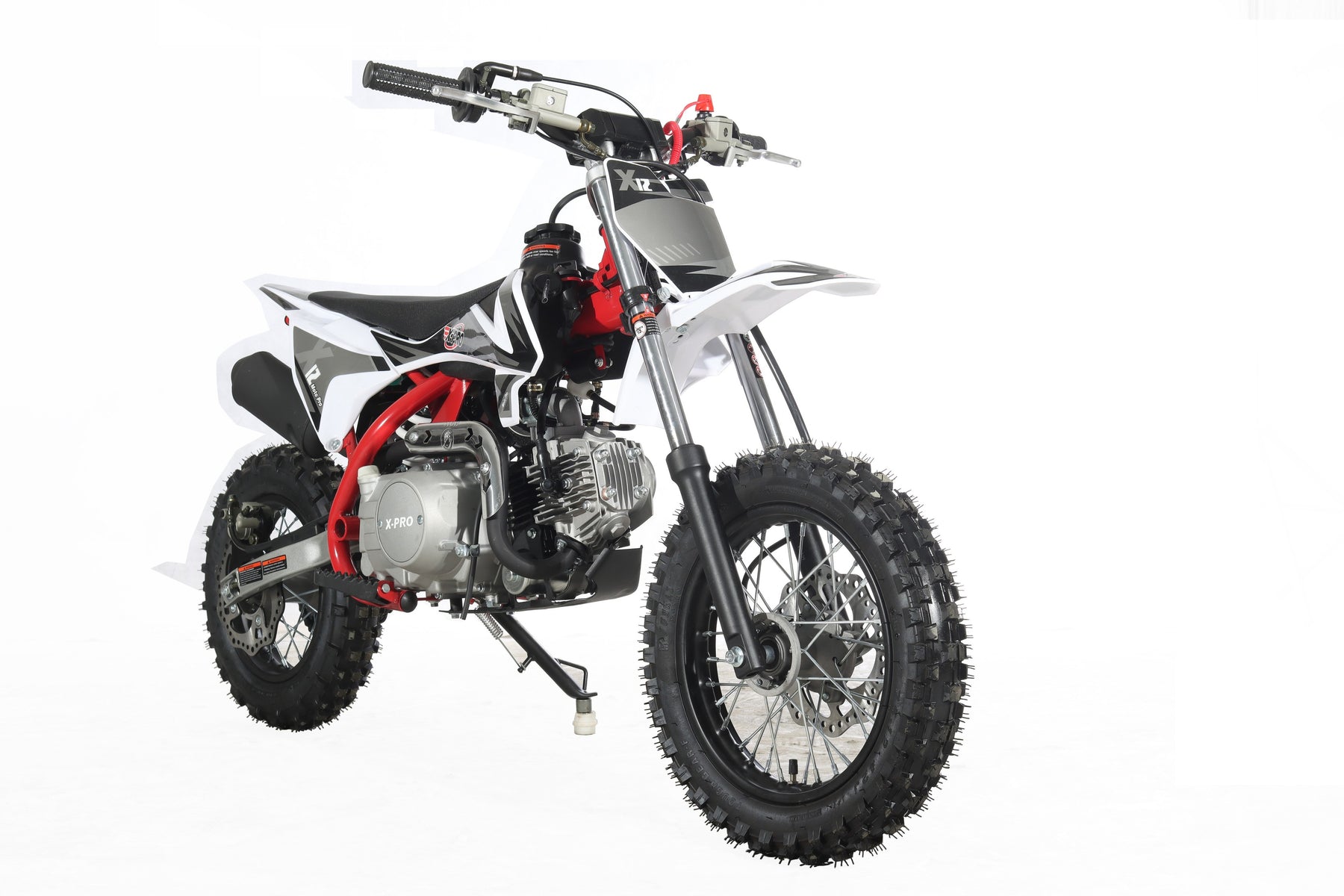

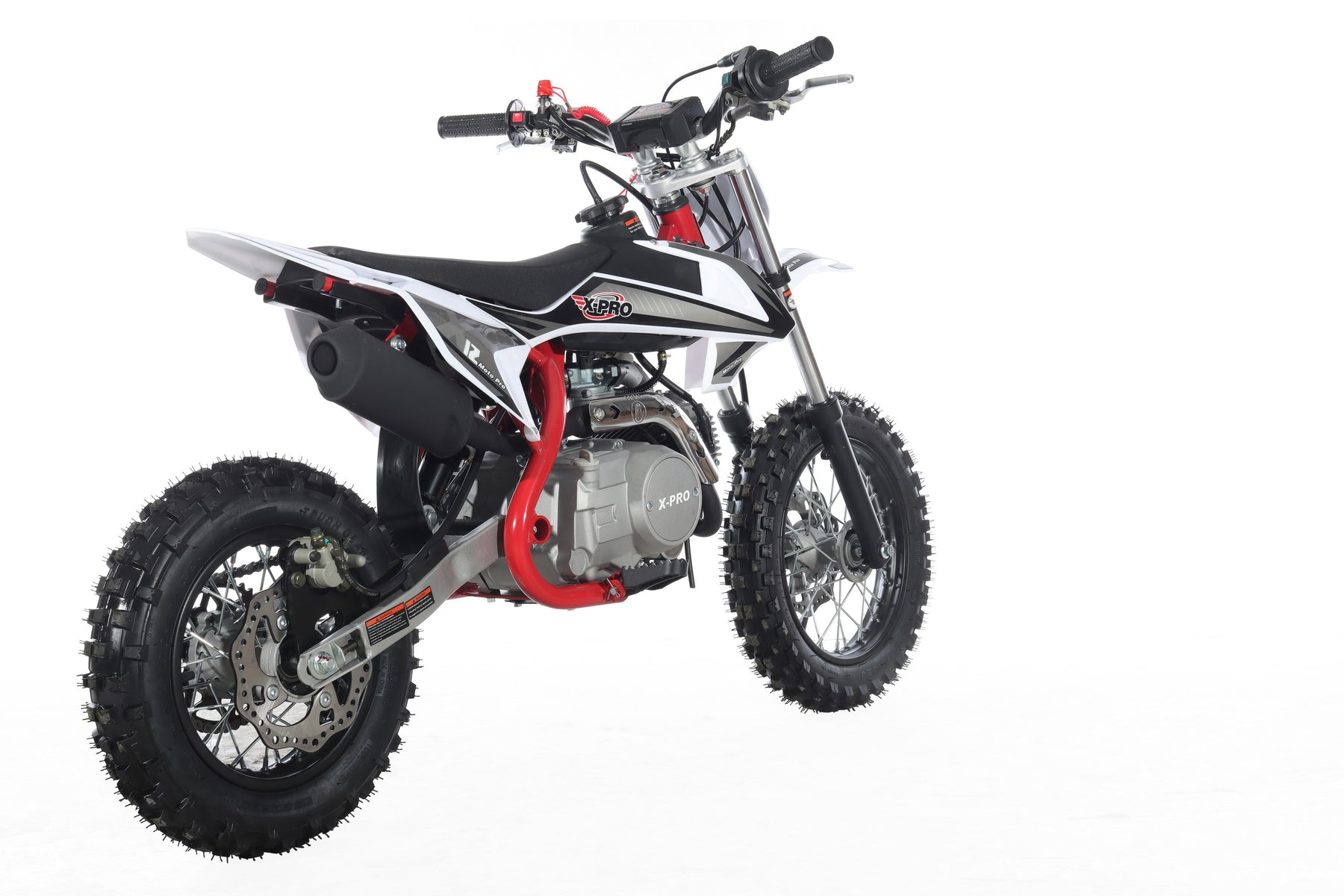

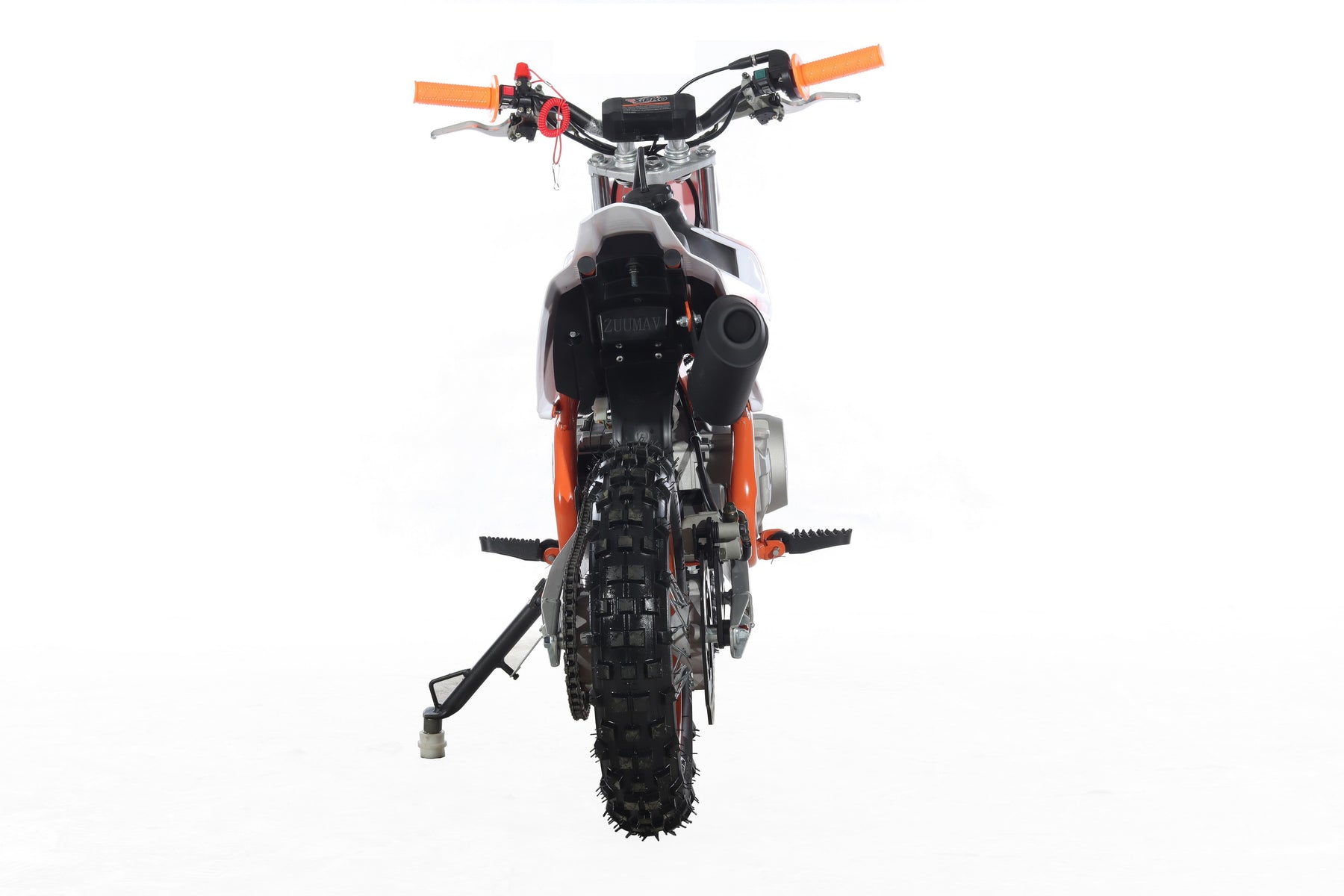

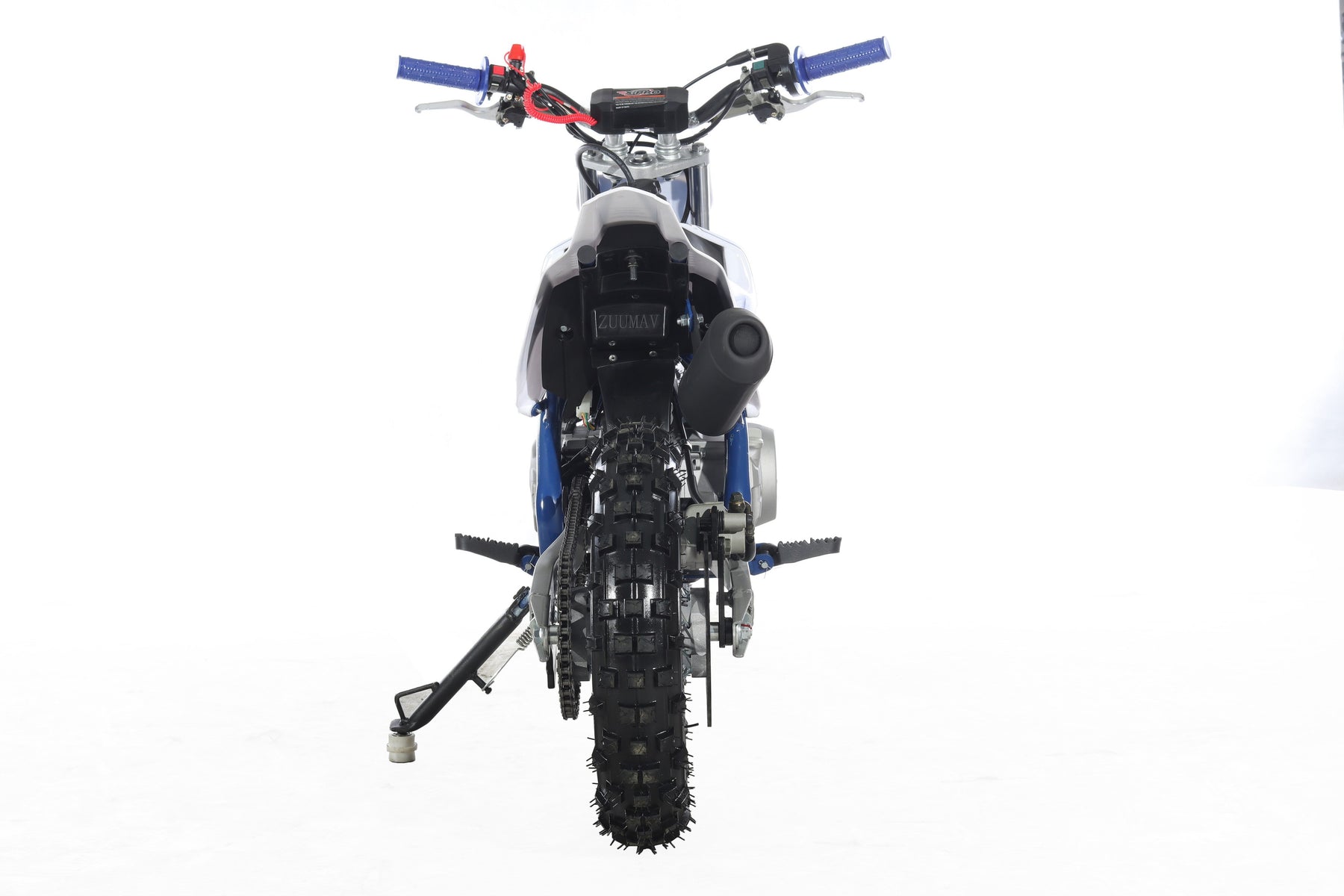

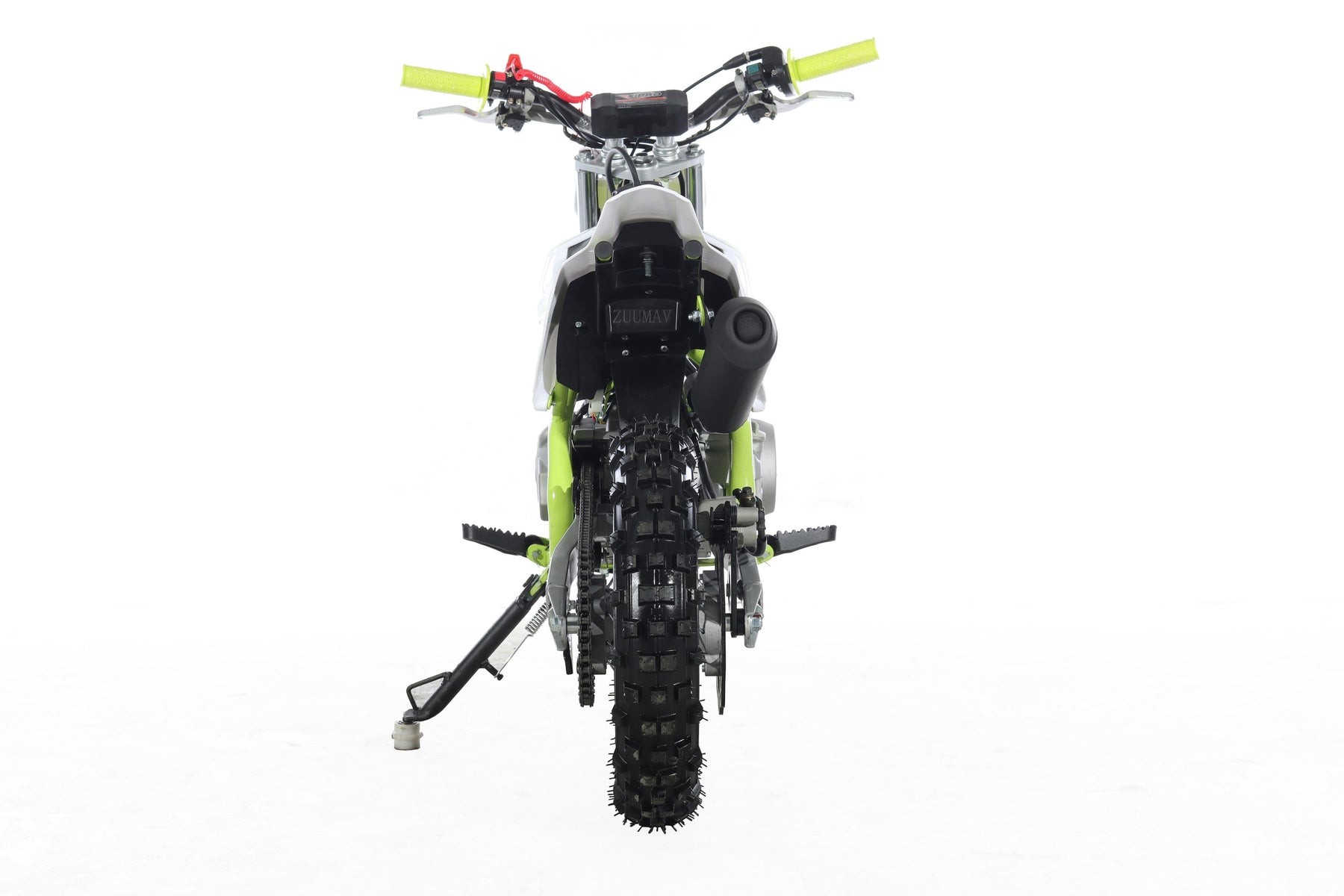

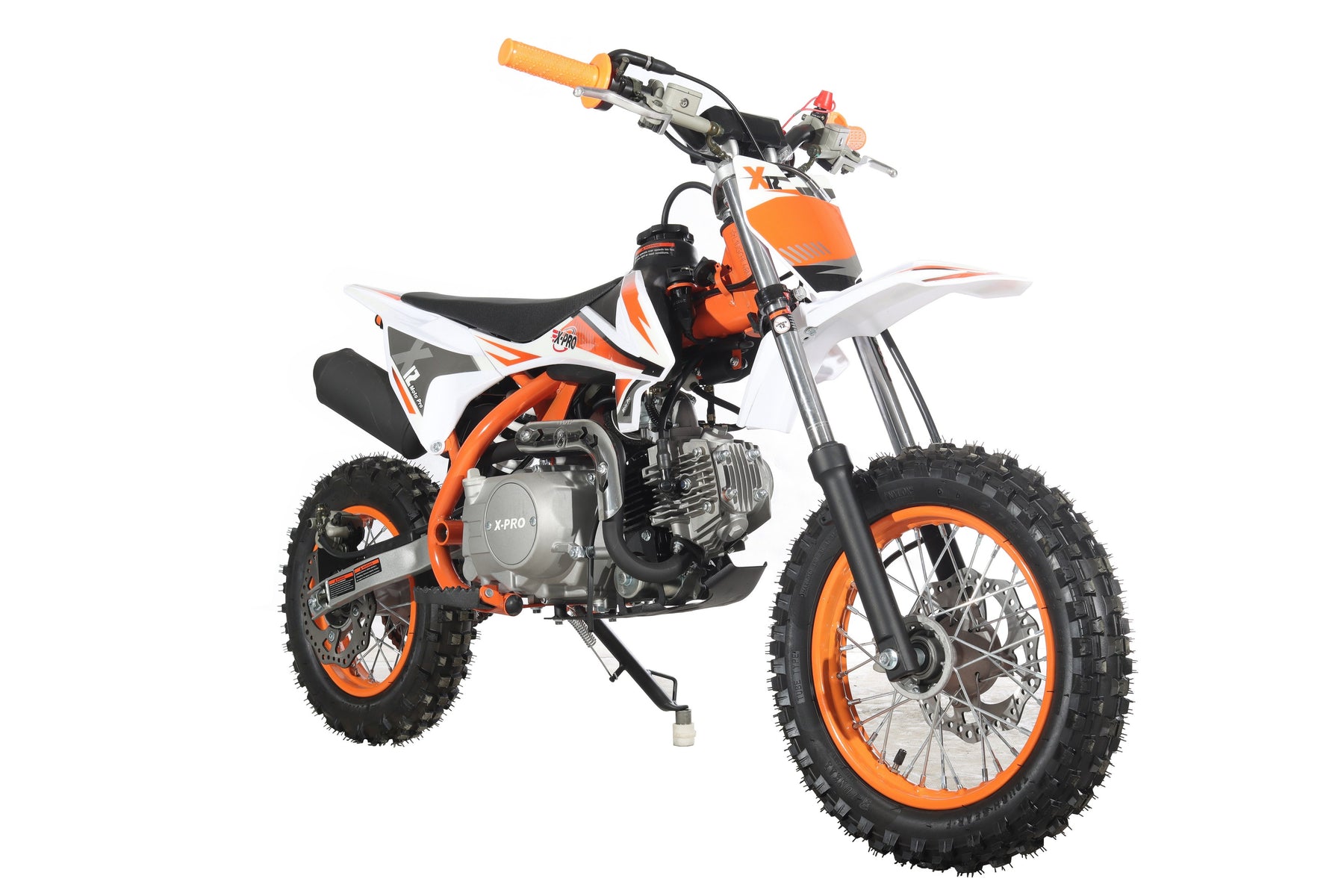

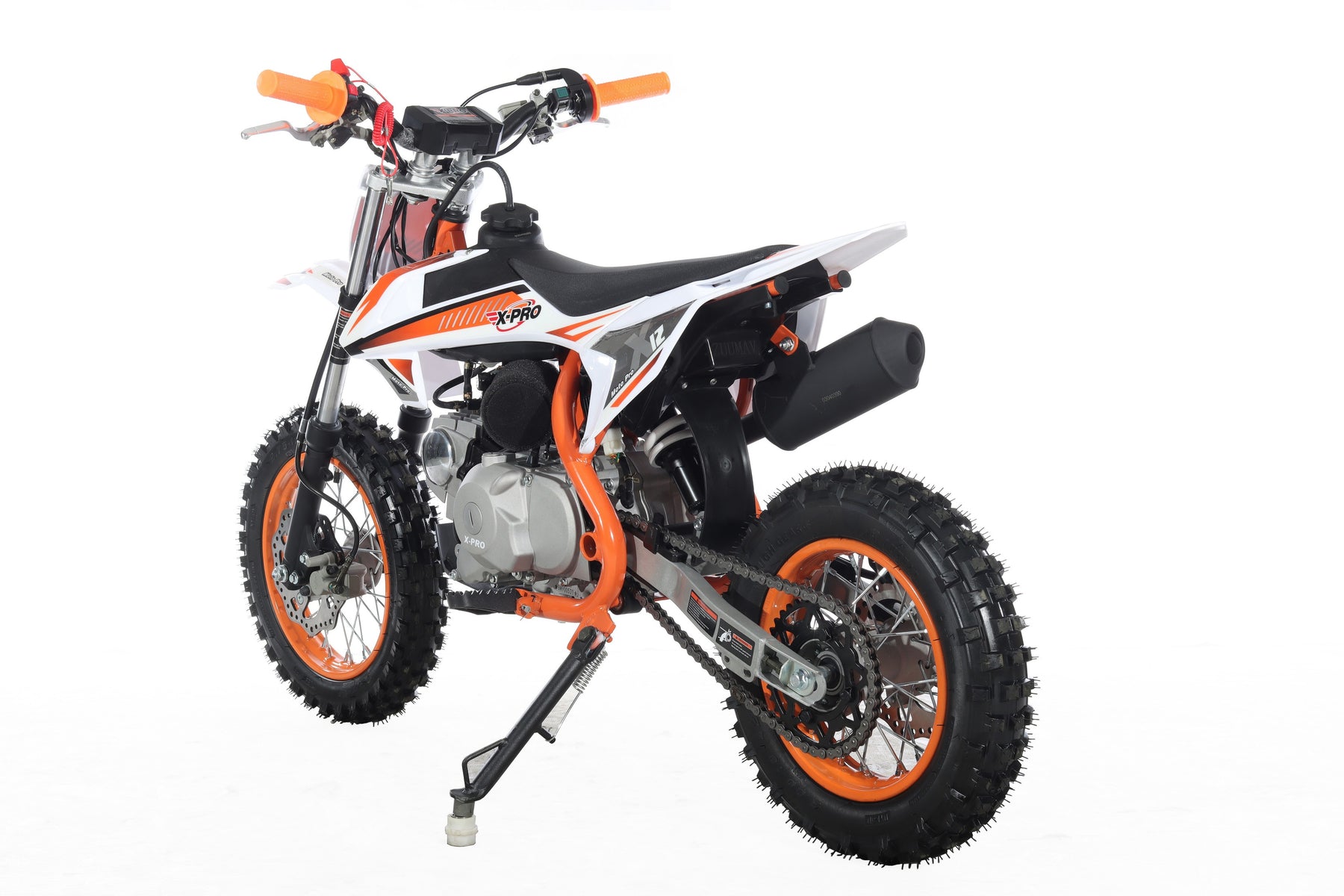

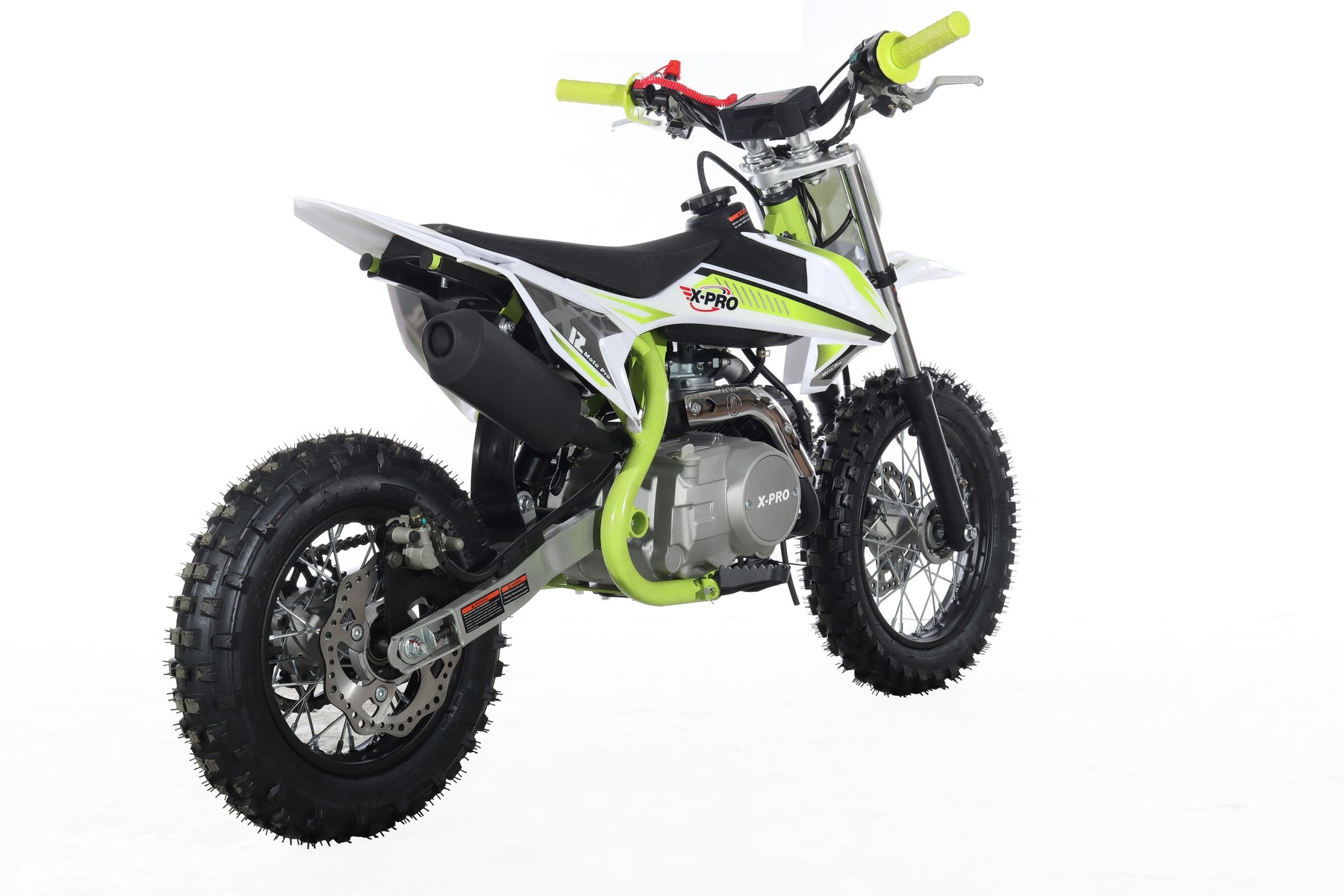

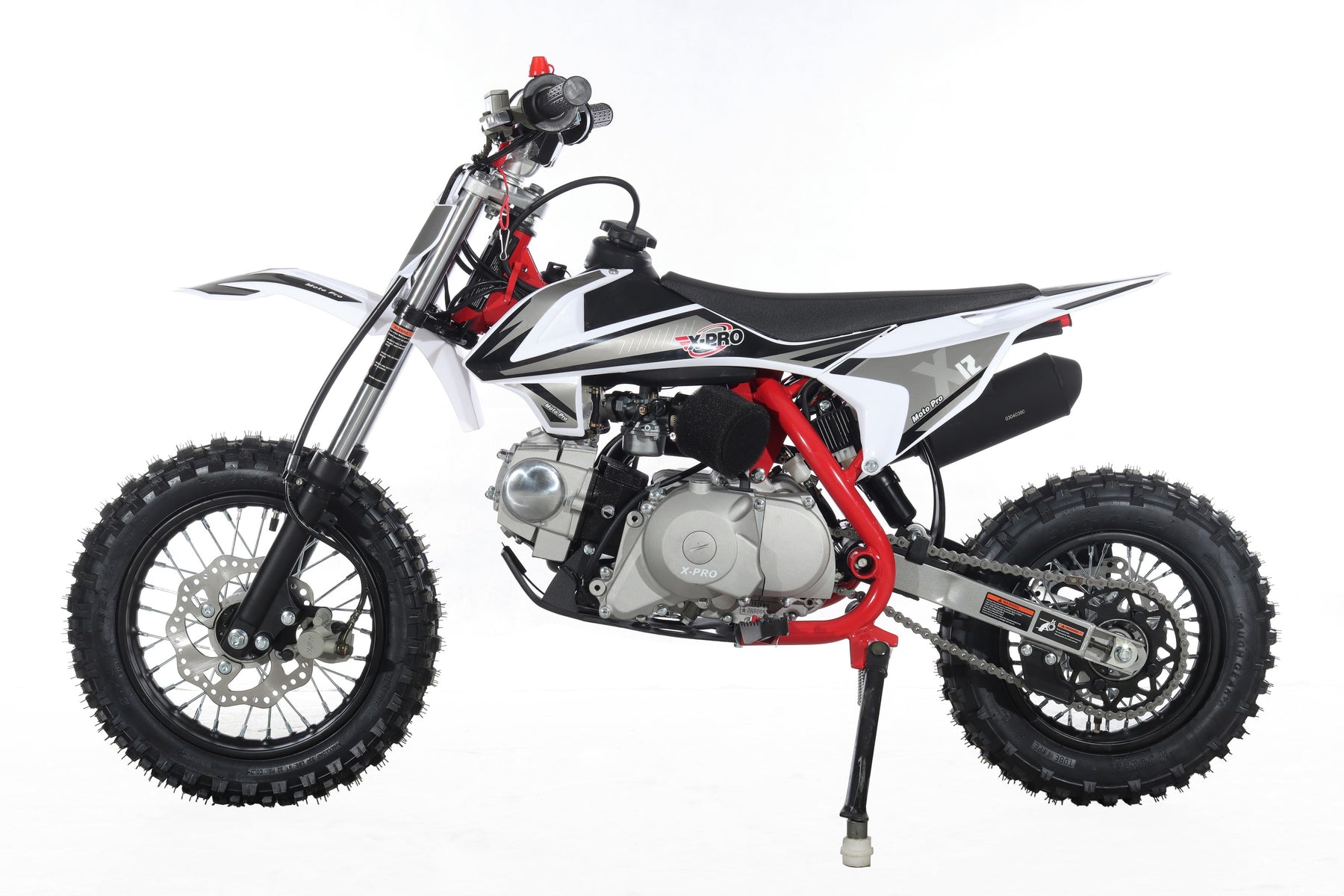

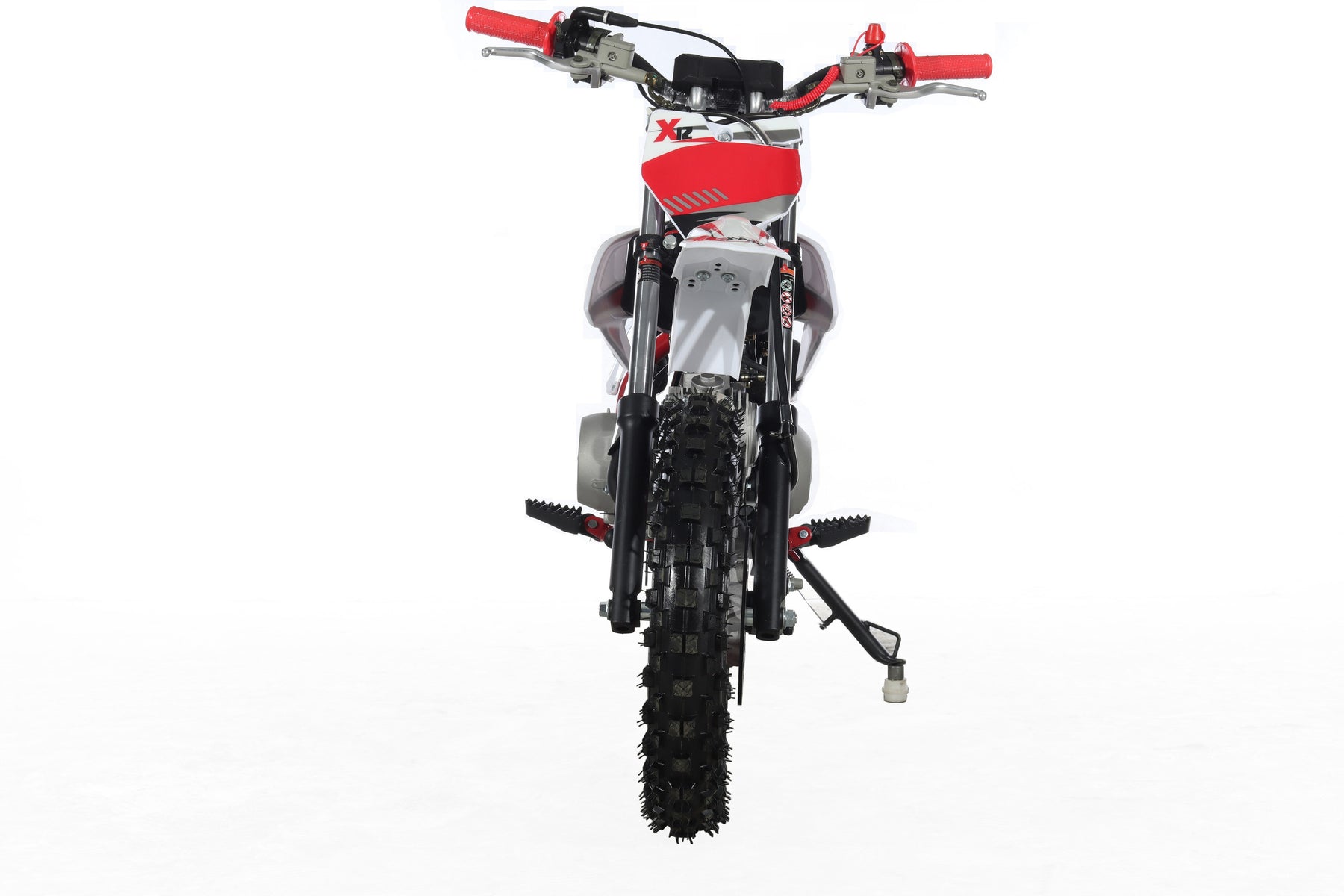

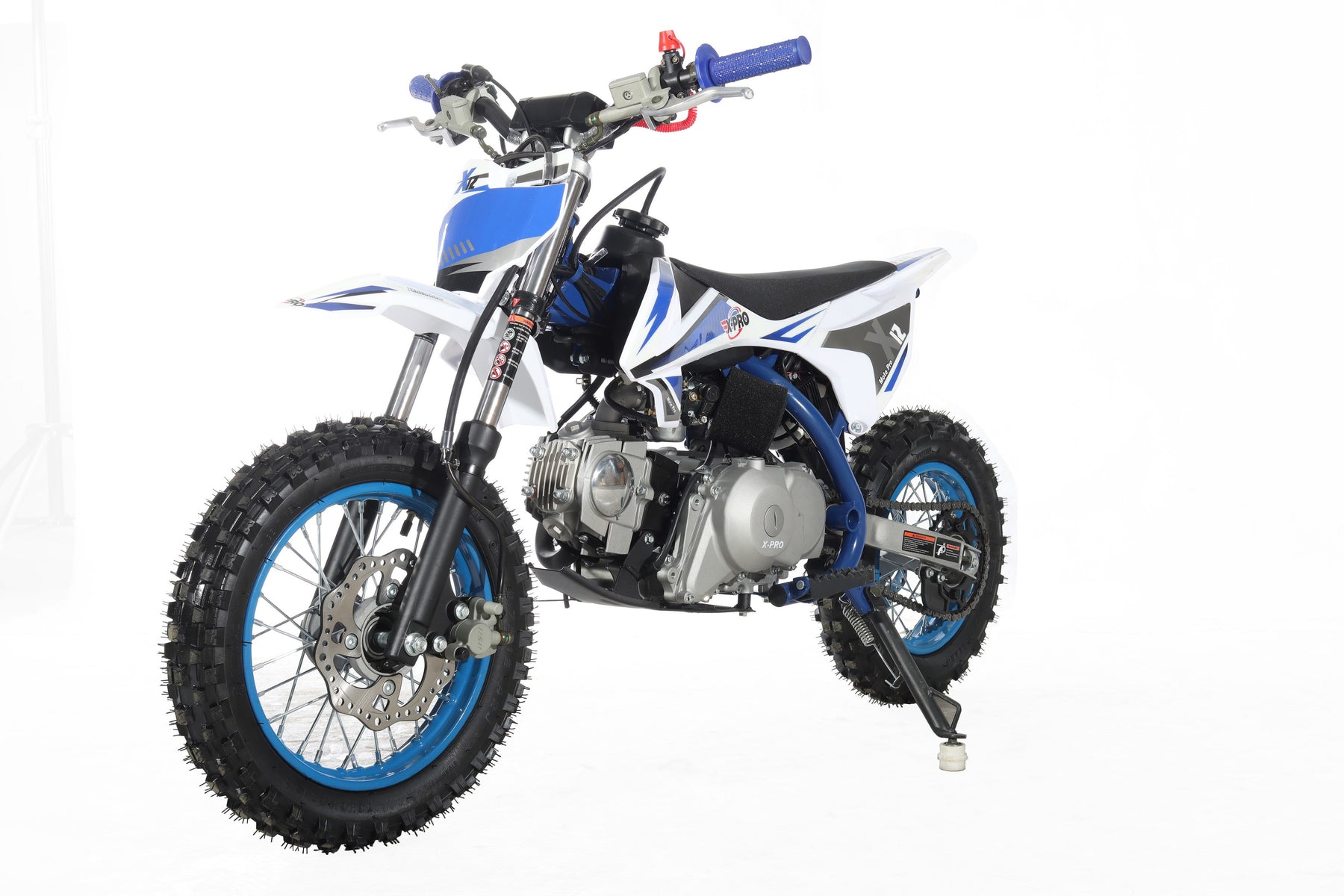

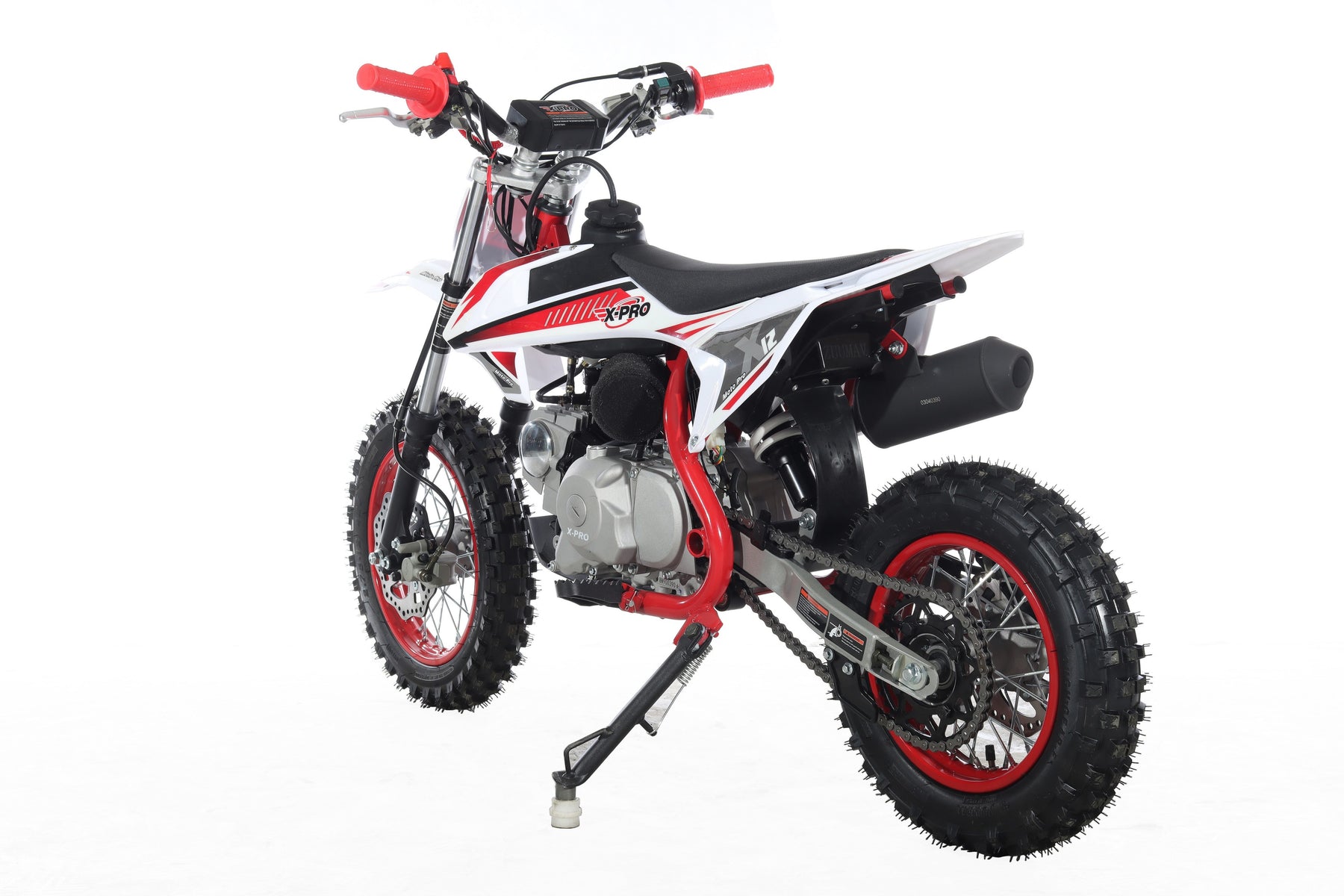

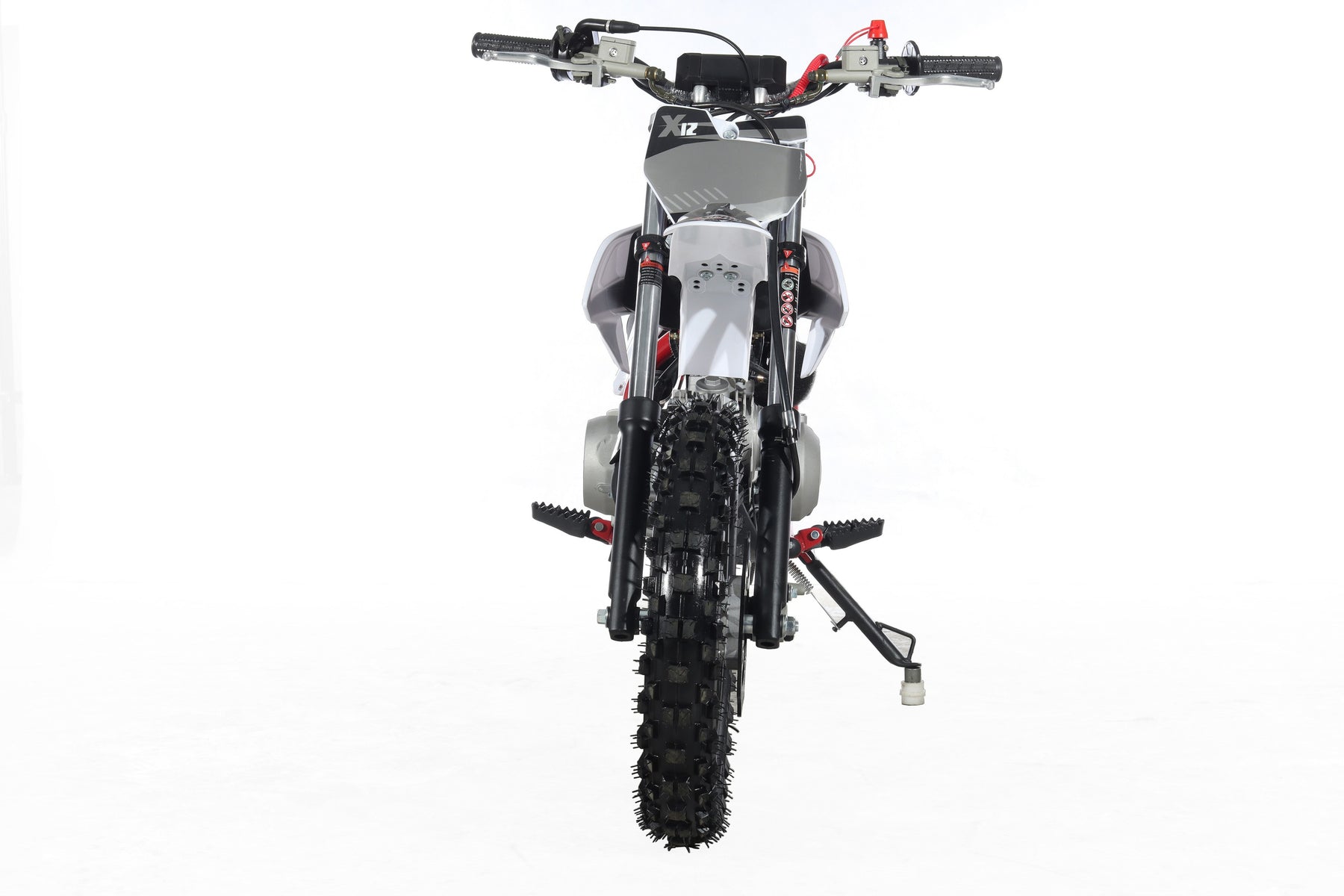

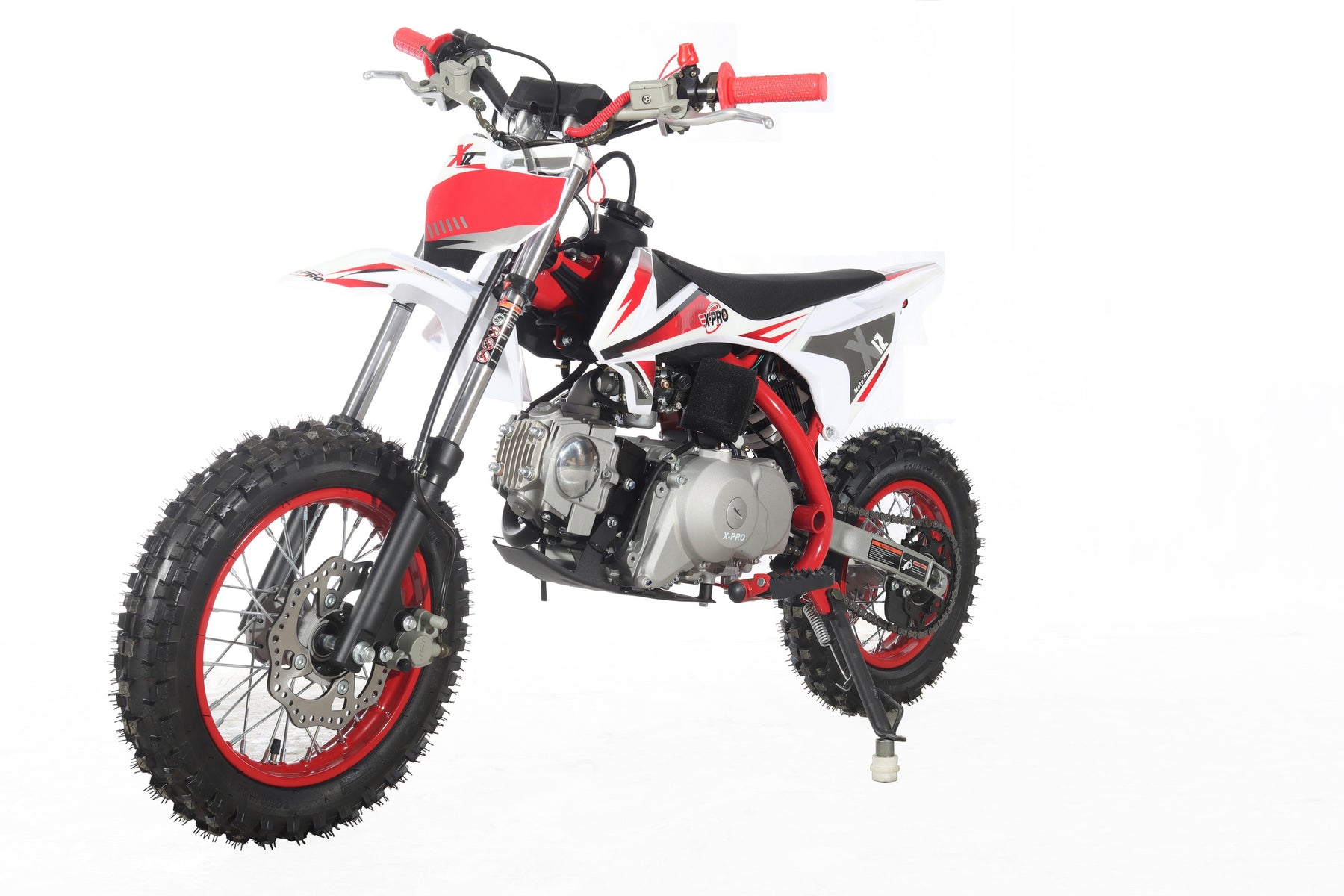

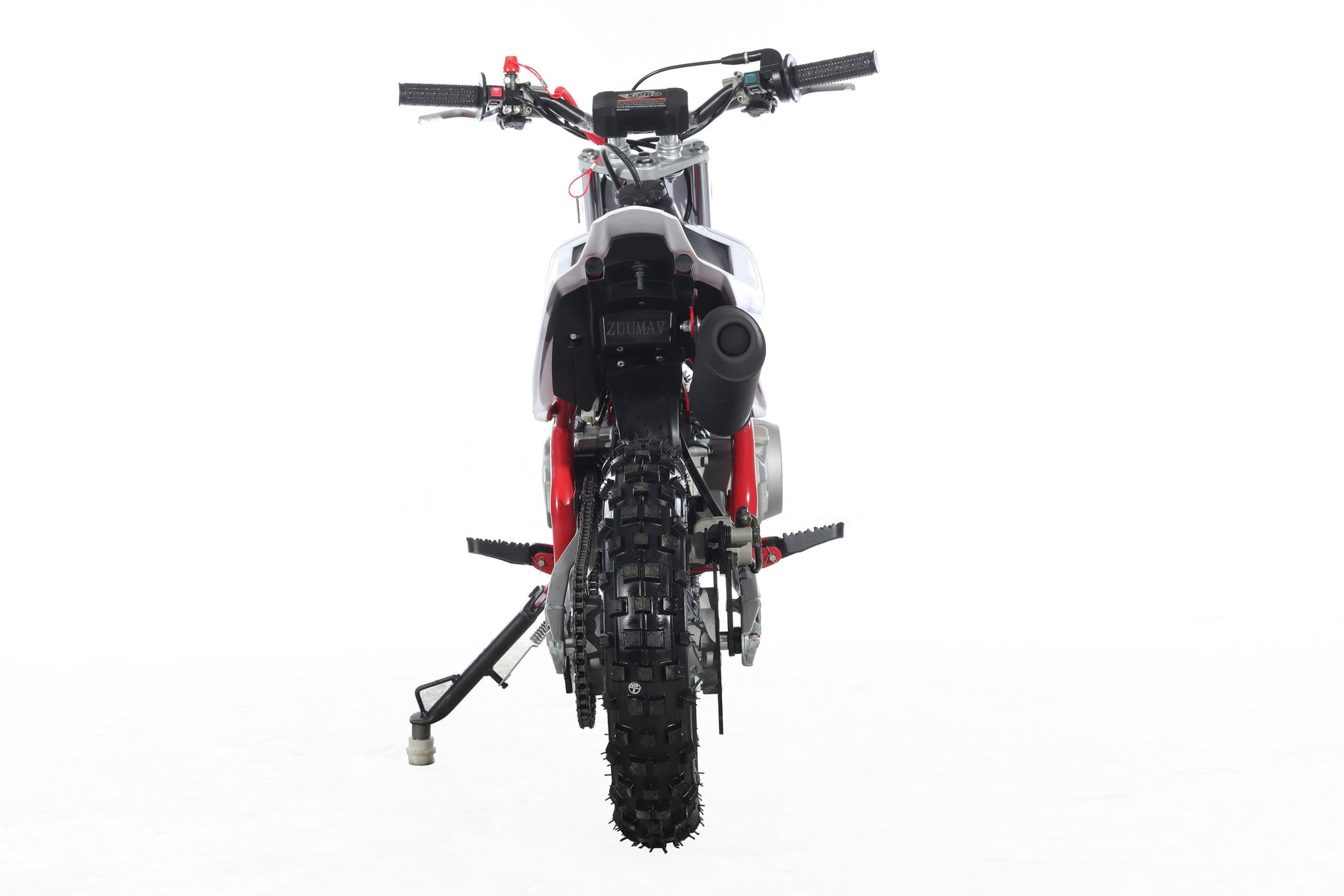

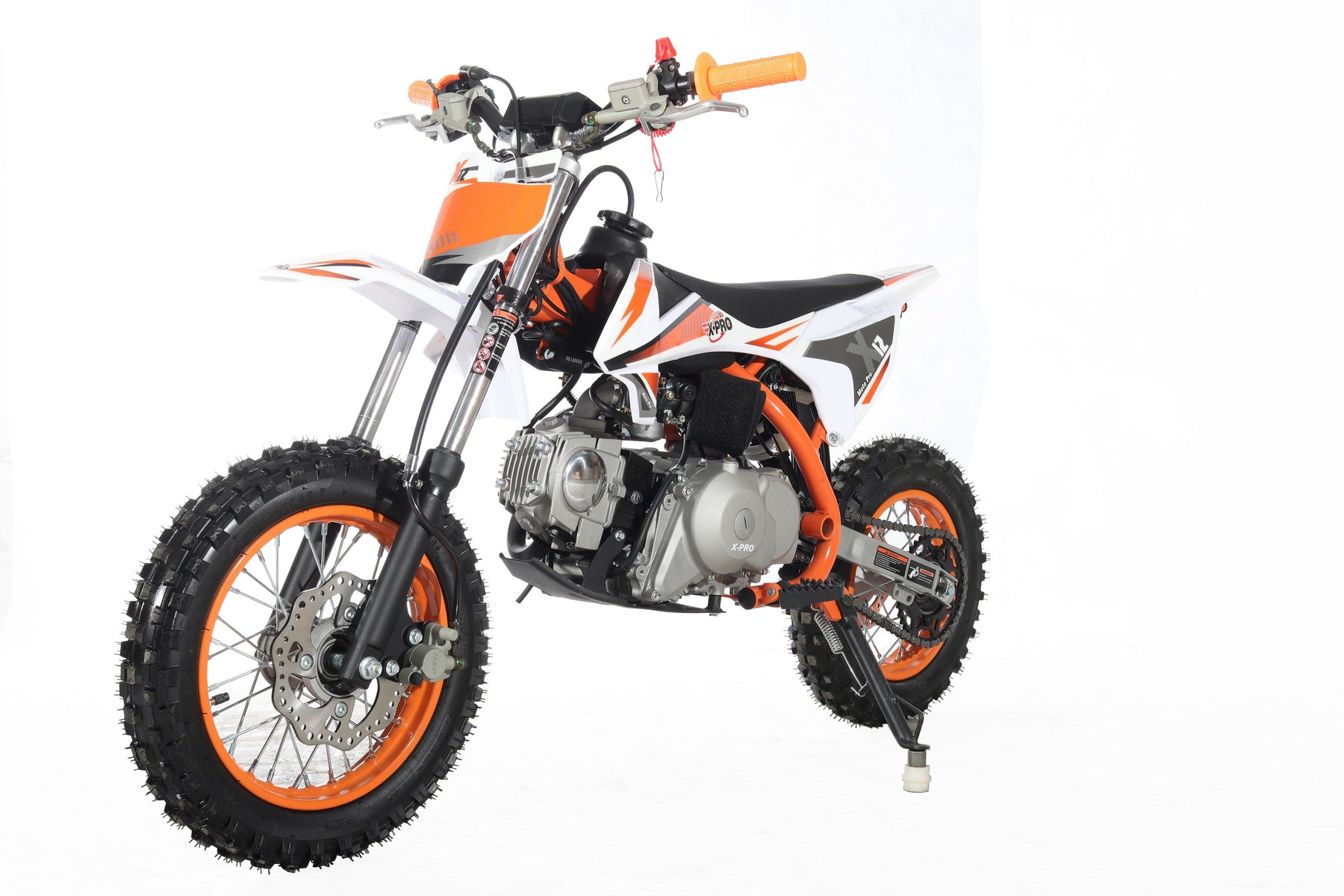

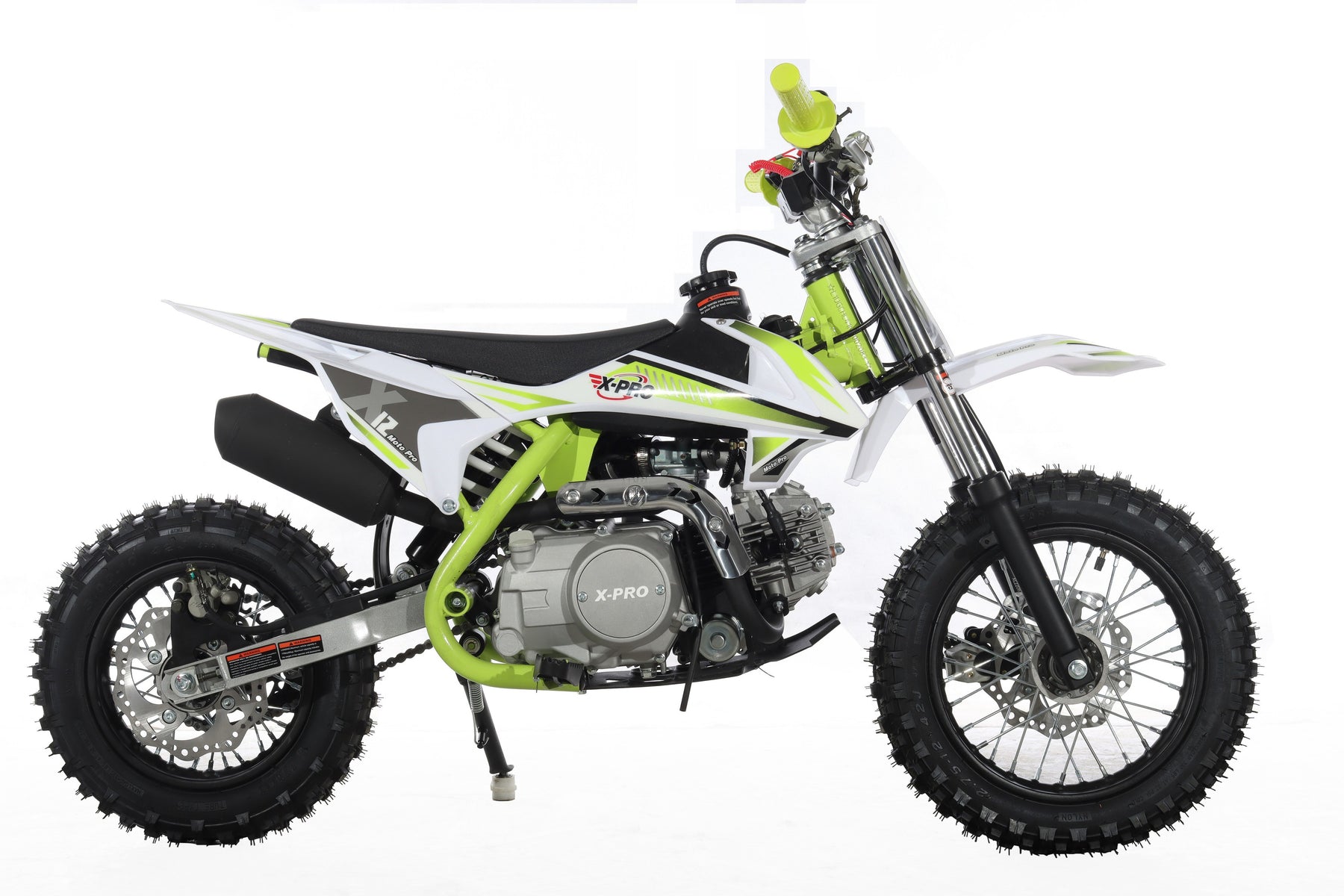

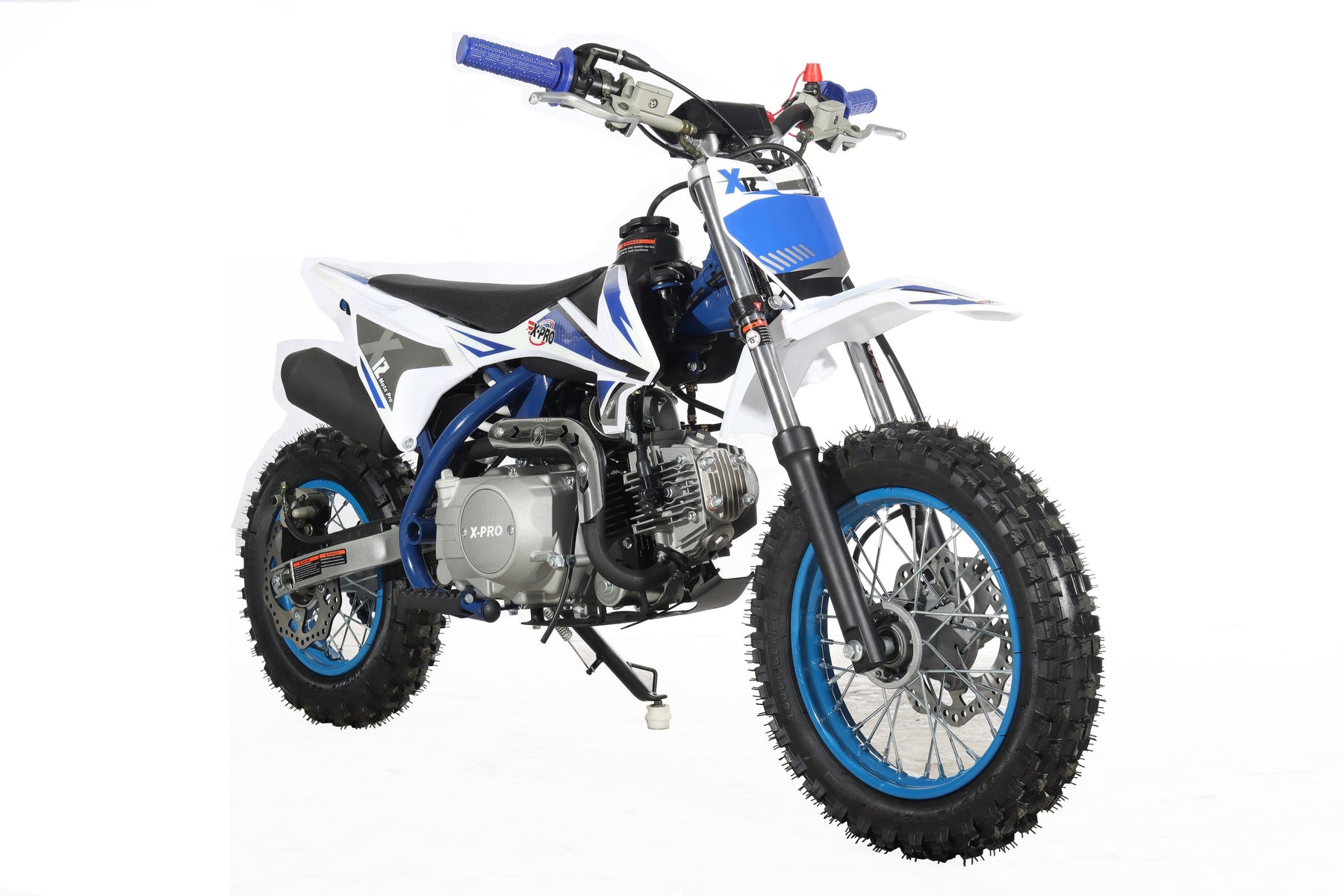

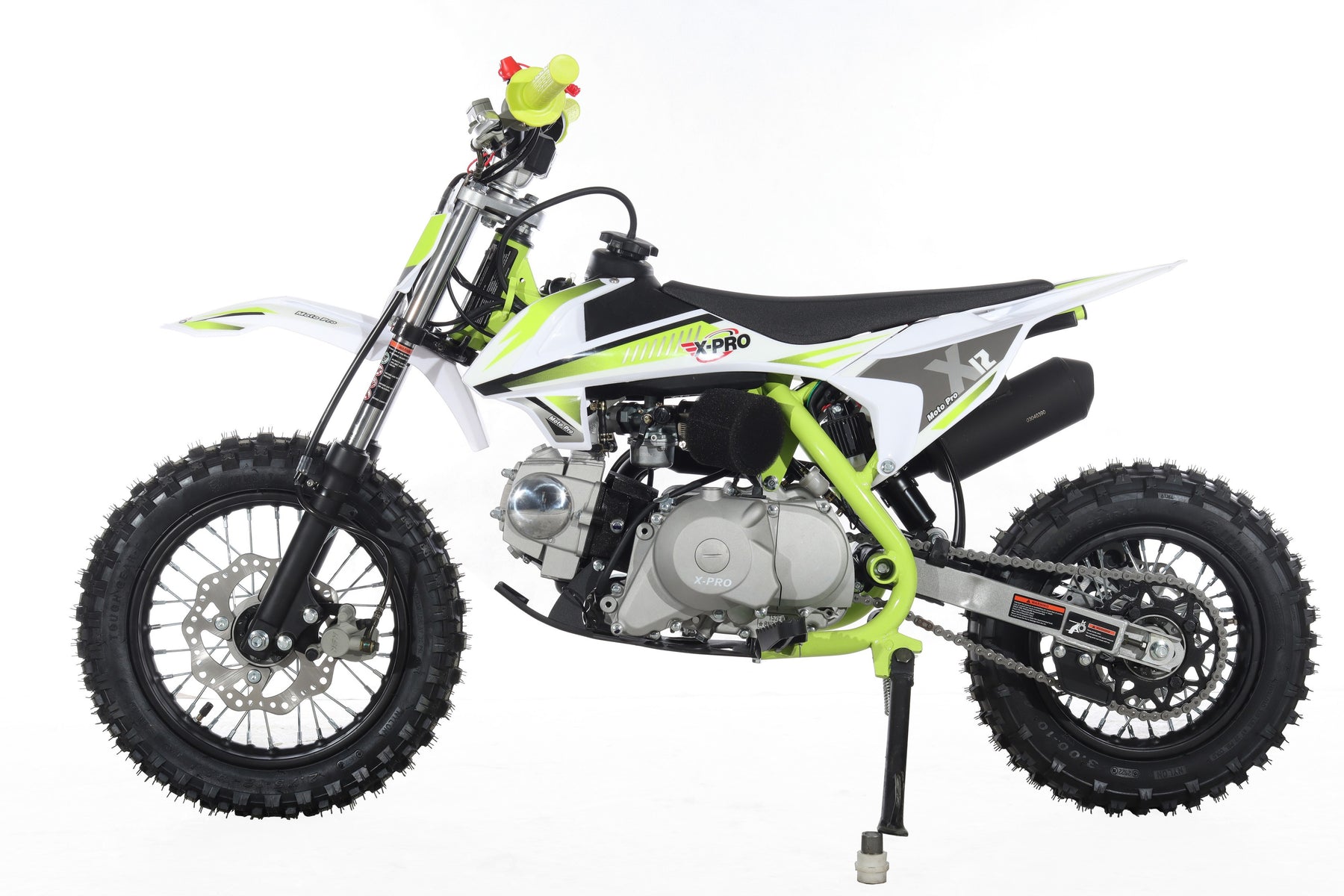

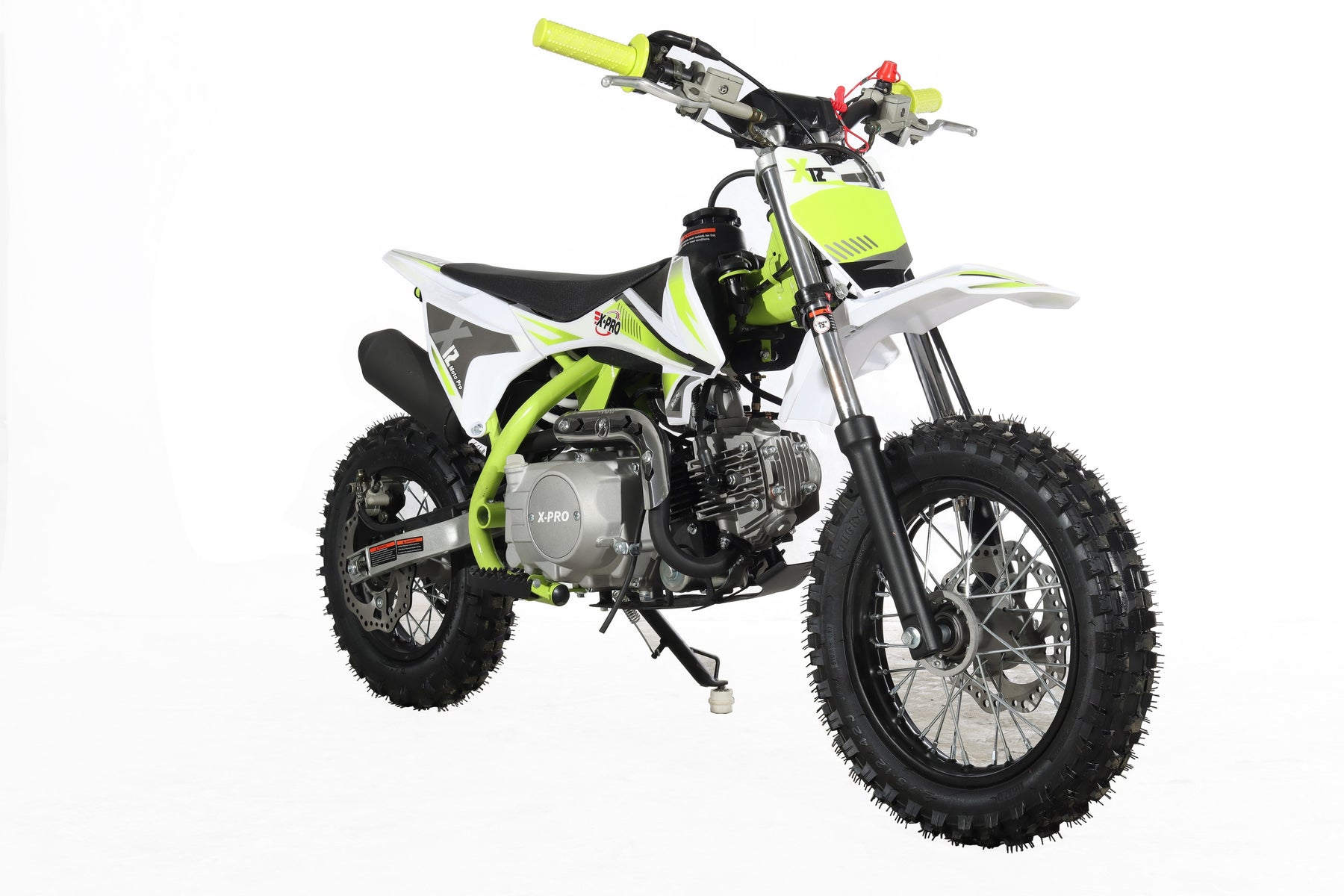

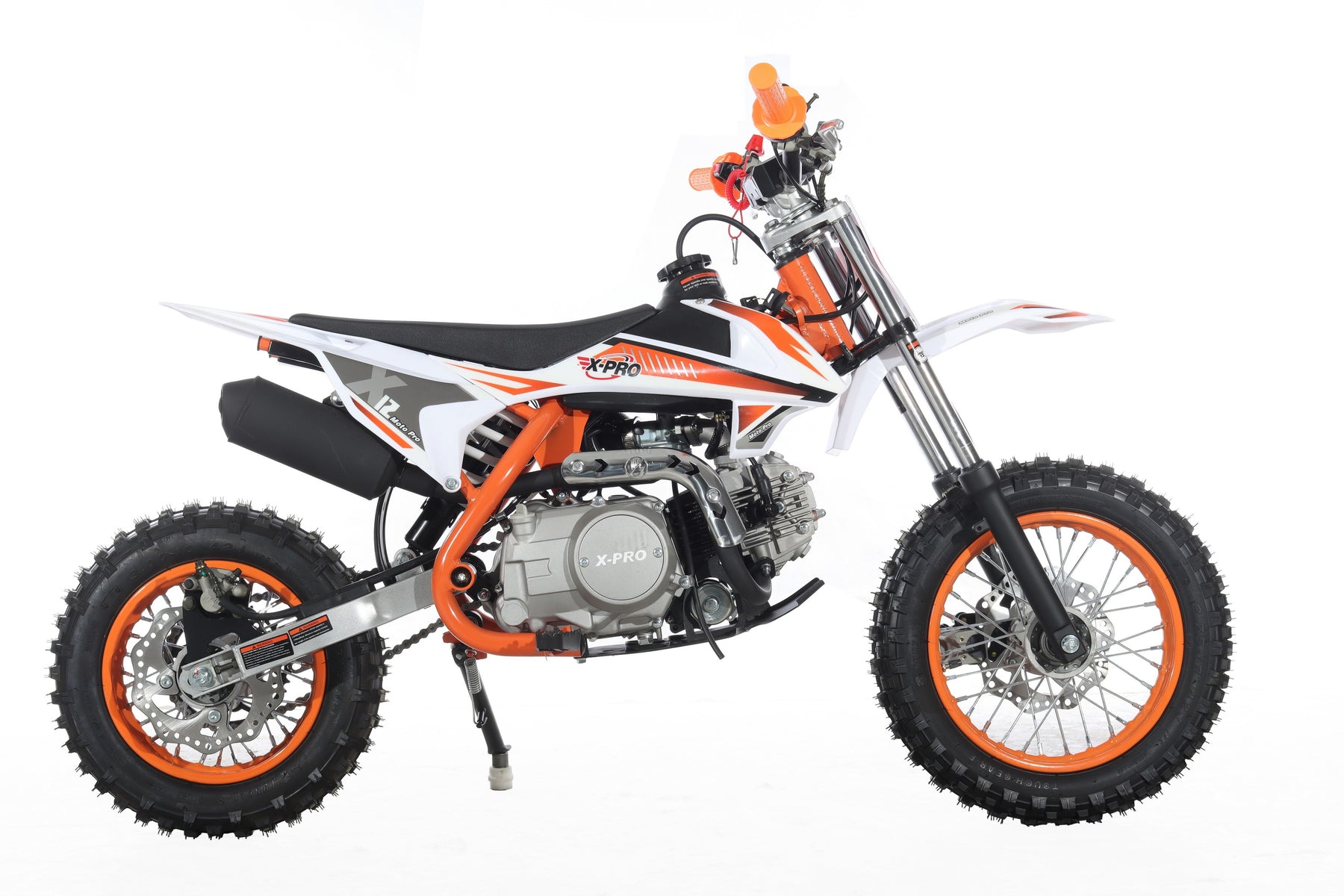

Different ColorsDifferent Angles
How-To Guides
Assembly Video
