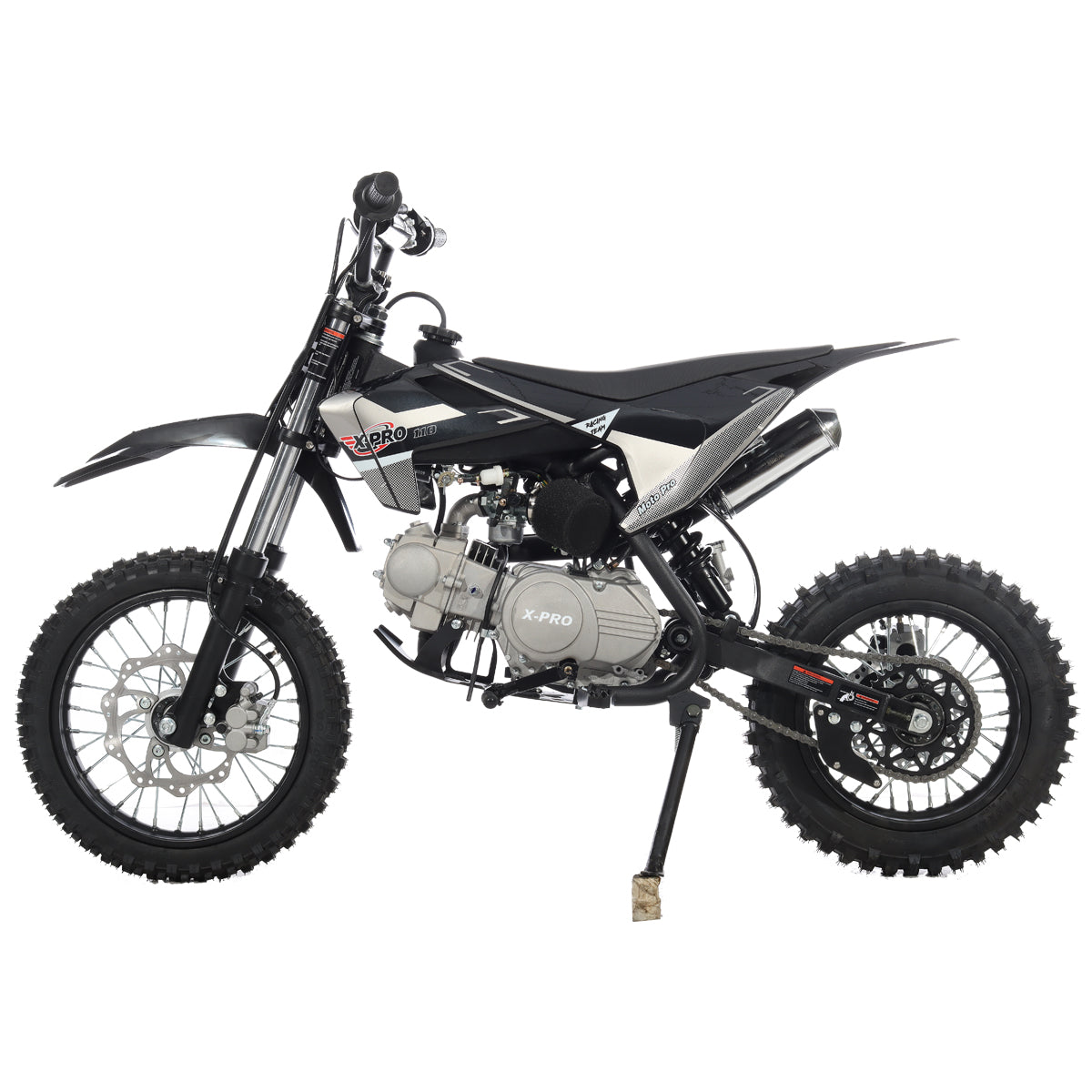

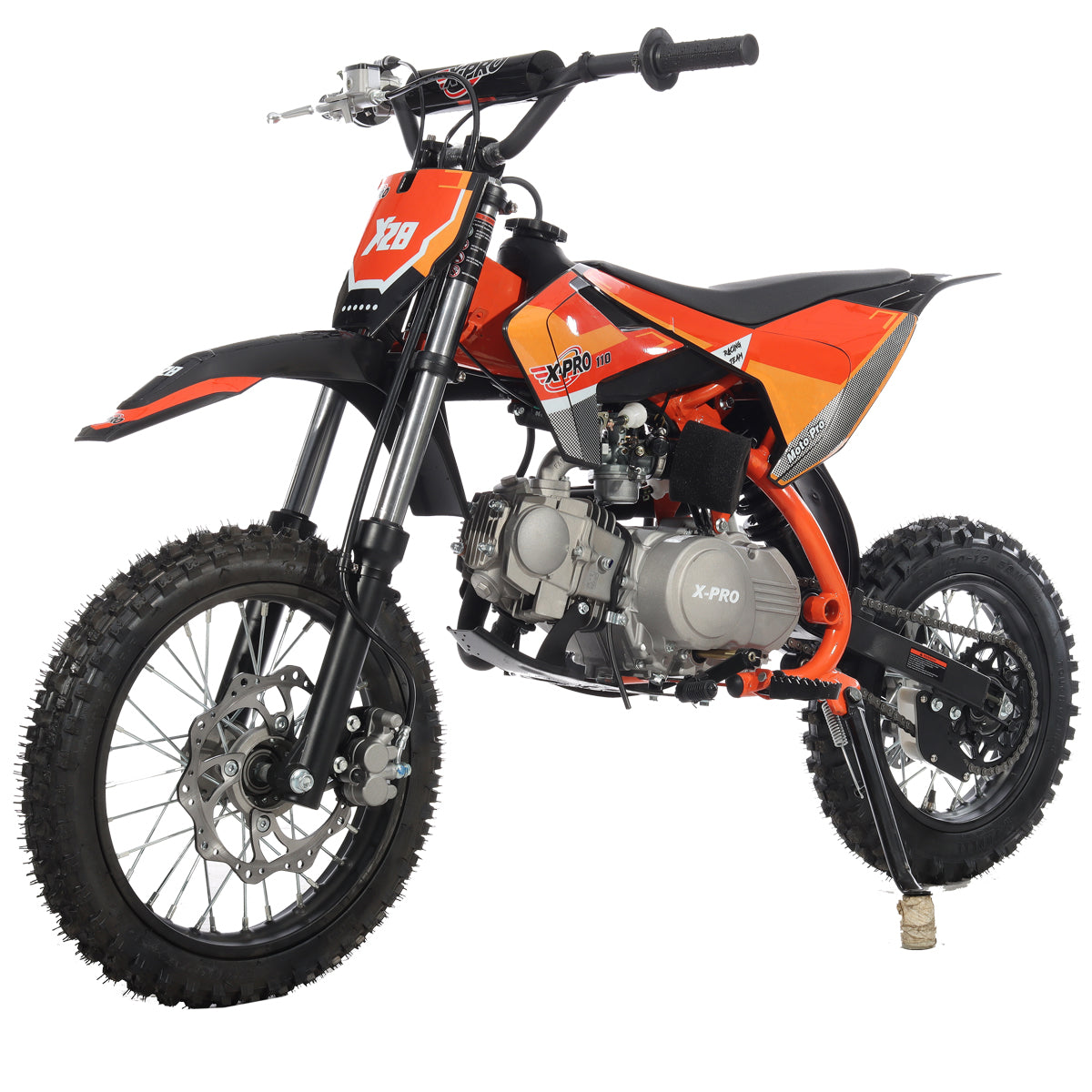

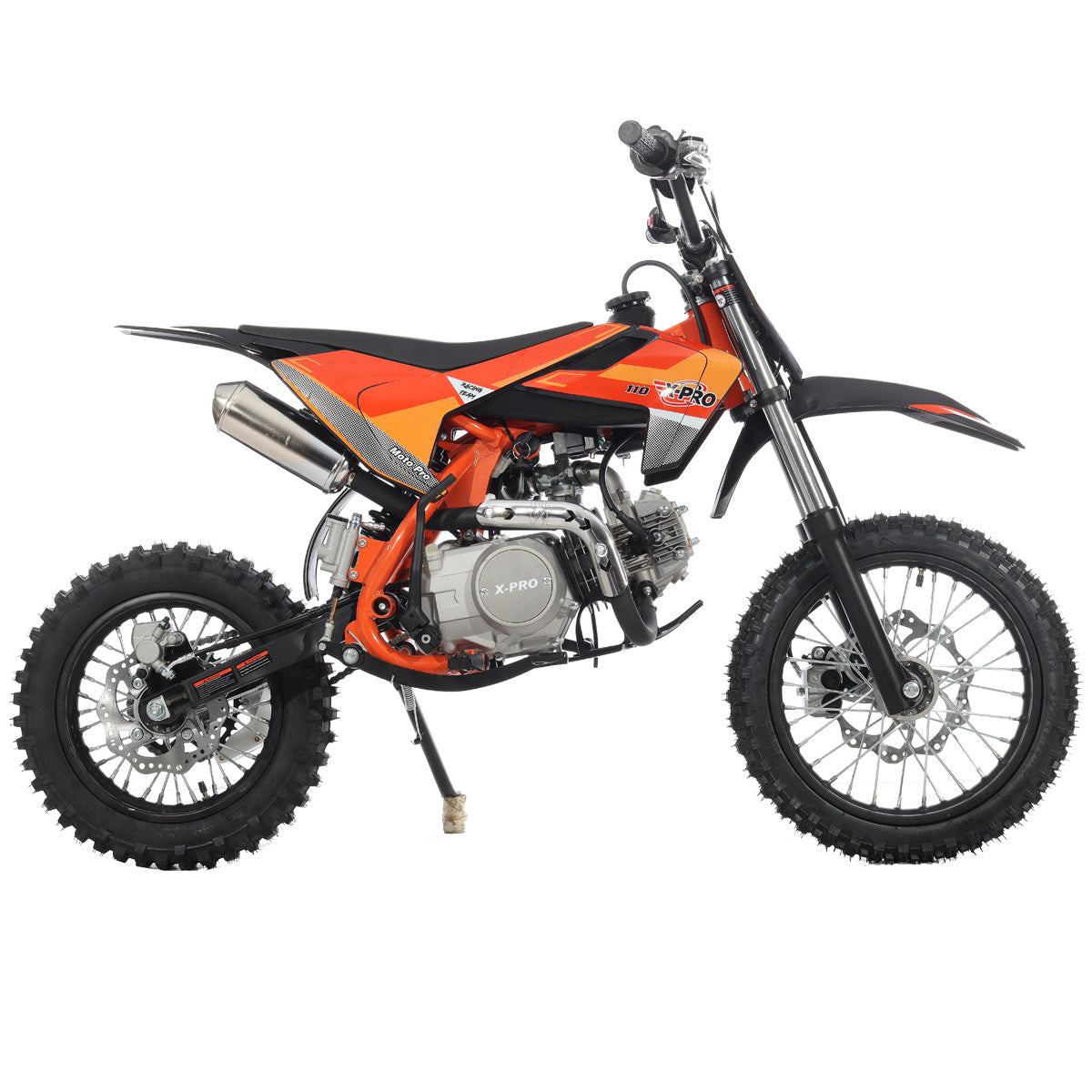

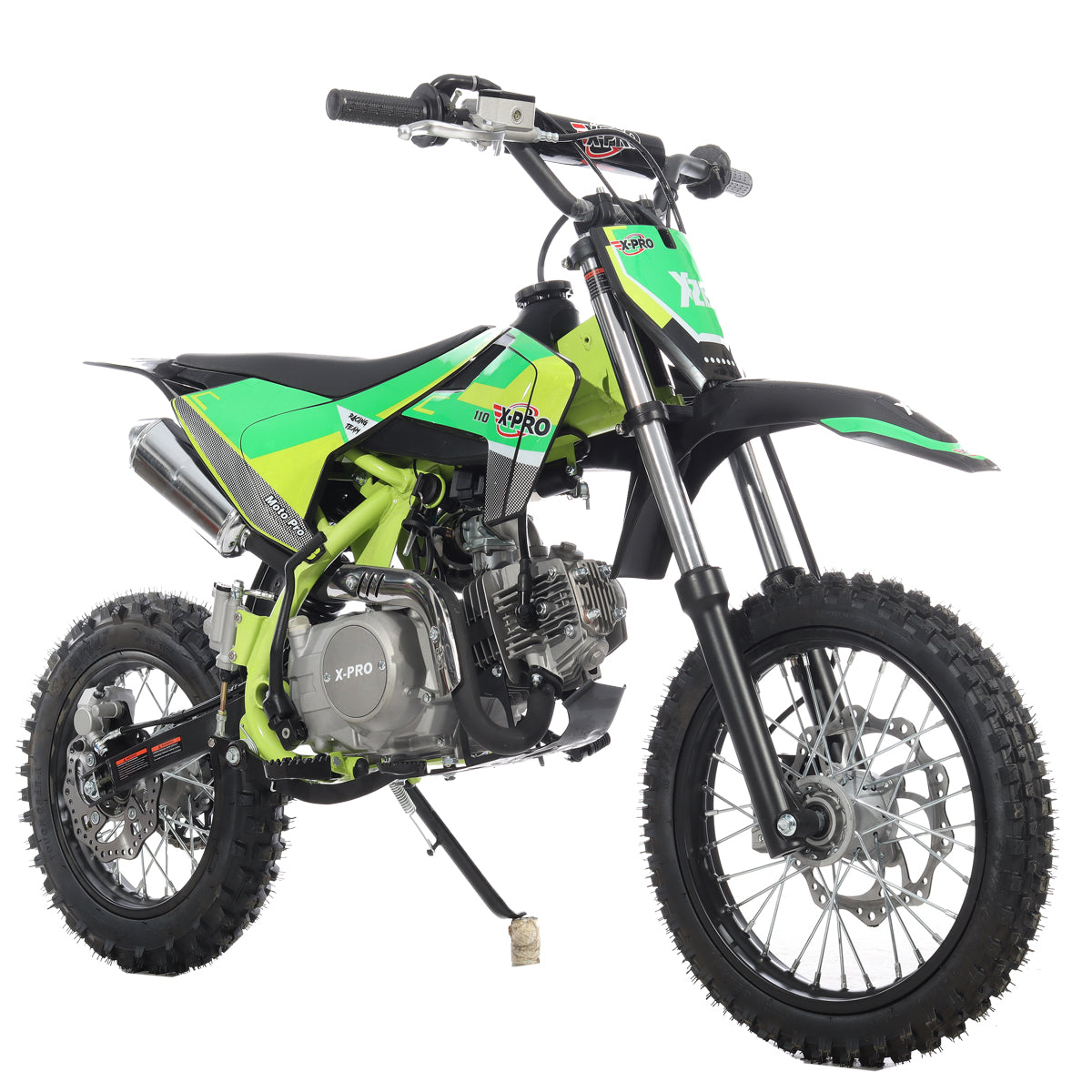

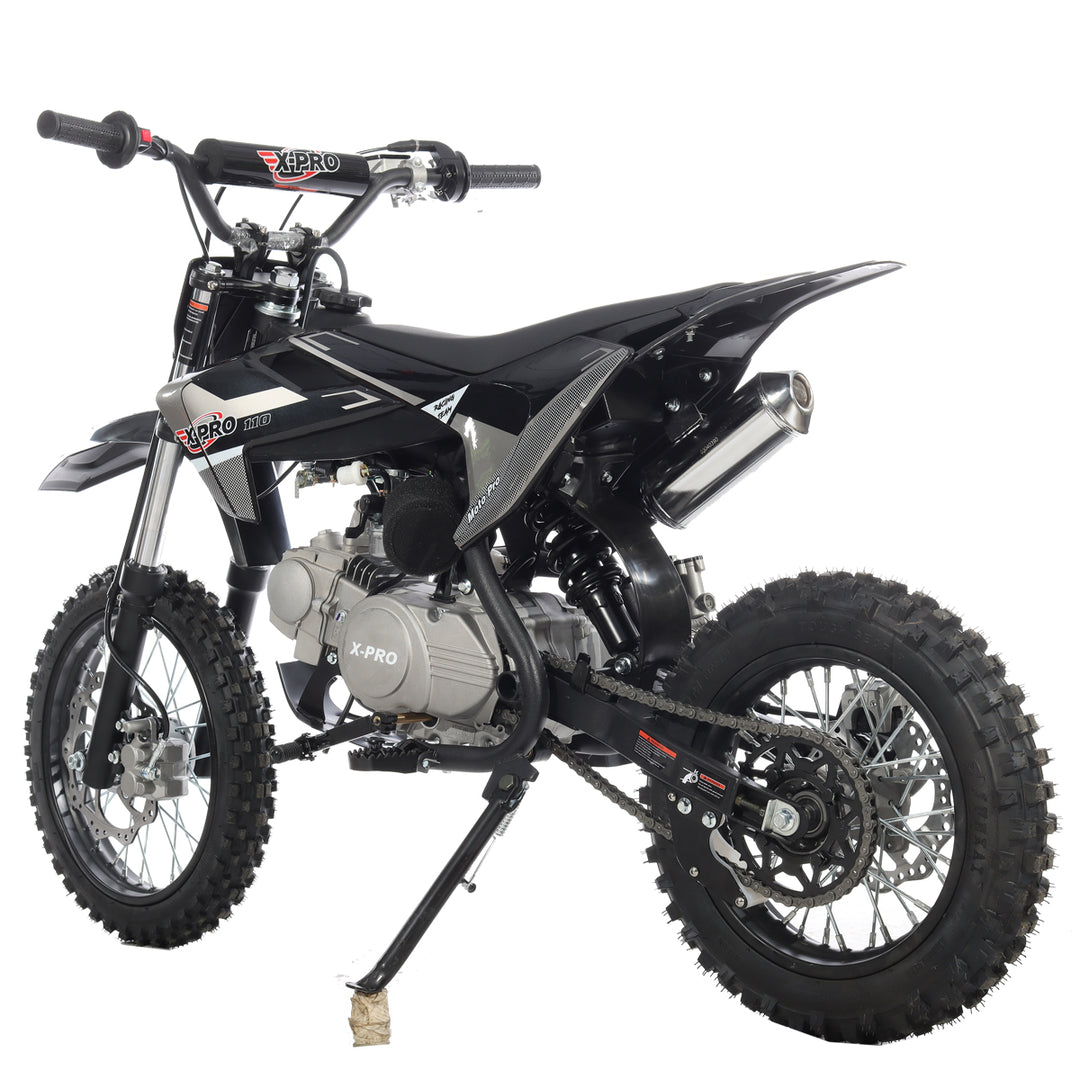

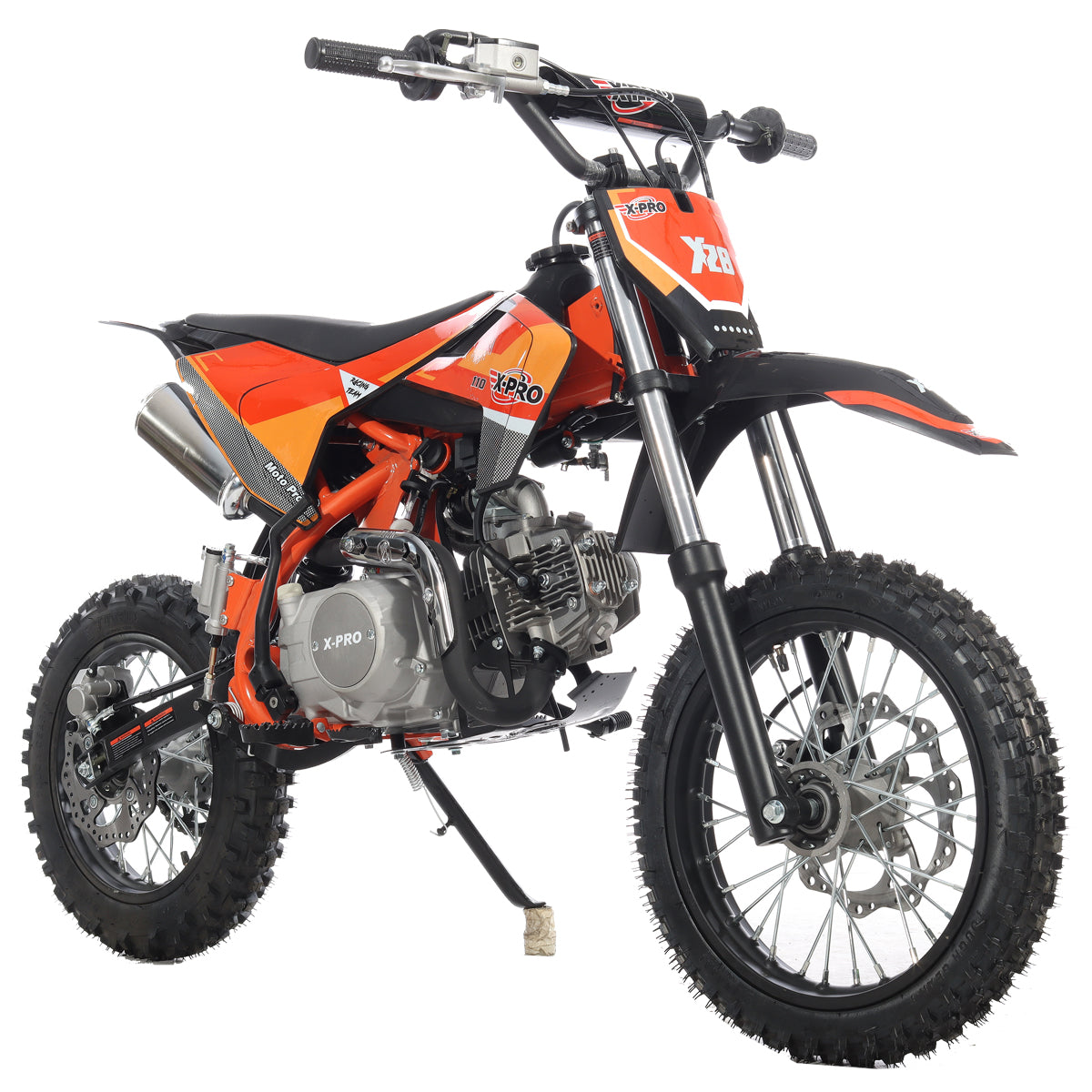

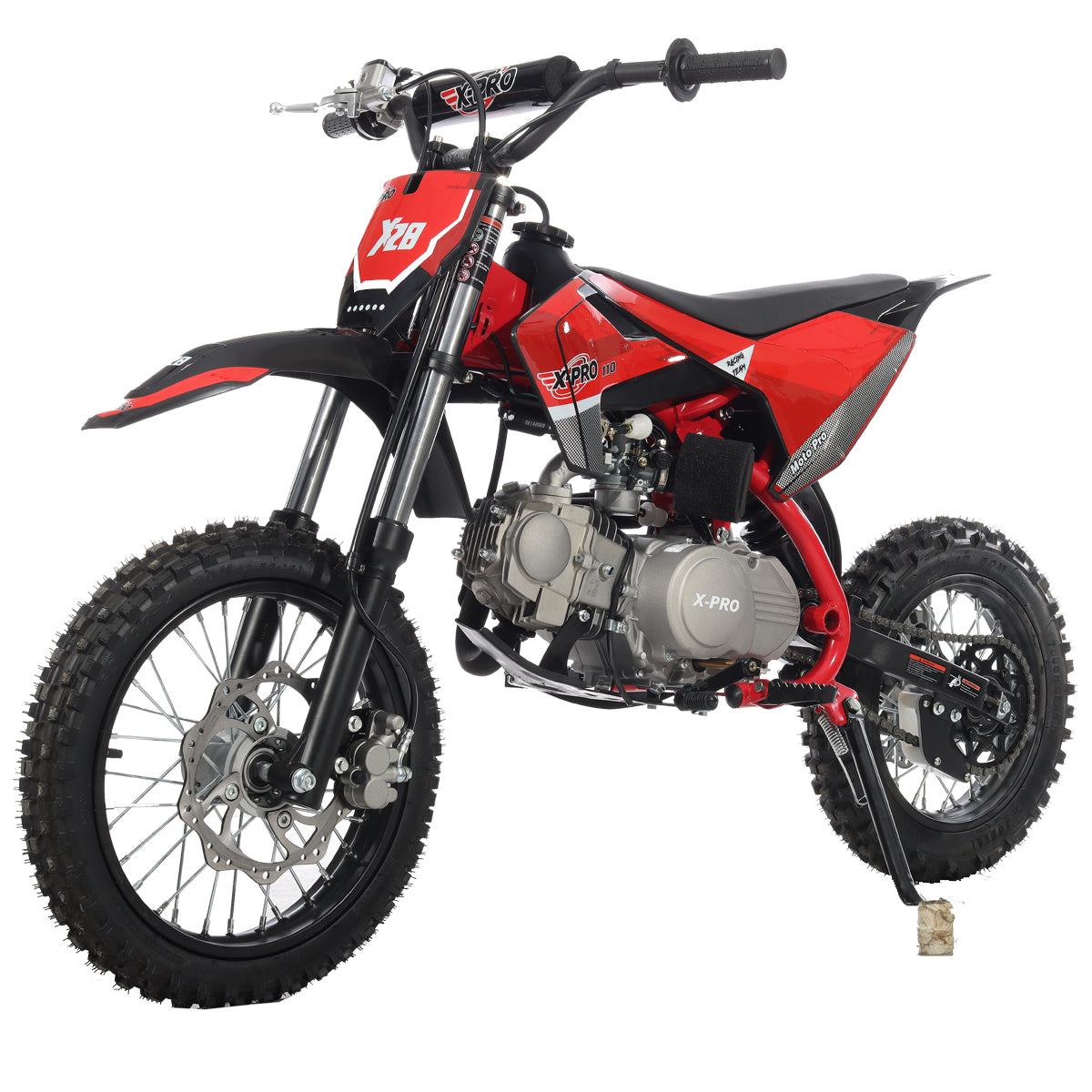

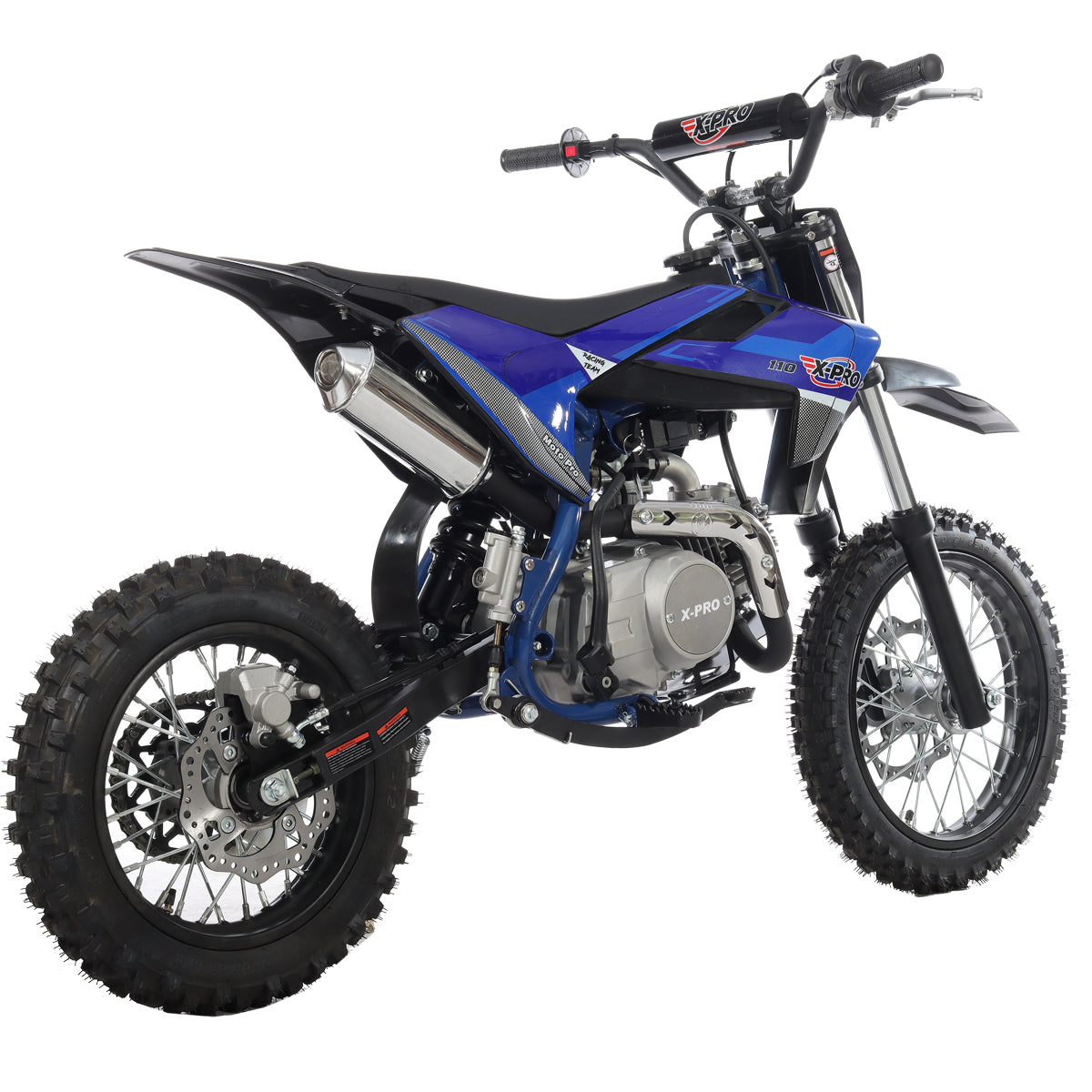

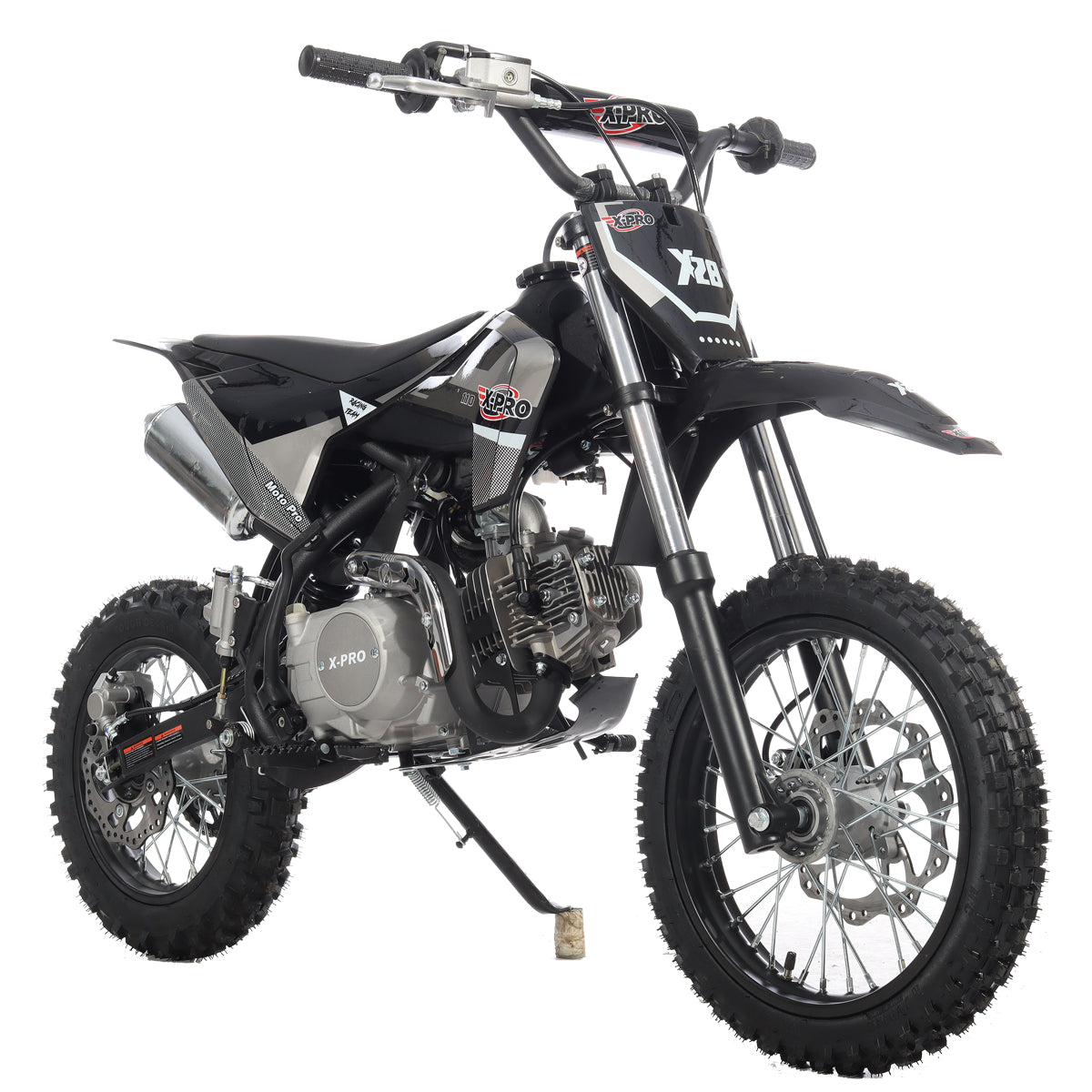

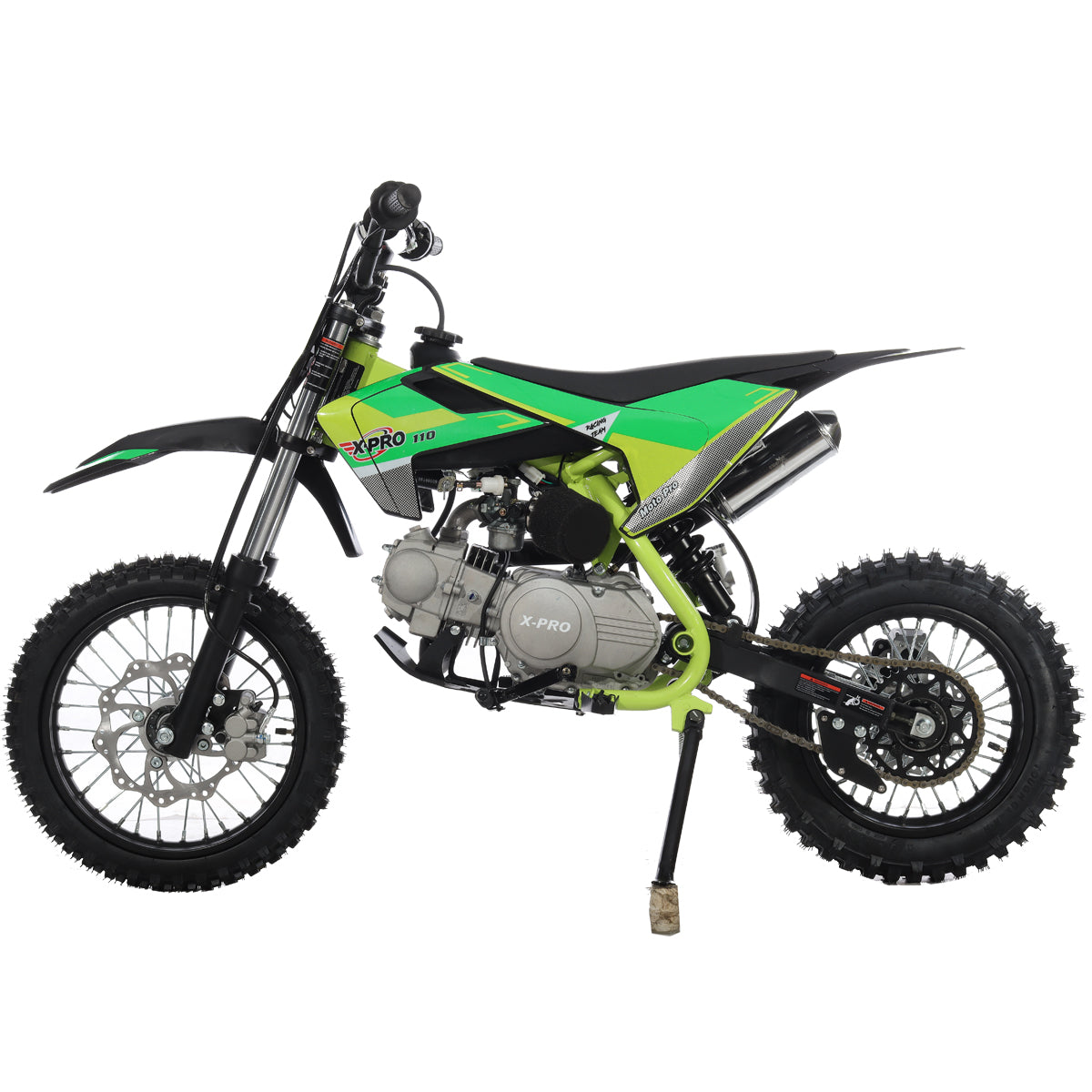

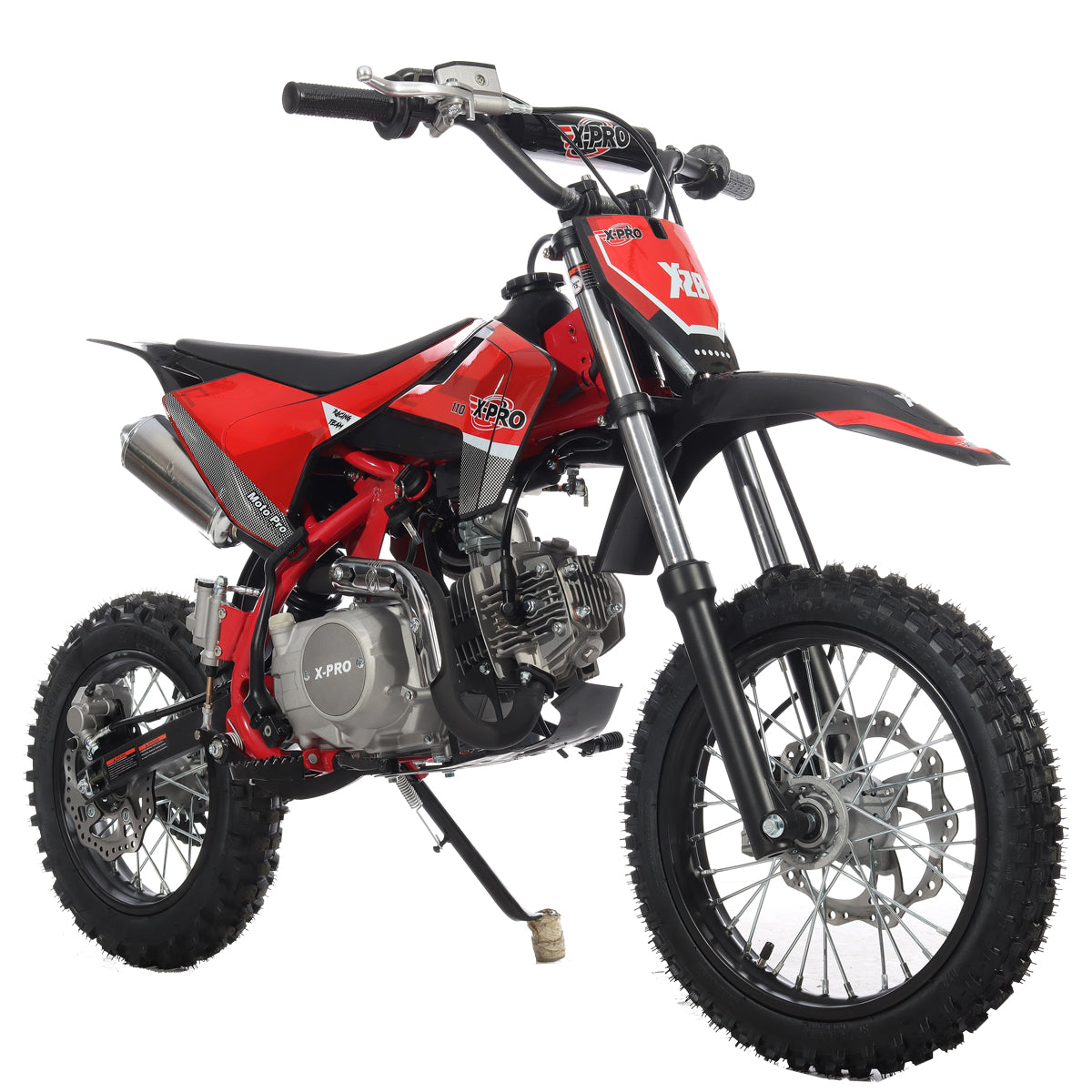

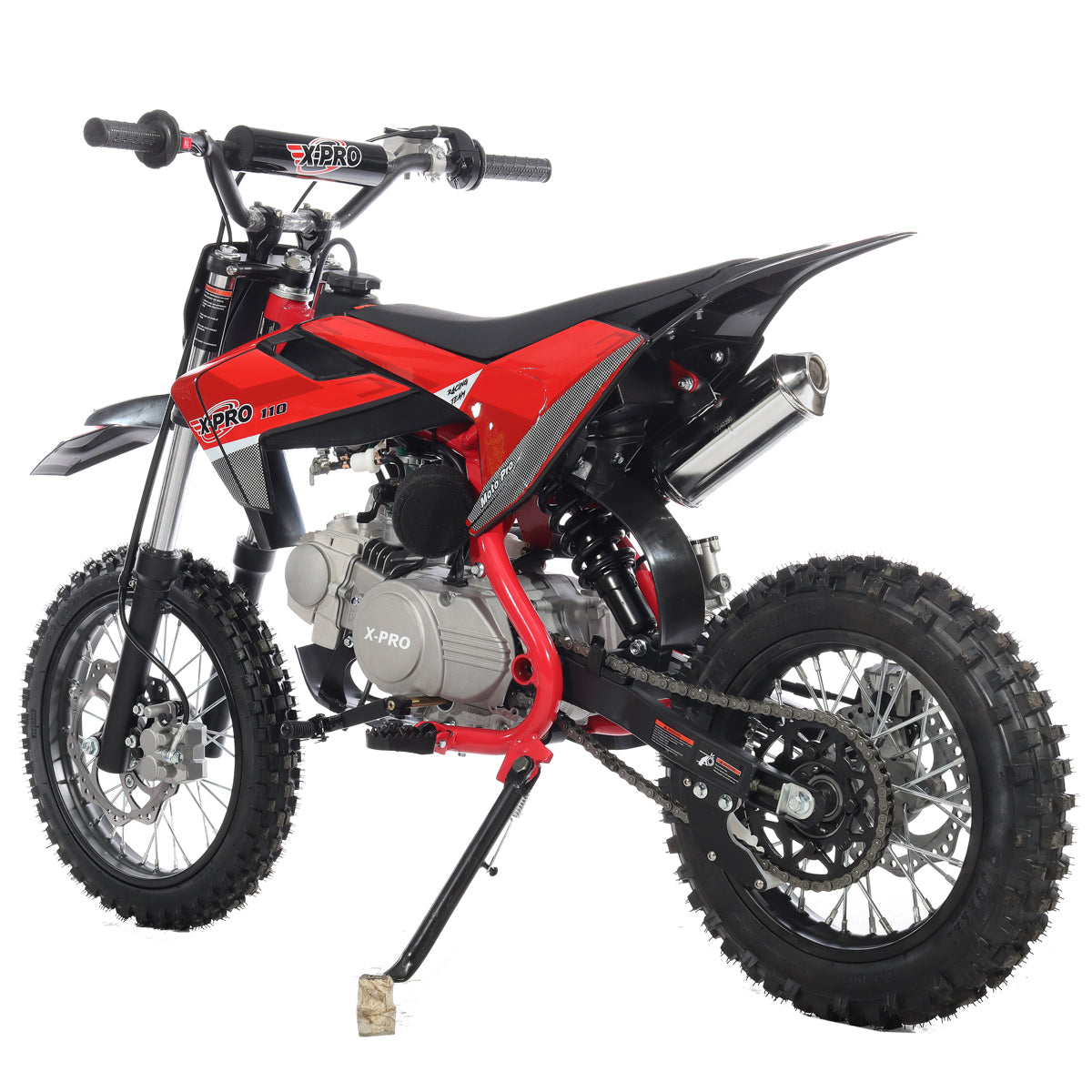

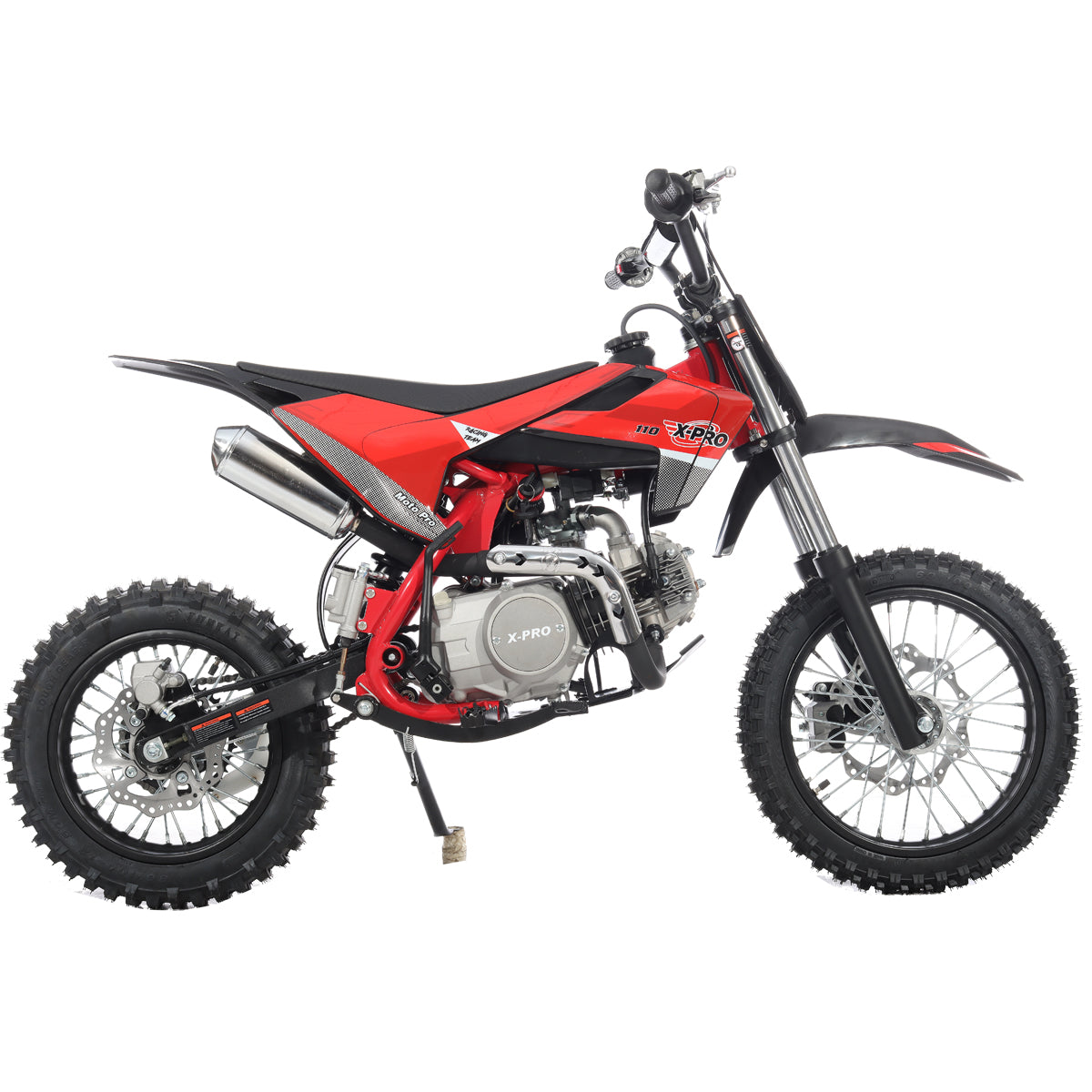

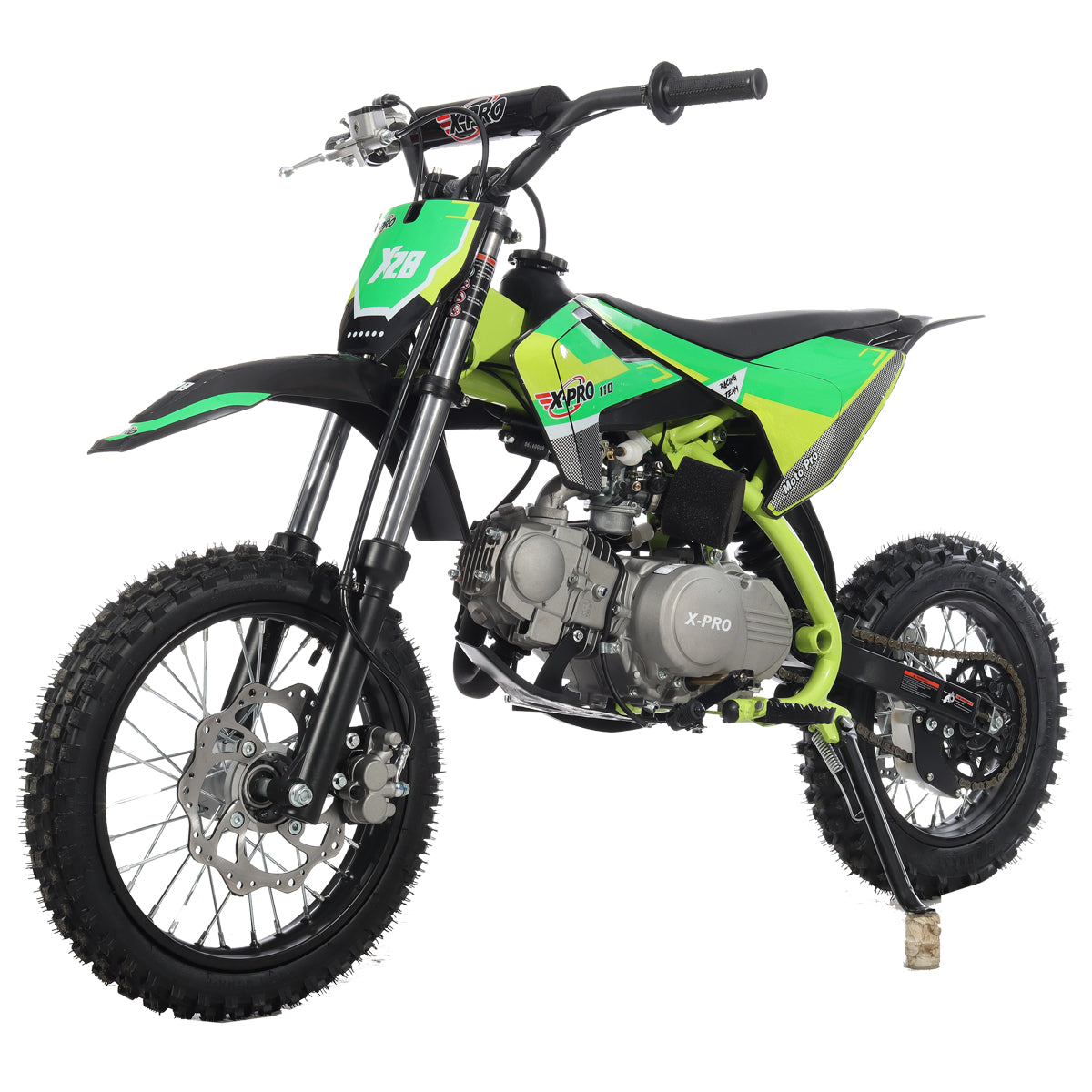

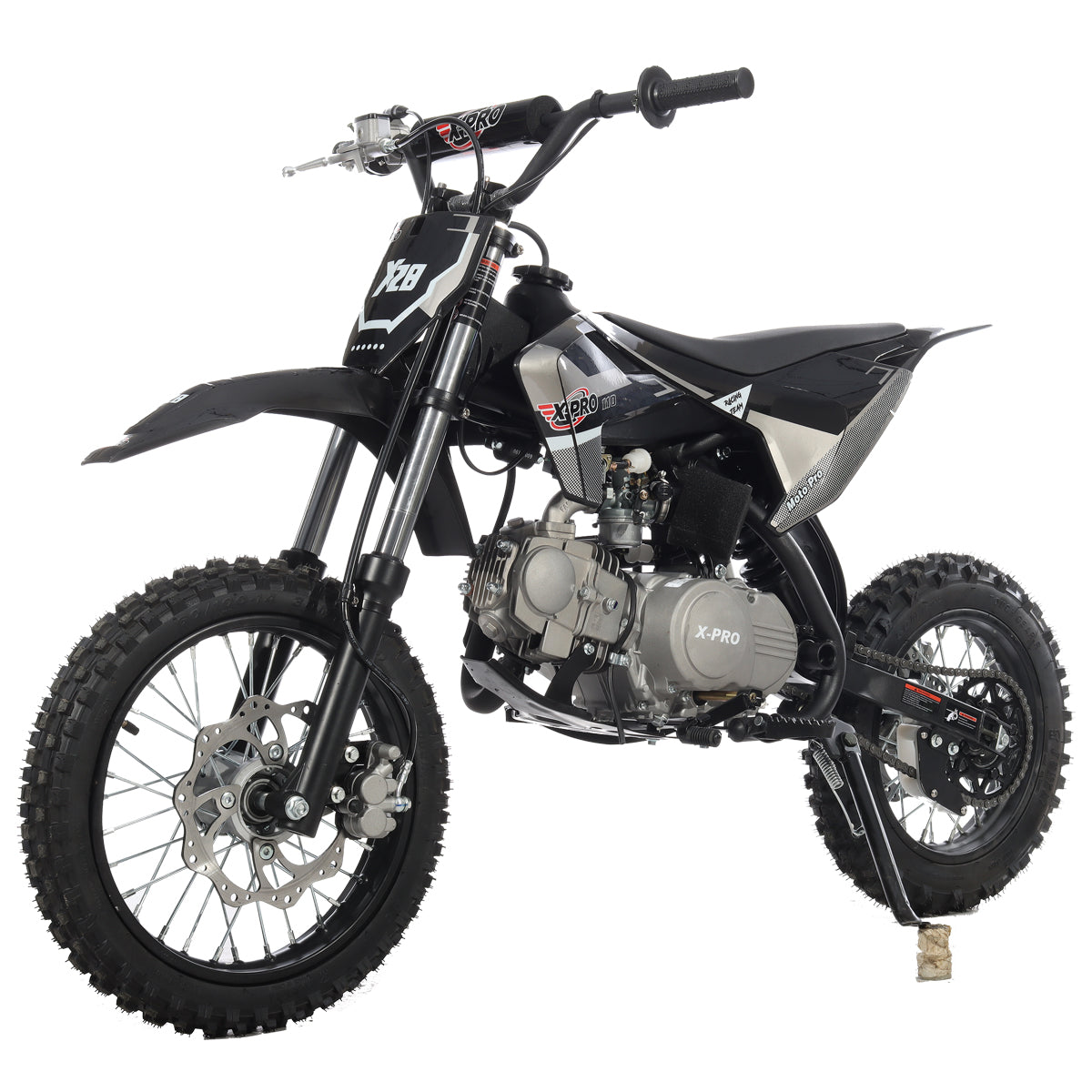

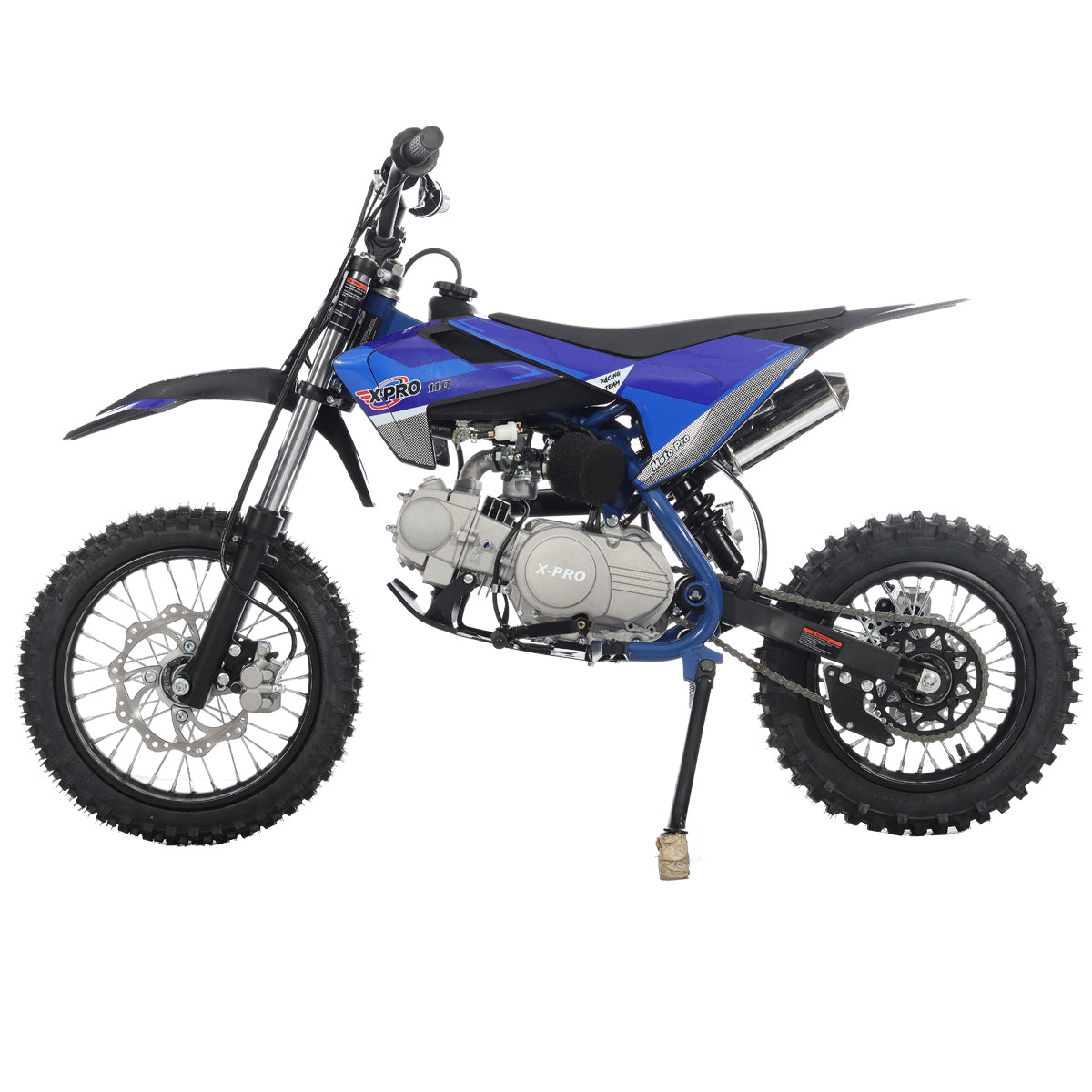

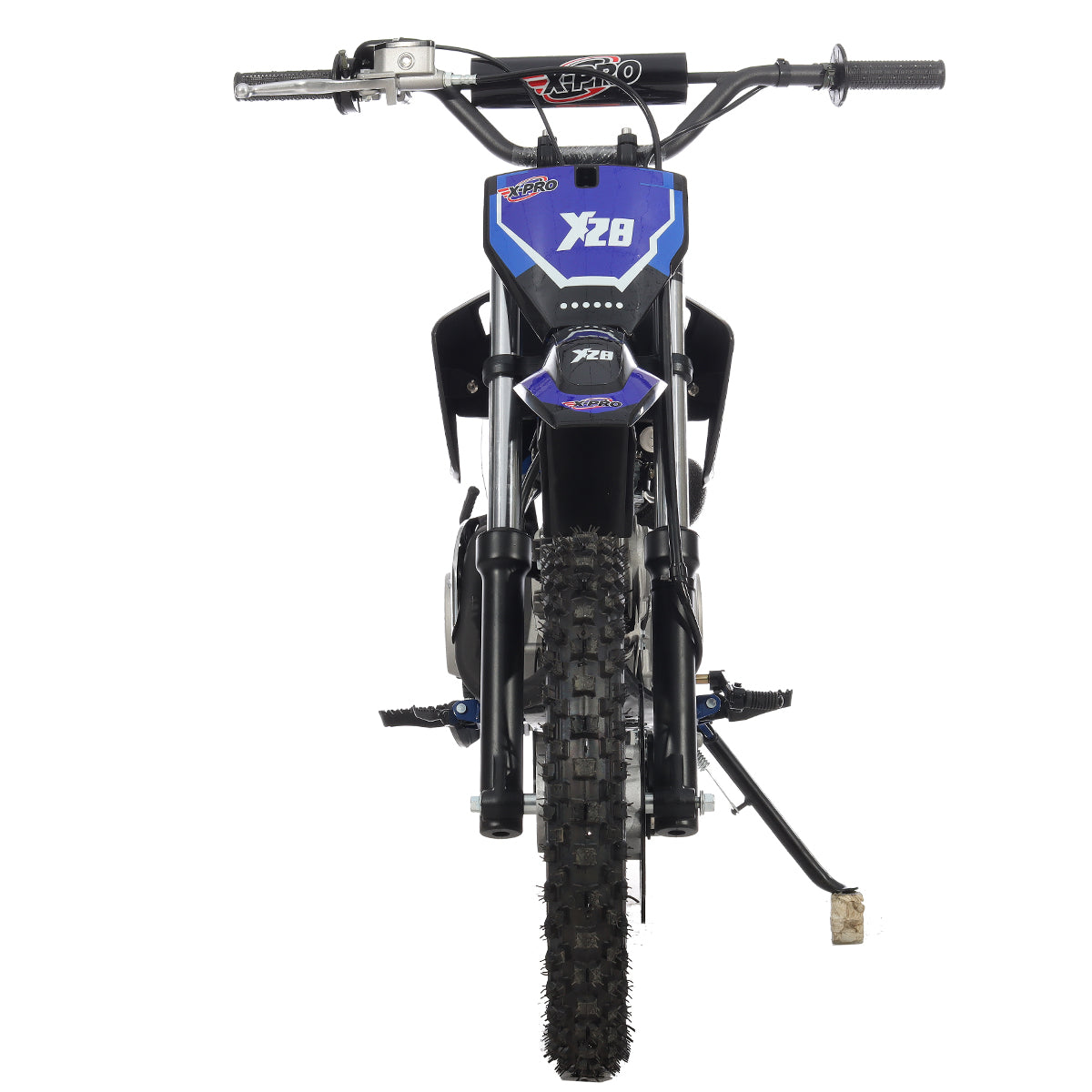

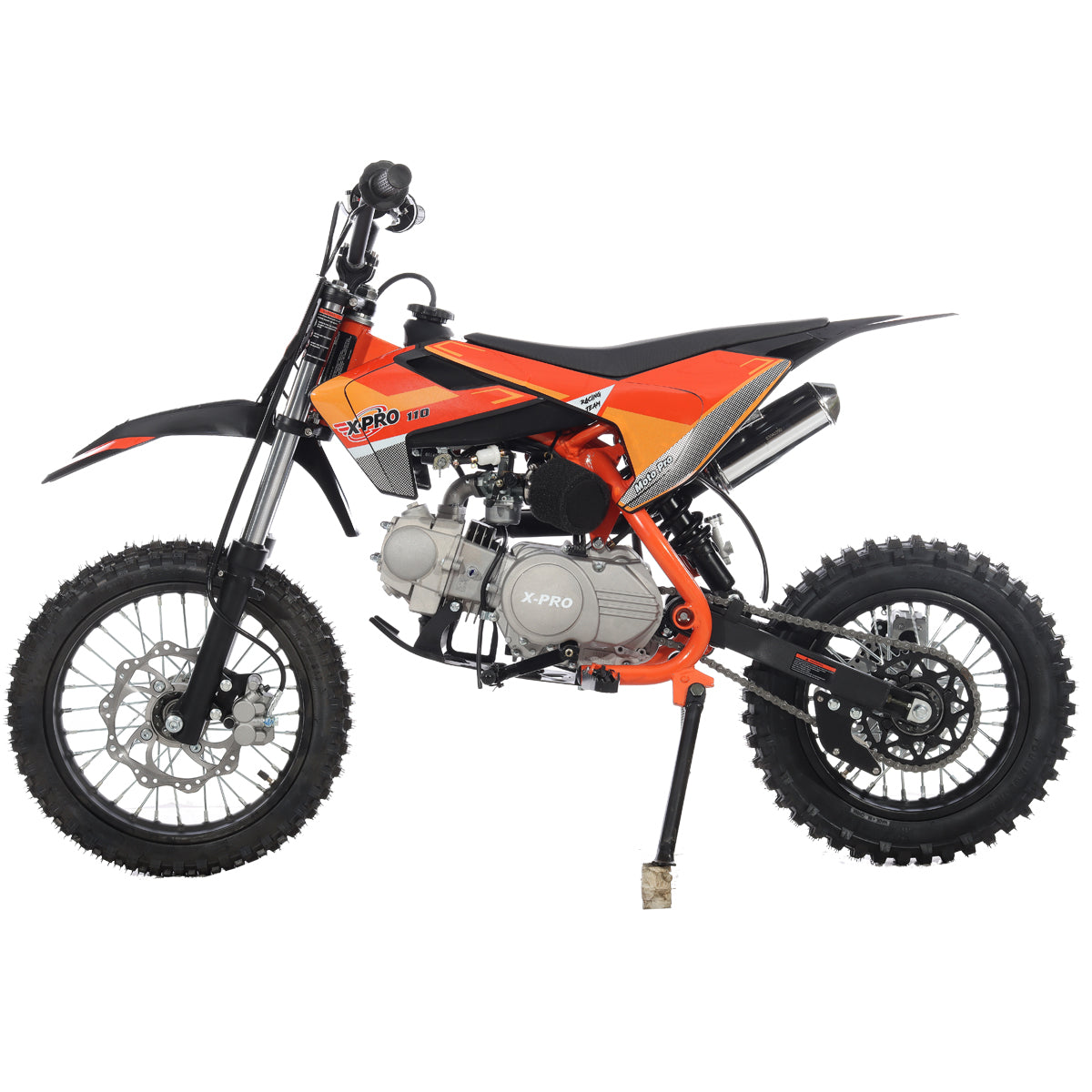

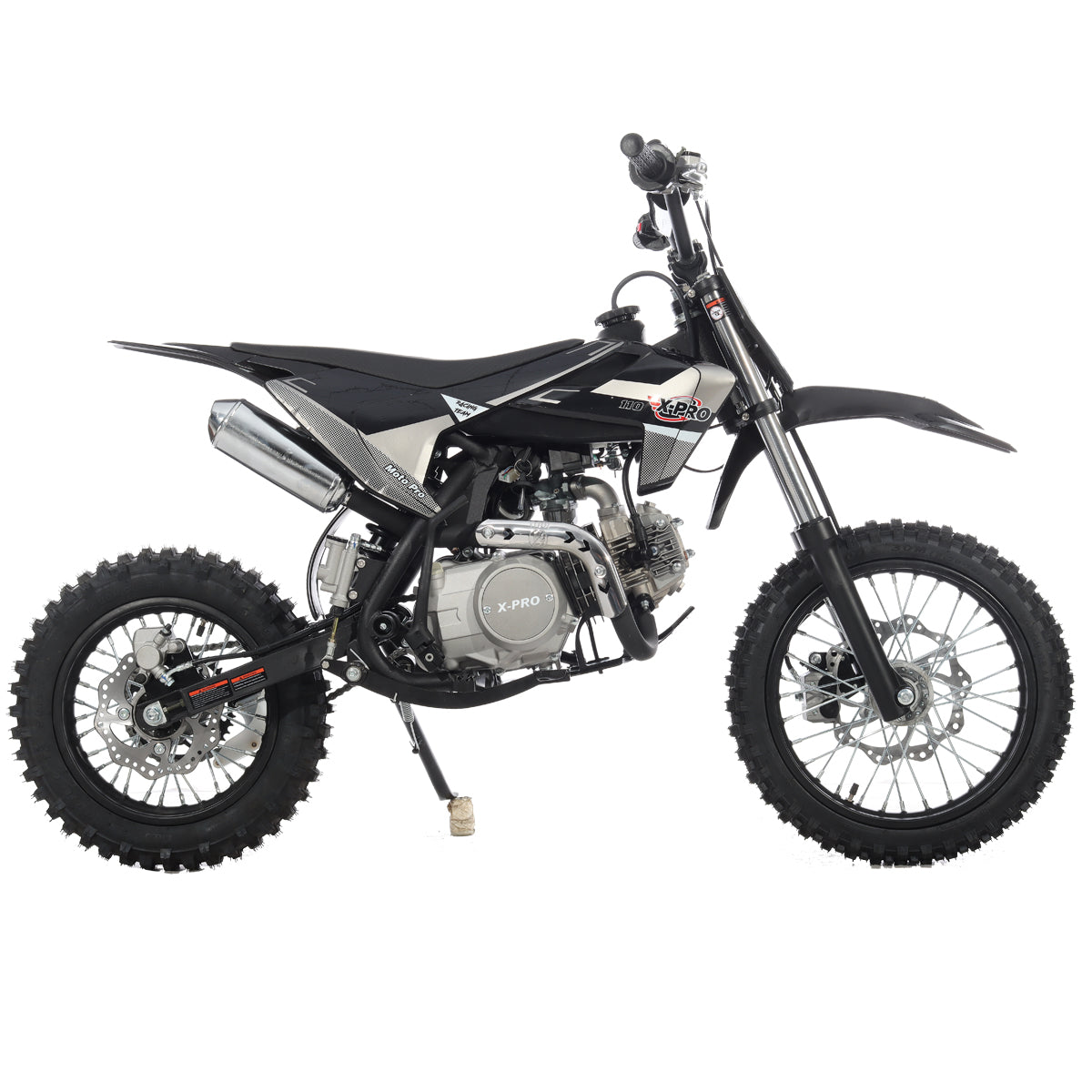

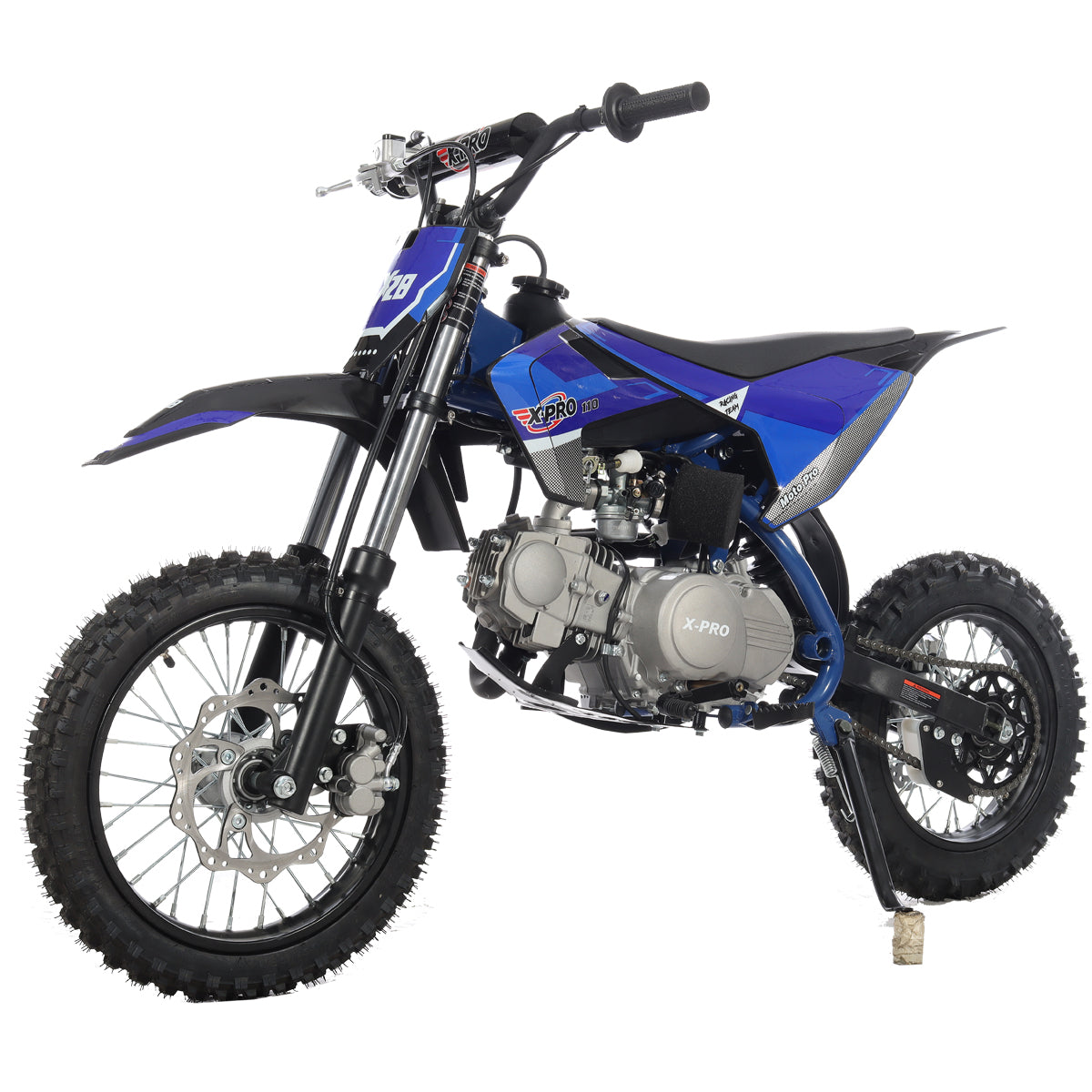

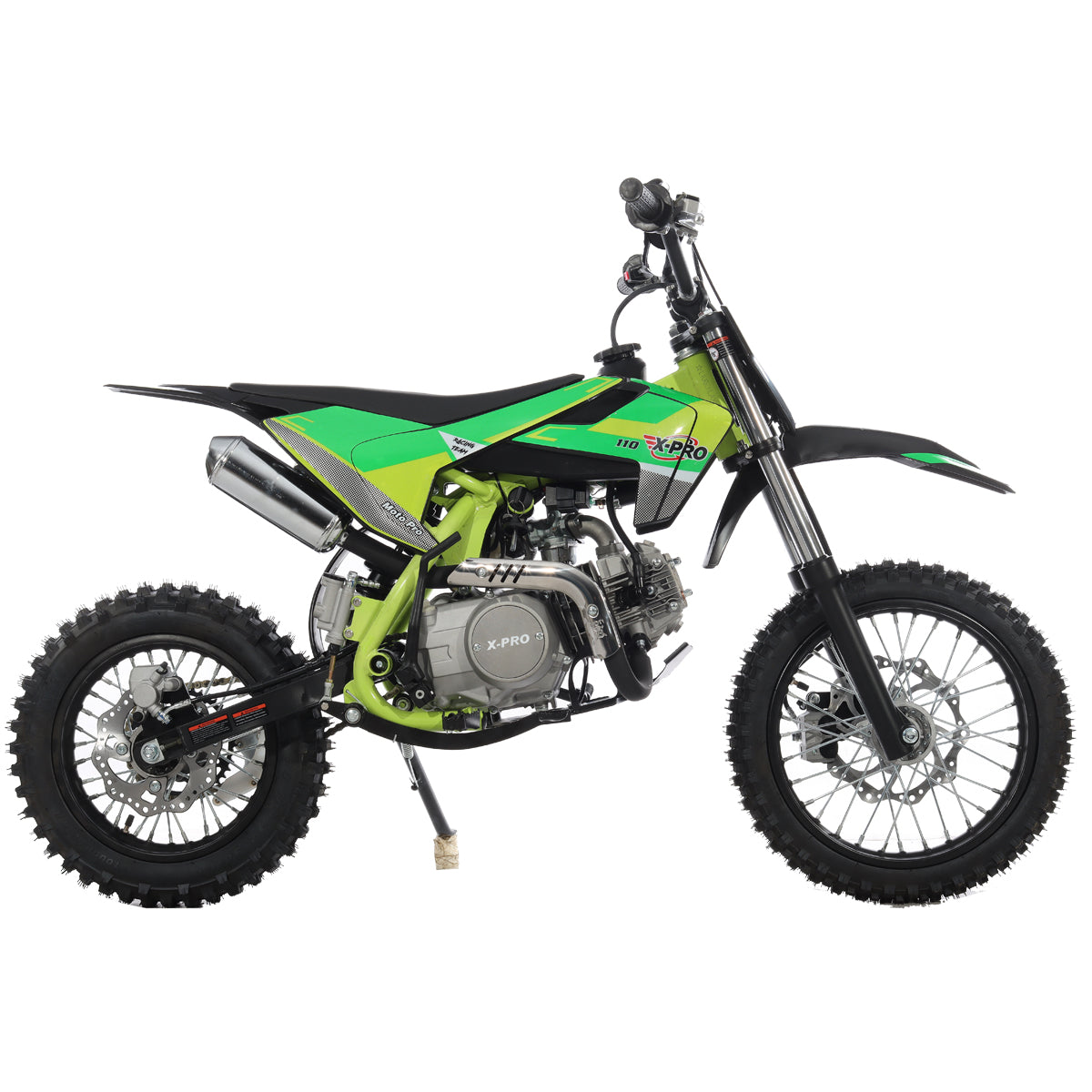

New Upgraded X-PRO X29 107cc Dirt Bike.
- Main Features:
- Free Upgraded Zongshen Brand Engine ($250 value): Comes with 107cc Zongshen Engine, which is expensive, reliable, powerful and long life span.
- Free Upgraded Cradle Type Steel Tube Frame ($150 value): with greater strength and rigidity, and better stability during frequent acceleration and braking.
- Free Upgraded Steel Pipe with Catalyst Converter(EPA )($80 value): It reduces air pollution; equipped with catalytic converter, which reduces emissions of harmful compounds.
- Free Upgraded High-density Breast Protector Sponge($30 value): will protect customer in case of a crash.
- FAST!! 107cc 4 Stroke, Single Cylinder, Force Air Cooled Engine, keeps engine temperatures reliably under control, even while idling at stoplights--for maximum efficiency and longer engine life.
- Automatic Transmission with Electric Start.
- 14"/12" Big Front/Rear Wheels, comparing to same 110cc displacement Bike, it's much Higher and Longer, much more ground clearance, it is possible for you to use another 2 more years. Fits for Adults and Big Boys!
- Cradle Type Steel Tube Frame: more lighter and stronger with a longer service life, and making big jumps can be much easier.
- Stainless Steel Header Pipe, Haxagon Aluminum Silencer.
- Large 3.5L Fuel Tank
- Some Assembly Required: Need to assemble front shock, front wheels, handlebars and front disc brake.

Specifications
| Model Number | DB-K013 |
| Engine/Drive Train | |
|---|---|
| Engine | 107cc, 4-Stroke |
| Cylinder Arrangement | Single |
| Cooling System | Air Cooled |
| Compression Ratio | 9.0:1 |
| BorexStroke | §¶52.4¡Á49.5mm |
| Max Power[Kw/r/m] | 5.0/8000¡À500 kw/r/min |
| Max Torque[N.m/r/m] | 7.5/5500¡À500 N.m/r/min |
| Transmission | Automatic |
| Start System | Electric start |
| Final Drive | #428 Chain, 14T/41T |
| Carburetor | JINGKE PZ22 Carburetor |
| Ignition Type | C.D.I |
| Max Speed (MPH) | 35+ (Depending on Riders Weight and Road Conditions) |
| Frame /Body/ Suspension / Brakes | |
| Frame | Cradle Type Steel Tube Frame |
| Front Fork | Telescopic ¡é33*650mm |
| Rear Fork | Single Shock-¡é10*270mm |
| Front Disc | Hydraulic Double Piston Caliper, 220mm Disc |
| Rear Disc | Hydraulic Single Piston Caliper, 190mm Disc |
| Front Tire | 60/100-14 |
| Rear Tire | 80/100-12 |
| Exhaust/Pipe | Steel Pipe with catalyst converter(EPA) |
| Capacities / Dimensions | |
| Weight Capacity(lbs) | 188 |
| Gross Weight (lbs) | 143 |
| Net Weight (lbs) | 130.5 |
| Overall Length | 60.23 |
| Overall Width | 28.74 |
| Overall Height | 39.76 |
| Carton Dimension | 47 x 15 x 26 |
| Seat Height | 29.13 |
| Wheelbase | 41.33 |
| Ground Clearance | 10.63 |
| Fuel Capacity | 3.5L/0.92 Gal |
| Safety / Control | |
| Engine Kill Switch | Yes |
| Others | |
| EPA Approved | Yes |
| D.O.T Approved | Yes |
| CARB Information | This bike is not legal for sale in California. |
