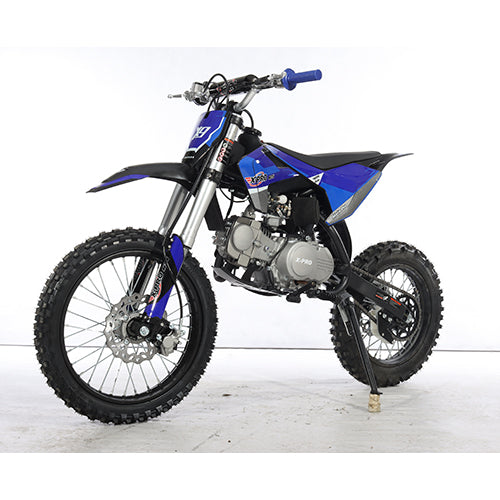

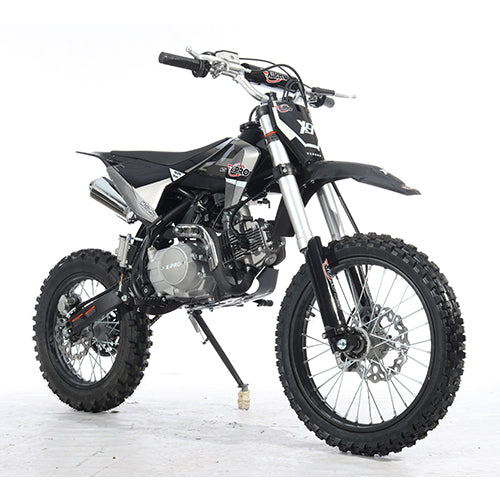

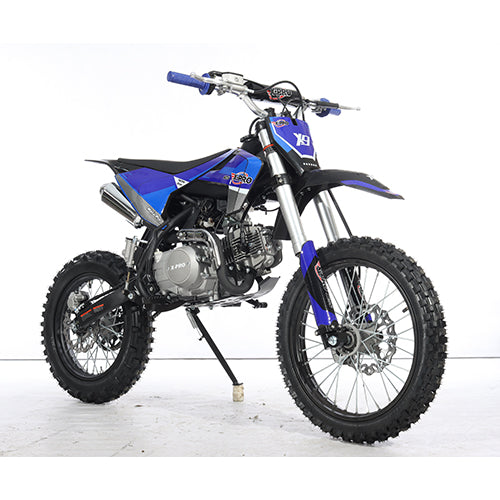

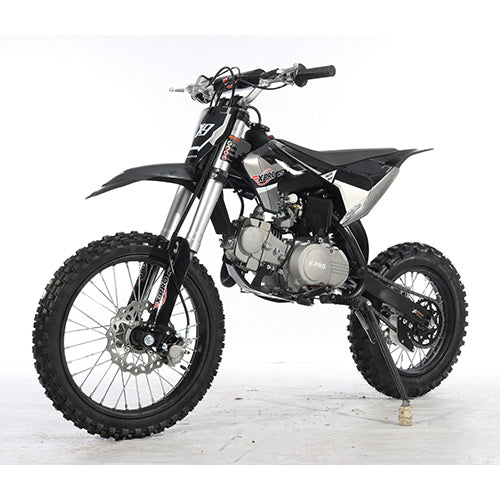

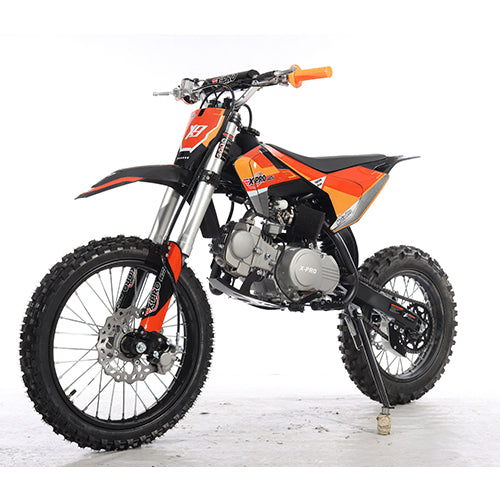

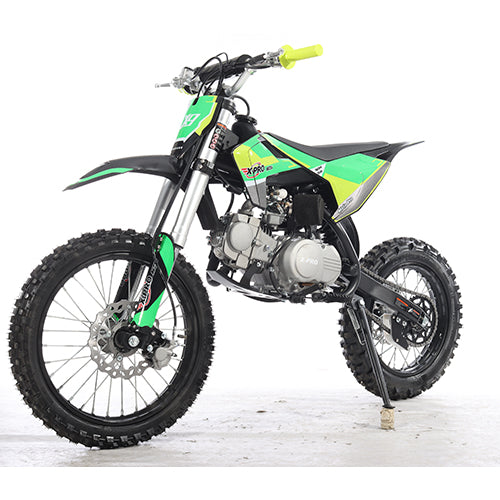

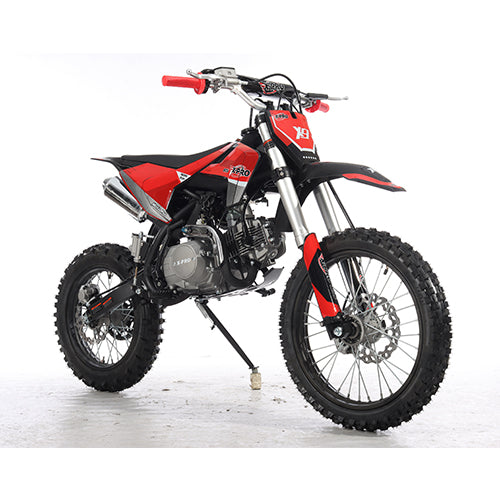

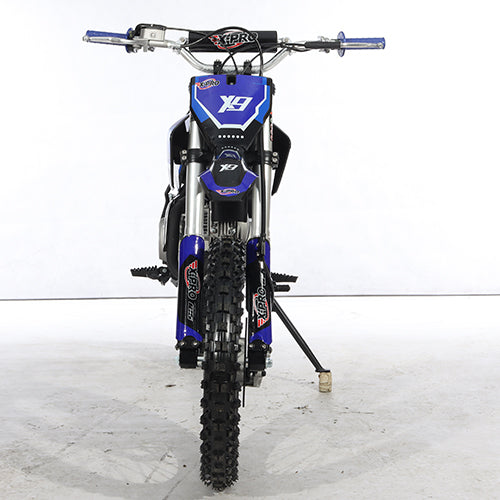

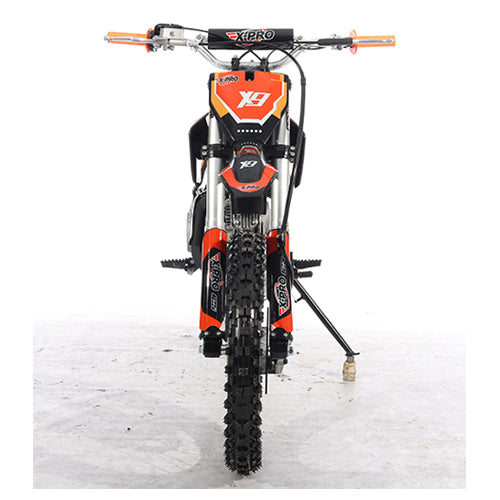

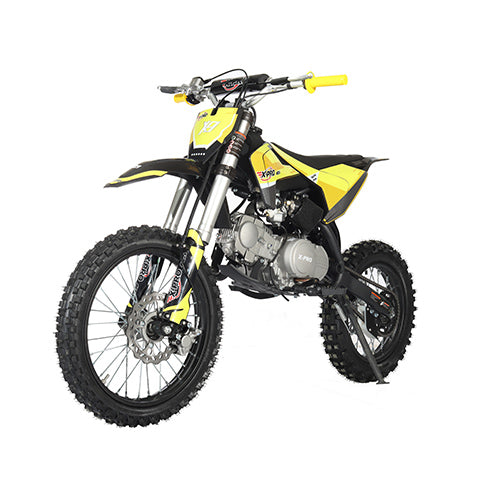

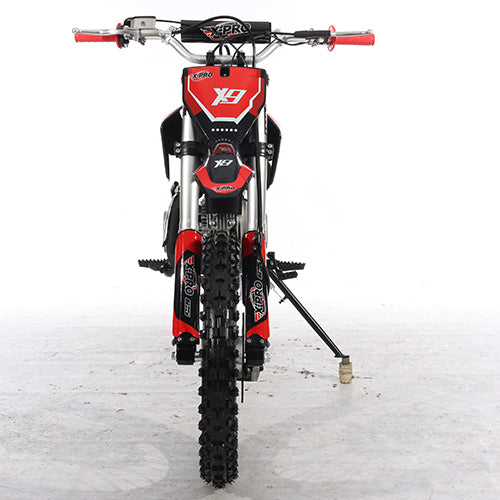

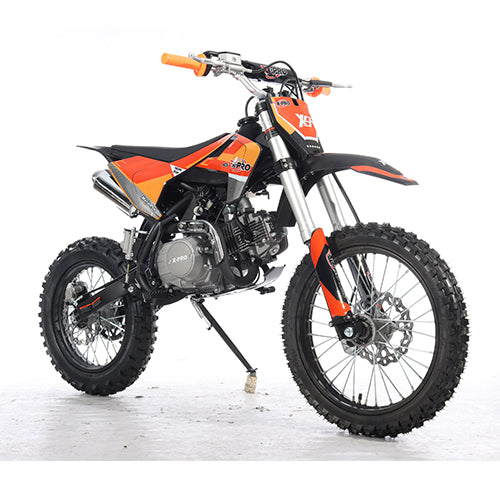

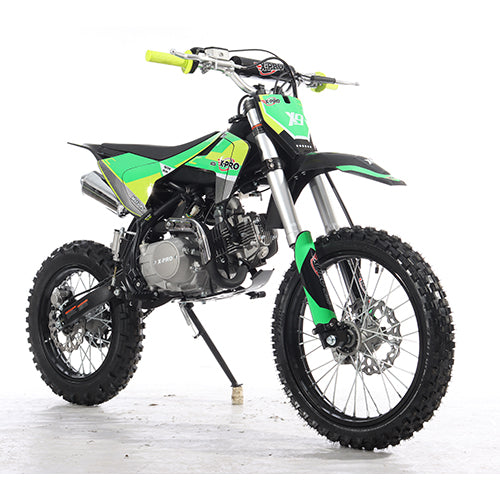

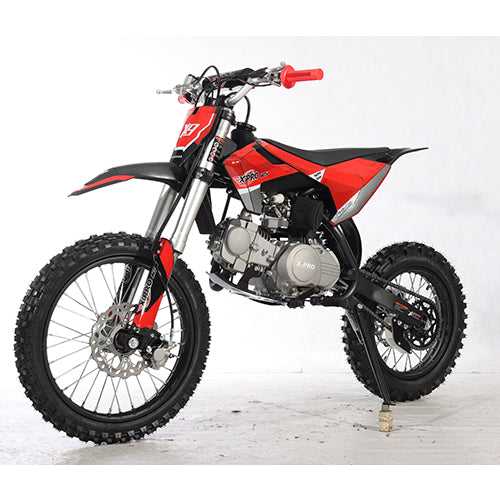

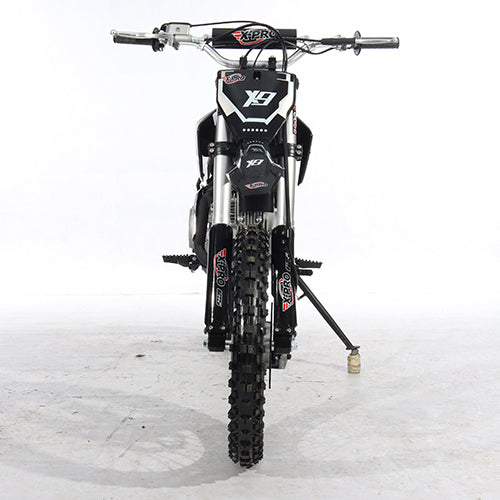

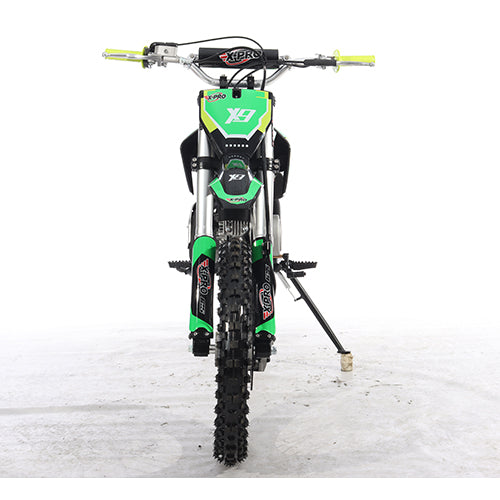

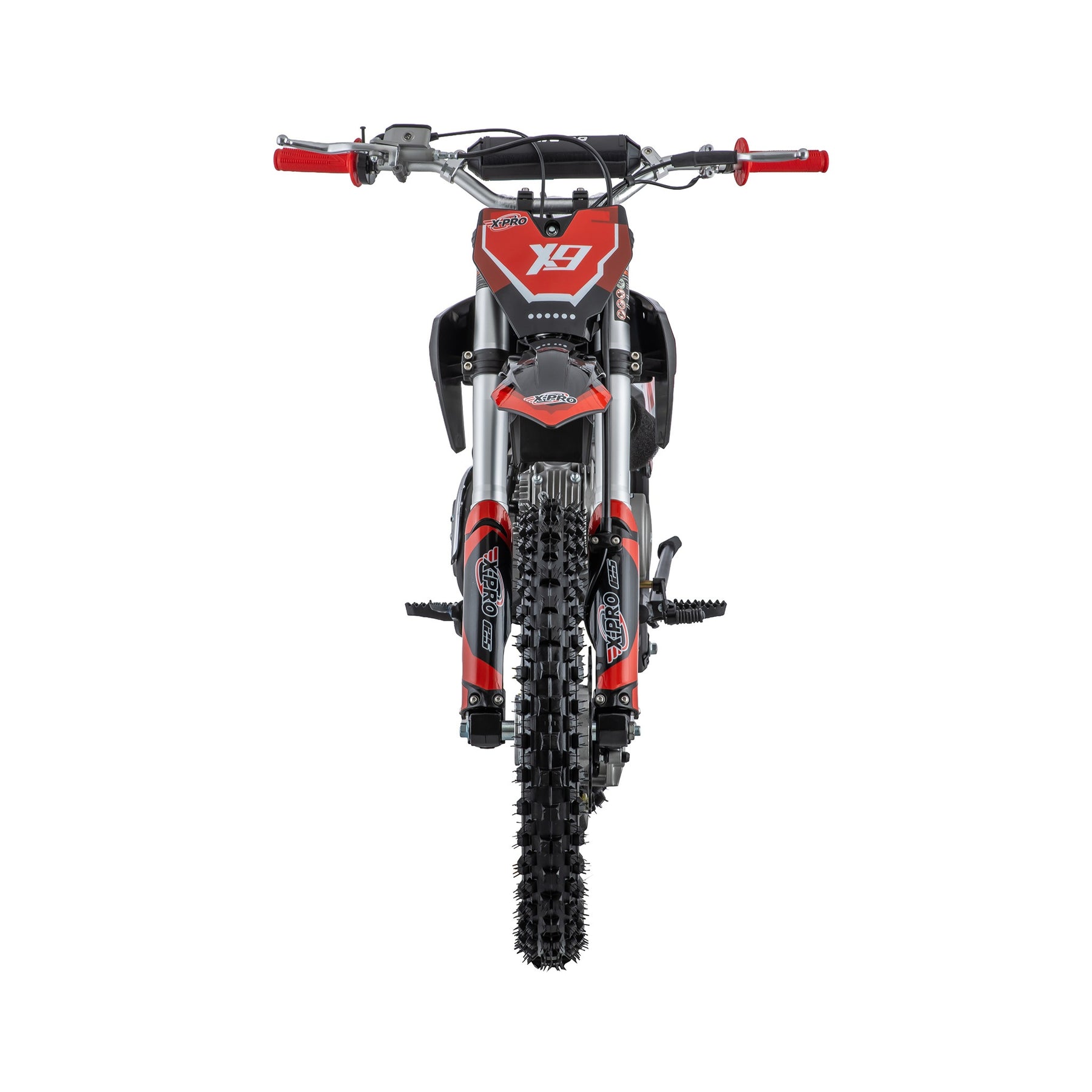

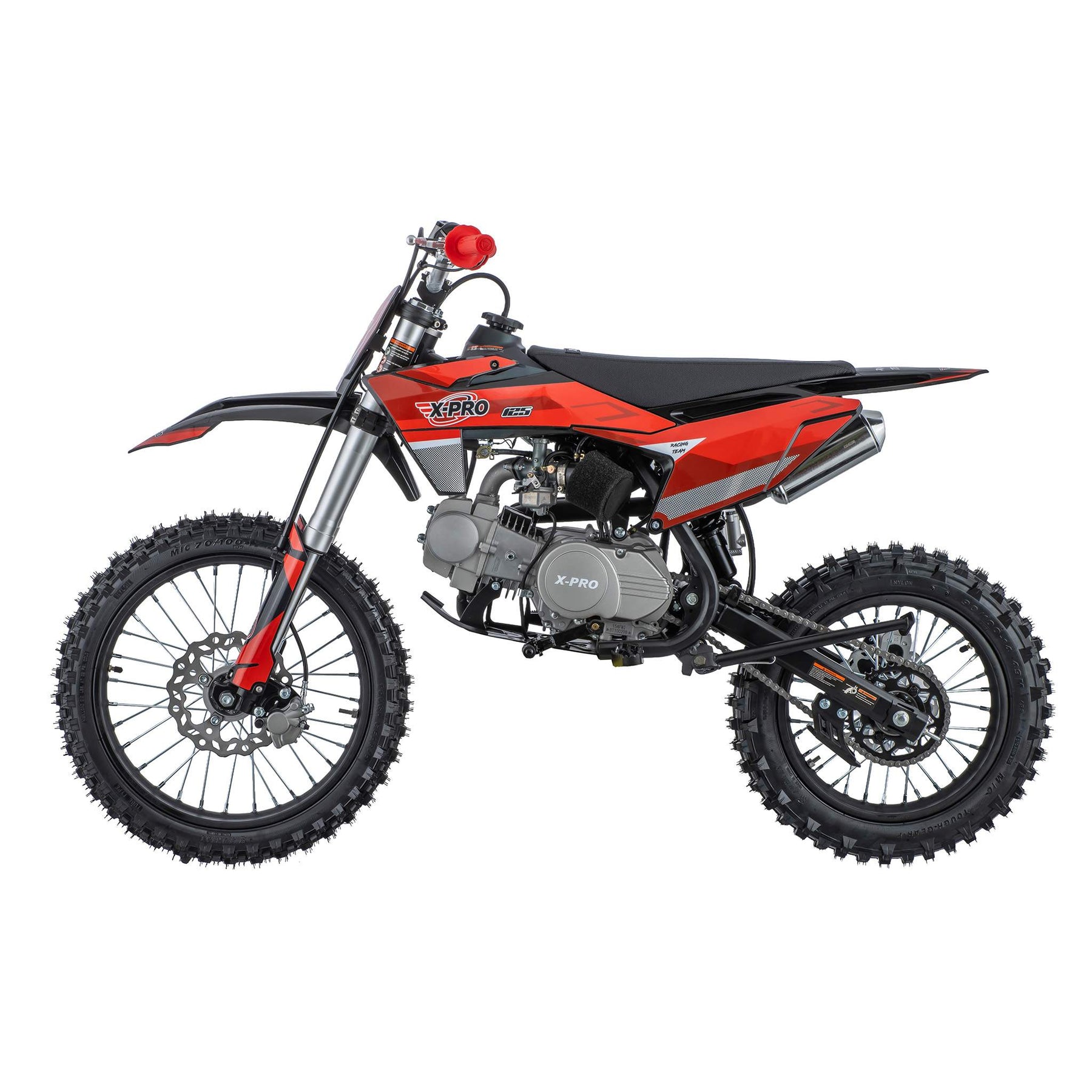

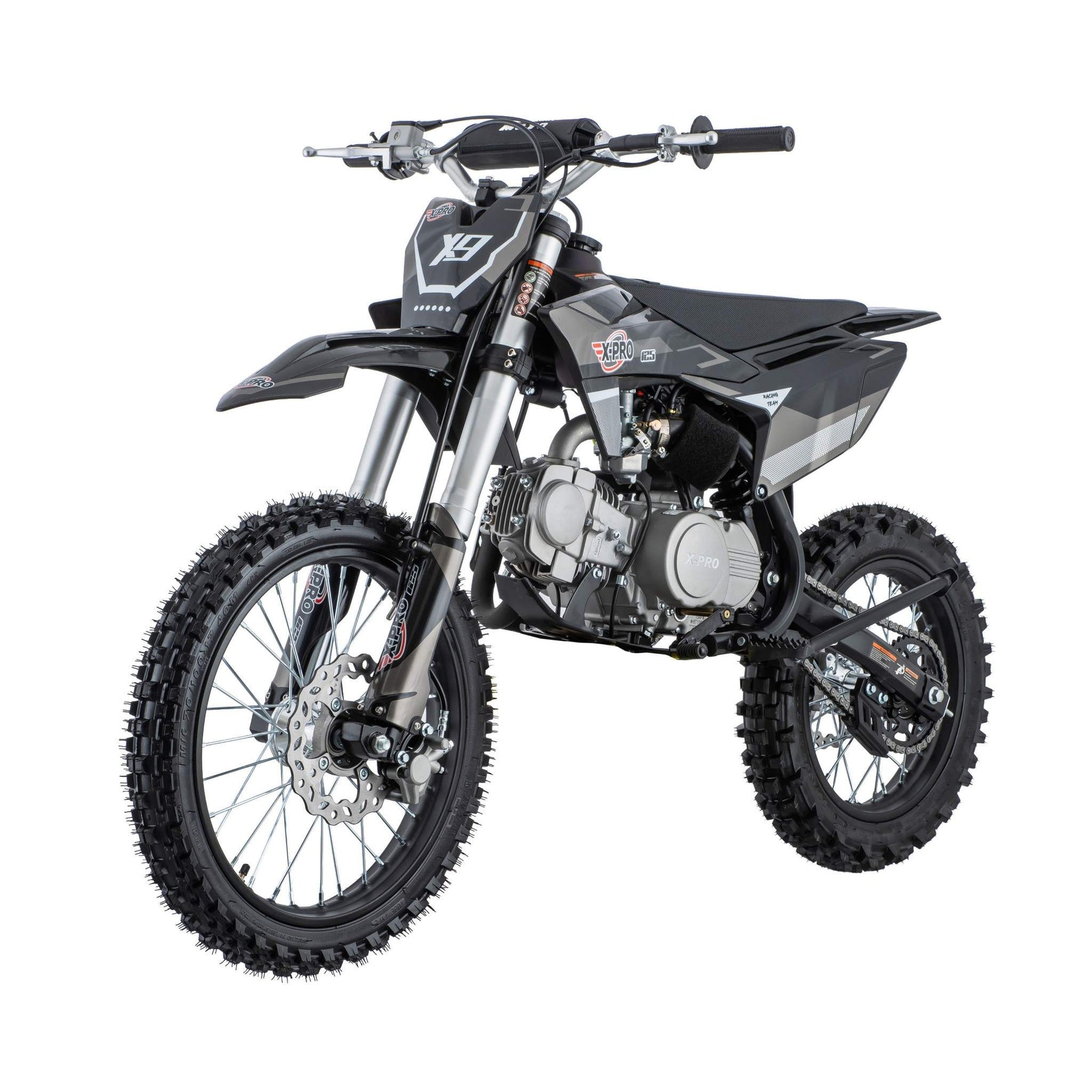

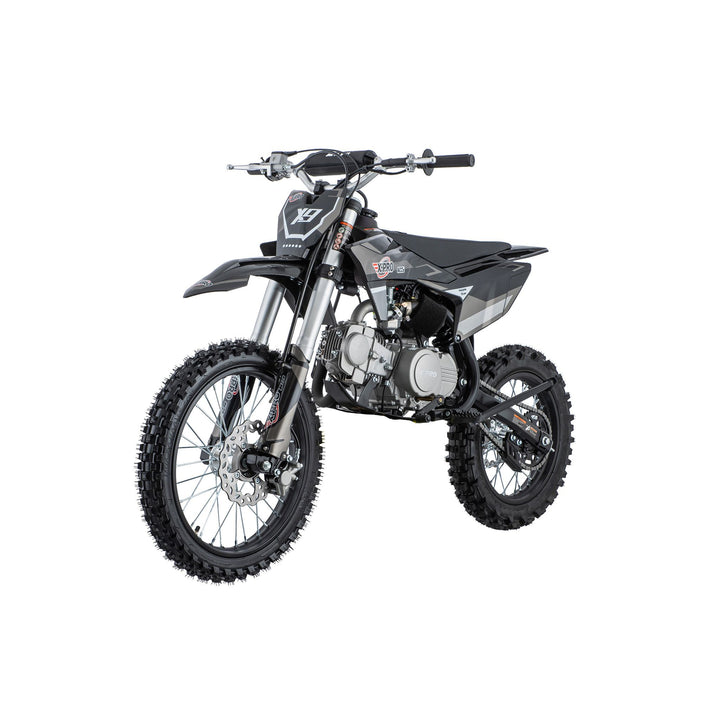

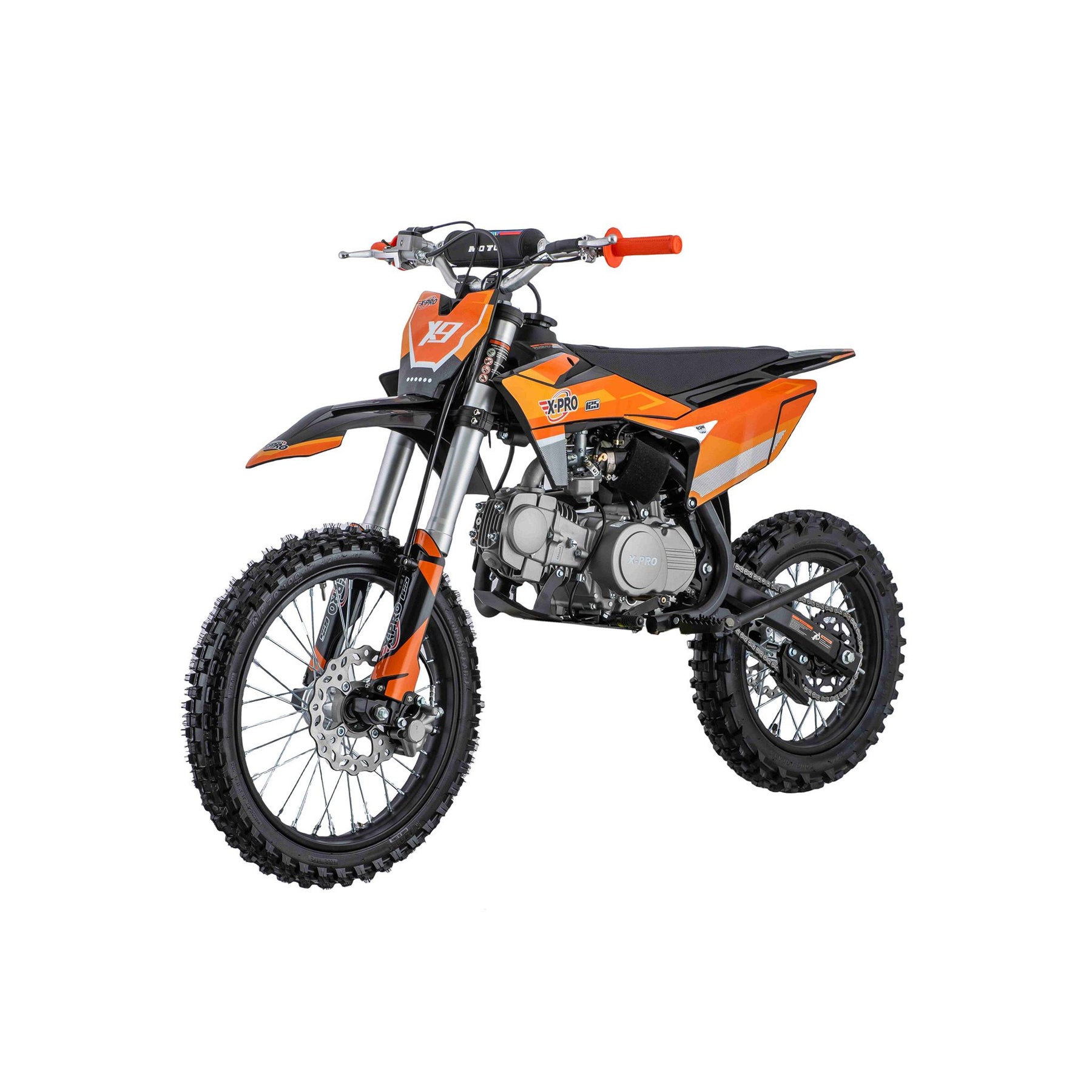

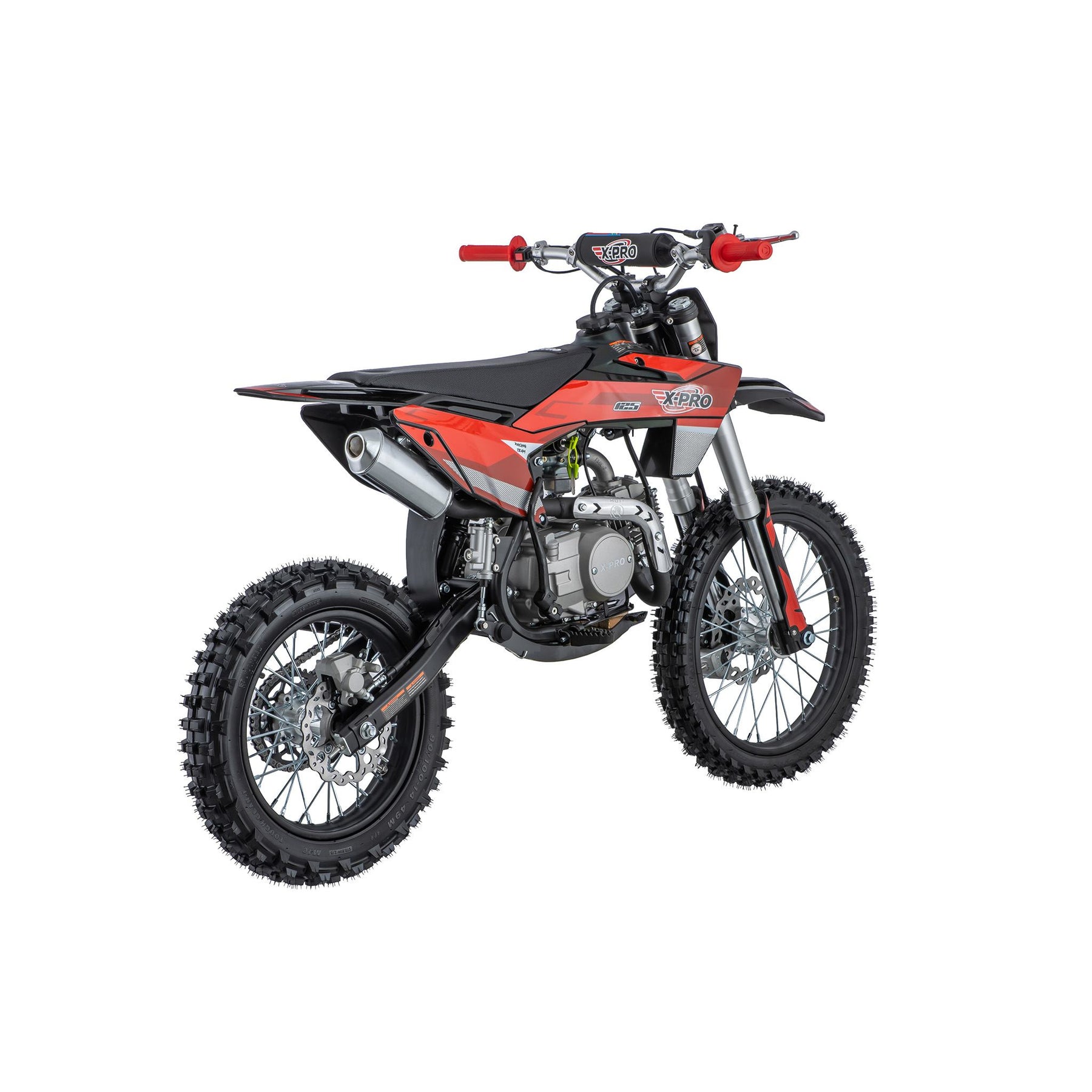

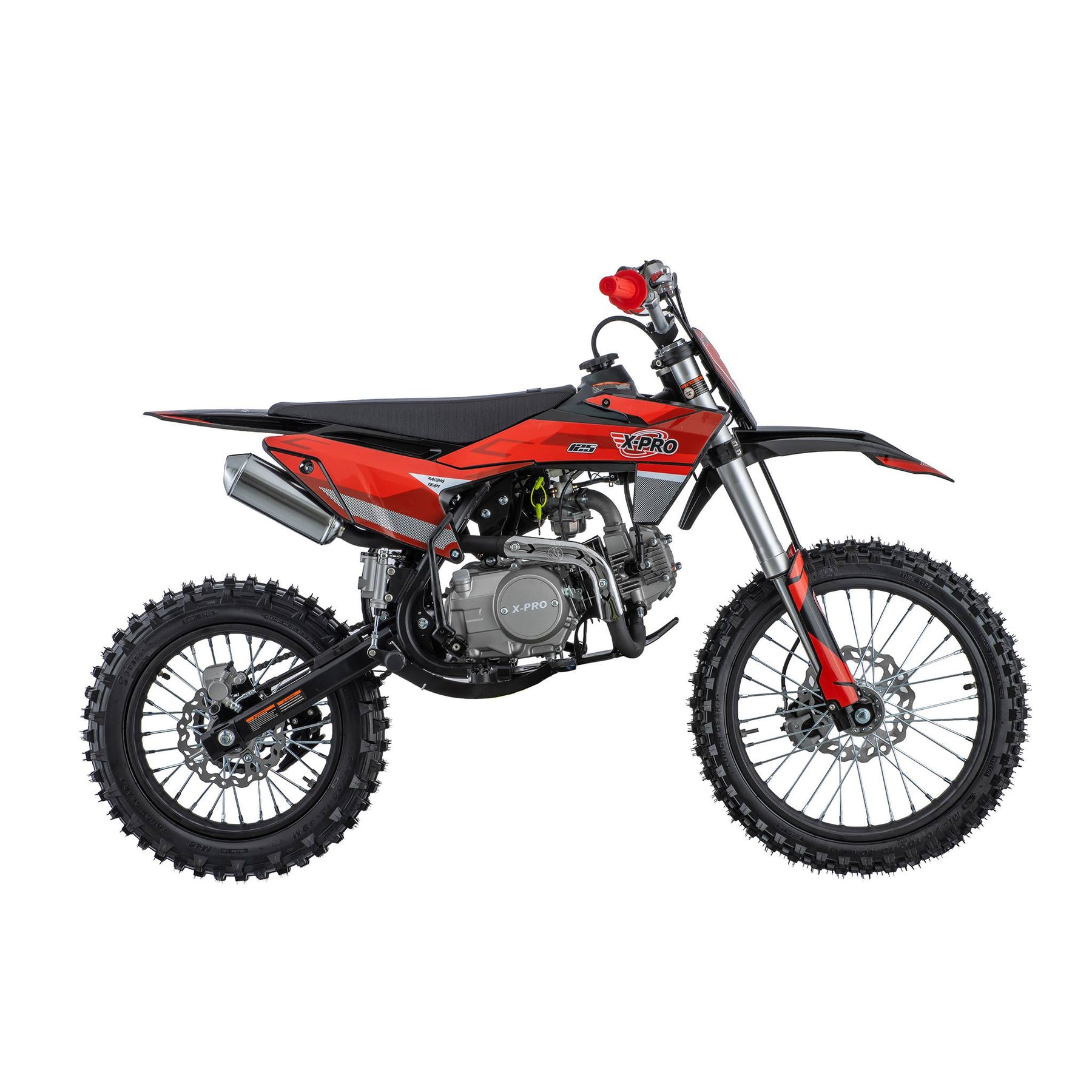

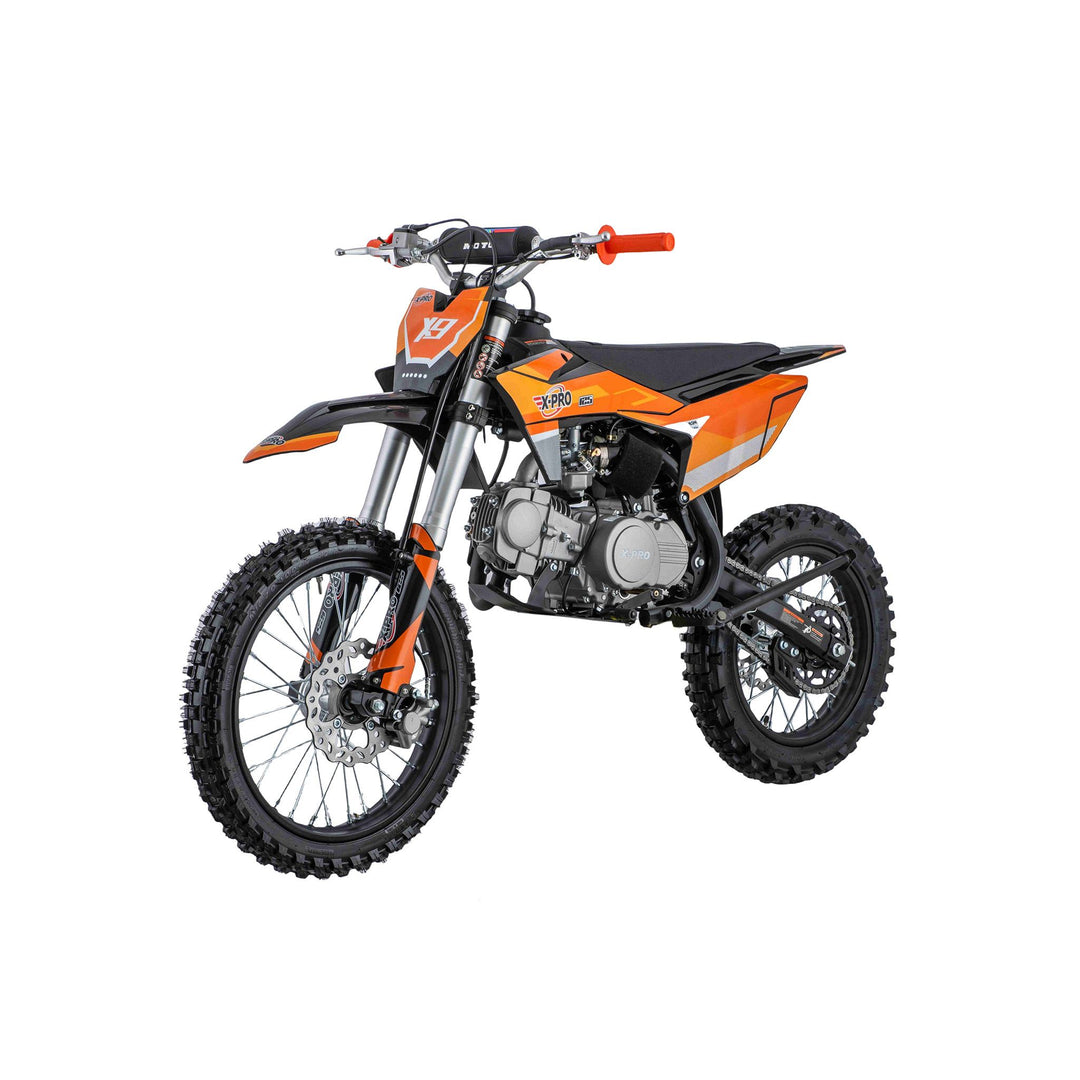

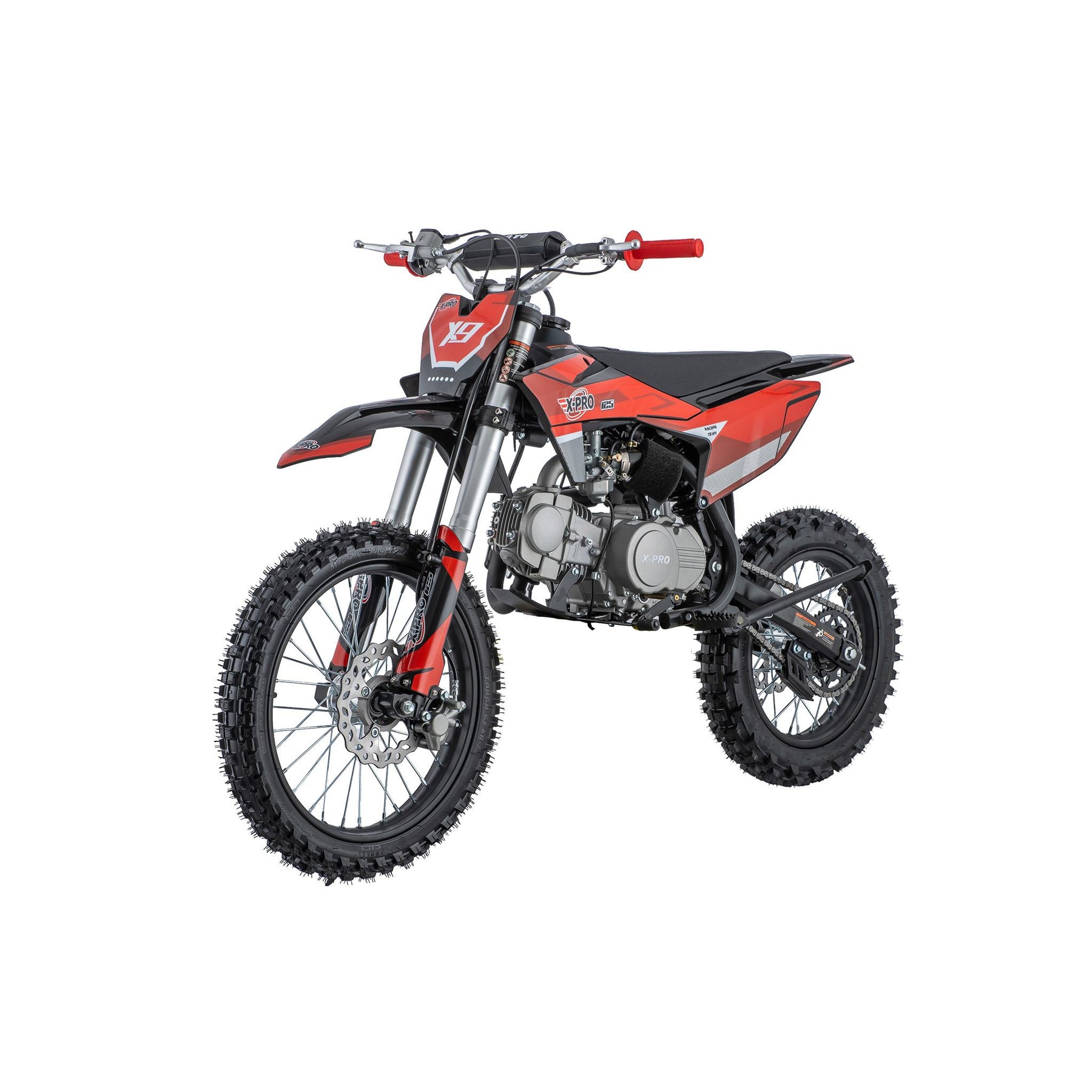

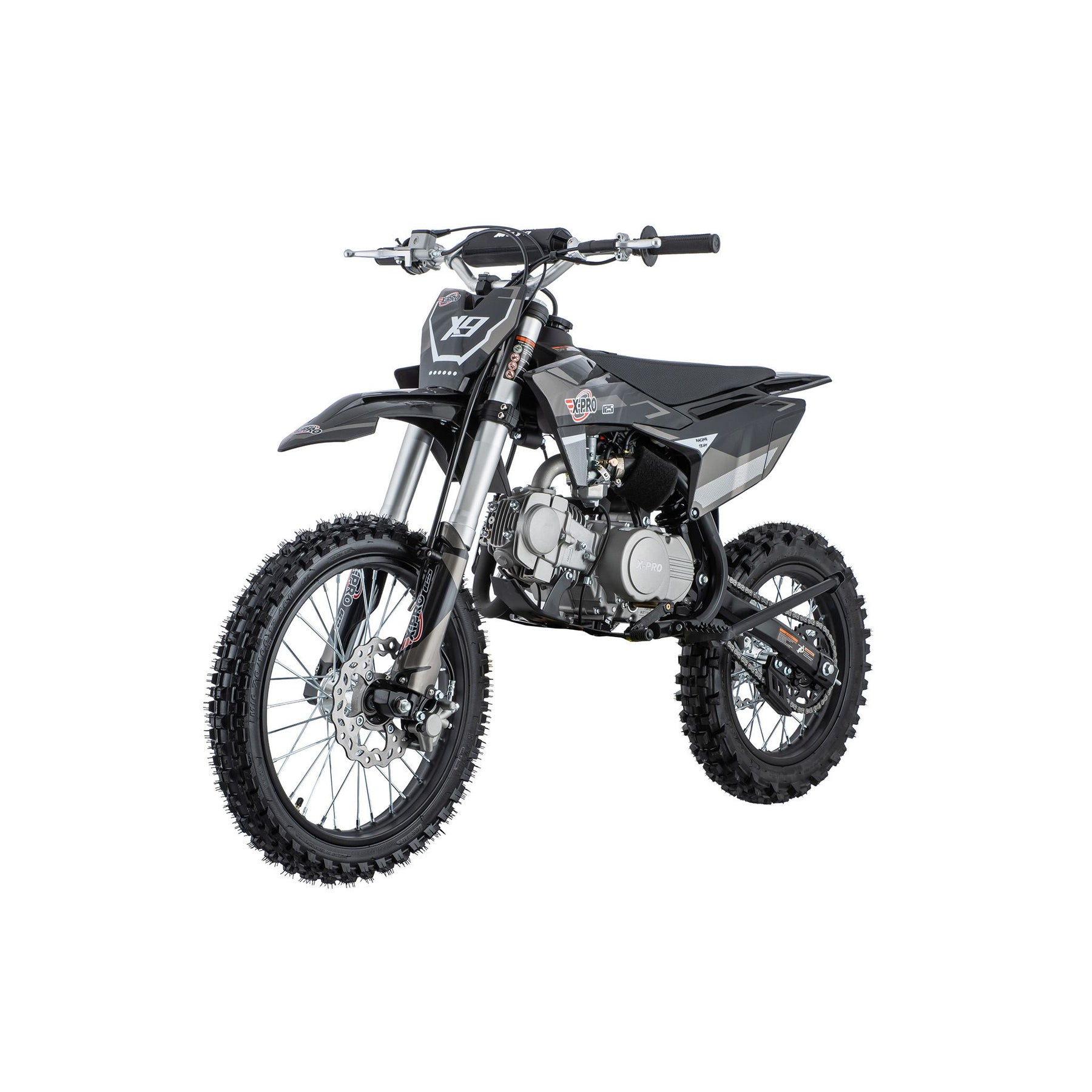

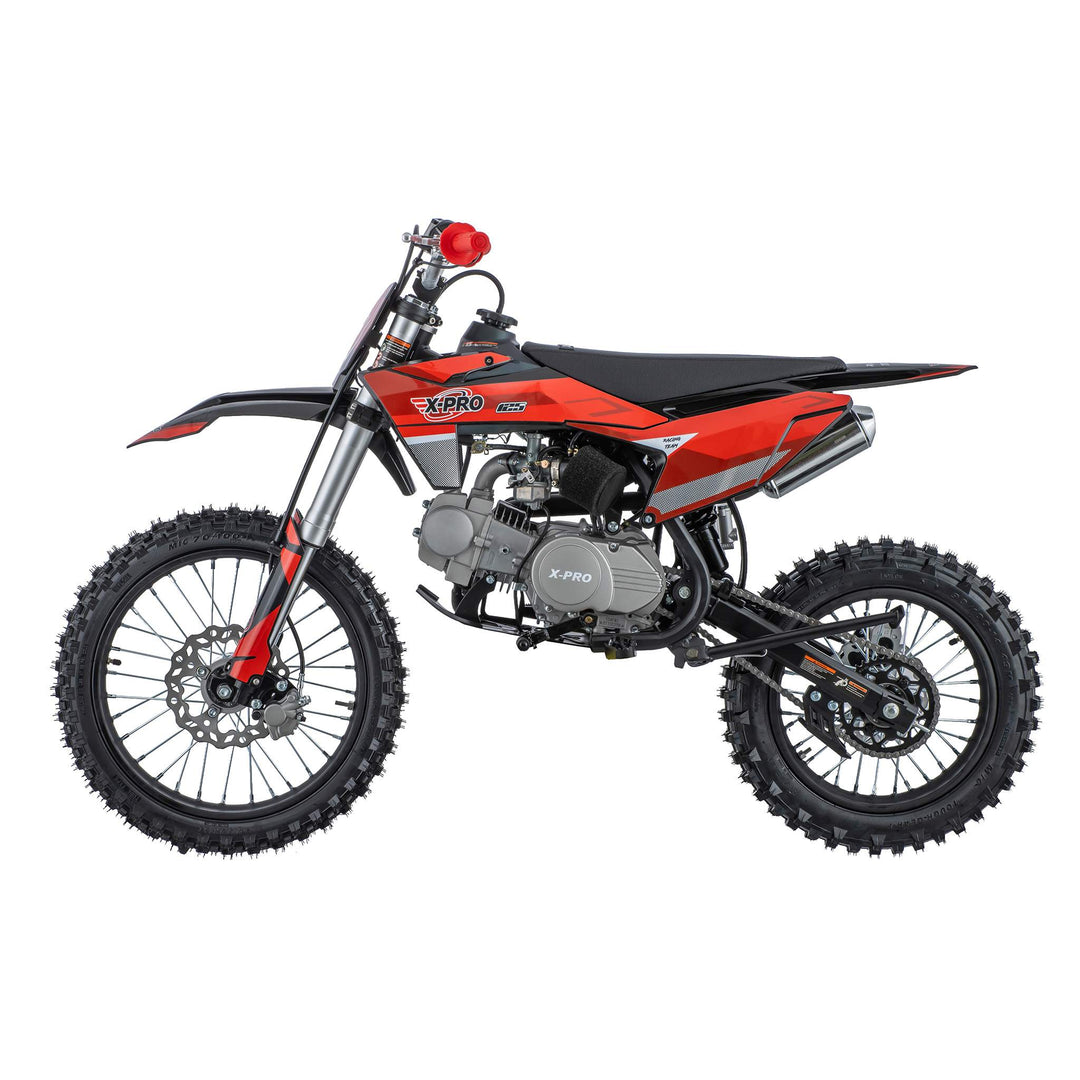

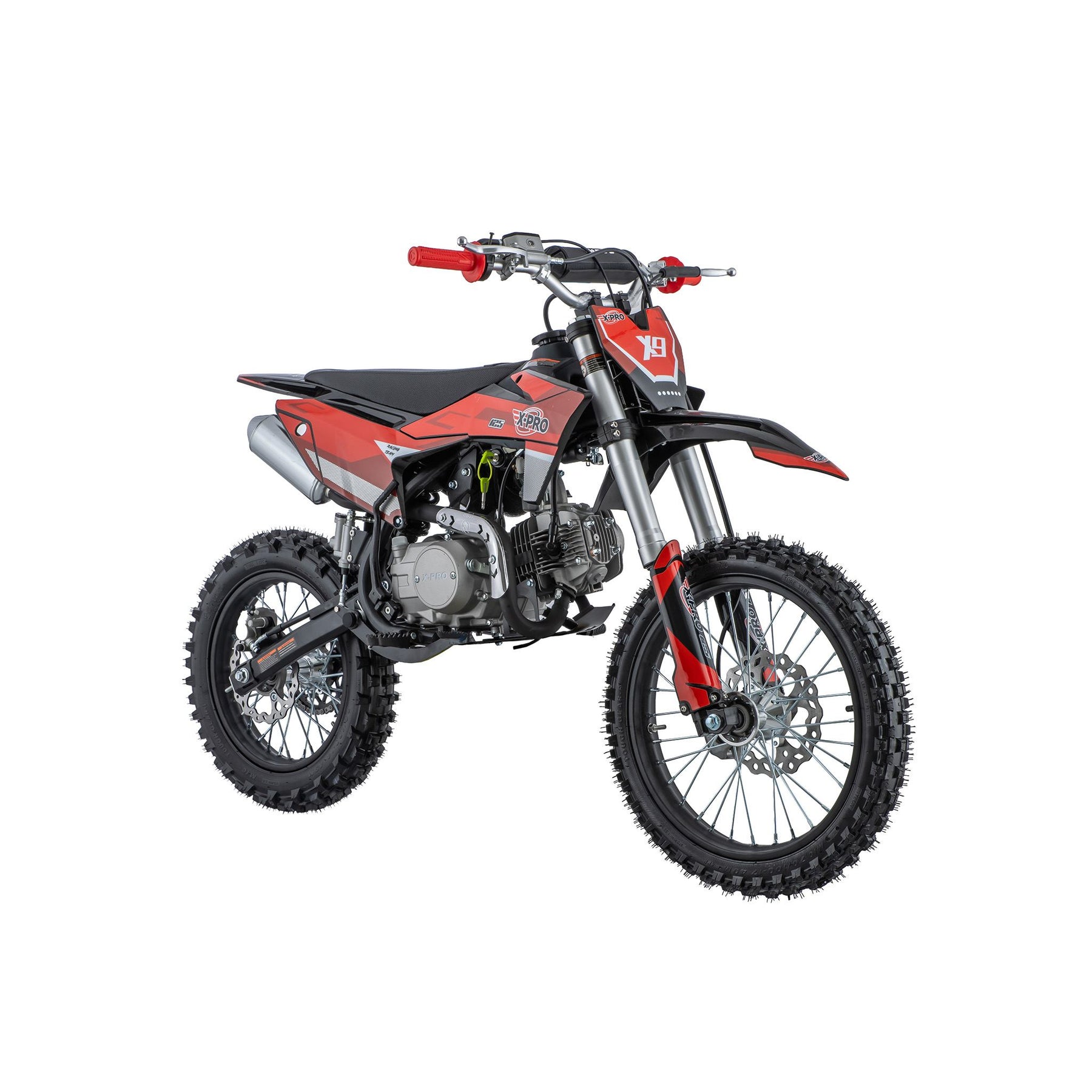

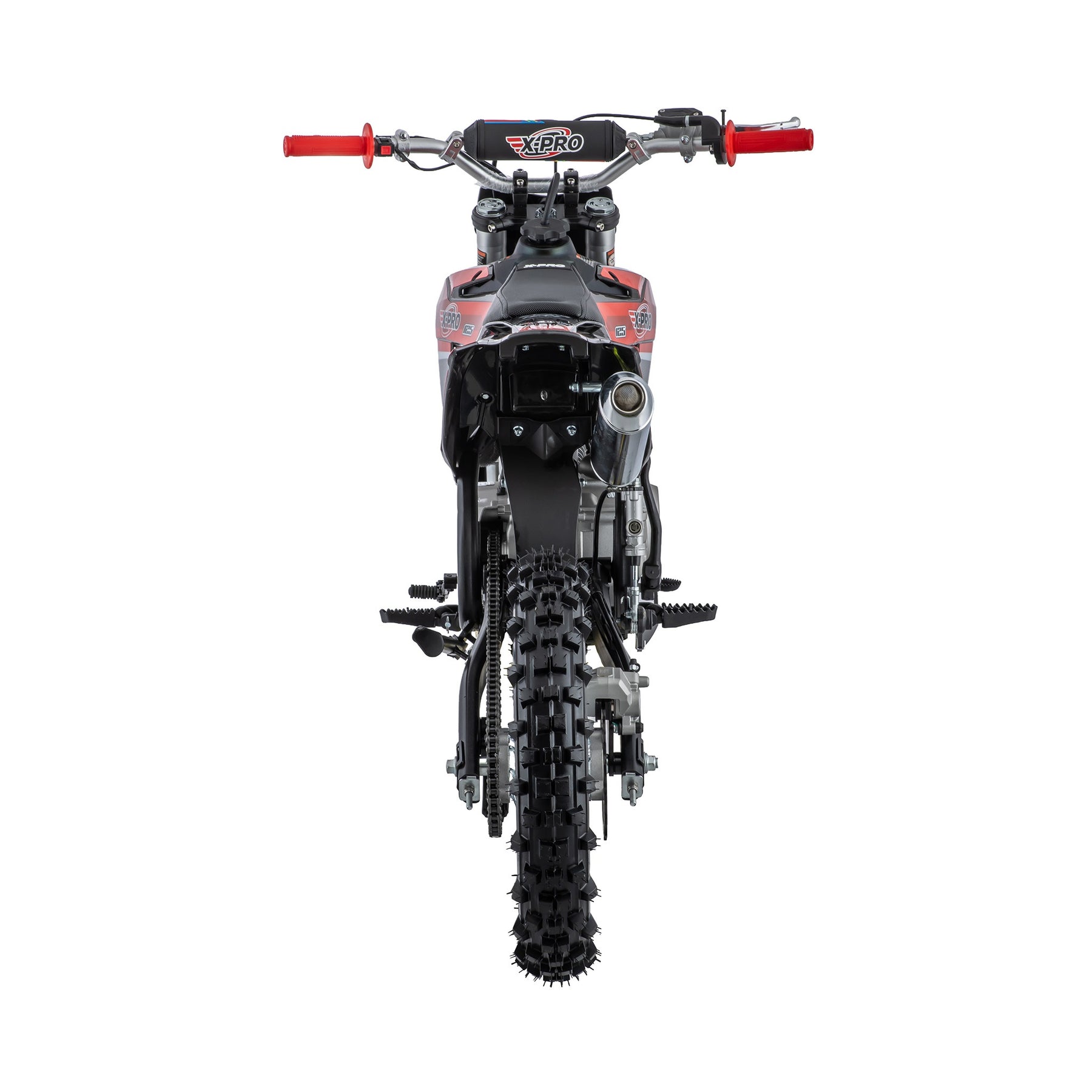

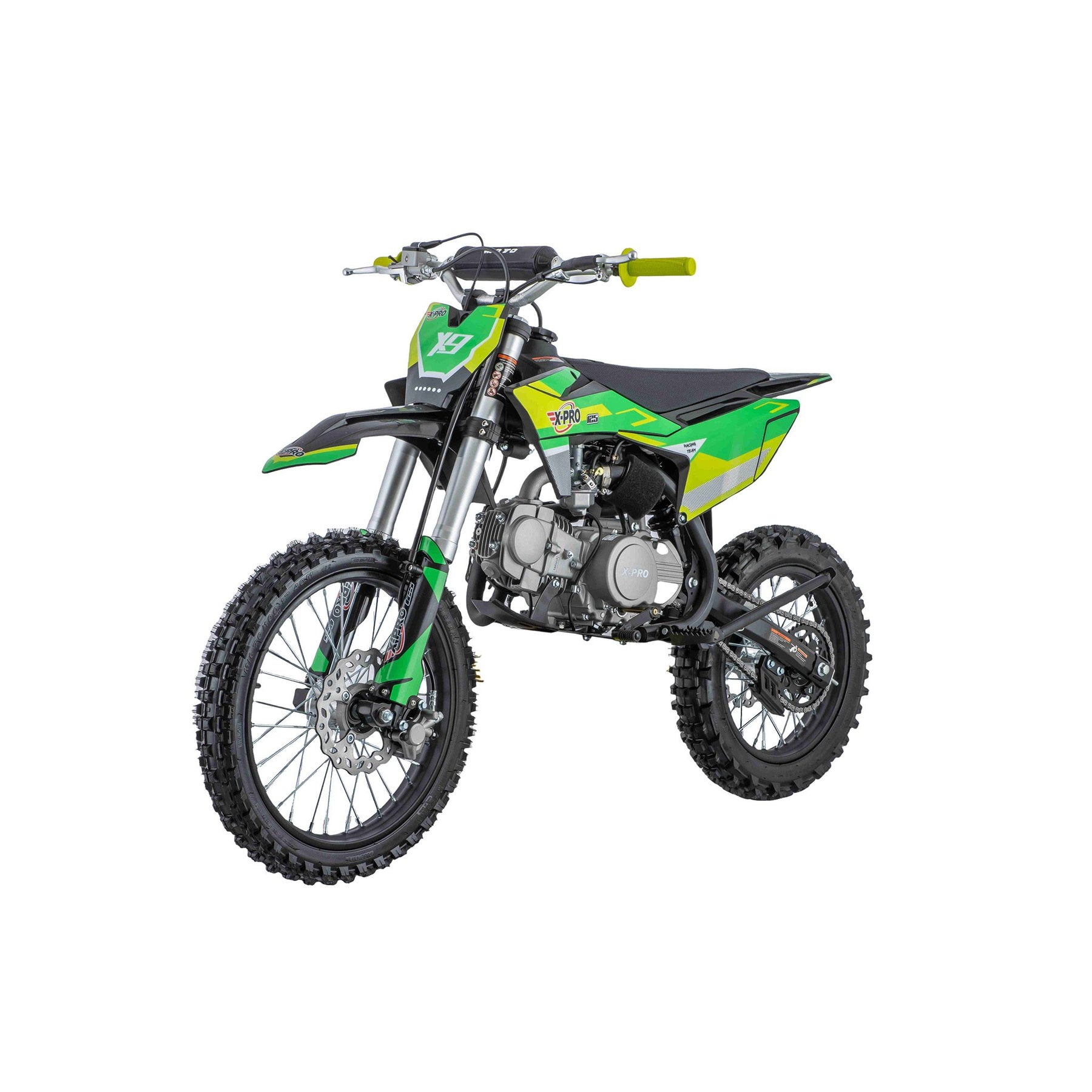

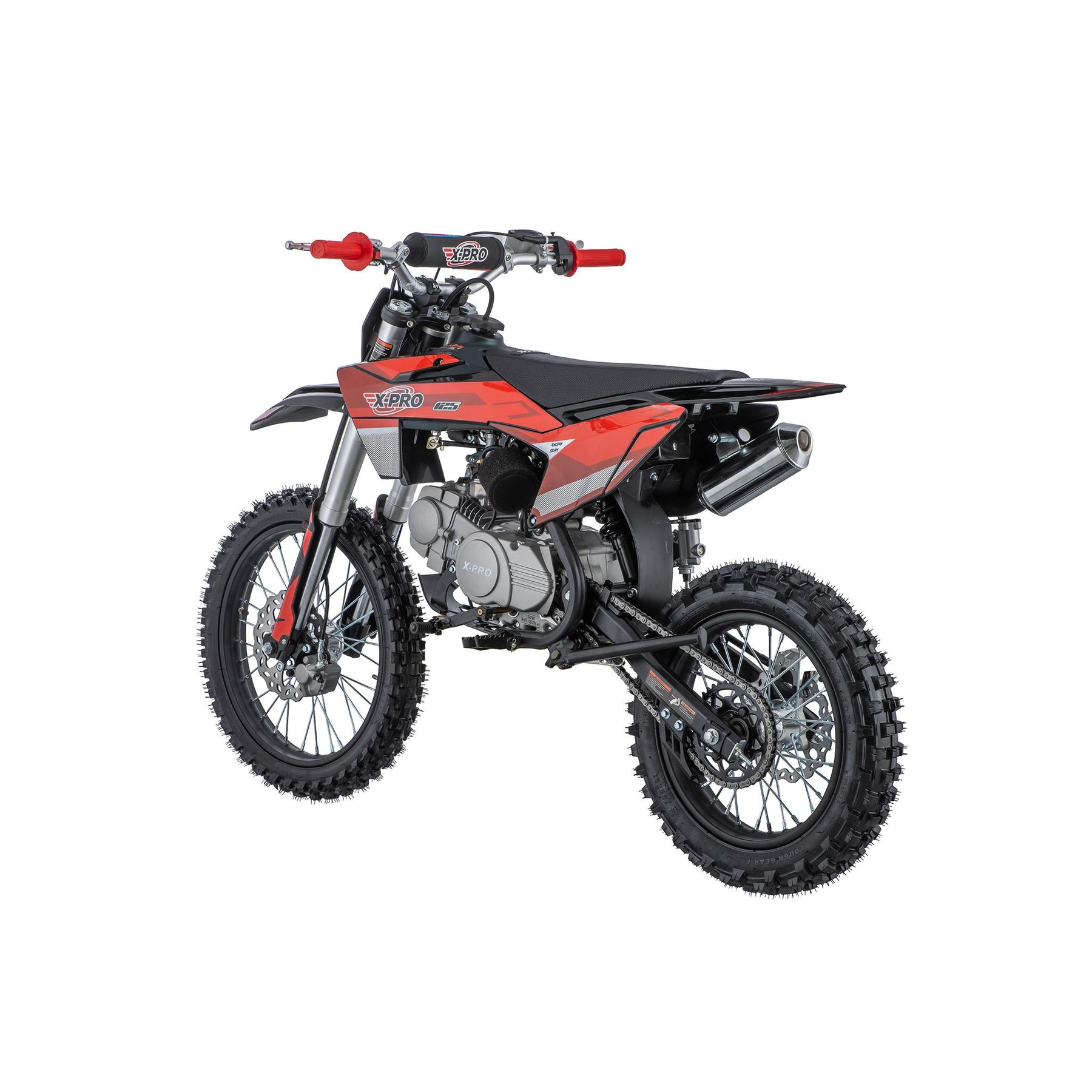

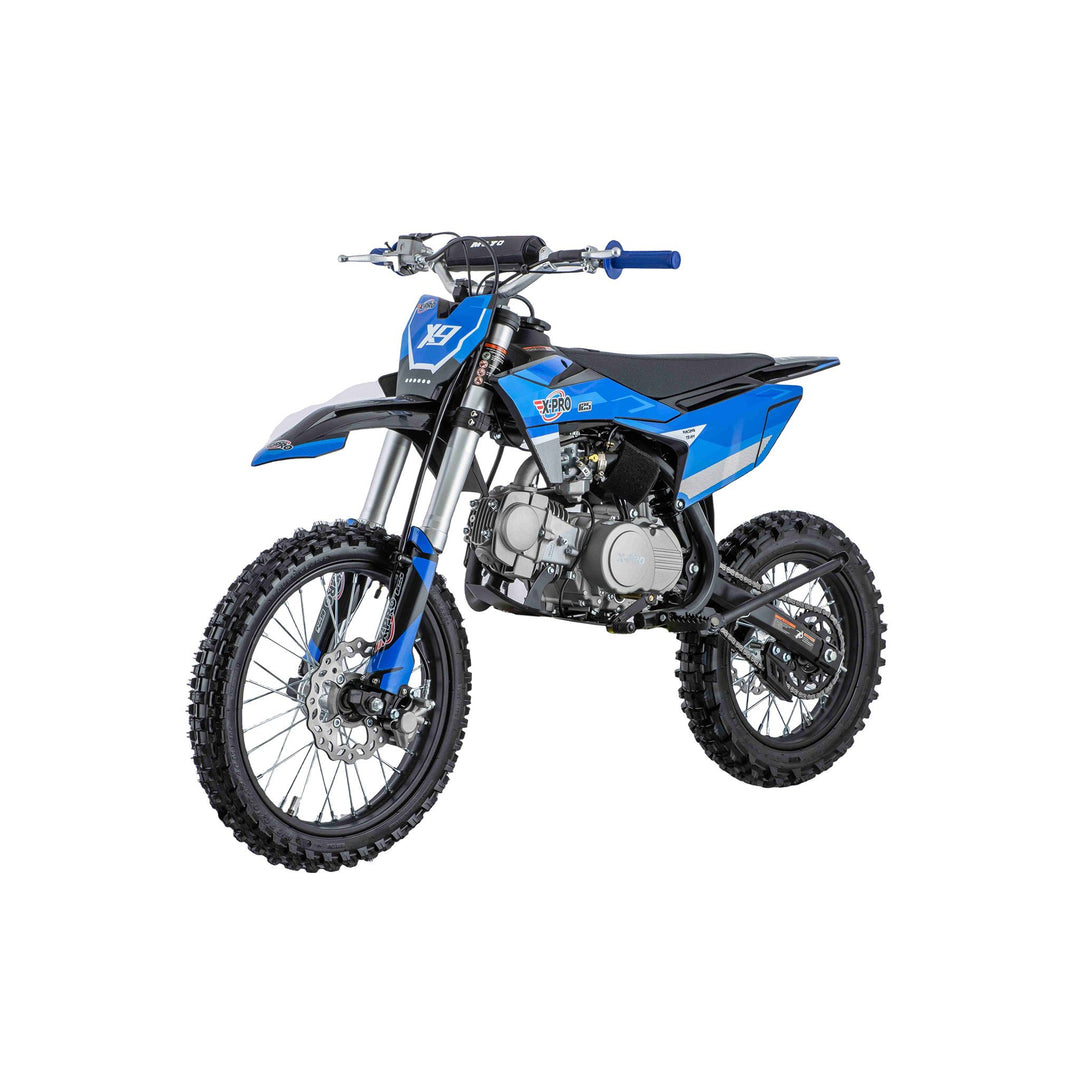

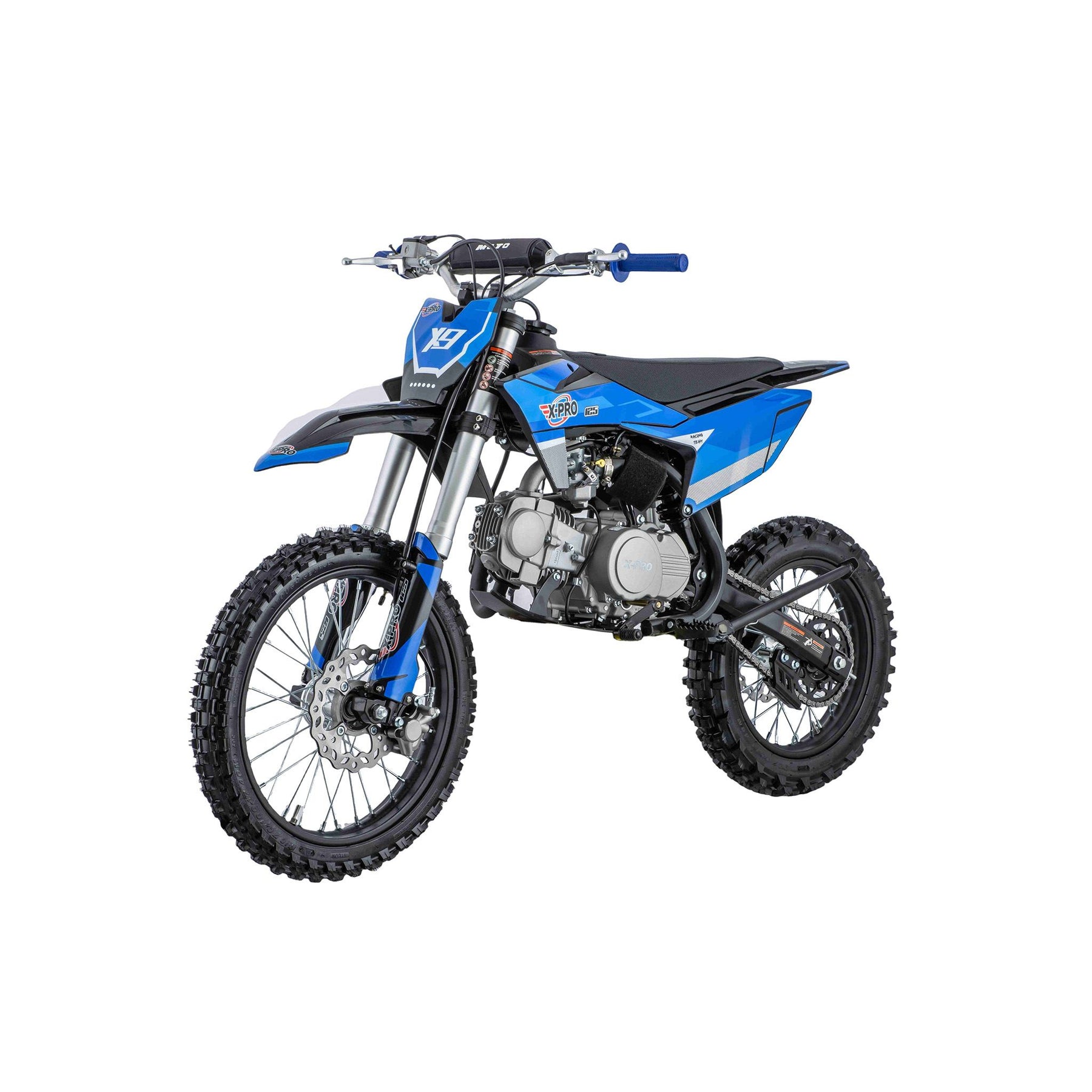

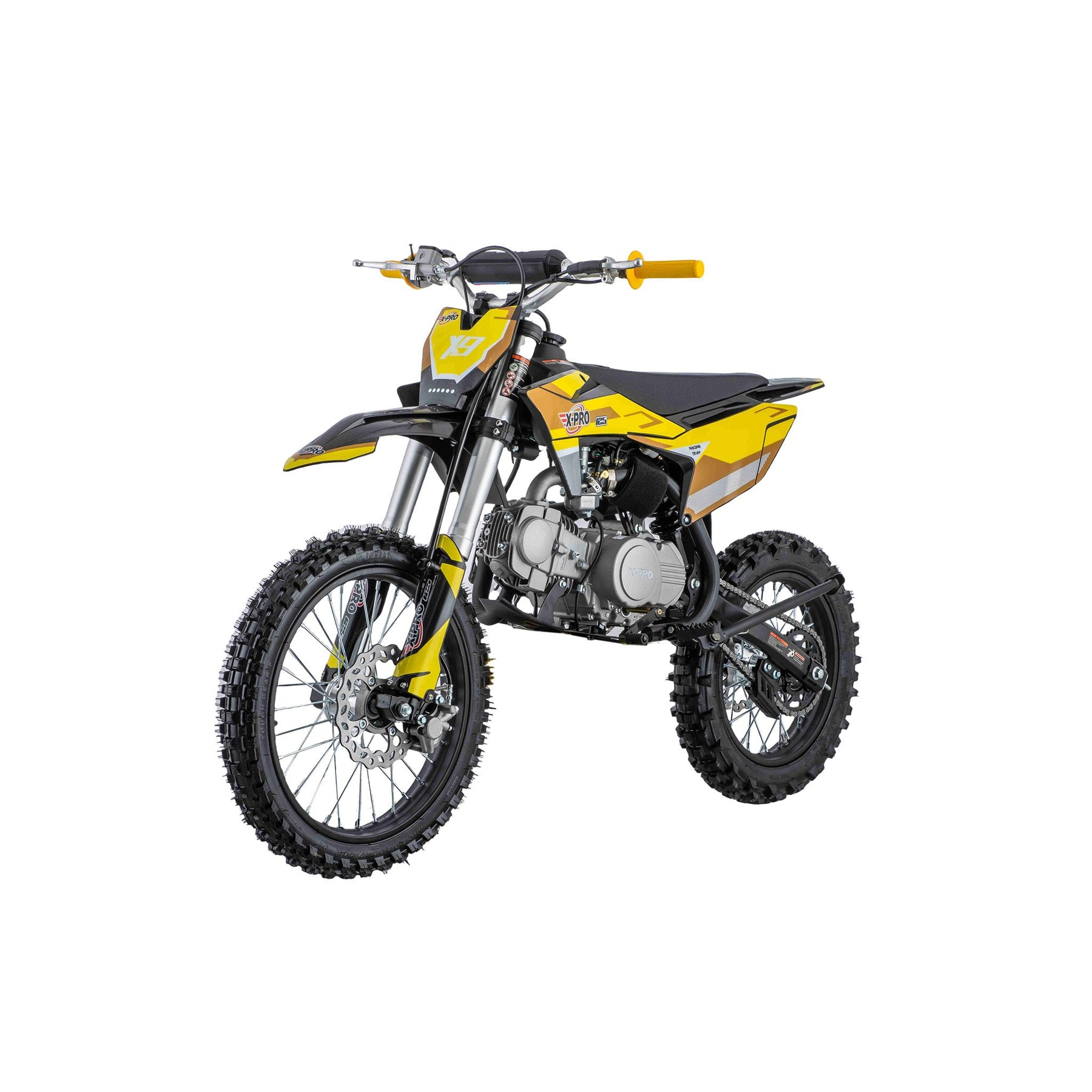

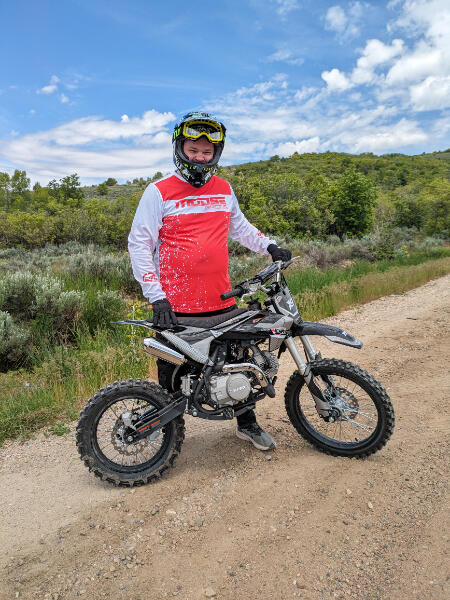

Free Shipping! X-PRO X9 125cc Dirt Bike with 4-Speed Manual Transmission, Kick Start, Big 17"/14" Tires! Cradle Type Steel Tube Frame!
How-To Guides
Specifications
| Model Number | DB-K001 |
| Engine/Drive Train | |
|---|---|

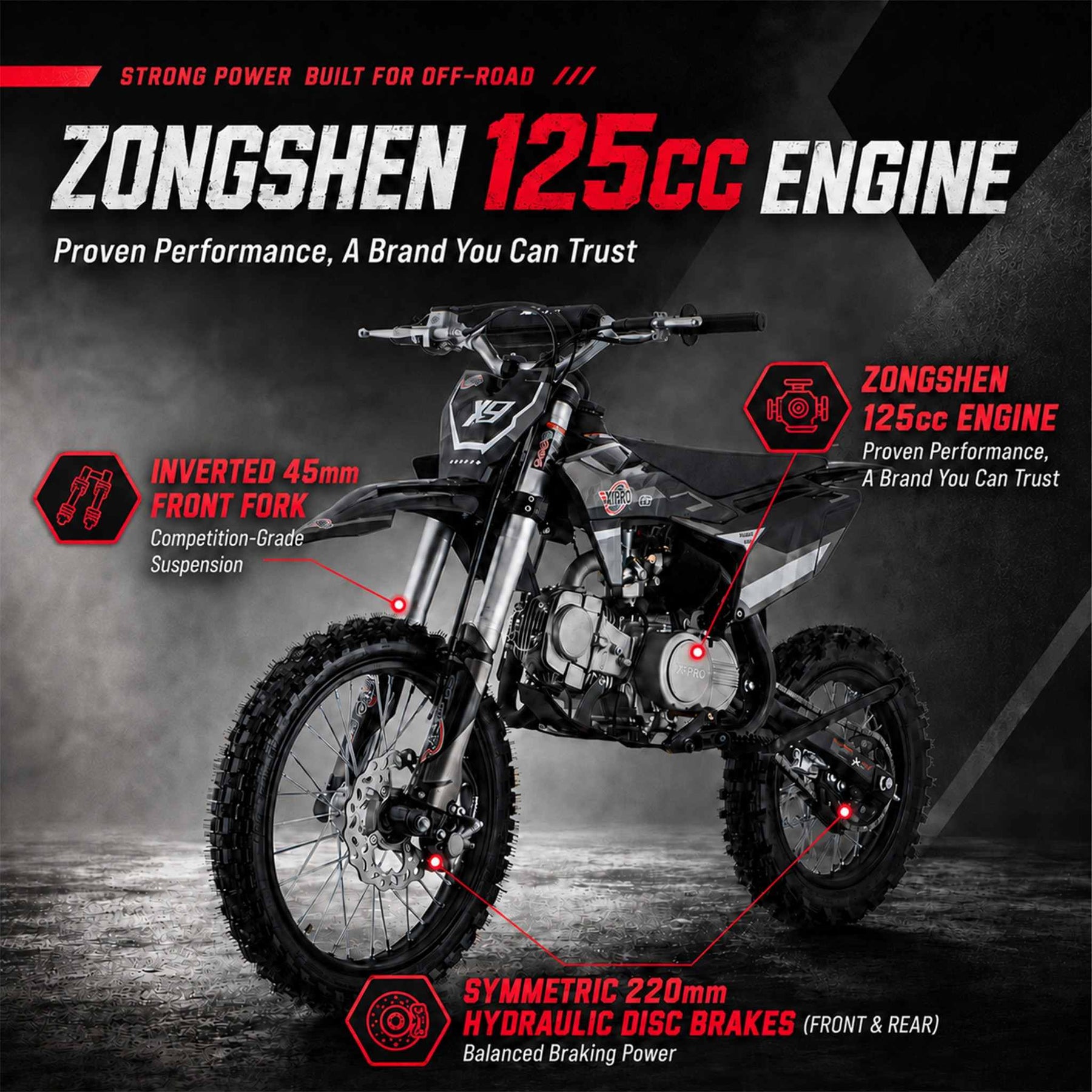

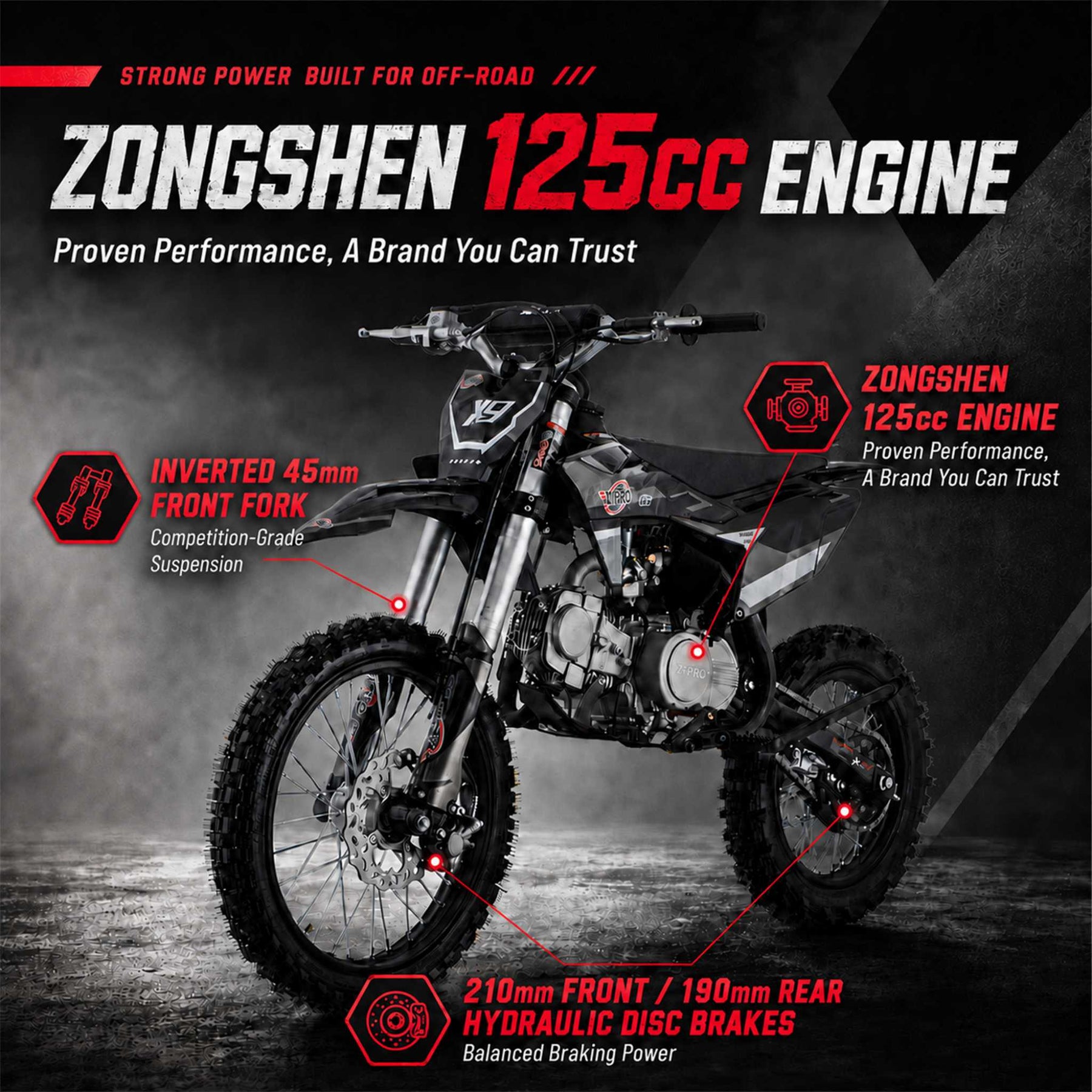

| Engine | 154FMI, 125cc, 4-Stroke |
| Cylinder Arrangement | Single |
| Cooling System | Air Cooled |
| Compression Ratio | 9.0:1 |
| BorexStroke | ￠54×54(mm) |
| Max Power[Kw/r/m] | 8.2（1±10%）/7000（1±5%） |
| Max Torque[N.m/r/m] | 9.0(1±10%）/5000（1±5%） |
| Transmission | 4-UP Manual Clutch |
| Start System | Kick start |
| Final Drive | #428 Chain, 14T/41T |
| Carburetor | PZ26 Jingke Carburetor |
| Ignition Type | C.D.I |
| Max Speed (MPH) | 45+ (Depending on Riders Weight and Road Conditions) |
| Frame /Body/ Suspension / Brakes | |

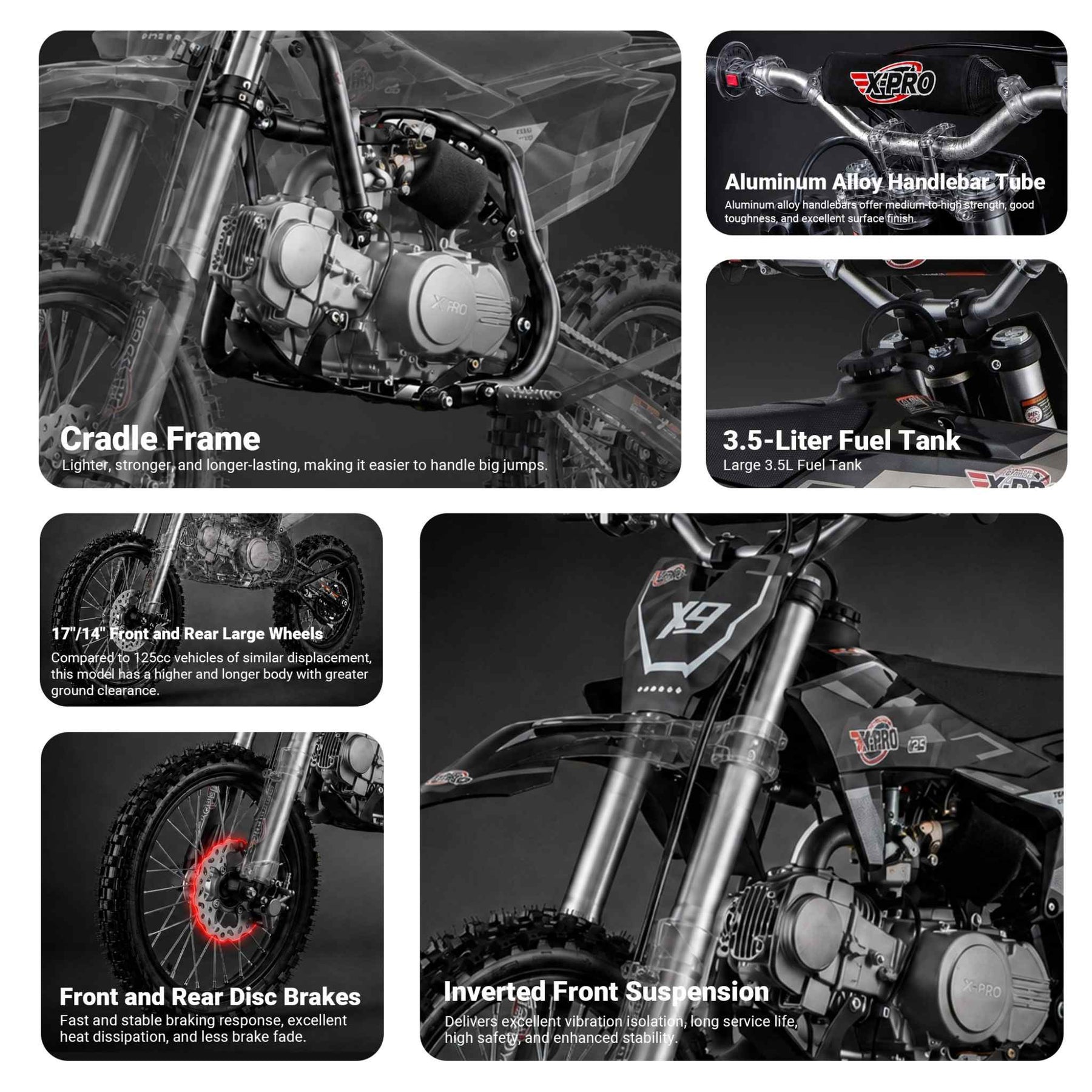

| Frame | Cradle Type Steel Tube Frame |
| Front Fork | Inverted 45*48-700mm Forks, Non-Adjustable |
| Rear Fork | ￠10*275mm , Non-Adjustable |
| Front Disc | Hydraulic Single Piston Caliper, 220mm Disc |
| Rear Disc | Hydraulic Single Piston Caliper, 190mm Disc |
| Front Tire | 70/100-17" |
| Rear Tire | 90/100-14" |
| Exhaust/Pipe | Steel Pipe with catalyst converter(EPA) |

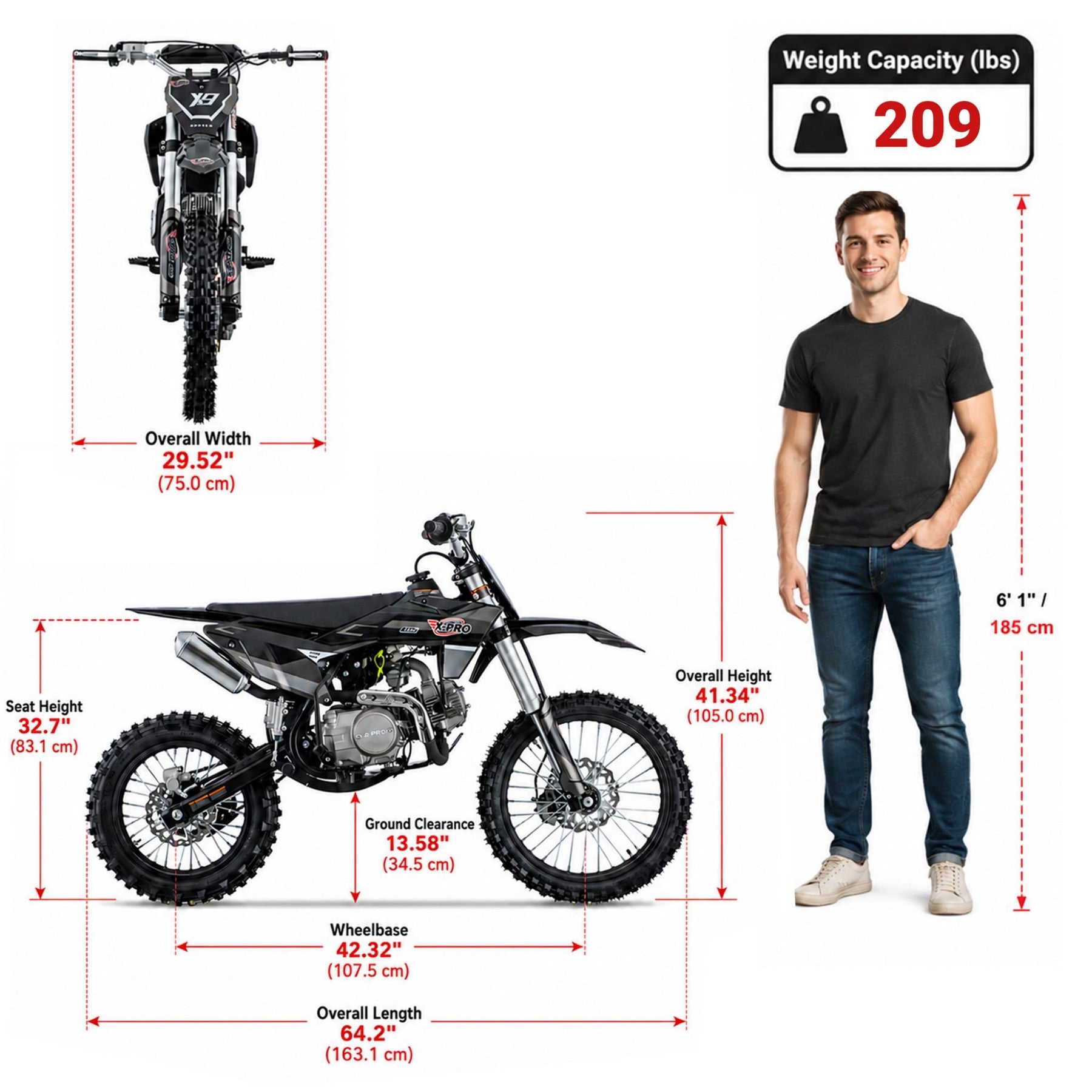

| Capacities / Dimensions | |
| Weight Capacity(lbs) | 209 |
| Gross Weight (lbs) | 160.9 |
| Net Weight (lbs) | 136.7 |
| Overall Length | 64.2" |
| Overall Width | 29.52" |
| Overall Height | 41.34" |
| Carton Dimension | 55 x 15 x 30" |
| Seat Height | 32.7" |
| Wheelbase | 42.32" |
| Ground Clearance | 13.58" |
| Fuel Capacity | 3.5L/0.92 Gal |
| Safety / Control | |
| Engine Kill Switch | Yes |
| Foot Brake | Yes |
| Others | |
| EPA Approved | Yes |
| D.O.T Approved | Yes |
|
|
|
| CARB Information | This bike is not legal for sale in California. |
