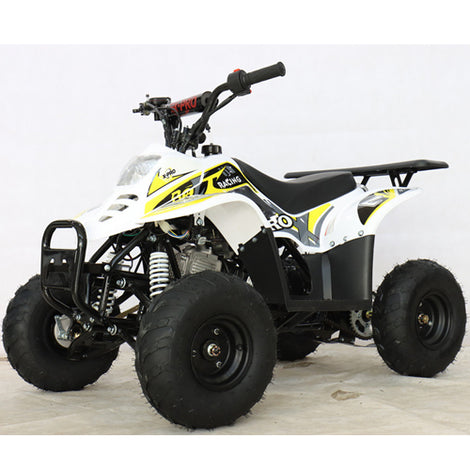

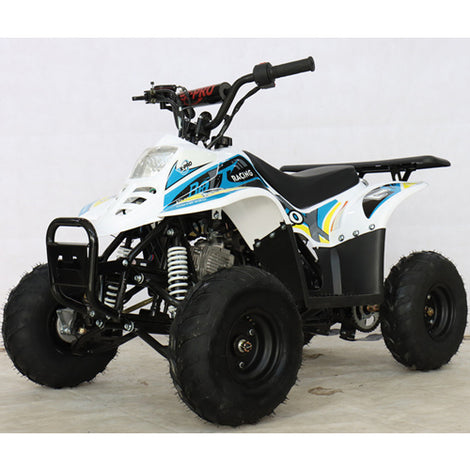

Free Shipping! X-PRO Bolt 110cc ATV with Automatic Transmission, Electric Start, 6" Tires! Remote Control!
How-To Guides
Specifications
| Model Number | ATV-H06 |
| Engine/Drive Train | |
|---|---|
| Engine | 110cc, 4 stroke |
| Cylinder Arrangement | Single |
| Bore x Stroke | 52.4x49.5 |
| Compression Ratio | 9.1:1 |
| Max Torque(N·m/r/min) | 6.7/5500 |
| Max Power[Kw/r/m] | 5.0Kw/8000 |
| Transmission | Automatic |
| Reverse Gear | No |
| Start System | Electric |
| Final Drive | Chain Drive |
| Ignition | CDI |
| Max Speed (MPH) | 25+ (Depending on Riders Weight and Road Conditions) |
| Battery | 12V/4Ah |
| Frame /Body/ Suspension / Brakes | |
| Suspensions | Hydraulic shock absorber |
| Front Brakes | Drum |
| Rear Brakes | Disc |
| Front Tires | 14.5X7-6 |
| Rear Tires | 14.5X7-6 |
| Capacities / Dimensions | |
| Max Loading(lbs) | 132 |
| Net Weight (lbs) | 165 |
| Gross Weight (lbs) | 187 |
| Overall Length | 55.5" |
| Overall Width | 29.1" |
| Overall Height | 34.6" |
| Carton Dimensions | 44.1x25.9x25.2" |
| Wheelbase | 33.8" |
| Seat Height | 27.2" |
| Ground Clearance | 2.6" |
| Fuel Capacity | 1.5L" |
| Safety / Control | |
| Engine Kill Switch | Yes |
| Speed Limiter | Yes |
| Remote Control | Yes |
| Head Light | Yes |
| Tail Light | Yes |
| Others | |
| Tool Kit | Yes |
| EPA Approved | Yes |
| DOT Approved | Yes |
