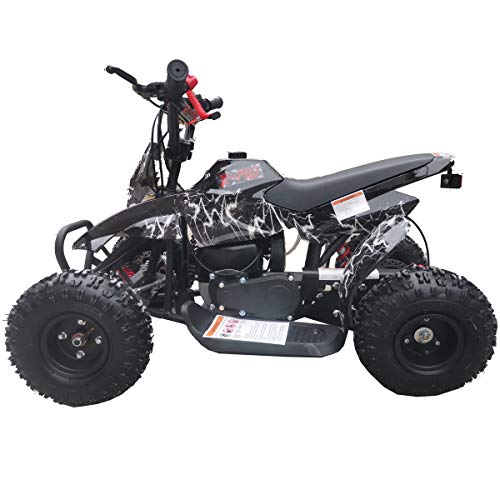

Free Shipping! X-PRO 40cc Kids ATV with Chain Transmission, Exclusive Model, Brand New Version! Disc Brake!
Description
CARB Information
This bike is not legal for sale in California.
Assembly
Assembly for MOST ATVs includes: Handle bar brackets (c clamps), all 4 wheels, front and rear racks (if included), rear shock and battery. (May differ per model)
Key Features
Engine / Drive- This ATV comes with an 40cc air-cooled engine designed to prevent overheating. There will be no worries about overheating or extra engine maintenance with this ATV.
| Model Type | X-PRO ATV | Ordinary ATV |
| EPA Standard | Whole bike passed EPA, manufactured strictly based on EPA standard | Might not |
| Performance | No Electronic Parts, Reliable, low-maintenance | Not stable |
- Chain Transmission gives more convenient handling for young users.
- Pull Start provides much easier control and handling, and gives the rider the great convenience in the event of a stall.
- Front and Rear Disc Brake provides a better stopping power compared to regular brake
Body / Suspension / Dimensions
- 16.5" seat height and high quality seat padding ensure you a roomy and comfortable riding experience.
- Plastic leather with foam padding seat gives a comfortable ride for you.
- 1.8L Fuel Tank for good distance riding.
Additional Features
- Engine Kill Switch and Speed Limiter.
- Front bumper that protects ATV in the event of a frontal impact.
- Some Assembly Required.
Specifications
| Model Number | ATV-Z03 |
| Engine/Drive Train | |
|---|---|
| Engine | 40cc, 4 stroke |
| Cylinder Arrangement | Single |
| Cooling System | Air Cooled |
| Transmission | Chain |
| Start System | Pull Start |
| Compression Ratio | 8.5:1 |
| Bore x Stroke | 39*33.5 |
| Max Torque[N.m/r/m] | 1.6/5000 |
| Max Speed | 15mile/h+ (Depending on Riders Weight and Road Conditions) |
| Ignition Type | Transistor |
| Frame /Body/ Suspension / Brakes | |
| Front Brake | Disc |
| Rear Brake | Disc |
| Front Tires | 4.10-4 |
| Rear Brake | 4.10-4 |
| Capacities / Dimensions | |
| Max.Load(lbs) | 80 |
| Net Weight (lbs) | 65 |
| Gross Weight (lbs) | 74.9 |
| Overall Length | 36" |
| Overall Width | 24" |
| Overall Hight | 23.6" |
| Carton Dimension | 35 x 20 x 17" |
| Seat Height | 16.5" |
| Wheelbase | 26" |
| Ground Clearance | 2" |
| Fuel Capacity (L) | 1.8 |
| Safety / Control | |
| Engine kill switch | Yes |
| Speed Limiter | Yes |
| Others | |
| EPA Approved | Yes |
|
|
|

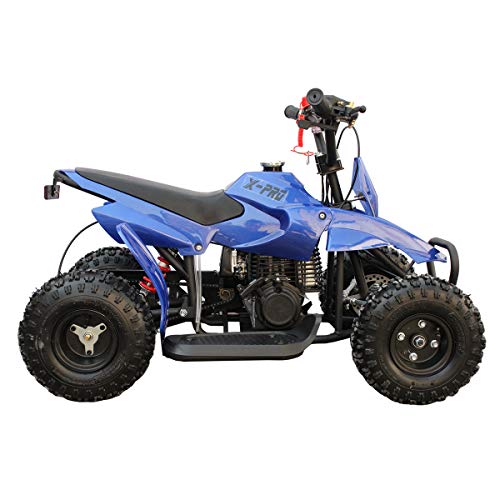

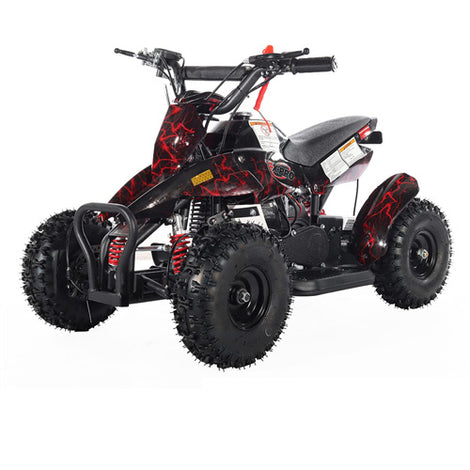

Gallery

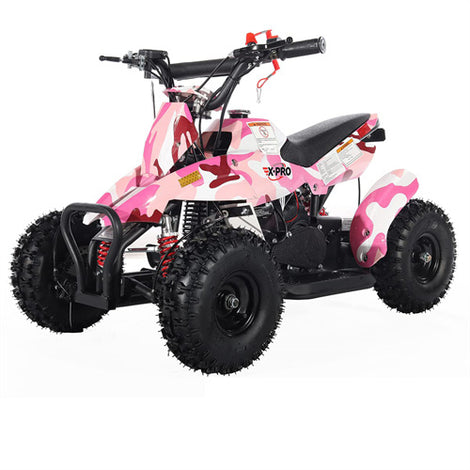

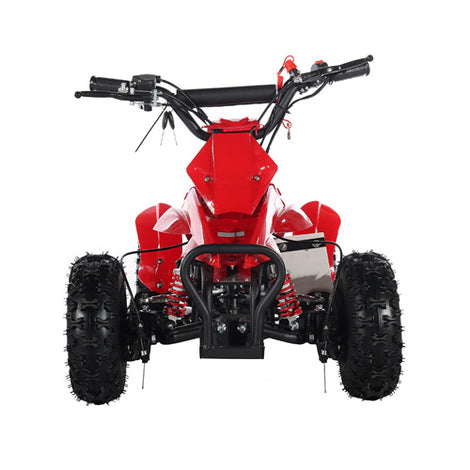

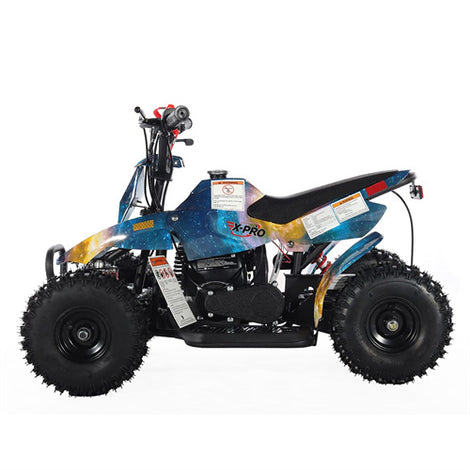

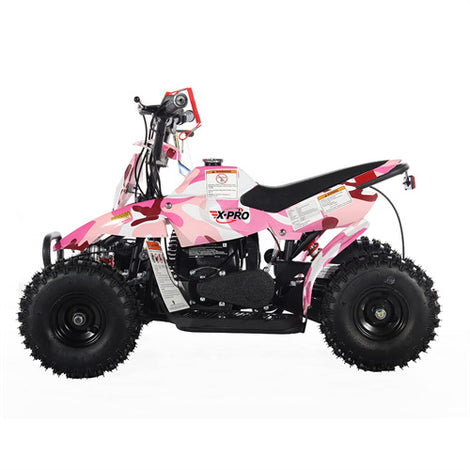

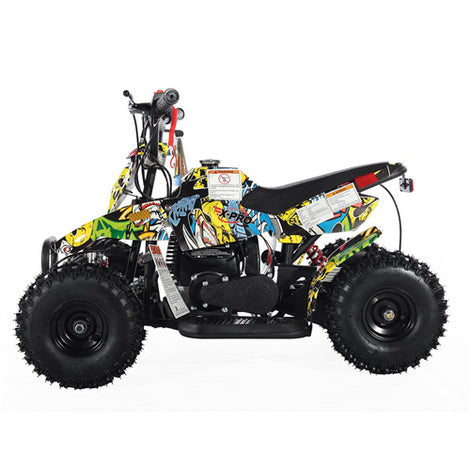

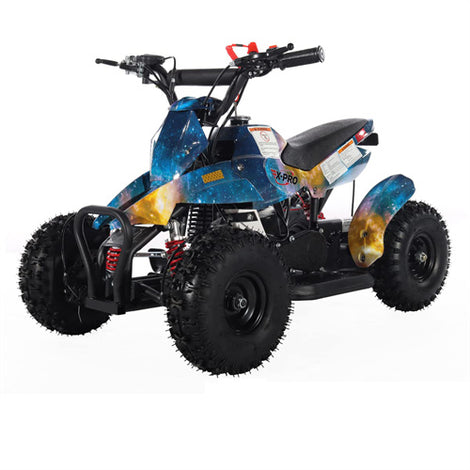

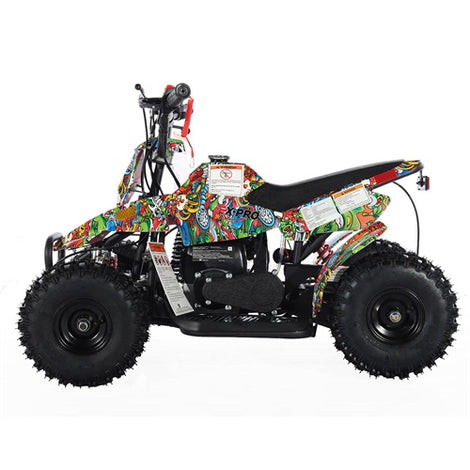

Different ColorsDifferent Angles
