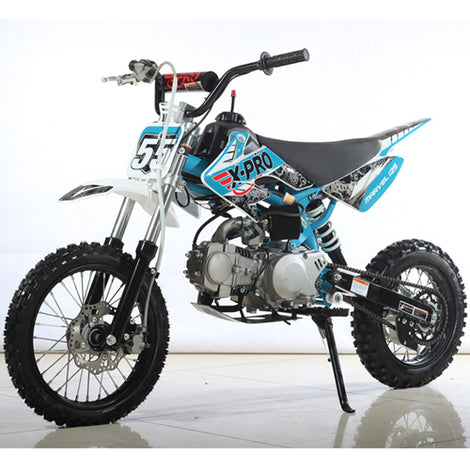

Free Shipping! X-PRO Marvel 125cc Dirt Bike with 4-Speed Semi-Automatic Transmission, Kick Start, 14"/12" Wheels!
How-To Guides
Specifications
| Model Number | DB-H10 |
| Engine/Drive Train | |
|---|---|
| Engine | 152FMI, 119.6cc, 4 stroke |
| Cylinder Arrangement | Single |
| Cooling System | Air Cooled |
| Compression Ratio | 9.0:1 |
| Bore x Stroke | Ф52.4×55.5 |
| Max Horsepower | 7.5/7500±500（MHP/r/m） |
| Max Horsepower | 9.0/5500±500（N•m/r/min） |
| Transmission | 4-Speed Semi-Automatic |
| Final Drive | Chain drive |
| Start System | Kick Start |
| Carburetor | PZ20 |
| Ignition | CDI |
| Max Speed (MPH) | 35+ (Depending on Riders Weight and Road Conditions) |
| Frame /Body/ Suspension / Brakes | |
| Front Suspension | L=630mm |
| Rear Suspension | L=280mm |
| Front Brakes | Disc |
| Rear Brakes | Disc |
| Front Tires | 60/100-14 |
| Rear Tires | 80/100-12 |
| Capacities / Dimensions | |
| Weight Capacity (lbs) | 176 |
| Net Weight (lbs) | 126 |
| Gross Weight (lbs) | 159 |
| Overall Length | 66.9" |
| Overall Width | 28.3" |
| Overall Height | 39.4" |
| Carton dimension (L*W*H/in) | 58 x 15 x 25" |
| Seat Height | 28.7" |
| Wheelbase | 46.1" |
| Ground Clearance | 9.4" |
| Fuel Capacity | 4L |
| Safety / Control | |
| Engine Kill Switch | Yes |
| Foot Brake | Yes |
| Others | |
| Tool Kit | Yes |
| EPA Approved | Yes |
| DOT Approved | Yes |
