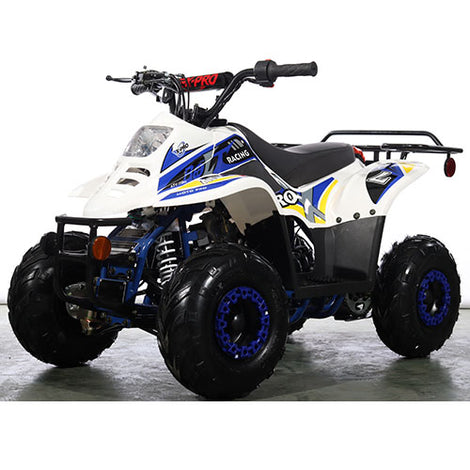

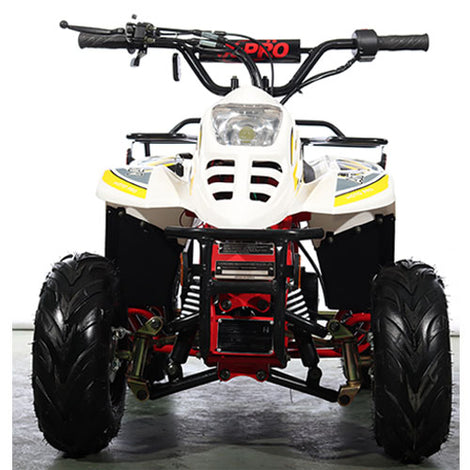

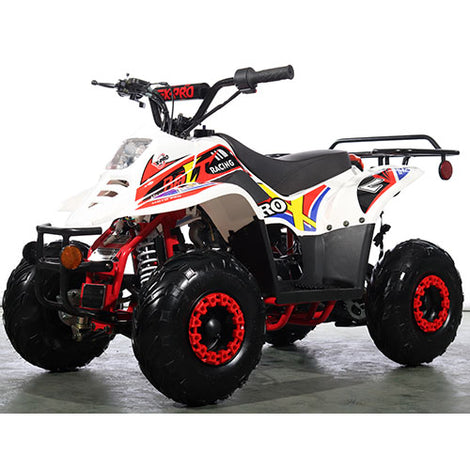

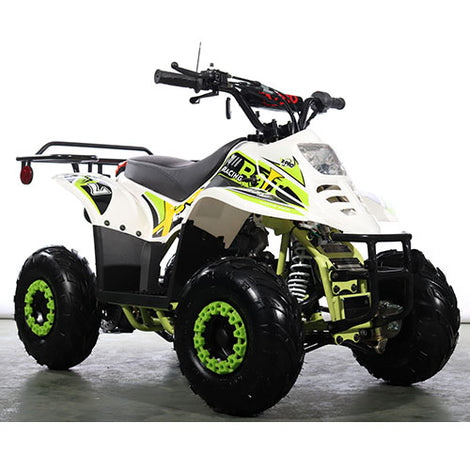

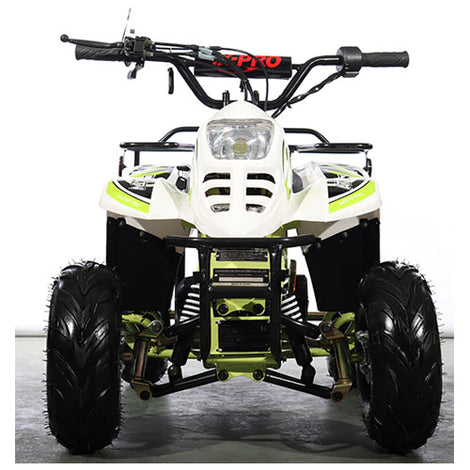

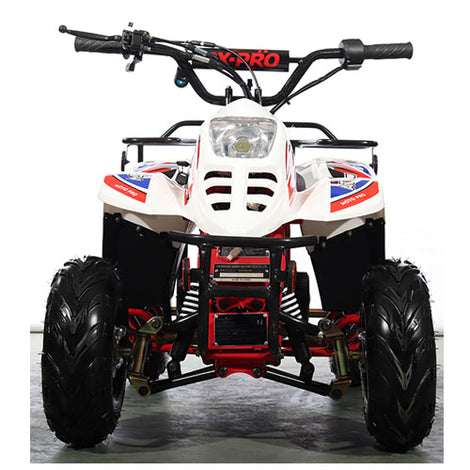

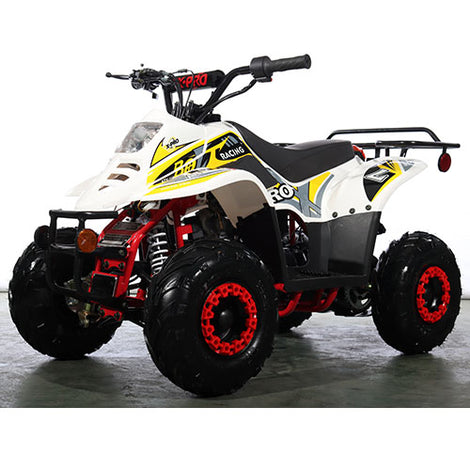

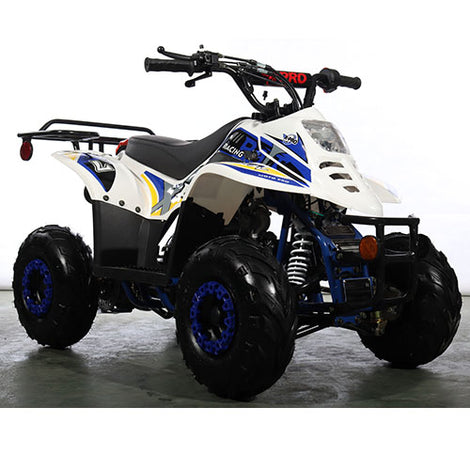

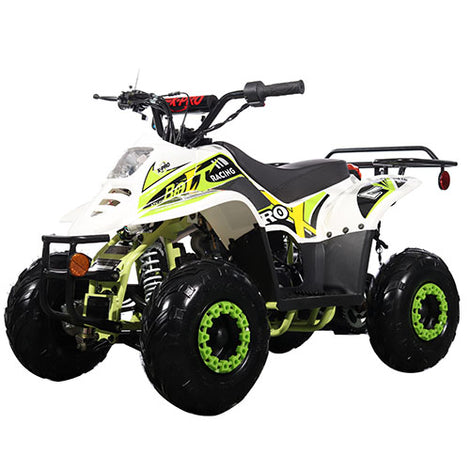

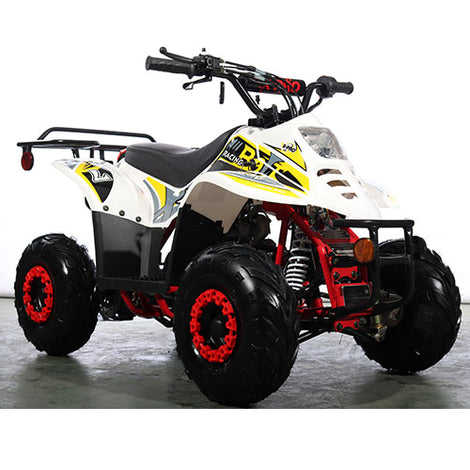

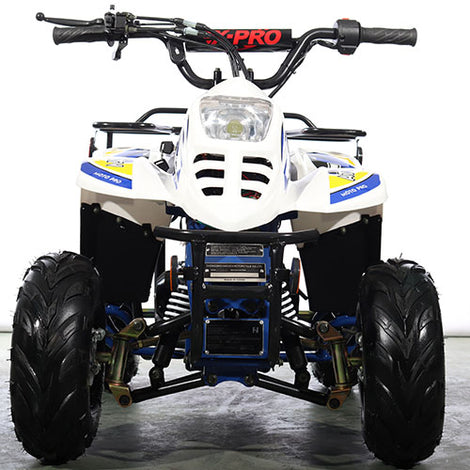

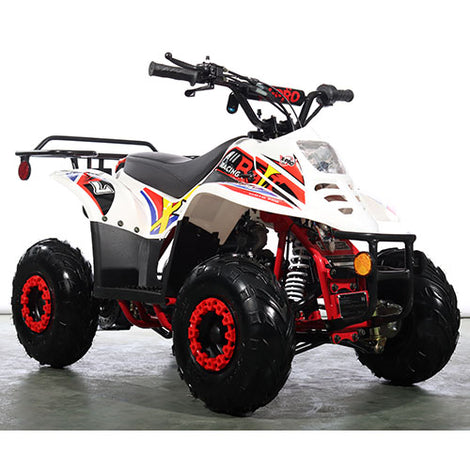

Free shipping! X-PRO Bolt 110cc ATV with Automatic Transmission, with Remote Control! Rear Rack!
How-To Guides
Specifications
| Model Number | ATV-D01 |
| Engine/Drive Train | |
|---|---|
| Engine | 110cc, 4 stroke, Air-cooled |
| Cylinder Arrangement | Single |
| Compression Ratio | 9.1:1 |
| Bore x Stroke | 52.4mmX49.5mm |
| Max Power[Kw/r/m] | 4.8kw/7500r/min |
| Max Torque(N·m/r/min) | 7.0/7500 |
| Transmission | Automatic |
| Starting System | Electric |
| Final Drive | Chain drive |
| Ignition | CDI |
| Battery | 4A |
| Frame /Body/ Suspension / Brakes | |
| Front Suspension | Double |
| Rear Suspension | Single |
| Front Brakes | Drum |
| Rear Brakes | Disc |
| Front Tires | 14.5x7-6 |
| Rear Tires | 14.5x7-6 |
| Capacities / Dimensions | |
| Max Loading(lbs) | 143 |
| Net Weight (lbs) | 168 |
| Gross Weight (lbs) | 183 |
| Overall Length | 49.2" |
| Overall Width | 28.7" |
| Overall Height | 33.9" |

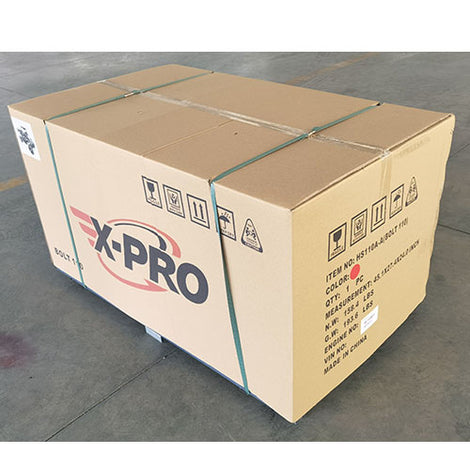

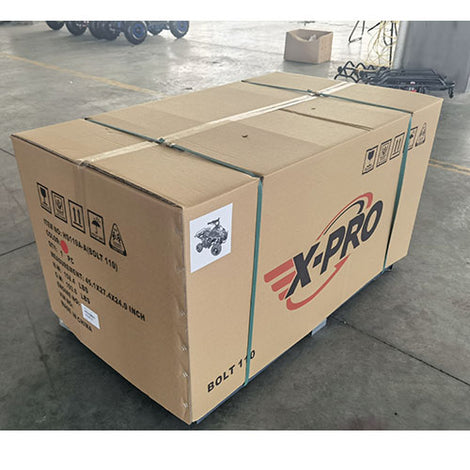

| Carton Dimensions | 45x28x25" |
| Wheelbase | 33" |
| Seat Height | 21.26" |
| Ground Clearance | 2.96" |
| Fuel Capacity [gal] | 0.53 |
| Safety / Control | |
| Engine Kill Switch | Yes |
| Speed Limiter | Yes |
| Foot Brake | Yes |
| Head Lights | Yes |
| Tail Light | Yes |
| Remote Control | Yes |
|
|
|
| CARB Information | This bike is not legal for sale in California. |
